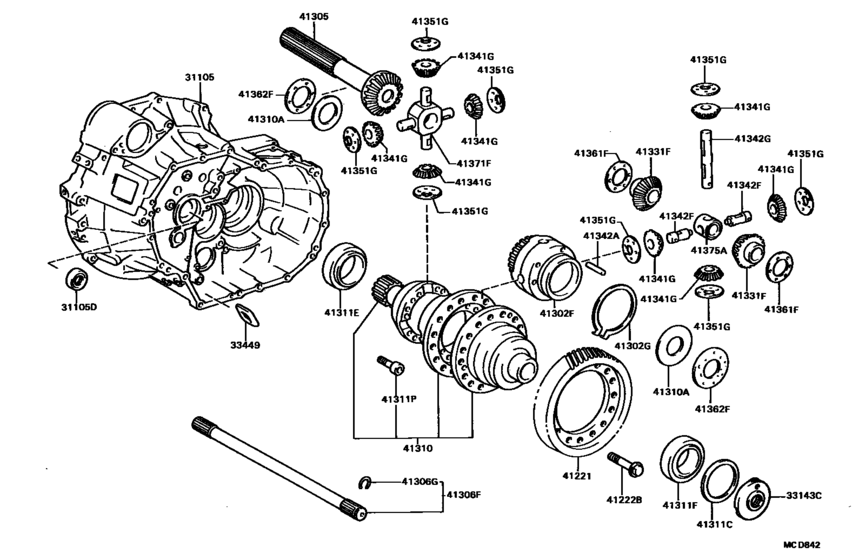

Front Axle Housing & Differential ([10.1986 - ] (8610- )ST165) Diagram Toyota CELICA
- Year
- 1986 - 1987
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1986
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31105
|
31105
31115-20011 Case Sub-Assy, Transaxle(Mtm)[10.1986 - 03.1987] ST165 |
31115-20011 |
US $503.78 |
||
| replacements | |||||
|
31105
|
31105
31115-33013 Case, Front Transaxle(Mtm)[10.1986 - 03.1987] ST165 |
31115-33013 |
US $538.72 |
||
|
31105
|
31105
90407-16017 Elbow (For Manual Transmission Oil Cooler Tube)[10.1986 - 03.1987] ST165 |
90407-16017 |
US $8.56 |
||
|
31105
|
31105
31121-20010
Cover, Clutch Housing, No.1
[10.1986 - 03.1987] ST165 |
31121-20010 |
— | ||
|
31105
|
31105
31115-20012 Case Sub-Assy, Transaxle(Mtm)[03.1987 - 08.1987] ST165 |
31115-20012 |
US $503.78 |
||
| replacements | |||||
|
31105
|
31105
31115-33013 Case, Front Transaxle(Mtm)[03.1987 - 08.1987] ST165 |
31115-33013 |
US $538.72 |
||
|
31105
|
31105
90407-16017 Elbow (For Manual Transmission Oil Cooler Tube)[03.1987 - 08.1987] ST165 |
90407-16017 |
US $8.56 |
||
|
31105
|
31105
31121-20010
Cover, Clutch Housing, No.1
[03.1987 - 08.1987] ST165 |
31121-20010 |
— | ||
|
31105D
|
31105D
90311-30006
Seal, Oil, No.1(For Front Transaxle Case)
[10.1986 - 08.1987] ST165 |
90311-30006 |
— | ||
| replacement | |||||
|
31105D
|
31105D
90311-30017 Seal, Oil, No.1(For Front Transaxle Case)OIL, NO.1(FOR FRONT TRANSAXLE CASE) [10.1986 - 08.1987] ST165 |
90311-30017 |
from US $4.64 |
||
|
33143C
|
33143C
33143-20040
Baffle, Rear Differential Oil
[10.1986 - 08.1987] ST165 |
33143-20040 |
— | ||
|
33449
|
33449
33449-20010 Magnet, Transmission[10.1986 - 08.1987] ST165 |
33449-20010 |
US $5.97 |
||
|
41221
|
41221
41221-20240 Gear, Front Differential Ring[10.1986 - 08.1987] ST165 |
41221-20240 |
US $189.28 |
||
|
41222B
|
41222B
90105-12134 Bolt (For Front Differential Ring Gear Set)[10.1986 - 08.1987] ST165 |
90105-12134 |
US $3.64 |
||
| replacement | |||||
|
41222B
|
41222B
90105-12150 Bolt (For Rear Differential Ring Gear Set)[10.1986 - 08.1987] ST165 |
90105-12150 |
US $4.16 |
||
|
41302F
|
41302F
41302-20010 Case Sub-Assy, Front Differential[10.1986 - 08.1987] ST165 |
41302-20010 |
US $266.45 |
||
|
41302G
|
41302G
90520-86002 Ring, Snap(For Front Differential Case)[10.1986 - 08.1987] ST165 |
90520-86002 |
US $2.77 |
||
|
41305
|
41305
41305-20011 Gear Sub-Assy, Differential Side[10.1986 - 08.1987] ST165 |
41305-20011 |
US $136.86 |
||
|
41306F
|
41306F
41306-20010 Shaft Sub-Assy, Differential Side Gear Inter[10.1986 - 08.1987] ST165 |
41306-20010 |
US $136.86 |
||
|
41306G
|
41306G
90521-26004 Ring, Hole Snap (For Front Differential Side Gear Shaft)[10.1986 - 08.1987] ST165 |
90521-26004 |
from US $1.60 |
||
|
41310
|
41310
41310-20211 Case Assy, Differential[10.1986 - 08.1987] ST165 |
41310-20211 |
US $353.81 |
||
|
41310A
|
41310A
90208-36001 Washer, Conical Spring(For Differential Case)[10.1986 - 08.1987] ST165 LH |
90208-36001 |
US $3.32 |
||
|
41310A
|
41310A
90208-41001 Washer, Conical Spring(For Differential Case)[10.1986 - 08.1987] ST165 RH |
90208-41001 |
from US $3.20 |
||
|
41311C
|
41311C
90564-76001 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．００，マーク ０,T=2.00 |
90564-76001 |
US $4.02 |
||
|
41311C
|
41311C
90564-76002 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．０５，マーク １,T=2.05 |
90564-76002 |
US $4.08 |
||
|
41311C
|
41311C
90564-76003 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．１０，マーク ２,T=2.10 |
90564-76003 |
US $4.08 |
||
|
41311C
|
41311C
90564-76004 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．１５，マーク ３,T=2.15 |
90564-76004 |
US $4.08 |
||
|
41311C
|
41311C
90564-76005 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．２０，マーク ４,T=2.20 |
90564-76005 |
US $5.53 |
||
|
41311C
|
41311C
90564-76006 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．２５，マーク ５,T=2.25 |
90564-76006 |
US $5.53 |
||
|
41311C
|
41311C
90564-76007 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．３０，マーク ６,T=2.30 |
90564-76007 |
US $5.53 |
||
|
41311C
|
41311C
90564-76008 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．３５，マーク ７,T=2.35 |
90564-76008 |
US $5.53 |
||
|
41311C
|
41311C
90564-76009 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．４０，マーク ８,T=2.40 |
90564-76009 |
US $5.53 |
||
|
41311C
|
41311C
90564-76010 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．４５，マーク ９,T=2.45 |
90564-76010 |
US $5.53 |
||
|
41311C
|
41311C
90564-76011 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．５０，マーク Ａ,T=2.50 |
90564-76011 |
US $5.53 |
||
|
41311C
|
41311C
90564-76012 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．５５，マーク Ｂ,T=2.55 |
90564-76012 |
US $5.53 |
||
|
41311C
|
41311C
90564-76013 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．６０，マーク Ｃ,T=2.60 |
90564-76013 |
US $5.53 |
||
|
41311C
|
41311C
90564-76014 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．６５，マーク Ｄ,T=2.65 |
90564-76014 |
US $5.53 |
||
|
41311C
|
41311C
90564-76015 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．７０，マーク Ｅ,T=2.70 |
90564-76015 |
US $5.53 |
||
|
41311C
|
41311C
90564-76016 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．７５，マーク Ｆ,T=2.75 |
90564-76016 |
US $5.53 |
||
|
41311C
|
41311C
90564-76017 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．８０，マーク Ｇ,T=2.80 |
90564-76017 |
US $5.53 |
||
|
41311C
|
41311C
90564-76018 Shim(For Differential Case)[10.1986 - 08.1987] ST165 厚さ＝２．８５，マーク Ｈ,T=2.85 |
90564-76018 |
US $5.53 |
||
|
41311E
|
41311E
90366-57001 Bearing(For Rear Differential Case)[10.1986 - 08.1987] ST165 |
90366-57001 |
from US $44.23 |
||
|
41311F
|
41311F
90366-50014 Bearing(For Rear Differential Case)[10.1986 - 08.1987] ST165 |
90366-50014 |
US $36.78 |
||
|
41311P
|
41311P
90149-10002 Bolt (For Front Differential Case)[10.1986 - 08.1987] ST165 |
90149-10002 |
US $4.37 |
||
|
41331F
|
41331F
41331-20020 Gear, Front Differential Side[10.1986 - 08.1987] ST165 |
41331-20020 |
US $57.08 |
||
|
41341G
|
41341G
41341-20020 Pinion, Rear Differential[10.1986 - 08.1987] ST165 CENTER DIFF |
41341-20020 |
from US $22.86 |
||
|
41341G
|
41341G
41341-20030 Pinion, Center Differential[10.1986 - 08.1987] ST165 FRONT DIFF |
41341-20030 |
US $33.05 |
||
|
41342A
|
41342A
90250-05028 Pin, Straight (For Front Differential Pinion Shaft)[10.1986 - 08.1987] ST165 |
90250-05028 |
US $1.46 |
||
|
41342F
|
41342F
41342-20040 Shaft, Front Differential Pinion, No.1[10.1986 - 08.1987] ST165 |
41342-20040 |
US $12.08 |
||
|
41342G
|
41342G
41342-20030 Shaft, Center Differential Pinion[10.1986 - 08.1987] ST165 |
41342-20030 |
US $20.24 |
||
|
41351G
|
41351G
41351-20010 Washer, Rear Differential Pinion Thrust[10.1986 - 08.1987] ST165 CENTER DIFF |
41351-20010 |
US $1.60 |
||
|
41351G
|
41351G
41351-20020 Washer, Center Differential Pinion Trust[10.1986 - 08.1987] ST165 FRONT DIFF |
41351-20020 |
US $1.60 |
||
|
41361F
|
41361F
41361-20020 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝０．９５,T=0.95,LH |
41361-20020 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12330 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝０．９５,T=0.95,LH |
41361-12330 |
US $2.91 |
||
|
41361F
|
41361F
41361-20030 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．００,T=1.00 |
41361-20030 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12340 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．００,T=1.00 |
41361-12340 |
from US $2.91 |
||
|
41361F
|
41361F
41361-20040 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．０５,T=1.05 |
41361-20040 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12350 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．０５,T=1.05 |
41361-12350 |
US $2.91 |
||
|
41361F
|
41361F
41361-20050 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．１０,T=1.10 |
41361-20050 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12360 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．１０,T=1.10 |
41361-12360 |
US $2.91 |
||
|
41361F
|
41361F
41361-20060 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．１５,T=1.15 |
41361-20060 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12370
Washer, Center Differential Side Gear Thrust, No.1
[10.1986 - 08.1987] ST165 厚さ＝１．１５,T=1.15 |
41361-12370 |
— | ||
|
41361F
|
41361F
41361-20070 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．２０,T=1.20 |
41361-20070 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12380 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．２０,T=1.20 |
41361-12380 |
US $2.91 |
||
|
41361F
|
41361F
41361-20080 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．２５,T=1.25 |
41361-20080 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12390 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．２５,T=1.25 |
41361-12390 |
US $2.91 |
||
|
41361F
|
41361F
41361-20090 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．３０,T=1.30,LH |
41361-20090 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12400 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．３０,T=1.30,LH |
41361-12400 |
US $2.91 |
||
|
41361F
|
41361F
41361-20100 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．３５,T=1.35,LH |
41361-20100 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12410 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．３５,T=1.35,LH |
41361-12410 |
US $2.91 |
||
|
41361F
|
41361F
41361-20110 Washer, Front Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．４０,T=1.40,LH |
41361-20110 |
US $4.51 |
||
| replacement | |||||
|
41361F
|
41361F
41361-12420 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．４０,T=1.40,LH |
41361-12420 |
US $2.91 |
||
|
41362F
|
41362F
41362-20020 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝０．８０，マーク Ｏ,T=0.80,LH |
41362-20020 |
US $5.68 |
||
|
41362F
|
41362F
41362-20030 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝０．８５，マーク １,T=0.85,LH |
41362-20030 |
US $5.68 |
||
|
41362F
|
41362F
41362-20040 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝０．９０，マーク ２,T=0.90,LH |
41362-20040 |
US $5.68 |
||
|
41362F
|
41362F
41362-20050 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝０．９５，マーク ３,T=0.95,LH |
41362-20050 |
US $5.68 |
||
|
41362F
|
41362F
41362-20060 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．００，マーク ４,T=1.00,LH |
41362-20060 |
US $5.68 |
||
|
41362F
|
41362F
41362-20070 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．０５，マーク ５,T=1.05,LH |
41362-20070 |
US $5.68 |
||
|
41362F
|
41362F
41362-20080 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．１０，マーク ６,T=1.10,LH |
41362-20080 |
US $5.68 |
||
|
41362F
|
41362F
41362-20090 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．１５，マーク ７,T=1.15,LH |
41362-20090 |
US $5.68 |
||
|
41362F
|
41362F
41362-20100 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．２０，マーク ８,T=1.20,LH |
41362-20100 |
US $5.68 |
||
|
41362F
|
41362F
41362-20110 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．２５，マーク ９,T=1.25,LH |
41362-20110 |
US $5.68 |
||
|
41362F
|
41362F
41362-20120 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．３０，マーク Ａ,T=1.30,LH |
41362-20120 |
US $5.68 |
||
|
41362F
|
41362F
41362-20130 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．３５，マーク Ｂ,T=1.35,LH |
41362-20130 |
US $5.68 |
||
|
41362F
|
41362F
41362-20140 Washer, Center Differential Side Gear Thrust, No.1[10.1986 - 08.1987] ST165 厚さ＝１．４０，マーク Ｃ,T=1.40,LH |
41362-20140 |
US $5.68 |
||
|
41362F
|
41362F
41362-20150
Washer, Center Differential Side Gear Thrust, No.2
[10.1986 - 08.1987] ST165 厚さ＝０．８０,T=0.80,RH |
41362-20150 |
— | ||
|
41362F
|
41362F
41362-20160 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝０．８５,T=0.85,RH |
41362-20160 |
US $5.82 |
||
|
41362F
|
41362F
41362-20170
Washer, Center Differential Side Gear Thrust, No.2
[10.1986 - 08.1987] ST165 厚さ＝０．９０,T=0.90,RH |
41362-20170 |
— | ||
|
41362F
|
41362F
41362-20180 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝０．９５,T=0.95,RH |
41362-20180 |
US $5.82 |
||
|
41362F
|
41362F
41362-20190 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．００,T=1.00,RH |
41362-20190 |
US $5.82 |
||
|
41362F
|
41362F
41362-20200 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．０５,T=1.05,RH |
41362-20200 |
US $5.82 |
||
|
41362F
|
41362F
41362-20210 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．１０,T=1.10,RH |
41362-20210 |
US $5.82 |
||
|
41362F
|
41362F
41362-20220 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．１５,T=1.15,RH |
41362-20220 |
US $5.82 |
||
|
41362F
|
41362F
41362-20230 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．２０,T=1.20,RH |
41362-20230 |
US $5.82 |
||
|
41362F
|
41362F
41362-20240 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．２５,T=1.25,RH |
41362-20240 |
US $5.82 |
||
|
41362F
|
41362F
41362-20250 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．３０,T=1.30,RH |
41362-20250 |
US $5.82 |
||
|
41362F
|
41362F
41362-20260 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．３５,T=1.35,RH |
41362-20260 |
US $5.82 |
||
|
41362F
|
41362F
41362-20270 Washer, Center Differential Side Gear Thrust, No.2[10.1986 - 08.1987] ST165 厚さ＝１．４０,T=1.40,RH |
41362-20270 |
US $5.82 |
||
|
41371F
|
41371F
41371-20010 Spider, Front Differential[10.1986 - 08.1987] ST165 |
41371-20010 |
US $63.92 |
||
|
41375A
|
41375A
41375-20020 Holder, Front Differential Pinion Shaft[10.1986 - 08.1987] ST165 |
41375-20020 |
US $16.74 |
||
