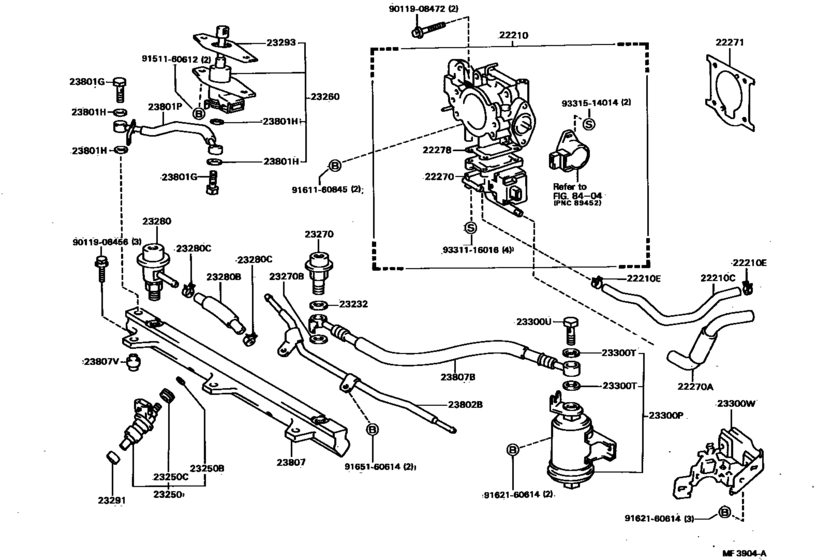

Fuel Injection System ([10.1986 - ] (8610- )3SGTE) Diagram Toyota CELICA
- Year
- 1986 - 1987
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1986
- To
- 08.1987
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22210
|
22210
22210-74300 Body Assy, Throttle[10.1986 - 08.1987] 3SGTE..ST165 |
22210-74300 |
US $1,223.04 |
||
|
22210C
|
22210C
16288-88380
Hose, Water By-Pass, No.1
[10.1986 - 08.1987] 3SGTE..ST165 |
16288-88380 |
— | ||
|
22210E
|
22210E
90467-13001
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
90467-13001 |
— | ||
| replacement | |||||
|
22210E
|
22210E
96135-51300 Clamp, Hose[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
96135-51300 |
from US $1.92 |
||
|
22270
|
22270
22270-74020
Valve Assy, Idle Speed Control(For Thlottle Body)
[10.1986 - 08.1987] 3SGTE..ST165 |
22270-74020 |
— | ||
|
22270A
|
22270A
17341-88380
Hose, Air, No.1(For Idle Speed Control Valve)
[10.1986 - 08.1987] 3SGTE..ST165 |
17341-88380 |
— | ||
|
22271
|
22271
22271-88380
Gasket, Throttle Body
[10.1986 - 08.1987] 3SGTE..ST165 |
22271-88380 |
— | ||
|
22278
|
22278
22278-74010 Gasket, Idle Speed Control Valve[10.1986 - 08.1987] 3SGTE..ST165 |
22278-74010 |
US $5.97 |
||
|
23232
|
23232
23232-28010
Gasket(For Fuel Pump Hose)
[08.1985 - 08.1987] 3SG#..ST162,165 |
23232-28010 |
— | ||
| replacement | |||||
|
23232
|
23232
23232-41081 Gasket(For Fuel Pump Hose)[08.1985 - 08.1987] 3SG#..ST162,165 |
23232-41081 |
from US $1.40 |
||
|
23250
|
23250
23209-42010
Injector Assy, Fuel
[10.1986 - 08.1987] 3SGTE..ST165 |
23209-42010 |
— | ||
|
23250B
|
23250B
90301-07001 Ring, O(For Fuel Injector)[08.1985 - 08.1987] 4AGELU..AT160; 3SG#..ST162,165 |
90301-07001 |
from US $2.93 |
||
|
23250C
|
23250C
90480-13005 Grommet(For Fuel Injector)[08.1985 - 08.1987] 4AGELU..AT160; 3SG#..ST162,165 |
90480-13005 |
from US $2.50 |
||
|
23260
|
23260
23260-79115 Injector Assy, Cold Start Fuel[10.1986 - 08.1987] 3SGTE..ST165 |
23260-79115 |
US $142.69 |
||
|
23270
|
23270
23270-28030 Damper Assy, Fuel Pressure Pulsation[10.1986 - 08.1987] 3SGTE..ST165 |
23270-28030 |
US $91.73 |
||
| replacement | |||||
|
23270
|
23270
23207-46010
Damper Assy, Fuel Pressure Pulsation
[10.1986 - 08.1987] 3SGTE..ST165 |
23207-46010 |
— | ||
|
23270B
|
23270B
90430-12005 Gasket(For Water Hole)[08.1985 - 08.1987] 3SG#..ST162,165 |
90430-12005 |
from US $0.76 |
||
|
23280
|
23280
23280-74040 Regulator Assy, Fuel Pressure[10.1986 - 08.1987] 3SGTE..ST165 |
23280-74040 |
US $133.95 |
||
|
23280B
|
23280B
90447-12051
Hose, Fuel Pressure Regulator Return
[08.1985 - 08.1987] 3SG#..ST162,165 |
90447-12051 |
— | ||
|
23280C
|
23280C
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
90467-11009 |
— | ||
| replacement | |||||
|
23280C
|
23280C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[08.1985 - 08.1987] 1SILU,3SG#..ST16# |
96135-51100 |
from US $1.93 |
||
|
23291
|
23291
23291-41010 Insulator, Injector Vibration[08.1985 - 08.1987] 4AGELU..AT160; 3SG#..ST162,165 |
23291-41010 |
from US $2.77 |
||
|
23293
|
23293
23293-88380 Gasket, Cold Start Injector[10.1986 - 08.1987] 3SGTE..ST165 |
23293-88380 |
US $3.93 |
||
|
23300P
|
23300P
23300-79095 Filter, Fuel(For Efi)[08.1985 - 08.1987] 4AGELU..AT160; 1SILU,3SG#..ST16# |
23300-79095 |
US $103.38 |
||
| replacement | |||||
|
23300P
|
23300P
23300-79105 Filter, Fuel(For Efi)FUEL(FOR EFI) [08.1985 - 08.1987] 4AGELU..AT160; 1SILU,3SG#..ST16# |
23300-79105 |
US $104.83 |
||
|
23300T
|
23300T
90430-12005 Gasket(For Water Hole)[08.1985 - 08.1987] 4AGELU..AT160; 1SILU,3SG#..ST16# |
90430-12005 |
from US $0.76 |
||
|
23300U
|
23300U
90401-12097 Bolt, Union(For Turbo Oil Inlet Pipe)[08.1985 - 08.1987] 4AGELU..AT160; 1SILU,3SG#..ST16# |
90401-12097 |
from US $3.08 |
||
|
23300W
|
23300W
23264-74010 Bracket, Fuel Filter[08.1985 - 08.1987] 4AGELU..AT160; 1SILU,3SG#..ST16# |
23264-74010 |
US $19.95 |
||
|
23801G
|
23801G
90401-08003 Bolt, Union[10.1986 - 08.1987] 3SGTE..ST165 |
90401-08003 |
US $2.24 |
||
|
23801H
|
23801H
90430-08005 Gasket[09.1985 - 08.1987] 4AGELU..AT160; 3SG#..ST162,165 *54 |
90430-08005 |
US $2.24 |
||
|
23801P
|
23801P
23801-88380 Pipe Sub-Assy, Fuel, No.1[10.1986 - 08.1987] 3SGTE..ST165 |
23801-88380 |
US $33.63 |
||
|
23802B
|
23802B
23802-88380
Pipe Sub-Assy, Fuel, No.2
[10.1986 - 08.1987] 3SGTE..ST165 |
23802-88380 |
— | ||
| replacement | |||||
|
23802B
|
23802B
23802-88381 Pipe Sub-Assy, Fuel, No.2[10.1986 - 08.1987] 3SGTE..ST165 |
23802-88381 |
US $37.13 |
||
|
23807
|
23807
23814-88380 Pipe Sub-Assy, Fuel Delivery[10.1986 - 08.1987] 3SGTE..ST165 |
23814-88380 |
US $254.80 |
||
| replacement | |||||
|
23807
|
23807
23814-88381 Pipe Sub-Assy, Fuel Delivery[10.1986 - 08.1987] 3SGTE..ST165 |
23814-88381 |
US $253.34 |
||
|
23807B
|
23807B
90923-01333 Hose, Fuel Delivery Pipe[10.1986 - 08.1987] 3SGTE..ST165 |
90923-01333 |
US $35.53 |
||
| replacement | |||||
|
23807B
|
23807B
90923-01351 Hose, Fuel Delivery Pipe[10.1986 - 08.1987] 3SGTE..ST165 |
90923-01351 |
US $141.23 |
||
|
23807V
|
23807V
90561-08012
Spacer, No.1(For Delivery Pipe)
[08.1985 - 08.1987] 3SG#..ST162,165 |
90561-08012 |
— | ||
| replacement | |||||
|
23807V
|
23807V
90561-08024
Spacer, No.1(For Delivery Pipe)
[08.1985 - 08.1987] 3SG#..ST162,165 |
90561-08024 |
— | ||
|
9011908456
|
9011908456
90119-08456
New Genuine Part
|
90119-08456 |
— | ||
|
9011908472
|
9011908472
90119-08472
Bolt(For Clutch Master Cylinder Setting)
|
90119-08472 |
— | ||
| replacement | |||||
|
9011908472
|
9011908472
90119-08108 Bolt(For Clutch Master Cylinder Setting) |
90119-08108 |
US $2.56 |
||
|
9151160612
|
9151160612
91511-60612 BOLT |
91511-60612 |
US $1.76 |
||
|
9161160845
|
9161160845
91611-60845
Bolt(for Clutch Release Cylinder Setting)
|
91611-60845 |
— | ||
| replacement | |||||
|
9161160845
|
9161160845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $2.72 |
||
|
9162160614
|
9162160614
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.54 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.12 |
||
|
9331116016
|
9331116016
93311-16016 SCREW |
93311-16016 |
US $1.92 |
||
|
9331514014
|
9331514014
93315-14014 SCREW |
93315-14014 |
US $1.12 |
||
