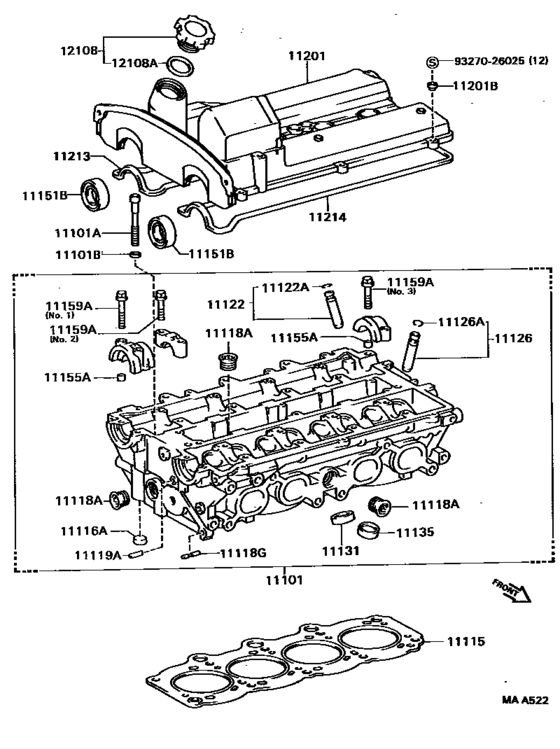

Cylinder Head ([10.1987 - ] (8710- )3SGTE) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-88381 Head Sub-Assy, Cylinder[08.1987 - 08.1989] 3SG#..ST162,165 |
11101-88381 |
US $2,096.64 |
||
|
11101A
|
11101A
90110-10010 Bolt(For Cylinder Head Set)[10.1987 - 08.1989] 3SGTE..ST165 |
90110-10010 |
US $4.08 |
||
|
11101B
|
11101B
90201-10060 Washer, Plate(For Cylinder Head Set)[10.1987 - 08.1989] 3SGTE..ST165 |
90201-10060 |
US $3.20 |
||
|
11115
|
11115
11115-88381
Gasket, Cylinder Head
[10.1987 - 08.1989] 3SGTE..ST165 |
11115-88381 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-88382 Gasket, Cylinder Head[10.1987 - 08.1989] 3SGTE..ST165 |
11115-88382 |
US $113.57 |
||
|
11116A
|
11116A
96411-41800 Plug, Tight, No.1[08.1987 - 08.1989] 3SG#..ST162,165 *54 |
96411-41800 |
from US $1.72 |
||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[08.1987 - 08.1989] 3SGELU..ST162 *54; 3SGTE..ST165 |
90341-27003 |
from US $7.16 |
||
|
11118G
|
11118G
90249-06052 Pin, Slotted Spring, No.1[08.1987 - 08.1989] 3SG#..ST162,165 |
90249-06052 |
US $2.62 |
||
|
11119A
|
11119A
90250-06003 Pin, Straight[08.1987 - 07.1989] 1SILU,3SFE,3SG#,4SFI..ST16# 長さ＝１４，外径＝６ |
90250-06003 |
US $1.44 |
||
|
11122
|
11122
11122-88320 Bush, Intake Valve Guide[08.1987 - 08.1989] 3SG#..ST162,165 ＳＴＤ |
11122-88320 |
US $25.77 |
||
|
11122
|
11122
11123-88320 Bush, Intake Valve Guide[08.1987 - 08.1989] 3SG#..ST162,165 Ｏ／Ｓ ０．０５ |
11123-88320 |
US $25.77 |
||
|
11122A
|
11122A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[08.1987 - 03.1989] 3SFE,3SG#,4SFI..ST162,163,165 |
90520-10004 |
— | ||
|
11126
|
11126
11122-88320 Bush, Intake Valve Guide[08.1987 - 08.1989] 3SG#..ST162,165 ＳＴＤ |
11122-88320 |
US $25.77 |
||
|
11126
|
11126
11123-88320 Bush, Intake Valve Guide[08.1987 - 08.1989] 3SG#..ST162,165 Ｏ／Ｓ ０．０５ |
11123-88320 |
US $25.77 |
||
|
11126A
|
11126A
90520-10004
Ring, Shaft Snap (For Valve Guide Bush)
[08.1987 - 03.1989] 3SFE,3SG#,4SFI..ST162,163,165 |
90520-10004 |
— | ||
|
11131
|
11131
11131-74010 Seat, Intake Valve[08.1987 - 08.1989] 3SG#..ST162,165 ＳＴＤ |
11131-74010 |
US $38.88 |
||
|
11135
|
11135
11135-74010 Seat, Exhaust Valve[08.1987 - 08.1989] 3SG#..ST162,165 ＳＴＤ |
11135-74010 |
US $34.94 |
||
|
11151B
|
11151B
90311-35008
Seal, Oil(For Camshaft Setting)
[10.1987 - 08.1989] 3SGTE..ST165 |
90311-35008 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[10.1987 - 08.1989] 3SGTE..ST165 |
90311-35040 |
from US $5.60 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[08.1987 - 08.1989] 3SFE,3SG#,4SFI..ST162,163,165 |
90253-10004 |
US $1.92 |
||
|
11159A
|
11159A
90119-07001 Bolt(For Head To Camshaft Bearing Cap)[08.1987 - 08.1989] 3SG#..ST162,165 ＮＯ．１ |
90119-07001 |
US $3.20 |
||
|
11159A
|
11159A
90119-07002 Bolt(For Head To Camshaft Bearing Cap)[08.1987 - 08.1989] 3SG#..ST162,165 ＮＯ．２ |
90119-07002 |
US $3.20 |
||
|
11159A
|
11159A
90119-07003
Bolt(For Head To Camshaft Bearing Cap)
[08.1987 - 08.1989] 3SG#..ST162,165 ＮＯ．３ |
90119-07003 |
— | ||
|
11201
|
11201
11201-88381
Cover Sub-Assy, Cylinder Head
[10.1987 - 08.1989] 3SGTE..ST165 |
11201-88381 |
— | ||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[10.1987 - 08.1989] 3SGTE..ST165 |
90210-07001 |
from US $2.34 |
||
|
11213
|
11213
11213-88360
Gasket, Cylinder Head Cover
[08.1987 - 08.1989] 3SGTE..ST165; 3SGELU..ST162 *54,右側 |
11213-88360 |
— | ||
|
11214
|
11214
11214-88380
Gasket, Cylinder Head Cover
[10.1987 - 08.1989] 3SGTE..ST165 |
11214-88380 |
— | ||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
90430-37140 |
from US $1.25 |
||
|
9327026025
|
9327026025
93270-26025 SCREW |
93270-26025 |
US $1.92 |
||
