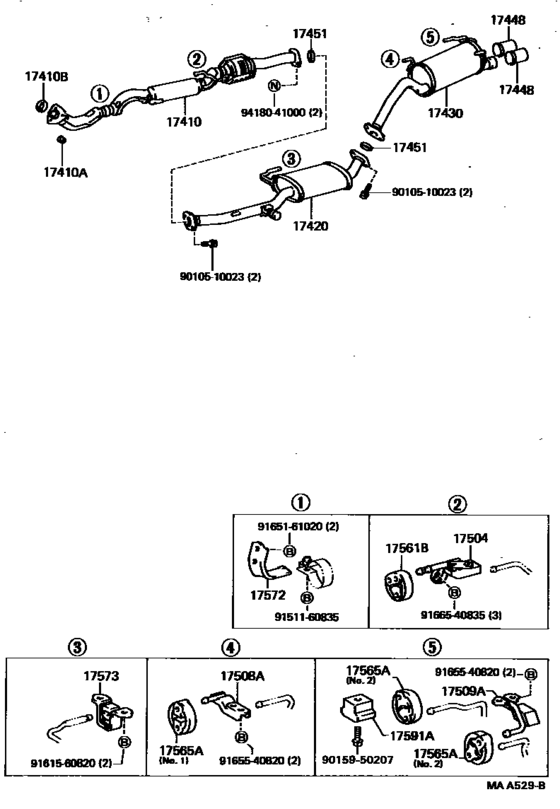

Exhaust Pipe ([08.1987 - ] (8708- )3SGTE) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-74390
Pipe Assy, Exhaust, Front
[10.1987 - 08.1989] 3SGTE..ST165 |
17410-74390 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 08.1989] 3SFE,3SG#,4SFI..ST162,163,165 |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1987 - 08.1989] 3SFE,3SG#,4SFI..ST162,163,165 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06013
Gasket, Exhaust Pipe
[10.1987 - 08.1989] 3SGTE..ST165 |
90917-06013 |
— | ||
| replacement | |||||
|
17410B
|
17410B
90917-06050 Gasket, Exhaust Pipe[10.1987 - 08.1989] 3SGTE..ST165 |
90917-06050 |
US $5.60 |
||
|
17420
|
17420
17420-74180
Pipe Assy, Exhaust, Center
[10.1987 - 08.1989] 3SGTE..ST165 |
17420-74180 |
— | ||
|
17430
|
17430
17430-74250 Pipe Assy, Exhaust, Tail[10.1987 - 02.1988] 3SGTE..ST165 |
17430-74250 |
US $430.98 |
||
| replacement | |||||
|
17430
|
17430
17430-74251
Pipe Assy, Exhaust, Tail
[10.1987 - 02.1988] 3SGTE..ST165 |
17430-74251 |
— | ||
|
17430
|
17430
17430-74251
Pipe Assy, Exhaust, Tail
[02.1988 - 08.1989] 3SGTE..ST165 |
17430-74251 |
— | ||
|
17448
|
17448
17448-74040
Baffle, Tail Pipe
[10.1987 - 08.1989] 3SGTE..ST165 |
17448-74040 |
— | ||
|
17451
|
17451
90917-06032 Gasket, Exhaust Pipe, Center[10.1987 - 08.1989] 3SGTE..ST165 |
90917-06032 |
US $10.05 |
||
| replacement | |||||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[10.1987 - 08.1989] 3SGTE..ST165 |
90917-06054 |
from US $4.47 |
||
|
17504
|
17504
17504-74020 Bracket, Exhaust Pipe Front (For Rear)[10.1987 - 08.1989] 3SGTE..ST165 |
17504-74020 |
US $35.38 |
||
|
17508A
|
17508A
17508-74020 Bracket, Exhaust Pipe Center, Rear[10.1987 - 08.1989] 3SGTE..ST165 |
17508-74020 |
US $17.91 |
||
|
17509A
|
17509A
17509-74020 Bracket, Exhaust Tail Pipe (For Rear)[10.1987 - 08.1989] 3SGTE..ST165 |
17509-74020 |
US $32.61 |
||
|
17561B
|
17561B
17561-74110 SUPPORT, EXHAUST PIPE[10.1987 - 08.1989] 3SGTE..ST165 |
17561-74110 |
US $23.26 |
||
|
17565A
|
17565A
17565-63020 Ring, Catalytic Converter[08.1987 - 08.1989] 3SGTE..ST165 ＮＯ．１; 1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC ＮＯ．３ |
17565-63020 |
from US $11.51 |
||
|
17565A
|
17565A
17565-63030 Bracket, Catalytic Converter Support[08.1987 - 08.1989] 3SGTE..ST165 ＮＯ．２; 1SILU,3SFE,3SGELU,4SFI..ST160,162,163..4FC ＮＯ．４ |
17565-63030 |
US $13.44 |
||
|
17572
|
17572
17571-74100 Bracket, Exhaust Pipe No.1 Support[10.1987 - 08.1989] 3SGTE..ST165 |
17571-74100 |
US $14.56 |
||
|
17573
|
17573
17573-74010
Bracket, Exhaust Pipe Center, Rear
[10.1987 - 08.1989] 3SGTE..ST165 |
17573-74010 |
— | ||
|
17591A
|
17591A
17591-74010 Stopper, Exhaust Pipe Support[08.1987 - 08.1989] 1SILU,3SFE,3SG#,4SFI..ST16# |
17591-74010 |
US $18.05 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9015950207
|
9015950207
90159-50207 New Genuine Part |
90159-50207 |
US $0.92 |
||
|
9151160835
|
9151160835
91511-60835
Bolt(For Cylinder Head Set Sub)
|
91511-60835 |
— | ||
| replacement | |||||
|
9151160835
|
9151160835
90105-08200 Bolt(For Cylinder Head Set Sub) |
90105-08200 |
US $2.24 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165161020
|
9165161020
91651-61020 Bolt, No.1 (For Center Support Bearing) |
91651-61020 |
US $2.08 |
||
|
9165540820
|
9165540820
91655-40820
New Genuine Part
|
91655-40820 |
— | ||
| replacement | |||||
|
9165540820
|
9165540820
91653-40820 BOLT, W/WASHER |
91653-40820 |
US $1.76 |
||
|
9166540835
|
9166540835
91665-40835
New Genuine Part
|
91665-40835 |
— | ||
| replacement | |||||
|
9166540835
|
9166540835
91661-60835 New Genuine Part |
91661-60835 |
US $1.40 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
