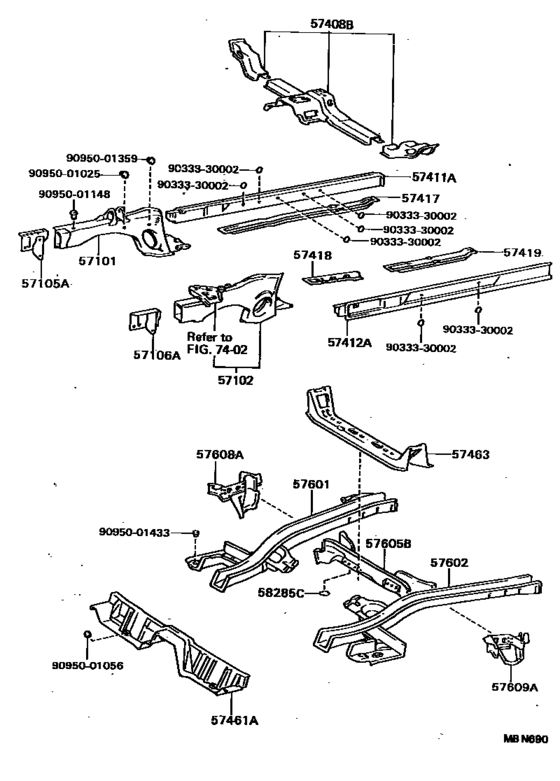

Floor Side Member ([10.1987 - ] (8710- )ST165) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57101
|
57101
57101-20570 Member Sub-Assy, Front Side, Rh[10.1987 - 08.1989] ST165 |
57101-20570 |
US $563.47 |
||
|
57102
|
57102
57102-20550 Member Sub-Assy, Front Side, Lh[10.1987 - 08.1989] ST165 |
57102-20550 |
US $563.47 |
||
|
57105A
|
57105A
57105-20040 Plate Sub-Assy, Front Side Member, Rh[08.1987 - 08.1989] ST16# |
57105-20040 |
US $22.42 |
||
|
57106A
|
57106A
57106-20040 Plate Sub-Assy, Front Side Member, Lh[08.1987 - 08.1989] ST16# |
57106-20040 |
US $22.42 |
||
|
57408B
|
57408B
57408-20030 Member Sub-Assy, Front Floor Cross[10.1987 - 12.1988] ST165 |
57408-20030 |
US $131.04 |
||
| replacement | |||||
|
57408B
|
57408B
57408-20031 Member Sub-Assy, Front Floor Cross[10.1987 - 12.1988] ST165 |
57408-20031 |
US $131.04 |
||
|
57408B
|
57408B
57408-20031 Member Sub-Assy, Front Floor Cross[12.1988 - 08.1989] ST165 |
57408-20031 |
US $131.04 |
||
|
57411A
|
57411A
57401-20220 Member Sub-Assy, Main Floor Side, Rh[08.1987 - 08.1989] ST16#..LB |
57401-20220 |
US $218.40 |
||
| replacement | |||||
|
57411A
|
57411A
57401-20221 Member Sub-Assy, Main Floor Side, RhFLOOR SIDE, INNER RH [08.1987 - 08.1989] ST16#..LB |
57401-20221 |
US $218.40 |
||
|
57412A
|
57412A
57402-20220 Member Sub-Assy, Main Floor Side, Lh[08.1987 - 08.1989] ST16#..LB |
57402-20220 |
US $218.40 |
||
| replacement | |||||
|
57412A
|
57412A
57402-20221 Member Sub-Assy, Main Floor Side, LhFLOOR SIDE, INNER LH [08.1987 - 08.1989] ST16#..LB |
57402-20221 |
US $218.40 |
||
|
57417
|
57417
57417-20030 Reinforcement, Front Floor Under, Rh[08.1987 - 08.1989] ST16# |
57417-20030 |
US $16.16 |
||
|
57418
|
57418
57418-20040
Reinforcement, Front Floor Under, Lh
[08.1987 - 08.1989] ST16# |
57418-20040 |
— | ||
|
57419
|
57419
57419-20020 Reinforcement, Front Floor Under, Lh No.2[08.1987 - 08.1989] ST16# |
57419-20020 |
US $6.99 |
||
|
57461A
|
57461A
57461-20030 Member, Center Floor Cross[10.1987 - 08.1989] ST165 |
57461-20030 |
US $106.29 |
||
|
57463
|
57463
57463-20020 Member, Center Floor Cross, No.3[10.1987 - 08.1989] ST165 |
57463-20020 |
US $117.94 |
||
|
57601
|
57601
57601-20210 Member Sub-Assy, Rear Floor Side, Rh[10.1987 - 08.1989] ST165 |
57601-20210 |
US $733.82 |
||
|
57602
|
57602
57602-20210
Member Sub-Assy, Rear Floor Side, Lh
[10.1987 - 08.1989] ST165 |
57602-20210 |
— | ||
|
57605B
|
57605B
57605-20050
Member Sub-Assy, Rear Floor Cross, No.1
[10.1987 - 08.1989] ST165 |
57605-20050 |
— | ||
| replacement | |||||
|
57605B
|
57605B
57605-20120
Member Sub-Assy, Rear Floor Cross, No.1
[10.1987 - 08.1989] ST165 |
57605-20120 |
— | ||
|
57608A
|
57608A
57608-20050
Member Sub-Assy, Rear Floor Cross, No.4
[10.1987 - 08.1989] ST165 |
57608-20050 |
— | ||
|
57609A
|
57609A
57609-20050
Member Sub-Assy, Rear Floor Cross, No.5
[10.1987 - 08.1989] ST165 |
57609-20050 |
— | ||
|
58285C
|
58285C
58285-20030 Cover, Rear Floor Hole[10.1987 - 08.1989] ST165 |
58285-20030 |
US $3.35 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $3.84 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001148
|
9095001148
90950-01148 New Genuine Part |
90950-01148 |
US $1.60 |
||
|
9095001359
|
9095001359
90950-01359 New Genuine Part |
90950-01359 |
US $2.33 |
||
|
9095001433
|
9095001433
90950-01433 New Genuine Part |
90950-01433 |
US $3.04 |
||
