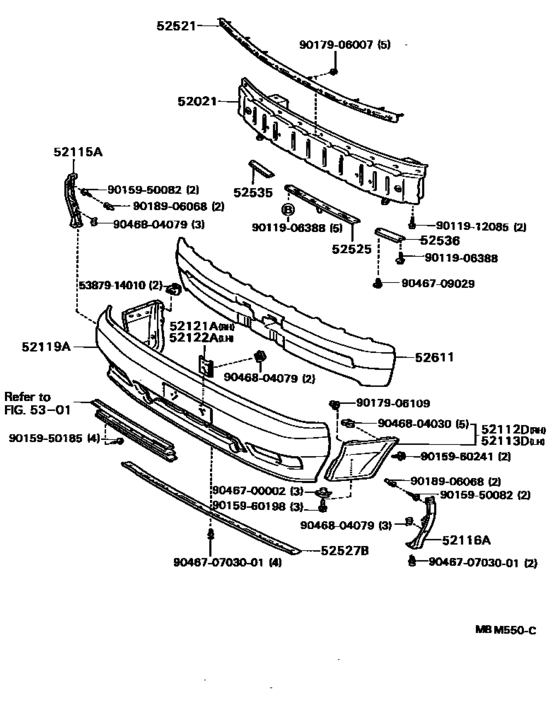

Front Bumper & Bumper Stay ([10.1987 - ] (8710- )ST165) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52021
|
52021
52021-20170 Reinforcement Sub-Assy, Front Bumper[10.1987 - 08.1989] ST165 |
52021-20170 |
US $430.98 |
||
|
52112D
|
52112D
52102-20070-08
Extension, Front Bumper, Rh
[10.1987 - 08.1989] ST165 SUPER WHITE 2,040 |
52102-20070-08 |
— | ||
|
52112D
|
52112D
52102-20070-12 Extension, Front Bumper, Rh[10.1987 - 08.1989] ST165 SUPER RED 2,3E5 |
52102-20070-12 |
US $298.48 |
||
| replacement | |||||
|
52112D
|
52112D
52102-20900 Extension, Front Bumper, Rh[10.1987 - 08.1989] ST165 SUPER RED 2,3E5 |
52102-20900 |
US $119.39 |
||
|
52112D
|
52112D
52102-20070-33 Extension, Front Bumper, Rh[10.1987 - 08.1989] ST165 GRAY M,168 |
52102-20070-33 |
US $298.48 |
||
| replacement | |||||
|
52112D
|
52112D
52102-20900 Extension, Front Bumper, Rh[10.1987 - 08.1989] ST165 GRAY M,168 |
52102-20900 |
US $119.39 |
||
|
52113D
|
52113D
52103-20120-08
Extension, Front Bumper, Lh
[10.1987 - 08.1989] ST165 SUPER WHITE 2,040 |
52103-20120-08 |
— | ||
|
52113D
|
52113D
52103-20120-12 Extension, Front Bumper, Lh[10.1987 - 08.1989] ST165 SUPER RED 2,3E5 |
52103-20120-12 |
US $298.48 |
||
| replacement | |||||
|
52113D
|
52113D
52103-20905 Extension, Front Bumper, Lh[10.1987 - 08.1989] ST165 SUPER RED 2,3E5 |
52103-20905 |
US $119.39 |
||
|
52113D
|
52113D
52103-20120-33 Extension, Front Bumper, Lh[10.1987 - 08.1989] ST165 GRAY M,168 |
52103-20120-33 |
US $298.48 |
||
| replacement | |||||
|
52113D
|
52113D
52103-20905 Extension, Front Bumper, Lh[10.1987 - 08.1989] ST165 GRAY M,168 |
52103-20905 |
US $119.39 |
||
|
52115A
|
52115A
52115-20210
Support, Front Bumper Side, Rh
[10.1987 - 08.1989] ST165 |
52115-20210 |
— | ||
|
52116A
|
52116A
52116-20190
Support, Front Bumper Side, Lh
[10.1987 - 08.1989] ST165 |
52116-20190 |
— | ||
|
52119A
|
52119A
52119-20370-08 Cover, Front Bumper[10.1987 - 08.1989] ST165 SUPER WHITE 2,040 |
52119-20370-08 |
US $988.62 |
||
|
52119A
|
52119A
52119-20370-12 Cover, Front Bumper[10.1987 - 08.1989] ST165 SUPER RED 2,3E5 |
52119-20370-12 |
US $988.62 |
||
| replacement | |||||
|
52119A
|
52119A
52119-20911 Cover, Front BumperFRONT BUMPER [10.1987 - 08.1989] ST165 SUPER RED 2,3E5 |
52119-20911 |
US $626.08 |
||
|
52119A
|
52119A
52119-20370-33 Cover, Front Bumper[10.1987 - 08.1989] ST165 GRAY M,168 |
52119-20370-33 |
US $988.62 |
||
| replacement | |||||
|
52119A
|
52119A
52119-20911 Cover, Front BumperFRONT BUMPER [10.1987 - 08.1989] ST165 GRAY M,168 |
52119-20911 |
US $626.08 |
||
|
52121A
|
52121A
52121-14090 Bracket, Front License Plate Mounting, Rh[10.1987 - 08.1989] ST165 |
52121-14090 |
US $6.29 |
||
|
52122A
|
52122A
52122-14010 Bracket, Front License Plate Mounting, Lh[10.1987 - 08.1989] ST165 |
52122-14010 |
US $6.29 |
||
|
52521
|
52521
52521-20070
Retainer, Front Bumper, Upper Center
[08.1987 - 08.1989] ST16# |
52521-20070 |
— | ||
|
52525
|
52525
52506-20110 Retainer, Front Bumper, Lower Center[10.1987 - 08.1989] ST165 |
52506-20110 |
US $28.39 |
||
|
52527B
|
52527B
52527-20030
Retainer, Front Bumper, Lower No.2
[10.1987 - 08.1989] ST165 |
52527-20030 |
— | ||
|
52535
|
52535
52535-20030 Retainer, Front Bumper Side, Rh[10.1987 - 08.1989] ST165 |
52535-20030 |
US $8.88 |
||
|
52536
|
52536
52536-20030 Retainer, Front Bumper Side, Lh[10.1987 - 08.1989] ST165 |
52536-20030 |
US $8.88 |
||
|
52611
|
52611
52611-20100 Absorber, Front Bumper Energy[10.1987 - 08.1989] ST165 |
52611-20100 |
US $198.02 |
||
|
5387914010
|
5387914010
53879-14010 Retainer, Front Fender Liner |
53879-14010 |
from US $2.91 |
||
|
9011906388
|
9011906388
90119-06388
BOLT
|
90119-06388 |
— | ||
| replacement | |||||
|
9011906388
|
9011906388
90119-06492 BOLT |
90119-06492 |
from US $0.84 |
||
|
9011912085
|
9011912085
90119-12085
New Genuine Part
|
90119-12085 |
— | ||
|
9015950082
|
9015950082
90159-50082 New Genuine Part |
90159-50082 |
US $2.08 |
||
|
9015950185
|
9015950185
90159-50185 New Genuine Part |
90159-50185 |
US $1.02 |
||
|
9015960198
|
9015960198
90159-60198 New Genuine Part |
90159-60198 |
US $0.52 |
||
|
9015960241
|
9015960241
90159-60241 New Genuine Part |
90159-60241 |
US $1.75 |
||
|
9017906007
|
9017906007
90179-06007 Nut |
90179-06007 |
from US $0.86 |
||
|
9017906109
|
9017906109
90179-06109
New Genuine Part
|
90179-06109 |
— | ||
|
9018906068
|
9018906068
90189-06068 New Genuine Part |
90189-06068 |
US $2.24 |
||
|
9046700002
|
9046700002
90467-00002 CLIP |
90467-00002 |
US $3.84 |
||
|
9046709029
|
9046709029
90467-09029 Clip(For Front Bumper Retainer) |
90467-09029 |
US $2.08 |
||
|
9046804030
|
9046804030
90468-04030 CLIP |
90468-04030 |
US $1.89 |
||
|
9046804079
|
9046804079
90468-04079 Clip(For Front Bumper), No.2 |
90468-04079 |
from US $2.56 |
||
|
904670703001
|
904670703001
90467-07030-01 Clip(For Radiator Sopport Extension) |
90467-07030-01 |
from US $1.92 |
||
