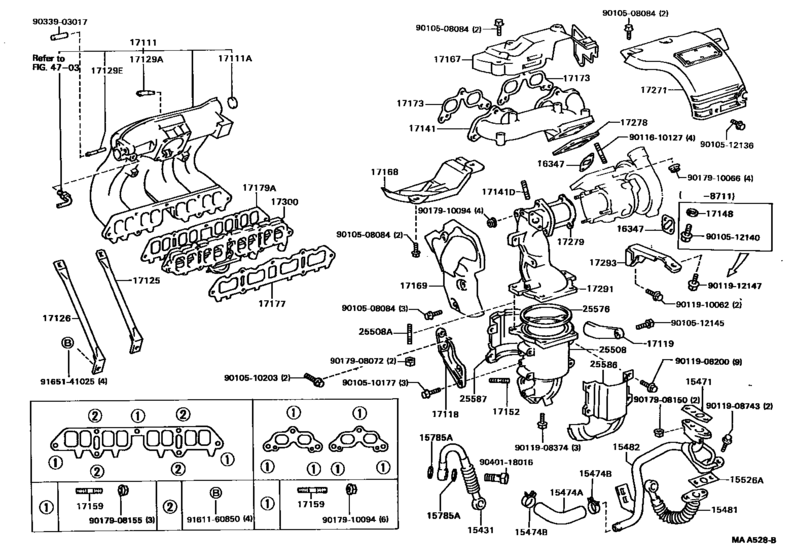

Manifold ([10.1987 - ] (8710- )3SGTE) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- ST165
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
15431
|
15431
15431-88380
Pipe, Oil Feed
[10.1987 - 08.1989] 3SGTE..ST165 |
15431-88380 |
— | ||
|
15471
|
15471
15471-88341
Gasket, Turbo Oil Inlet
[10.1987 - 08.1989] 3SGTE..ST165 |
15471-88341 |
— | ||
|
15474A
|
15474A
15491-88380 Hose, Turbo Oil Outlet[10.1987 - 08.1989] 3SGTE..ST165 |
15491-88380 |
US $27.36 |
||
|
15474B
|
15474B
90467-28003
Clamp Or Clip(For Turbo Oil Outlet Hose)
[10.1987 - 08.1989] 3SGTE..ST165 |
90467-28003 |
— | ||
| replacement | |||||
|
15474B
|
15474B
90467-28007 Clip Or Clamp(For Ventilation Hose)[10.1987 - 08.1989] 3SGTE..ST165 |
90467-28007 |
from US $3.20 |
||
|
15481
|
15481
15481-88380 Pipe, Turbo Oil, No.1[10.1987 - 08.1989] 3SGTE..ST165 |
15481-88380 |
US $90.27 |
||
|
15482
|
15482
15482-88380 Pipe, Turbo Oil, No.2[10.1987 - 08.1989] 3SGTE..ST165 |
15482-88380 |
US $133.95 |
||
|
15526A
|
15526A
15526-88380 Gasket, Joint(For Turbo Oil Pipe)[10.1987 - 08.1989] 3SGTE..ST165 |
15526-88380 |
US $6.70 |
||
|
15785A
|
15785A
15785-88380
Gasket(For Oil Cooler)
[10.1987 - 08.1989] 3SGTE..ST165 |
15785-88380 |
— | ||
|
16347
|
16347
16347-88340
Gasket, Water By-Pass
[10.1987 - 08.1989] 3SGTE..ST165 |
16347-88340 |
— | ||
|
17111
|
17111
17101-88382 Manifold, Intake[10.1987 - 08.1989] 3SGTE..ST165 |
17101-88382 |
US $910 |
||
|
17111A
|
17111A
96411-43000 Plug, Tight, No.1[10.1987 - 08.1989] 3SGTE..ST165 |
96411-43000 |
from US $3.84 |
||
|
17118
|
17118
17118-88381 Stay, Manifold[10.1987 - 08.1989] 3SGTE..ST165 |
17118-88381 |
US $32.47 |
||
|
17119
|
17119
17139-88380 Stay, Manifold, No.2[10.1987 - 08.1989] 3SGTE..ST165 |
17139-88380 |
US $20.82 |
||
|
17125
|
17125
17125-88380 Stay, Surge Tank, No.1[10.1987 - 08.1989] 3SGTE..ST165 |
17125-88380 |
US $71.78 |
||
|
17126
|
17126
17126-88381 Stay, Surge Tank, No.2[10.1987 - 08.1989] 3SGTE..ST165 |
17126-88381 |
US $71.78 |
||
|
17129A
|
17129A
90072-40625
Union(For Cylinder Head)
[10.1987 - 08.1989] 3SGTE..ST165 |
90072-40625 |
— | ||
|
17129E
|
17129E
90405-04002
Union, Vacuum Hose
[10.1987 - 08.1989] 3SGTE..ST165 |
90405-04002 |
— | ||
|
17141
|
17141
17141-88380
Manifold, Exhaust
[10.1987 - 08.1989] 3SGTE..ST165 |
17141-88380 |
— | ||
|
17141D
|
17141D
90116-08128 Bolt, Stud(For Manifold Stay)[10.1987 - 08.1989] 3SGTE..ST165 |
90116-08128 |
US $4.16 |
||
|
17148
|
17148
17148-88380 Plate, Exhaust Manifold(For Egr Inlet)[10.1987 - 11.1987] 3SGTE..ST165 |
17148-88380 |
US $6.26 |
||
| replacement | |||||
|
17148
|
17148
90119-12207
Plate, Exhaust Manifold(for Egr Inlet)
[10.1987 - 11.1987] 3SGTE..ST165 |
90119-12207 |
— | ||
|
17152
|
17152
90116-10058 Bolt, Stud(For Manifold Extension)[08.1987 - 05.1988] 3SFE,3SG#..ST162,165 |
90116-10058 |
from US $2.44 |
||
|
17159
|
17159
90116-08186 Bolt, Stud(For Manifold To Cylinder Head)[08.1987 - 08.1989] 3SG#..ST162,165 INTAKE SIDE |
90116-08186 |
US $3.32 |
||
|
17159
|
17159
90116-10113 Bolt, Stud(For Manifold To Cylinder Head)[10.1987 - 08.1989] 3SGELU..ST162 EXHAUST SIDE *54; 3SGTE..ST165 EXHAUST SIDE |
90116-10113 |
from US $2.92 |
||
|
17167
|
17167
17167-88380 Insulator, Exhaust Manifold Heat, No.1[10.1987 - 08.1989] 3SGTE..ST165 |
17167-88380 |
US $82.99 |
||
|
17168
|
17168
17168-88380 Insulator, Exhaust Manifold Heat, No.2[10.1987 - 08.1989] 3SGTE..ST165 |
17168-88380 |
US $27.23 |
||
|
17169
|
17169
17169-88380 Insulator, Exhaust Manifold Heat, No.3[10.1987 - 08.1989] 3SGTE..ST165 |
17169-88380 |
US $99.01 |
||
|
17173
|
17173
17173-88380
Gasket, Exhaust Manifold To Head
[10.1987 - 08.1989] 3SGTE..ST165 |
17173-88380 |
— | ||
|
17177
|
17177
17177-88380 Gasket, Intake Manifold To Head, No.1[10.1987 - 08.1989] 3SGTE..ST165 |
17177-88380 |
US $10.92 |
||
|
17179A
|
17179A
17171-88380 Gasket, Intake Manifold, No.2[10.1987 - 08.1989] 3SGTE..ST165 |
17171-88380 |
US $10.92 |
||
|
17271
|
17271
17271-88380 Insulator, Turbo, No.1[10.1987 - 08.1989] 3SGTE..ST165 |
17271-88380 |
US $313.04 |
||
|
17278
|
17278
17278-88380 Gasket, Turbo To Exhaust Manifold[10.1987 - 08.1989] 3SGTE..ST165 |
17278-88380 |
from US $28.70 |
||
|
17279
|
17279
17279-88380 Gasket, Turbine Outlet Elbow[10.1987 - 08.1989] 3SGTE..ST165 |
17279-88380 |
US $36.84 |
||
|
17291
|
17291
17291-88380
Elbow, Turbine Outlet
[10.1987 - 08.1989] 3SGTE..ST165 |
17291-88380 |
— | ||
|
17293
|
17293
17293-88380 Stay, Turbocharger[10.1987 - 08.1989] 3SGTE..ST165 |
17293-88380 |
US $100.46 |
||
|
17300
|
17300
17300-88380
Valve Assy, Intake Air Control
[08.1987 - 03.1989] 3SG#..ST162,165 |
17300-88380 |
— | ||
| replacement | |||||
|
17300
|
17300
17300-88381
Valve Assy, Intake Air Control
[08.1987 - 03.1989] 3SG#..ST162,165 |
17300-88381 |
— | ||
|
17300
|
17300
17300-88381
Valve Assy, Intake Air Control
[03.1989 - 08.1989] 3SG#..ST162,165 |
17300-88381 |
— | ||
|
25508
|
25508
25508-74030 Converter Sub-Assy, Manifold[10.1987 - 10.1989] 3SGTE..ST165 |
25508-74030 |
US $872.14 |
||
|
25508A
|
25508A
90116-08171 Bolt, Stud(For Manifold Converter)[08.1987 - 05.1988] 1SILU,3SFE,3SGTE..ST16# |
90116-08171 |
US $4.32 |
||
|
25576
|
25576
25576-74010 Gasket, Manifold Converter[08.1987 - 05.1988] 3SFE,3SGTE..ST162,165 |
25576-74010 |
US $16.16 |
||
| replacement | |||||
|
25576
|
25576
25576-74030 Gasket, Manifold Converter[08.1987 - 05.1988] 3SFE,3SGTE..ST162,165 |
25576-74030 |
from US $12.68 |
||
|
25586
|
25586
25586-74020 Insulator, Manifold Converter, No.1[10.1987 - 10.1989] 3SGTE..ST165 |
25586-74020 |
US $68.87 |
||
|
25587
|
25587
25587-74020
Insulator, Manifold Converter, No.2
[10.1987 - 10.1989] 3SGTE..ST165 |
25587-74020 |
— | ||
|
9010508084
|
9010508084
90105-08084 Bolt |
90105-08084 |
US $2.56 |
||
|
9010510177
|
9010510177
90105-10177
New Genuine Part
|
90105-10177 |
— | ||
|
9010510203
|
9010510203
90105-10203 New Genuine Part |
90105-10203 |
US $3.14 |
||
|
9010512136
|
9010512136
90105-12136 New Genuine Part |
90105-12136 |
US $2.62 |
||
|
9010512140
|
9010512140
90105-12140 Plate, Exhaust Manifold(for Egr Inlet) |
90105-12140 |
US $3.35 |
||
| replacement | |||||
|
9010512140
|
9010512140
90119-12207
Plate, Exhaust Manifold(for Egr Inlet)
|
90119-12207 |
— | ||
|
9010512145
|
9010512145
90105-12145
New Genuine Part
|
90105-12145 |
— | ||
|
9011610127
|
9011610127
90116-10127
Bolt, Stud(For Turbocharger)
|
90116-10127 |
— | ||
| replacement | |||||
|
9011610127
|
9011610127
90116-10125 Bolt, Stud(For Turbine Housing) |
90116-10125 |
US $3.04 |
||
|
9011906200
|
9011906200
90119-06200 New Genuine Part |
90119-06200 |
from US $2.91 |
||
|
9011908374
|
9011908374
90119-08374 Bolt |
90119-08374 |
US $2.24 |
||
|
9011908743
|
9011908743
90119-08743 New Genuine Part |
90119-08743 |
US $1.44 |
||
|
9011910062
|
9011910062
90119-10062
New Genuine Part
|
90119-10062 |
— | ||
| replacement | |||||
|
9011910062
|
9011910062
90119-10640 New Genuine Part |
90119-10640 |
US $4 |
||
|
9011912147
|
9011912147
90119-12147
Plate, Exhaust Manifold(for Egr Inlet)
|
90119-12147 |
— | ||
| replacement | |||||
|
9011912147
|
9011912147
90119-12207
Plate, Exhaust Manifold(for Egr Inlet)
|
90119-12207 |
— | ||
|
9017908072
|
9017908072
90179-08072 Nut(For Front Lower Arm Bracket Rh) |
90179-08072 |
from US $1.28 |
||
|
9017908150
|
9017908150
90179-08150 NUT |
90179-08150 |
from US $1.05 |
||
|
9017908155
|
9017908155
90179-08155 New Genuine Part |
90179-08155 |
US $1.16 |
||
|
9017910066
|
9017910066
90179-10066 NUT |
90179-10066 |
US $5.42 |
||
|
9017910094
|
9017910094
90179-10094 NUT |
90179-10094 |
US $6.56 |
||
|
9033903017
|
9033903017
90339-03017 Plug |
90339-03017 |
US $1.60 |
||
|
9040118016
|
9040118016
90401-18016 New Genuine Part |
90401-18016 |
US $8.15 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
from US $1.92 |
||
|
9165141025
|
9165141025
91651-41025
Bolt(For Transaxle Case & Engine Setting)
|
91651-41025 |
— | ||
| replacement | |||||
|
9165141025
|
9165141025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.58 |
||
