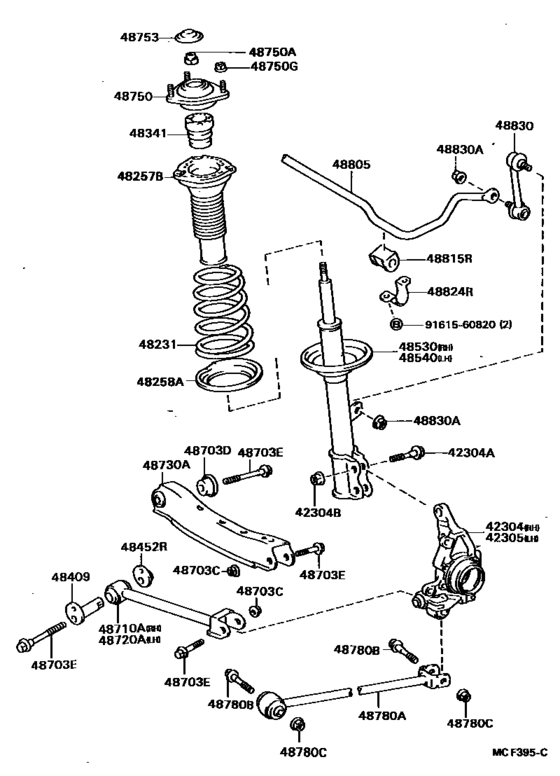

Rear Spring & Shock Absorber ([10.1987 - ] (8710- )ST165) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST165
- grade
- TBOAT
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- USA
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
42304
|
42304
42304-20040
Carrier Sub-Assy, Rear Axle, Rh
[10.1987 - 08.1989] ST165 |
42304-20040 |
— | ||
| replacement | |||||
|
42304
|
42304
42304-20290
Carrier Sub-Assy, Rear Axle, Rh
[10.1987 - 08.1989] ST165 |
42304-20290 |
— | ||
|
42304A
|
42304A
90105-15001 Bolt (For Rear Axle Carrier)[08.1987 - 08.1989] ST16# |
90105-15001 |
from US $4.04 |
||
|
42304B
|
42304B
90179-15001 Nut (For Rear Axle Carrier)[08.1987 - 08.1989] ST16# |
90179-15001 |
US $5.60 |
||
|
42305
|
42305
42305-20040
Carrier Sub-Assy, Rear Axle, Lh
[10.1987 - 08.1989] ST165 |
42305-20040 |
— | ||
| replacement | |||||
|
42305
|
42305
42305-20290
Carrier Sub-Assy, Rear Axle, Lh
[10.1987 - 08.1989] ST165 |
42305-20290 |
— | ||
|
48231
|
48231
48231-20610 Spring, Coil, RearCOIL, REAR [10.1987 - 08.1989] ST165 |
48231-20610 |
US $117.94 |
||
| replacement | |||||
|
48231
|
48231
48231-20820
Spring, Coil, Rear
[10.1987 - 08.1989] ST165 |
48231-20820 |
— | ||
|
48257B
|
48257B
48257-32030
Insulator, Rear Coil Spring
[08.1987 - 08.1989] ST16# |
48257-32030 |
— | ||
|
48258A
|
48258A
48258-16010 Insulator, Rear Coil Spring, Lower[08.1987 - 08.1989] ST16# |
48258-16010 |
US $11.68 |
||
|
48341
|
48341
48341-20100 Bumper, Rear Spring[10.1987 - 08.1989] ST165 |
48341-20100 |
US $20.24 |
||
|
48409
|
48409
48409-20030
Cam Sub-Assy, Rear Suspension Toe Adjust
[10.1987 - 08.1989] ST165 |
48409-20030 |
— | ||
|
48452R
|
48452R
48452-20010 Plate, Rear Suspension Toe Adjust, No.2[10.1987 - 08.1989] ST165 |
48452-20010 |
US $17.94 |
||
|
48530
|
48530
48530-20180 Absorber Assy, Shock, Rear RhSHOCK, REAR RH [10.1987 - 08.1989] ST165 |
48530-20180 |
US $315.95 |
||
| replacement | |||||
|
48530
|
48530
48530-20171 Absorber Assy, Shock, Rear Rh[10.1987 - 08.1989] ST165 |
48530-20171 |
US $315.95 |
||
|
48540
|
48540
48540-20180 Absorber Assy, Shock, Rear LhSHOCK, REAR LH [10.1987 - 08.1989] ST165 |
48540-20180 |
US $315.95 |
||
| replacement | |||||
|
48540
|
48540
48540-20171
Absorber Assy, Shock, Rear Lh
[10.1987 - 08.1989] ST165 |
48540-20171 |
— | ||
|
48703C
|
48703C
90170-14006 Nut[10.1987 - 08.1989] ST165 |
90170-14006 |
from US $1.92 |
||
|
48703D
|
48703D
90209-13005 Washer(For Rear Suspension Arm)[10.1987 - 08.1989] ST165 |
90209-13005 |
US $8.80 |
||
|
48703E
|
48703E
90119-12083 Bolt(For Front Suspension Lower Arm)[10.1987 - 08.1989] ST165 *12-1.25PX80-25 |
90119-12083 |
US $6.40 |
||
|
48703E
|
48703E
90119-12126 Bolt(For Rear Suspension Arm)[10.1987 - 08.1989] ST165 *12-1.25PX94-35 |
90119-12126 |
from US $3.39 |
||
|
48703E
|
48703E
90119-14024 Bolt(For Rear Suspension Arm)[10.1987 - 08.1989] ST165 *14-1.50PX73-67 |
90119-14024 |
US $5.24 |
||
|
48710A
|
48710A
48710-20070
Arm Assy, Rear Suspension, No.1 Rh
[10.1987 - 08.1989] ST165 |
48710-20070 |
— | ||
|
48720A
|
48720A
48710-20070
Arm Assy, Rear Suspension, No.1 Rh
[10.1987 - 08.1989] ST165 |
48710-20070 |
— | ||
|
48730A
|
48730A
48730-20020
Arm Assy, Rear Suspension, No.2
[10.1987 - 08.1989] ST165 |
48730-20020 |
— | ||
|
48750
|
48750
48750-20040 Support Assy, Rear Suspension[10.1987 - 08.1989] ST165 |
48750-20040 |
US $75.71 |
||
|
48750A
|
48750A
94182-11400 Nut(For Idler Arm Support)[08.1987 - 08.1989] ST16# |
94182-11400 |
US $4.96 |
||
|
48750G
|
48750G
90179-08111 Nut(For Rear Suspension Support)[08.1987 - 08.1989] ST16# |
90179-08111 |
US $1.44 |
||
|
48753
|
48753
48753-16010
Cover, Rear Suspension Support
[08.1987 - 08.1989] ST16# |
48753-16010 |
— | ||
|
48780A
|
48780A
48780-20030
Rod Assy, Strut, Rear
[10.1987 - 08.1989] ST165 |
48780-20030 |
— | ||
|
48780B
|
48780B
90119-12131 Bolt(For Strut Rod)[08.1987 - 08.1989] ST16# |
90119-12131 |
from US $3.63 |
||
| replacement | |||||
|
48780B
|
48780B
90080-11133 Bolt(For Strut Rod)[08.1987 - 08.1989] ST16# |
90080-11133 |
US $10.95 |
||
|
48780C
|
48780C
90179-12062 Nut(For Rear Suspension Arm)[08.1987 - 08.1989] ST16# CARRIER SIDE |
90179-12062 |
from US $2.54 |
||
|
48780C
|
48780C
90179-12063 Nut(For Rear Suspension Arm)[10.1987 - 08.1989] ST165 BODY SIDE |
90179-12063 |
from US $2.40 |
||
|
48805
|
48805
48812-20210 Bar Sub-Assy, Rear Stabilizer[10.1987 - 08.1989] ST165 |
48812-20210 |
US $128.13 |
||
|
48815R
|
48815R
48818-20120 Bush, Stabilizer(For Rear)[10.1987 - 08.1989] ST165 |
48818-20120 |
US $8.15 |
||
| replacement | |||||
|
48815R
|
48815R
48818-12180 Bush, Stabilizer, Rear[10.1987 - 08.1989] ST165 |
48818-12180 |
US $9.76 |
||
|
48824R
|
48824R
48832-20030 Bracket, Stabilizer(For Rear)[10.1987 - 08.1989] ST165 |
48832-20030 |
from US $3.84 |
||
|
48830
|
48830
48830-20010 Link Assy, Rear Stabilizer[08.1987 - 08.1989] ST16# |
48830-20010 |
US $79.92 |
||
|
48830A
|
48830A
90179-10054 Nut, No.1 (For Center Support Bearing)[08.1987 - 08.1989] ST16# |
90179-10054 |
from US $0.90 |
||
|
9161560820
|
9161560820
91615-60820
Bolt (For Transmission Control Cable Bracket)
|
91615-60820 |
— | ||
| replacement | |||||
|
9161560820
|
9161560820
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
