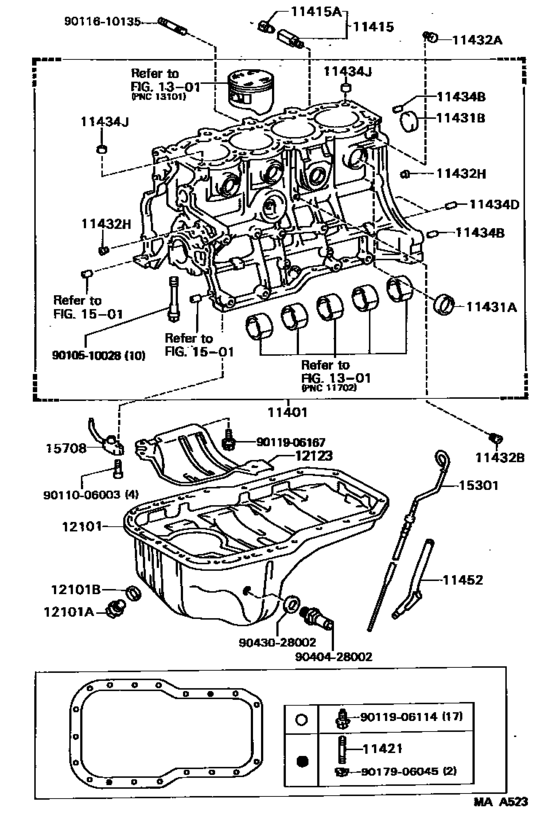

Cylinder Block ([10.1987 - ] (8710- )3SGTE) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST165
- grade
- TBO4W
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- FRG
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11401
|
11401
11401-79315 Block Sub-Assy, Cylinder[10.1987 - 06.1989] 3SGTE..ST165 |
11401-79315 |
US $2,518.88 |
||
| replacement | |||||
|
11401
|
11401
11401-79317 Block Sub-Assy, Cylinder[10.1987 - 06.1989] 3SGTE..ST165 |
11401-79317 |
US $2,737.28 |
||
|
11401
|
11401
11401-79316 Block Sub-Assy, Cylinder[06.1989 - 08.1989] 3SGTE..ST165 |
11401-79316 |
US $2,751.84 |
||
| replacement | |||||
|
11401
|
11401
11401-79317 Block Sub-Assy, Cylinder[06.1989 - 08.1989] 3SGTE..ST165 |
11401-79317 |
US $2,737.28 |
||
|
11415
|
11415
90910-09091 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1987 - 01.1989] 3SG#..ST16# |
90910-09091 |
US $9.03 |
||
|
11415A
|
11415A
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[01.1989 - 08.1989] 3SG#..ST16# |
90345-52001 |
from US $3.68 |
||
|
11415A
|
11415A
90910-09087 Plug, Water Drain Cock(For Cylinder Block)[08.1987 - 03.1988] 4AG#,4AL..AT160; 3SG#..ST16# |
90910-09087 |
from US $3.68 |
||
|
11421
|
11421
90116-06014 Bolt, Stud(For Oil Pan)[08.1987 - 08.1989] 3SG#..ST16# |
90116-06014 |
US $1.05 |
||
|
11431A
|
11431A
96411-43500 Plug, Tight, No.1[08.1987 - 08.1989] 3SG#..ST16# |
96411-43500 |
from US $3.86 |
||
|
11431B
|
11431B
96411-44000 Plug, Tight, No.1[08.1987 - 08.1989] 4AG#,4AL..AT160; 3SG#..ST16# |
96411-44000 |
from US $4.35 |
||
|
11432A
|
11432A
90345-51006 Plug, W/head Taper Screw, No.2[08.1987 - 06.1989] 3SG#..ST16# |
90345-51006 |
from US $0.96 |
||
|
11432B
|
11432B
90345-52001 Cock Sub-Assy, Water Drain(For Cylinder Block)[08.1987 - 06.1989] 3SG#..ST16# |
90345-52001 |
from US $3.68 |
||
|
11432H
|
11432H
90344-53015 Plug, W/head Taper Screw, No.1[08.1987 - 08.1989] 3SG#..ST16# |
90344-53015 |
US $4.80 |
||
|
11434B
|
11434B
90250-10113 Pin, Straight(For Timing Gear Cover Set)[08.1987 - 08.1989] 4AG#,4AL..AT160 L=22,OD=10; 3SG#..ST16# L=22,OD=10 |
90250-10113 |
from US $1.03 |
||
|
11434D
|
11434D
90250-06003 Pin, Straight[08.1987 - 05.1989] 4AG#,4AL..AT160 L=14,OD=6; 3SGTE..ST165 L=14,OD=6 |
90250-06003 |
US $1.44 |
||
|
11434D
|
11434D
90250-06015 Pin, Straight(For Clutch Housing Set)[05.1989 - 08.1989] 3SG#..ST16# L=11,OD=6 |
90250-06015 |
US $1.92 |
||
|
11434J
|
11434J
90253-13017 Pin, Ring W/head[08.1987 - 08.1989] 3SG#..ST16# |
90253-13017 |
from US $1.40 |
||
|
11452
|
11452
11452-88380 Guide, Oil Level Gage[10.1987 - 08.1989] 3SGTE..ST165 |
11452-88380 |
US $18.35 |
||
|
12101
|
12101
12101-74033 Pan Sub-Assy, Oil[08.1987 - 08.1989] 3SG#..ST16# |
12101-74033 |
US $404.77 |
||
| replacement | |||||
|
12101
|
12101
12101-74060 Pan Sub-Assy, Oil[08.1987 - 08.1989] 3SG#..ST16# |
12101-74060 |
US $401.86 |
||
|
12101A
|
12101A
90341-12012 Plug(For Oil Pan Drain)[09.1987 - 12.1988] 4AG#,4AL..AT160; 3SG#..ST16# |
90341-12012 |
from US $2.56 |
||
| replacement | |||||
|
12101A
|
12101A
90341-T0004 Plug(For Oil Pan Drain)[09.1987 - 12.1988] 4AG#,4AL..AT160; 3SG#..ST16# |
90341-T0004 |
US $4.04 |
||
|
12101B
|
12101B
90430-12019
Gasket(For Oil Pan Drain Plug)
[09.1987 - 08.1989] 4AG#,4AL..AT160; 3SG#..ST16# |
90430-12019 |
— | ||
| replacement | |||||
|
12101B
|
12101B
90430-12028 Gasket (For Drain Plug)[09.1987 - 08.1989] 4AG#,4AL..AT160; 3SG#..ST16# |
90430-12028 |
from US $1.41 |
||
|
12123
|
12123
12123-88360
Plate, Oil Pan Baffle, No.1
[10.1987 - 08.1989] 3SGTE..ST165 |
12123-88360 |
— | ||
|
15301
|
15301
15301-88380
Gage Sub-Assy, Oil Level
[10.1987 - 08.1989] 3SGTE..ST165 |
15301-88380 |
— | ||
|
15708
|
15708
15790-88380
Nozzle Sub-Assy, Oil, No.1
[10.1987 - 08.1989] 3SGTE..ST165 |
15790-88380 |
— | ||
| replacement | |||||
|
15708
|
15708
15790-88381
Nozzle Sub-Assy, Oil, No.1
[10.1987 - 08.1989] 3SGTE..ST165 |
15790-88381 |
— | ||
|
9010510028
|
9010510028
90105-10028 Bolt(For Crankshaft Bearing Cap Set) |
90105-10028 |
US $3.84 |
||
|
9011006003
|
9011006003
90110-06003 New Genuine Part |
90110-06003 |
US $1.12 |
||
|
9011610135
|
9011610135
90116-10135
New Genuine Part
|
90116-10135 |
— | ||
|
9011906114
|
9011906114
90119-06114
New Genuine Part
|
90119-06114 |
— | ||
| replacement | |||||
|
9011906114
|
9011906114
90119-06206 New Genuine Part |
90119-06206 |
US $2.24 |
||
|
9011906167
|
9011906167
90119-06167 New Genuine Part |
90119-06167 |
US $1.75 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $1.92 |
||
|
9040428002
|
9040428002
90404-28002
New Genuine Part
|
90404-28002 |
— | ||
|
9043028002
|
9043028002
90430-28002 Gasket(For Oil Pipe) |
90430-28002 |
US $1.89 |
||
| replacement | |||||
|
9043028002
|
9043028002
90430-28003
Gasket(For Oil Pipe)
|
90430-28003 |
— | ||
