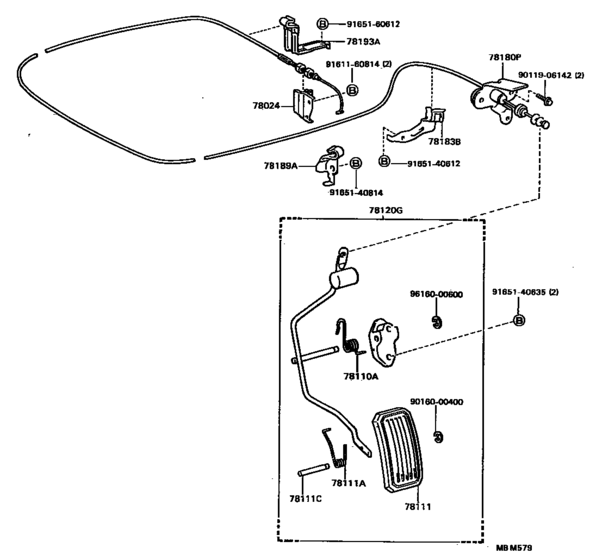

Accelerator Link ([10.1987 - ] (8710- )ST165..RHD) Diagram Toyota CELICA
- Year
- 1987 - 1989
- Sales region
- Europe
- Frame
- ST165
- grade
- TBO4W
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- FRG
- From
- 10.1987
- To
- 08.1989
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Fuel Induction
- TWC
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-88380 Bracket Sub-Assy, Accelerator Control Cable[10.1987 - 08.1989] ST165 |
78024-88380 |
US $31.74 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[08.1987 - 08.1989] ST16#..RHD..5F |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-20030
Pedal, Accelerator
[08.1987 - 08.1989] AT160,ST16# |
78111-20030 |
— | ||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[08.1987 - 08.1989] AT160,ST16#..5F;ST162..LHD..4FC |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[08.1987 - 08.1989] AT160,ST16# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20260 Rod Assy, Accelerator Pedal[08.1987 - 08.1989] ST16#..RHD..5F |
78120-20260 |
US $41.79 |
||
|
78180P
|
78180P
78180-20650 Wire Assy, Accelerator[10.1987 - 08.1989] ST165..RHD |
78180-20650 |
US $62.03 |
||
|
78183B
|
78183B
78183-20030 Clamp, Accelerator Control Cable[08.1987 - 08.1989] ST16#..RHD APRON |
78183-20030 |
US $11.79 |
||
|
78189A
|
78189A
78189-20040 Support, Accelerator Control Cable, No.2[10.1987 - 08.1989] ST165 |
78189-20040 |
US $15 |
||
|
78193A
|
78193A
78193-88380 Support, Accelerator Control Cable, No.3[10.1987 - 08.1989] ST165 |
78193-88380 |
US $13.54 |
||
|
9011906142
|
9011906142
90119-06142 Bolt A/C |
90119-06142 |
US $1.92 |
||
|
9016000400
|
9016000400
90160-00400
New Genuine Part
|
90160-00400 |
— | ||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.88 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140635
|
9165140635
91651-40635 New Genuine Part |
91651-40635 |
US $1.16 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.25 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160612
|
9165160612
91651-60612 BOLT |
91651-60612 |
US $1.44 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
