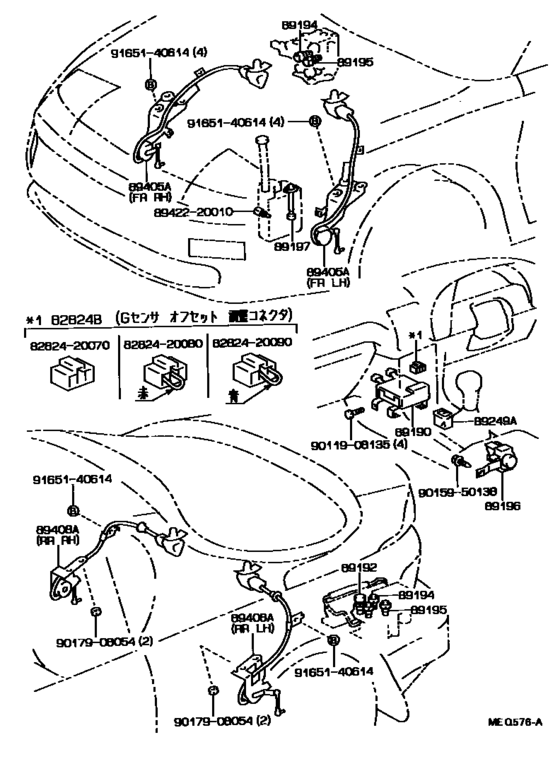

Active Control Suspension (Electrical Parts) ([04.1990 - ] (9004- )ACT) Diagram Toyota CELICA
- Year
- 1990 - 1991
- Sales region
- Japan
- Frame
- ST183
- grade
- ACT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 04.1990
- To
- 08.1991
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82824B
|
82824B
82824-20070 Connector, Wiring Harness[04.1990 - 08.1991] ST183..ACT |
82824-20070 |
US $8.74 |
||
|
82824B
|
82824B
82824-20080 Connector, Wiring Harness[04.1990 - 08.1991] ST183..ACT |
82824-20080 |
US $12.81 |
||
|
82824B
|
82824B
82824-20090 Connector, Wiring Harness[04.1990 - 08.1991] ST183..ACT |
82824-20090 |
US $12.81 |
||
|
89190
|
89190
89190-20010 Computer Assy, Hydropneumatic Suspension[04.1990 - 07.1990] ST183..ACT |
89190-20010 |
US $2,810.08 |
||
| replacement | |||||
|
89190
|
89190
89190-20011 Computer Assy, Hydropneumatic Suspension[04.1990 - 07.1990] ST183..ACT |
89190-20011 |
US $2,810.08 |
||
|
89190
|
89190
89190-20011 Computer Assy, Hydropneumatic Suspension[07.1990 - 08.1991] ST183..ACT |
89190-20011 |
US $2,810.08 |
||
|
89192
|
89192
89192-20010 Sensor, Pressure Accumulator[04.1990 - 08.1991] ST183..ACT |
89192-20010 |
US $764.40 |
||
|
89194
|
89194
89194-20010 Sensor, Pressure Absorber, No.1[04.1990 - 08.1991] ST183..ACT FR |
89194-20010 |
US $173.26 |
||
|
89194
|
89194
89194-20020 Sensor, Pressure Absorber, No.1[04.1990 - 08.1991] ST183..ACT RR |
89194-20020 |
US $173.26 |
||
|
89195
|
89195
89195-20010 Sensor, Pressure Absorber, No.2[04.1990 - 08.1991] ST183..ACT FR |
89195-20010 |
US $161.62 |
||
|
89195
|
89195
89195-20020 Sensor, Pressure Absorber, No.2[04.1990 - 08.1991] ST183..ACT RR |
89195-20020 |
US $173.26 |
||
|
89196
|
89196
89196-20010 Sensor, Oil Temperature[04.1990 - 08.1991] ST183..ACT |
89196-20010 |
US $88.82 |
||
|
89197
|
89197
89197-20010 Sensor, Oil Level[04.1990 - 08.1991] ST183..ACT |
89197-20010 |
US $422.24 |
||
|
89249A
|
89249A
89249-20040 Switch, Absorber Control[04.1990 - 08.1991] ST183..ACT |
89249-20040 |
US $81.54 |
||
|
89405A
|
89405A
89405-20010 Sensor Sub-Assy, Height Control, Front[04.1990 - 08.1991] ST183..ACT 右側 |
89405-20010 |
US $646.46 |
||
|
89405A
|
89405A
89406-20010 Sensor Sub-Assy, Height Control, Front[04.1990 - 08.1991] ST183..ACT 左側 |
89406-20010 |
US $596.96 |
||
|
89408A
|
89408A
89407-20010 Sensor Sub-Assy, Height Control, Rear[04.1990 - 08.1991] ST183..ACT 右側 |
89407-20010 |
US $430.98 |
||
|
89408A
|
89408A
89408-20010 Sensor Sub-Assy, Height Control, Rear[04.1990 - 08.1991] ST183..ACT 左側 |
89408-20010 |
US $430.98 |
||
|
8282420070
|
8282420070
82824-20070 Connector, Wiring Harness |
82824-20070 |
US $8.74 |
||
|
8282420080
|
8282420080
82824-20080 Connector, Wiring Harness |
82824-20080 |
US $12.81 |
||
|
8282420090
|
8282420090
82824-20090 Connector, Wiring Harness |
82824-20090 |
US $12.81 |
||
|
8942220010
|
8942220010
89422-20010 Sensor, Water Temperature (For E.f.i.) |
89422-20010 |
from US $40.66 |
||
|
9011908135
|
9011908135
90119-08135 New Genuine Part |
90119-08135 |
US $1.89 |
||
|
9015950138
|
9015950138
90159-50138 SCREW |
90159-50138 |
US $1.25 |
||
|
9017908054
|
9017908054
90179-08054 Nut (For Connecting Rod Swivel) |
90179-08054 |
US $1.79 |
||
|
9165140614
|
9165140614
91651-40614 Bolt |
91651-40614 |
from US $0.78 |
||
