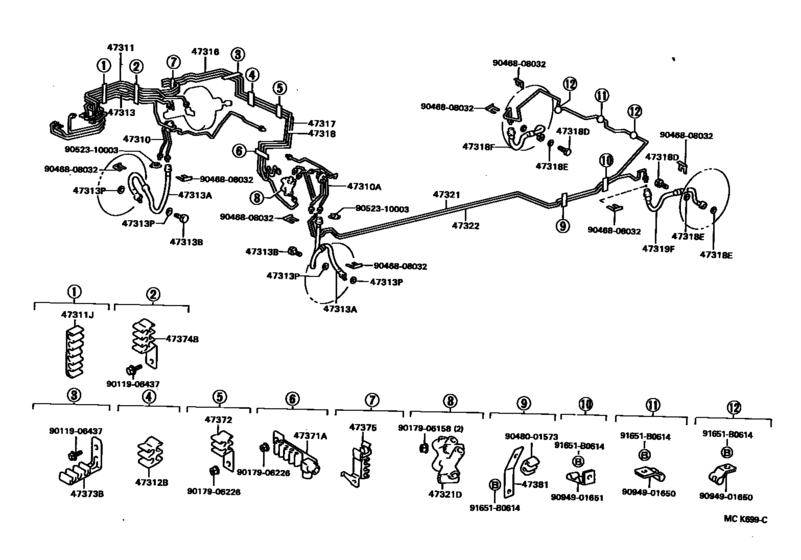

Brake Tube & Clamp ([04.1990 - ] (9004- )ACT) Diagram Toyota CELICA
- Year
- 1990 - 1991
- Sales region
- Japan
- Frame
- ST183
- grade
- ACT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 04.1990
- To
- 08.1991
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
47310
|
47310
47310-20160 Tube Assy, Brake, No.1[04.1990 - 08.1991] ST183..ACT |
47310-20160 |
US $34.36 |
||
|
47310A
|
47310A
47310-20170 Tube Assy, Brake, No.2[04.1990 - 08.1991] ST183..ACT |
47310-20170 |
US $22.42 |
||
|
47311
|
47311
47311-20720 Tube, Front Brake, No.1[09.1989 - 07.1990] ST18# ｱﾘ(*66) |
47311-20720 |
US $18.05 |
||
|
47311
|
47311
47311-20721 Tube, Front Brake, No.1[04.1990 - 09.1993] ST183..ACT,CV |
47311-20721 |
US $17.76 |
||
|
47311J
|
47311J
90480-01433 Grommet(For Front Brake Tube)[09.1989 - 09.1993] ST18# |
90480-01433 |
US $3.32 |
||
|
47312B
|
47312B
90480-01556 Grommet, No.2(For Front Brake Tube)[09.1989 - 09.1993] ST18# |
90480-01556 |
US $6.81 |
||
|
47313
|
47313
47313-20490 Tube, Front Brake, No.3[09.1989 - 07.1990] ST18# ｱﾘ(*66) |
47313-20490 |
US $10.05 |
||
|
47313
|
47313
47313-20491 Tube, Front Brake, No.3[04.1990 - 09.1993] ST183..ACT,CV |
47313-20491 |
US $13.10 |
||
|
47313A
|
47313A
90947-02629 Hose, Flexible, No.1(For Front)[04.1990 - 08.1991] ST183..ACT 右側 |
90947-02629 |
US $41.79 |
||
|
47313A
|
47313A
90947-02630 Hose, Flexible, No.1(For Front)[04.1990 - 08.1991] ST183..ACT 左側 |
90947-02630 |
US $41.79 |
||
|
47313B
|
47313B
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[09.1989 - 09.1993] ST18# |
90401-10015 |
from US $3.58 |
||
|
47313P
|
47313P
90430-10074 Gasket(For Oil Pressure Regulator)[09.1989 - 08.1991] ST18# |
90430-10074 |
from US $0.88 |
||
|
47316
|
47316
47316-20460 Tube, Front Brake, No.6[09.1989 - 07.1990] ST18# |
47316-20460 |
US $36.84 |
||
|
47316
|
47316
47316-20461 Tube, Front Brake, No.6[07.1990 - 09.1993] ST18# |
47316-20461 |
US $36.55 |
||
|
47317
|
47317
47317-20100 Tube, Front Brake, No.7[09.1989 - 07.1990] ST18# |
47317-20100 |
US $36.84 |
||
|
47317
|
47317
47317-20101 Tube, Front Brake, No.7[07.1990 - 08.1991] ST18# |
47317-20101 |
US $39.17 |
||
|
47318
|
47318
47318-20230 Tube, Front Brake, No.8[09.1989 - 07.1990] ST18# |
47318-20230 |
US $36.84 |
||
|
47318
|
47318
47318-20231 Tube, Front Brake, No.8[07.1990 - 08.1991] ST18# |
47318-20231 |
US $36.84 |
||
|
47318D
|
47318D
90401-10015 Bolt, Union(For Clutch Mas Cylinder To Flexible Hose Tube)[09.1989 - 09.1993] ST18# |
90401-10015 |
from US $3.58 |
||
|
47318E
|
47318E
90430-10074 Gasket(For Oil Pressure Regulator)[09.1989 - 08.1991] ST18# |
90430-10074 |
from US $0.88 |
||
|
47318F
|
47318F
90947-02598 Hose, Flexible(For Rear Rh)[09.1989 - 09.1993] ST182,183 |
90947-02598 |
US $41.64 |
||
| replacement | |||||
|
47318F
|
47318F
90947-02984
Hose, Flexible(For Rear Rh)
[09.1989 - 09.1993] ST182,183 |
90947-02984 |
— | ||
|
47319F
|
47319F
90947-02598 Hose, Flexible(For Rear Rh)[09.1989 - 09.1993] ST182,183 |
90947-02598 |
US $41.64 |
||
| replacement | |||||
|
47319F
|
47319F
90947-02984
Hose, Flexible(For Rear Rh)
[09.1989 - 09.1993] ST182,183 |
90947-02984 |
— | ||
|
47321
|
47321
47321-20330 Tube, Rear Brake, No.1[04.1990 - 08.1991] ST183..ACT |
47321-20330 |
US $59.84 |
||
|
47321D
|
47321D
90412-10140 Valve Assy, Proportioning[09.1989 - 09.1993] ST18# |
90412-10140 |
from US $32.50 |
||
|
47322
|
47322
47322-20370 Tube, Rear Brake, No.2[09.1989 - 09.1993] ST182,183 |
47322-20370 |
US $41.79 |
||
|
47371A
|
47371A
47371-20150
Clamp, Brake Tube, No.1
[04.1990 - 08.1991] ST183..ACT,CV |
47371-20150 |
— | ||
|
47372
|
47372
47371-20210
Clamp, Brake Tube, No.2
[09.1989 - 09.1993] ST18# |
47371-20210 |
— | ||
|
47373B
|
47373B
47371-20160
Clamp, Brake Tube, No.3
[09.1989 - 09.1993] ST18# |
47371-20160 |
— | ||
|
47374B
|
47374B
47371-20200 Clamp, Brake Tube, No.1[09.1989 - 08.1991] ST18# |
47371-20200 |
US $8.88 |
||
|
47381
|
47381
47381-20090
Bracket, Brake Tube Clamp No.1
[09.1989 - 09.1993] ST182,183 |
47381-20090 |
— | ||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.79 |
||
|
9011906437
|
9011906437
90119-06437
New Genuine Part
|
90119-06437 |
— | ||
| replacement | |||||
|
9011906437
|
9011906437
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $0.98 |
||
|
9017906226
|
9017906226
90179-06226
Nut (For Rear Wiper Arm Setting)
|
90179-06226 |
— | ||
|
9046808032
|
9046808032
90468-08032 CLIP |
90468-08032 |
US $4.12 |
||
|
9048001573
|
9048001573
90480-01573 Grommet, No.1(For Front Brake Tube) |
90480-01573 |
US $4.66 |
||
|
9052310003
|
9052310003
90523-10003 New Genuine Part |
90523-10003 |
US $1.89 |
||
|
9094901650
|
9094901650
90949-01650 New Genuine Part |
90949-01650 |
US $2.77 |
||
|
9094901651
|
9094901651
90949-01651 New Genuine Part |
90949-01651 |
US $4.66 |
||
