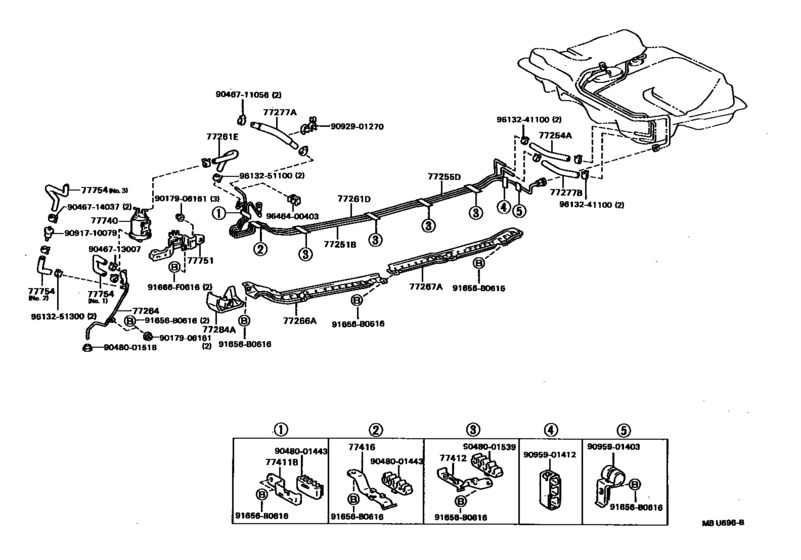

Fuel Tank & Tube ([04.1990 - 08.1991] (9004-9108)ACT) Diagram Toyota CELICA
- Year
- 1990 - 1991
- Sales region
- Japan
- Frame
- ST183
- grade
- ACT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 04.1990
- To
- 08.1991
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
77251B
|
77251B
77251-20640 Tube, Fuel Main[04.1990 - 08.1991] ST183..ACT |
77251-20640 |
US $49.21 |
||
|
77254A
|
77254A
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[01.1990 - 08.1991] ST182,183 ＊Ｈ，Ｌ＝２００ |
95333-06020 |
— | ||
| replacement | |||||
|
77254A
|
77254A
95337-06020 Hose, Differential Pressure Control[01.1990 - 08.1991] ST182,183 ＊Ｈ，Ｌ＝２００ |
95337-06020 |
from US $10.21 |
||
|
77255D
|
77255D
77255-20510 Tube, Fuel Return[04.1990 - 08.1991] ST183..ACT |
77255-20510 |
US $38.88 |
||
|
77261D
|
77261D
77261-20300 Tube, Fuel Tank To Canister[04.1990 - 08.1991] ST183..ACT |
77261-20300 |
US $37.13 |
||
|
77261E
|
77261E
95333-06020
Hose, Fuel(For Injection Pump To Fuel Pipe)
[04.1990 - 08.1991] ST183..ACT ＊Ｈ，Ｌ＝２００ |
95333-06020 |
— | ||
| replacement | |||||
|
77261E
|
77261E
95337-06020 Hose, Differential Pressure Control[04.1990 - 08.1991] ST183..ACT ＊Ｈ，Ｌ＝２００ |
95337-06020 |
from US $10.21 |
||
|
77264
|
77264
77264-20100 Tube, Canister To Front Side Member[04.1990 - 08.1991] ST183..ACT |
77264-20100 |
US $24.75 |
||
|
77266A
|
77266A
77266-20110
Protector, Fuel Tube, No.1
[09.1989 - 09.1993] ST182,183 |
77266-20110 |
— | ||
|
77267A
|
77267A
77267-20070
Protector, Fuel Tube, No.2
[09.1989 - 09.1993] ST182,183 |
77267-20070 |
— | ||
|
77277A
|
77277A
23271-74310 Hose, Fuel, No.1(For Return Tube, No.1)[04.1990 - 08.1991] ST183..ACT ＊Ｈ，Ｌ＝１８０ |
23271-74310 |
US $9.76 |
||
| replacement | |||||
|
77277A
|
77277A
23271-74130
Hose, Fuel, No.1(For Return Tube, No.1)
[04.1990 - 08.1991] ST183..ACT ＊Ｈ，Ｌ＝１８０ |
23271-74130 |
— | ||
|
77277B
|
77277B
77259-20110 Hose, Fuel, No.2(For Return Tube, No.1)[09.1989 - 08.1991] ST182,183 長さ＝１６０ |
77259-20110 |
US $7.86 |
||
|
77284A
|
77284A
77284-20020
Protector, Fuel Tube, No.3
[09.1989 - 09.1993] ST18# |
77284-20020 |
— | ||
|
77411B
|
77411B
77411-20030
Support, Fuel Tube Grommet, No.1
[09.1989 - 09.1993] ST18# |
77411-20030 |
— | ||
|
77412
|
77412
77412-20020 Support, Fuel Tube Grommet, No.2[09.1989 - 09.1993] ST182,183 |
77412-20020 |
US $9.90 |
||
|
77416
|
77416
77416-20010 Support, Fuel Tube Grommet, No.6[09.1989 - 09.1993] ST182,183 |
77416-20010 |
US $9.90 |
||
|
77740
|
77740
77704-20260
Canister Assy, Charcoal
[04.1990 - 08.1990] ST183..ACT |
77704-20260 |
— | ||
|
77754
|
77754
77754-20190 Hose, Charcoal Canister Outlet, No.1[04.1990 - 08.1991] ST183..ACT ＮＯ．１ |
77754-20190 |
US $14.56 |
||
|
77754
|
77754
77754-20201 Hose, Charcoal Canister Outlet, No.1[04.1990 - 08.1991] ST183..ACT ＮＯ．２ |
77754-20201 |
US $10.05 |
||
|
77754
|
77754
77754-20210 Hose, Charcoal Canister Outlet, No.1[04.1990 - 08.1991] ST183..ACT ＮＯ．３ |
77754-20210 |
US $17.04 |
||
|
91656B0616
|
91656B0616
91656-B0616
New Genuine Part
|
91656-B0616 |
— | ||
| replacement | |||||
|
91656B0616
|
91656B0616
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.79 |
||
|
91666F0616
|
91666F0616
91666-F0616 New Genuine Part |
91666-F0616 |
US $1.46 |
||
| replacement | |||||
|
91666F0616
|
91666F0616
90119-06072 Bolt |
90119-06072 |
US $1.65 |
||
|
9017906161
|
9017906161
90179-06161 Bolt, Union(For Clutch Accumulator) |
90179-06161 |
from US $0.80 |
||
|
9046711056
|
9046711056
90467-11056
Clamp Or Clip(For Water By-Pass Hose)
|
90467-11056 |
— | ||
| replacement | |||||
|
9046711056
|
9046711056
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose) |
96135-51100 |
from US $1.83 |
||
|
9046713007
|
9046713007
90467-13007
Clamp Or Clip(For Water By-Pass Hose No.2)
|
90467-13007 |
— | ||
| replacement | |||||
|
9046713007
|
9046713007
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9046714037
|
9046714037
90467-14037 Clip Or Clamp(For Ventilation Hose) |
90467-14037 |
US $2.33 |
||
|
9048001443
|
9048001443
90480-01443
New Genuine Part
|
90480-01443 |
— | ||
|
9048001518
|
9048001518
90480-01518 New Genuine Part |
90480-01518 |
US $4.66 |
||
|
9048001539
|
9048001539
90480-01539
New Genuine Part
|
90480-01539 |
— | ||
|
9091710079
|
9091710079
90917-10079 Valve, Check, No.1 |
90917-10079 |
US $16.60 |
||
|
9092901270
|
9092901270
90929-01270 New Genuine Part |
90929-01270 |
US $5.10 |
||
|
9095901403
|
9095901403
90959-01403
New Genuine Part
|
90959-01403 |
— | ||
|
9095901412
|
9095901412
90959-01412
New Genuine Part
|
90959-01412 |
— | ||
|
9613241100
|
9613241100
96132-41100
Clamp Or Clip(For Radiator Reserve Tank Hose)
|
96132-41100 |
— | ||
| replacement | |||||
|
9613241100
|
9613241100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613251100
|
9613251100
96132-51100 Clip (For Hose) |
96132-51100 |
from US $1.42 |
||
|
9613251300
|
9613251300
96132-51300 Clip(For Ventilation Hose No.2) |
96132-51300 |
from US $1.48 |
||
|
9646400403
|
9646400403
96464-00403
New Genuine Part
|
96464-00403 |
— | ||
