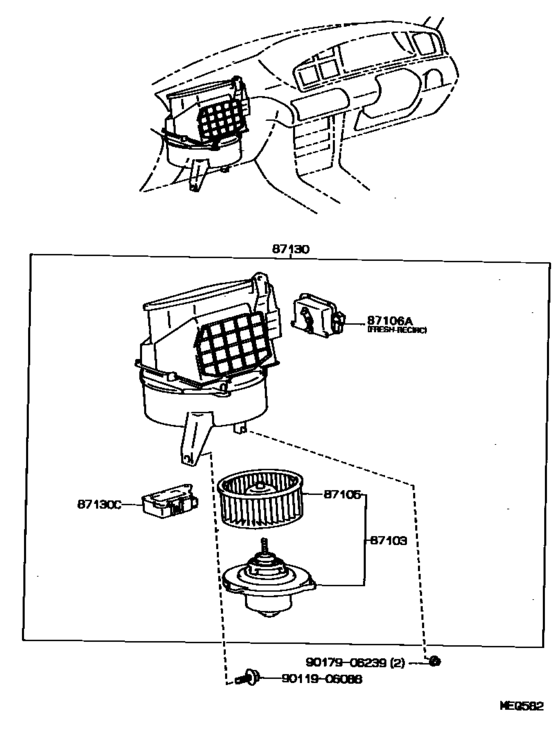

Heating & Air Conditioning - Heater Unit & Blower ([04.1990 - 08.1991] BLOWER (9004-9108)ACT) Diagram Toyota CELICA
- Year
- 1990 - 1991
- Sales region
- Japan
- Frame
- ST183
- grade
- ACT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 04.1990
- To
- 08.1991
- Body Shape
- NOB
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87103
|
87103
87103-20050
Motor Sub-Assy, Heater Blower, W/fan
[09.1989 - 09.1993] ST18# |
87103-20050 |
— | ||
|
87105
|
87105
87105-20100
Fan Sub-Assy, Heater Blower
[09.1989 - 09.1993] ST18# |
87105-20100 |
— | ||
|
87106A
|
87106A
87106-20120
Servo Sub-Assy, Damper
[09.1989 - 09.1993] ST18# モード |
87106-20120 |
— | ||
|
87106A
|
87106A
87106-20140
Servo Sub-Assy, Damper
[09.1989 - 08.1990] ST18#..ACT,GT4,GTR,ZR エアミックス; ST182,183..SR ｱﾘ(ｵ-ﾄ ｴｱｺﾝ),エアミックス |
87106-20140 |
— | ||
|
87106A
|
87106A
87106-20160
Servo Sub-Assy, Damper
[09.1989 - 09.1993] ST18# FRESH-RECIRC |
87106-20160 |
— | ||
|
87130
|
87130
87130-20490
Blower Assy, Heater, Front
[04.1990 - 08.1991] ST183..ACT |
87130-20490 |
— | ||
| replacements | |||||
|
87130
|
87130
87130-20450
Blower Assy, Heater, Front
[04.1990 - 08.1991] ST183..ACT |
87130-20450 |
— | ||
|
87130
|
87130
88630-20190
Relay, Heater Blower Motor
[04.1990 - 08.1991] ST183..ACT |
88630-20190 |
— | ||
|
87130C
|
87130C
88630-20190
Relay, Heater Blower Motor
[09.1989 - 08.1990] ST18#..ACT,GT4,GTR,ZR |
88630-20190 |
— | ||
|
9011906088
|
9011906088
90119-06088 Bolt, W/washer (For Floor Shift) |
90119-06088 |
US $1.14 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.80 |
||
