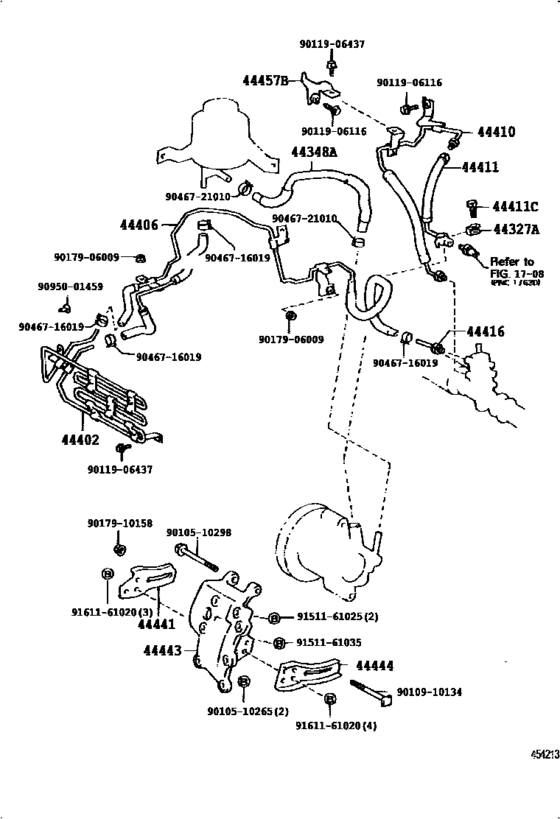

Power Steering Tube ([04.1990 - ] (9004- )ACT) Diagram Toyota CELICA
- Year
- 1990 - 1991
- Sales region
- Japan
- Frame
- ST183
- grade
- ACT
- body
- LB
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 04.1990
- To
- 08.1991
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
44327A
|
44327A
44327-26020 Gasket, Pressure Port, No.1[04.1990 - 08.1991] ST183..ACT |
44327-26020 |
from US $2.46 |
||
|
44348A
|
44348A
44348-20320 Hose, Oil Reservoir To Pump, No.1[04.1990 - 08.1991] ST183..ACT |
44348-20320 |
US $88.82 |
||
|
44402
|
44402
44402-20350
Cooler Sub-Assy, Power Steering Oil, No.1
[04.1990 - 08.1991] ST183..ACT |
44402-20350 |
— | ||
|
44406
|
44406
44406-20260 Tube Sub-Assy, Return[04.1990 - 08.1991] ST183..ACT |
44406-20260 |
US $138.32 |
||
|
44410
|
44410
44410-20551 Tube Assy, Pressure Feed[09.1989 - 12.1991] ST182,183 |
44410-20551 |
US $205.30 |
||
| replacements | |||||
|
44410
|
44410
44410-20H00 Tube Assy, Pressure Feed[09.1989 - 12.1991] ST182,183 |
44410-20H00 |
US $205.30 |
||
|
44410
|
44410
44410-20H20 Tube Assy, Pressure Feed[09.1989 - 12.1991] ST182,183 |
44410-20H20 |
US $273.73 |
||
|
44411
|
44411
44411-20310 Hose, Pressure Feed[04.1990 - 08.1991] ST183..ACT |
44411-20310 |
US $215.49 |
||
| replacement | |||||
|
44411
|
44411
44411-20311 Hose, Pressure Feed[04.1990 - 08.1991] ST183..ACT |
44411-20311 |
US $232.96 |
||
|
44411C
|
44411C
90401-16014 Bolt, Union(For Pressure Feed Tube)[04.1990 - 08.1991] ST183..ACT |
90401-16014 |
from US $12.01 |
||
|
44416
|
44416
44416-20110 Tube, Return(For Steering Gear Outlet)[09.1989 - 09.1993] ST185..NOB;ST18#..ACT,CV,GT4A,GTR,SR,ZR |
44416-20110 |
US $9.46 |
||
| replacement | |||||
|
44416
|
44416
44416-44010 Tube, Return(For Steering Gear Outlet)[09.1989 - 09.1993] ST185..NOB;ST18#..ACT,CV,GT4A,GTR,SR,ZR |
44416-44010 |
US $9.61 |
||
|
44441
|
44441
44441-20050 Bracket, Pump, Front[04.1990 - 08.1991] ST183..ACT |
44441-20050 |
US $10.77 |
||
|
44443
|
44443
44443-20090 Bracket, Pump[04.1990 - 08.1991] ST183..ACT |
44443-20090 |
US $208.21 |
||
|
44444
|
44444
44444-20090 Stay, Pump, Rear[04.1990 - 08.1991] ST183..ACT |
44444-20090 |
US $13.54 |
||
|
44457B
|
44457B
44457-20070
Bracket, Tube Support, No.1
[09.1989 -] ST18# |
44457-20070 |
— | ||
|
9010510265
|
9010510265
90105-10265 New Genuine Part |
90105-10265 |
US $2.62 |
||
|
9010510298
|
9010510298
90105-10298 New Genuine Part |
90105-10298 |
US $4.22 |
||
|
9010910134
|
9010910134
90109-10134 New Genuine Part |
90109-10134 |
US $5.53 |
||
|
9011906116
|
9011906116
90119-06116
New Genuine Part
|
90119-06116 |
— | ||
|
9011906437
|
9011906437
90119-06437
New Genuine Part
|
90119-06437 |
— | ||
| replacement | |||||
|
9011906437
|
9011906437
90119-06423 BOLT WWASHER |
90119-06423 |
US $1.25 |
||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.64 |
||
|
9017910158
|
9017910158
90179-10158 New Genuine Part |
90179-10158 |
US $2.18 |
||
|
9046716019
|
9046716019
90467-16019 Clip(For Return No.1) |
90467-16019 |
from US $2.40 |
||
|
9046721010
|
9046721010
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9095001459
|
9095001459
90950-01459
New Genuine Part
|
90950-01459 |
— | ||
|
9151161025
|
9151161025
91511-61025
New Genuine Part
|
91511-61025 |
— | ||
| replacement | |||||
|
9151161025
|
9151161025
91512-G1025 BOLTFLANGE |
91512-G1025 |
from US $0.96 |
||
|
9151161035
|
9151161035
91511-61035
Bolt(For Transaxle Case & Engine Setting)
|
91511-61035 |
— | ||
| replacement | |||||
|
9151161035
|
9151161035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $0.98 |
||
|
9161161020
|
9161161020
91611-61020 Bolt(For Transaxle & Engine Setting) |
91611-61020 |
US $0.70 |
||
| replacement | |||||
|
9161161020
|
9161161020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
