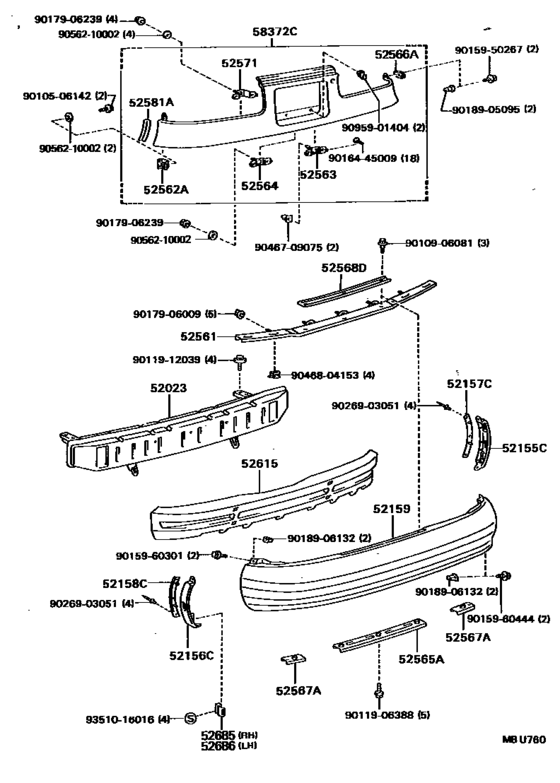

Rear Bumper & Bumper Stay ([09.1990 - ] (9009- )CV) Diagram Toyota CELICA
- Year
- 1990 - 1993
- Sales region
- Japan
- Frame
- ST183
- grade
- CV
- body
- CVT
- ENGINE
- 3SGE
- TRANSMISSION
- ATM
- From
- 09.1990
- To
- 09.1993
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52023
|
52023
52023-20290 Reinforcement Sub-Assy, Rear Bumper[09.1990 - 09.1993] ST183..CV |
52023-20290 |
US $505.23 |
||
|
52155C
|
52155C
52155-20230 Support, Rear Bumper Side, No.1 Rh[09.1990 - 09.1993] ST183..CV |
52155-20230 |
US $17.18 |
||
|
52156C
|
52156C
52156-20160 Support, Rear Bumper Side, No.1 Lh[09.1990 - 09.1993] ST183..CV |
52156-20160 |
US $17.18 |
||
|
52157C
|
52157C
52157-20100 Support, Rear Bumper Side, No.2 Rh[09.1990 - 09.1993] ST183..CV |
52157-20100 |
US $8.15 |
||
|
52158C
|
52158C
52158-20070 Support, Rear Bumper Side, No.2 Lh[09.1990 - 09.1993] ST183..CV |
52158-20070 |
US $8.15 |
||
|
52159
|
52159
52159-20600-01 Cover, Rear Bumper[09.1990 - 09.1993] ST183..CV BLACK,202 |
52159-20600-01 |
US $851.76 |
||
|
52159
|
52159
52159-20600-02 Cover, Rear Bumper[09.1990 - 09.1993] ST183..CV SUPER RED 2,3E5 |
52159-20600-02 |
US $851.76 |
||
|
52159
|
52159
52159-20600-08 Cover, Rear Bumper[09.1990 - 09.1993] ST183..CV SUPER WHITE 2,040 |
52159-20600-08 |
US $851.76 |
||
|
52159
|
52159
52159-20600-J0 Cover, Rear Bumper[08.1992 - 09.1993] ST183..ATM..CV ｾﾘｶｺﾝﾊﾞ-ﾁﾌﾞﾙ ﾄｸﾍﾞﾂｼﾖｳｼﾔ,DARK BLUE MICA ME,8J1 |
52159-20600-J0 |
US $850.30 |
||
| replacement | |||||
|
52159
|
52159
52159-20920 Cover, Rear BumperREAR BUMPER [08.1992 - 09.1993] ST183..ATM..CV ｾﾘｶｺﾝﾊﾞ-ﾁﾌﾞﾙ ﾄｸﾍﾞﾂｼﾖｳｼﾔ,DARK BLUE MICA ME,8J1 |
52159-20920 |
US $566.38 |
||
|
52561
|
52561
52561-20160 Retainer, Rear Bumper, Upper Center[09.1990 - 09.1993] ST183..CV |
52561-20160 |
US $58.68 |
||
|
52562A
|
52562A
52562-20020 Retainer, Rear Bumper Filler, No.2[09.1990 - 09.1993] ST183..CV |
52562-20020 |
US $5.10 |
||
|
52563
|
52563
52563-20030 Retainer, Rear Bumper Filler, No.3[09.1990 - 09.1993] ST183..CV |
52563-20030 |
US $5.53 |
||
|
52564
|
52564
52564-20010 Retainer, Rear Bumper Filler, No.4[09.1990 - 09.1993] ST183..CV |
52564-20010 |
US $5.24 |
||
|
52565A
|
52565A
52565-20140
Retainer, Rear Bumper, Lower
[09.1989 - 09.1993] ST18# |
52565-20140 |
— | ||
|
52566A
|
52566A
52566-20020 Retainer, Rear Bumper Filler, No.5[09.1990 - 09.1993] ST183..CV |
52566-20020 |
US $1.46 |
||
|
52567A
|
52567A
52567-20030
Retainer, Rear Bumper, Lower Side
[09.1989 - 09.1993] ST18# |
52567-20030 |
— | ||
|
52568D
|
52568D
52568-20020
Retainer, Rear Bumper, Upper No.2
[09.1989 - 09.1993] ST18# |
52568-20020 |
— | ||
|
52571
|
52571
52571-20010 Bracket, Rear Bumper Filler[09.1990 - 09.1993] ST183..CV |
52571-20010 |
US $5.24 |
||
|
52581A
|
52581A
52581-20020 Protector, Rear Bumper Filler[09.1990 - 09.1993] ST183..CV |
52581-20020 |
US $1.46 |
||
|
52615
|
52615
52615-20140 Absorber, Rear Bumper Energy[09.1990 - 09.1993] ST183..CV |
52615-20140 |
US $256.26 |
||
|
52685
|
52685
52685-20010 Support, Rear Bumper Side, No.3[09.1989 - 09.1993] ST18# |
52685-20010 |
US $5.57 |
||
|
52686
|
52686
52685-20010 Support, Rear Bumper Side, No.3[09.1989 - 09.1993] ST18# |
52685-20010 |
US $5.57 |
||
|
58372C
|
58372C
58372-20901 Panel, Body Lower Back, Rear[09.1990 - 09.1993] ST183..CV |
58372-20901 |
US $446.99 |
||
|
9010506142
|
9010506142
90105-06142
New Genuine Part
|
90105-06142 |
— | ||
|
9010906081
|
9010906081
90109-06081 New Genuine Part |
90109-06081 |
US $3.64 |
||
|
9011906388
|
9011906388
90119-06388
BOLT
|
90119-06388 |
— | ||
| replacement | |||||
|
9011906388
|
9011906388
90119-06492 BOLT |
90119-06492 |
from US $0.92 |
||
|
9011912039
|
9011912039
90119-12039 New Genuine Part |
90119-12039 |
US $4.95 |
||
|
9015950267
|
9015950267
90159-50267 SCREW WWASHER |
90159-50267 |
from US $0.82 |
||
|
9015960301
|
9015960301
90159-60301 New Genuine Part |
90159-60301 |
US $0.96 |
||
|
9015960444
|
9015960444
90159-60444 SCREW WWASHER |
90159-60444 |
from US $0.66 |
||
|
9016445009
|
9016445009
90164-45009
New Genuine Part
|
90164-45009 |
— | ||
|
9017906009
|
9017906009
90179-06009
Nut (For Transmission Control Cable)
|
90179-06009 |
— | ||
| replacement | |||||
|
9017906009
|
9017906009
90179-06156 Nut (For Transmission Control Cable) |
90179-06156 |
from US $0.72 |
||
|
9017906239
|
9017906239
90179-06239
New Genuine Part
|
90179-06239 |
— | ||
| replacement | |||||
|
9017906239
|
9017906239
90179-06314 NUT |
90179-06314 |
from US $0.84 |
||
|
9018905095
|
9018905095
90189-05095 New Genuine Part |
90189-05095 |
US $1.05 |
||
|
9018906132
|
9018906132
90189-06132
New Genuine Part
|
90189-06132 |
— | ||
|
9026903051
|
9026903051
90269-03051 New Genuine Part |
90269-03051 |
US $1.60 |
||
|
9046709075
|
9046709075
90467-09075 Clip, Rear Spoiler, No.1 |
90467-09075 |
from US $0.96 |
||
|
9046804153
|
9046804153
90468-04153
New Genuine Part
|
90468-04153 |
— | ||
|
9056210002
|
9056210002
90562-10002
New Genuine Part
|
90562-10002 |
— | ||
|
9095901404
|
9095901404
90959-01404 New Genuine Part |
90959-01404 |
US $4.80 |
||
|
9351016016
|
9351016016
93510-16016 New Genuine Part |
93510-16016 |
US $0.44 |
||
