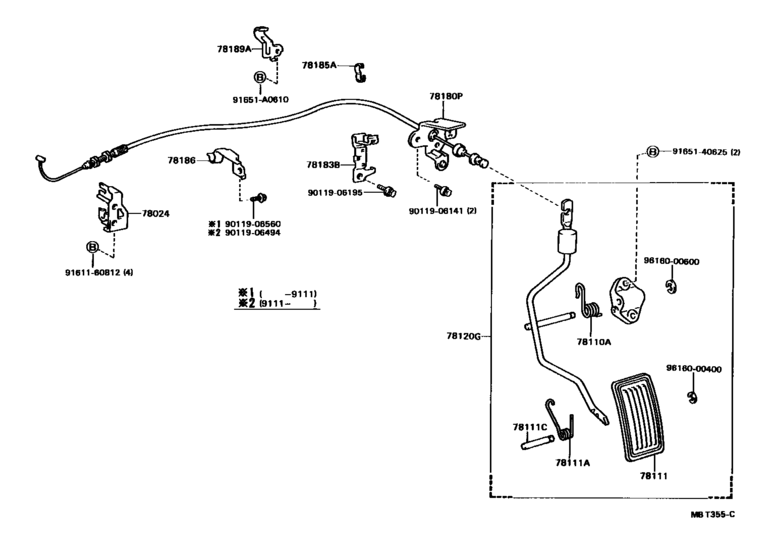

Accelerator Link ([10.1989 - ] (8910- )ST184) Diagram Toyota CELICA
- Year
- 1990 - 1993
- Sales region
- General
- Frame
- ST184
- body
- LB
- ENGINE
- 5SFE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1990
- To
- 11.1993
- Body Shape
- WIB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-20090
Bracket Sub-Assy, Accelerator Control Cable
[08.1991 - 11.1993] ST184 |
78024-20090 |
— | ||
|
78024
|
78024
78024-20130 Bracket Sub-Assy, Accelerator Control Cable[10.1989 - 08.1991] ST184 |
78024-20130 |
US $36.11 |
||
|
78110A
|
78110A
90508-26054 Spring, Torsion (For Accelerator Link)[10.1989 - 11.1993] ST182;AT180,ST184,185..RHD..MTM |
90508-26054 |
US $6.99 |
||
|
78111
|
78111
78111-20030
Pedal, Accelerator
[10.1989 - 11.1993] AT180,ST18# |
78111-20030 |
— | ||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[10.1989 - 11.1993] AT180,ST18#..MTM |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[10.1989 - 11.1993] AT180,ST18# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20440 Rod Assy, Accelerator Pedal[10.1989 - 11.1993] AT180,ST184..RHD..MTM |
78120-20440 |
US $40.77 |
||
|
78180P
|
78180P
78180-2B290
Cable Assy, Accelerator Control
[10.1989 - 08.1991] ST184 |
78180-2B290 |
— | ||
|
78180P
|
78180P
78180-2B640
Cable Assy, Accelerator Control
[08.1991 - 11.1993] ST184 |
78180-2B640 |
— | ||
|
78183B
|
78183B
78183-20130 Clamp, Accelerator Control Cable[12.1989 - 11.1993] AT180..RHD TYPE B; ST184,185 |
78183-20130 |
US $12.23 |
||
|
78185A
|
78185A
78185-20080 Clamp, Accelerator Control Cable, No.2[10.1989 - 11.1993] ST184 |
78185-20080 |
US $2.27 |
||
|
78186
|
78186
78186-20141 Support, Accelerator Control Cable, No.1[08.1991 - 11.1993] ST184..MTM |
78186-20141 |
US $6.84 |
||
|
78186
|
78186
78186-32040 Support, Accelerator Control Cable, No.1[10.1989 - 08.1991] ST184 |
78186-32040 |
US $8.59 |
||
|
91651A0610
|
91651A0610
91651-A0610 BOLT WWASHER |
91651-A0610 |
US $1.60 |
||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9011906195
|
9011906195
90119-06195 New Genuine Part |
90119-06195 |
US $1.92 |
||
|
9011906494
|
9011906494
90119-06494 New Genuine Part |
90119-06494 |
US $0.96 |
||
|
9011906560
|
9011906560
90119-06560 Bolt |
90119-06560 |
US $1.92 |
||
|
9161160812
|
9161160812
91611-60812
Bolt(For Drive Plate & Torque Converter Setting)
|
91611-60812 |
— | ||
| replacement | |||||
|
9161160812
|
9161160812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9165140625
|
9165140625
91651-40625 New Genuine Part |
91651-40625 |
US $1.12 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
