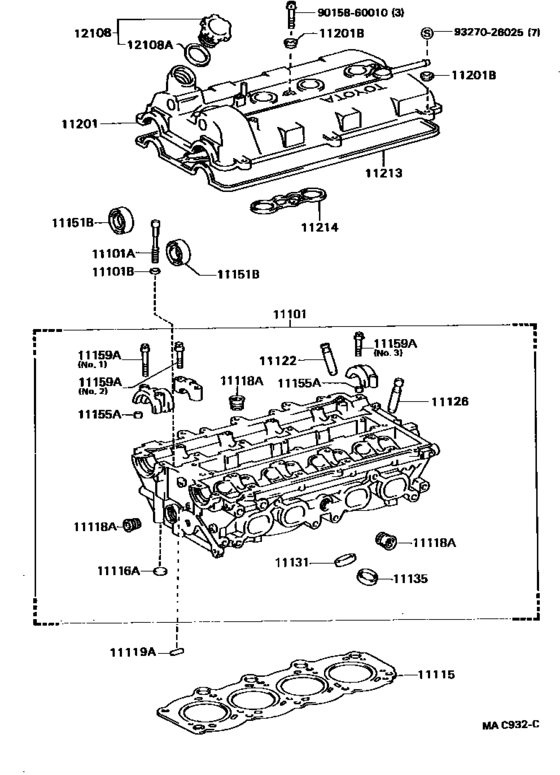

Cylinder Head ([10.1989 - ] (8910- )3SGTE) Diagram Toyota CELICA
- Year
- 1989 - 1991
- Sales region
- Japan
- Frame
- ST185
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 10.1989
- To
- 08.1991
- Body Shape
- NOB
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-88383 Head Sub-Assy, Cylinder[10.1989 - 01.1991] 3SGTE..ST185 |
11101-88383 |
US $2,096.64 |
||
| replacements | |||||
|
11101
|
11101
11101-88390
Head Sub-Assy, Cylinder
[10.1989 - 01.1991] 3SGTE..ST185 |
11101-88390 |
— | ||
|
11101
|
11101
12511-88365 Bracket, Alternator, No.1[10.1989 - 01.1991] 3SGTE..ST185 |
12511-88365 |
US $192.19 |
||
|
11101
|
11101
90109-06229
New Genuine Part
[10.1989 - 01.1991] 3SGTE..ST185 |
90109-06229 |
— | ||
|
11101
|
11101
90179-06208 NUT[10.1989 - 01.1991] 3SGTE..ST185 |
90179-06208 |
US $1.12 |
||
|
11101
|
11101
11323-88383
Cover, Sub-Assy, Timing Belt, No.3
[10.1989 - 01.1991] 3SGTE..ST185 |
11323-88383 |
— | ||
|
11101
|
11101
11101-88385 Head Sub-Assy, Cylinder[01.1991 - 07.1991] 3SGTE..ST185 |
11101-88385 |
US $2,096.64 |
||
| replacements | |||||
|
11101
|
11101
11101-88390
Head Sub-Assy, Cylinder
[01.1991 - 07.1991] 3SGTE..ST185 |
11101-88390 |
— | ||
|
11101
|
11101
90109-06229
New Genuine Part
[01.1991 - 07.1991] 3SGTE..ST185 |
90109-06229 |
— | ||
|
11101
|
11101
90179-06208 NUT[01.1991 - 07.1991] 3SGTE..ST185 |
90179-06208 |
US $1.12 |
||
|
11101
|
11101
11323-88383
Cover, Sub-Assy, Timing Belt, No.3
[01.1991 - 07.1991] 3SGTE..ST185 |
11323-88383 |
— | ||
|
11101
|
11101
11101-88388 Head Sub-Assy, Cylinder[07.1991 - 08.1991] 3SGTE..ST185 |
11101-88388 |
US $2,096.64 |
||
| replacements | |||||
|
11101
|
11101
11101-88390
Head Sub-Assy, Cylinder
[07.1991 - 08.1991] 3SGTE..ST185 |
11101-88390 |
— | ||
|
11101
|
11101
11323-88383
Cover, Sub-Assy, Timing Belt, No.3
[07.1991 - 08.1991] 3SGTE..ST185 |
11323-88383 |
— | ||
|
11101A
|
11101A
90910-02094 Bolt(For Cylinder Head Set)[09.1989 - 09.1993] 3SG#..ST18# |
90910-02094 |
from US $6.56 |
||
|
11101B
|
11101B
90201-10060 Washer, Plate(For Cylinder Head Set)[10.1989 - 09.1993] 3SGTE..ST185 |
90201-10060 |
US $3.20 |
||
|
11115
|
11115
11115-88382 Gasket, Cylinder Head[10.1989 - 09.1993] 3SGTE..ST185 |
11115-88382 |
from US $83.13 |
||
|
11116A
|
11116A
96411-41800 Plug, Tight, No.1[10.1989 - 09.1993] 3SGTE..ST185 |
96411-41800 |
from US $1.72 |
||
|
11118A
|
11118A
90341-27003 Plug, W/head Taper Screw, No.1[10.1989 - 09.1993] 3SGTE..ST185 |
90341-27003 |
from US $7.16 |
||
|
11122
|
11122
11122-88320 Bush, Intake Valve Guide[09.1989 - 09.1993] 3SG#..ST18# ＳＴＤ |
11122-88320 |
US $25.77 |
||
|
11122
|
11122
11123-88320 Bush, Intake Valve Guide[09.1989 - 09.1993] 3SG#..ST18# Ｏ／Ｓ ０．０５ |
11123-88320 |
US $25.77 |
||
|
11126
|
11126
11122-88320 Bush, Intake Valve Guide[09.1989 - 09.1993] 3SG#..ST18# ＳＴＤ |
11122-88320 |
US $25.77 |
||
|
11126
|
11126
11123-88320 Bush, Intake Valve Guide[09.1989 - 09.1993] 3SG#..ST18# Ｏ／Ｓ ０．０５ |
11123-88320 |
US $25.77 |
||
|
11131
|
11131
11131-74010 Seat, Intake Valve[09.1989 - 09.1993] 3SG#..ST18# ＳＴＤ |
11131-74010 |
US $38.88 |
||
|
11131
|
11131
11132-74010 Seat, Intake Valve[09.1989 - 09.1993] 3SG#..ST18# Ｏ／Ｓ ０．０３ |
11132-74010 |
US $18.93 |
||
|
11135
|
11135
11135-74010 Seat, Exhaust Valve[09.1989 - 09.1993] 3SG#..ST18# ＳＴＤ |
11135-74010 |
US $34.94 |
||
|
11135
|
11135
11136-74010 Seat, Exhaust Valve[09.1989 - 09.1993] 3SG#..ST18# Ｏ／Ｓ ０．０３ |
11136-74010 |
US $19.95 |
||
|
11151B
|
11151B
90311-35008
Seal, Oil(For Camshaft Setting)
[10.1989 - 04.1990] 3SGTE..ST185 |
90311-35008 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[10.1989 - 04.1990] 3SGTE..ST185 |
90311-35040 |
from US $5.60 |
||
|
11151B
|
11151B
90311-35022
Seal, Oil(For Camshaft Setting)
[04.1990 - 09.1993] 3SG#..ST18# |
90311-35022 |
— | ||
| replacement | |||||
|
11151B
|
11151B
90311-35040 Seal, Oil(For Timing Chain Or Belt Cover)[04.1990 - 09.1993] 3SG#..ST18# |
90311-35040 |
from US $5.60 |
||
|
11155A
|
11155A
90253-10004 Pin, Ring W/head[09.1989 - 09.1993] 3SFE,3SG#..ST18# |
90253-10004 |
US $1.92 |
||
|
11159A
|
11159A
90119-07001 Bolt(For Head To Camshaft Bearing Cap)[09.1989 - 09.1993] 3SG#..ST18# ＮＯ．１ |
90119-07001 |
US $3.20 |
||
|
11159A
|
11159A
90119-07002 Bolt(For Head To Camshaft Bearing Cap)[09.1989 - 09.1993] 3SG#..ST18# ＮＯ．２ |
90119-07002 |
US $3.20 |
||
|
11159A
|
11159A
90119-07003
Bolt(For Head To Camshaft Bearing Cap)
[09.1989 - 09.1993] 3SG#..ST18# ＮＯ．３ |
90119-07003 |
— | ||
|
11201
|
11201
11201-88382
Cover Sub-Assy, Cylinder Head
[10.1989 - 10.1991] 3SGTE..ST185..GT4,GT4A |
11201-88382 |
— | ||
| replacements | |||||
|
11201
|
11201
91511-B0860 BOLTFLANGE[10.1989 - 10.1991] 3SGTE..ST185..GT4,GT4A |
91511-B0860 |
US $2.56 |
||
|
11201
|
11201
11201-88386 Cover Sub-Assy, Cylinder Head[10.1989 - 10.1991] 3SGTE..ST185..GT4,GT4A |
11201-88386 |
US $477.57 |
||
|
11201
|
11201
90905-61009
New Genuine Part
[10.1989 - 10.1991] 3SGTE..ST185..GT4,GT4A |
90905-61009 |
— | ||
|
11201B
|
11201B
90210-07001 Washer, Seal(For Cylinder Head Cover)[09.1989 - 09.1993] 3SG#..ST18# |
90210-07001 |
from US $2.34 |
||
|
11213
|
11213
11213-88381 Gasket, Cylinder Head Cover[10.1989 - 09.1993] 3SGTE..ST185..GT4,GT4A |
11213-88381 |
from US $20.40 |
||
|
11214
|
11214
11214-88381 Gasket, Cylinder Head Cover, No.2[10.1989 - 09.1993] 3SGTE..ST185 |
11214-88381 |
from US $7.68 |
||
|
12108
|
12108
12180-13030
Cap Sub-Assy, Oil Filler
[09.1989 - 08.1990] 3SFE,3SG#..ST18# |
12180-13030 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[09.1989 - 08.1990] 3SFE,3SG#..ST18# |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[09.1989 - 09.1993] 3SFE,3SG#..ST18# |
90430-37140 |
from US $1.25 |
||
|
9015860010
|
9015860010
90158-60010 New Genuine Part |
90158-60010 |
US $1.92 |
||
|
9327026025
|
9327026025
93270-26025 SCREW |
93270-26025 |
US $1.92 |
||
