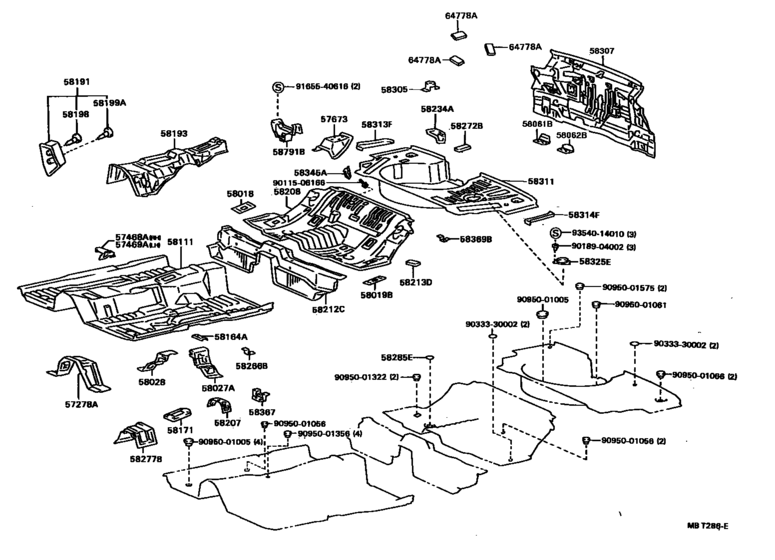

Floor Pan & Lower Back Panel ([10.1989 - ] (8910- )ST185) Diagram Toyota CELICA
- Year
- 1991 - 1992
- Sales region
- General
- Frame
- ST185
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 08.1991
- To
- 02.1992
- Body Shape
- WIB
- Driver's Position
- RHD
- Fuel Induction
- TB4WA
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57278A
|
57278A
57278-20010 Bracket, Catalytic Converter Support[10.1989 - 11.1993] ST185 |
57278-20010 |
US $46.01 |
||
|
57468A
|
57468A
57468-20050
Bracket, Front Seat, Outside, Rear Rh
[10.1989 - 11.1993] AT180,ST18# |
57468-20050 |
— | ||
|
57469A
|
57469A
57469-20050
Bracket, Front Seat, Outside, Rear Lh
[10.1989 - 11.1993] AT180,ST18# |
57469-20050 |
— | ||
|
57673
|
57673
57671-20040 Bracket, Rear Seat Back Hinge Mounting[10.1989 - 11.1993] ST185 |
57671-20040 |
US $50.52 |
||
|
58018
|
58018
58018-20010 Reinforcement Sub-Assy, Belt Anchor, No.4 RhBELT ANCHOR, NO.4 RH [10.1989 - 11.1993] ST185 |
58018-20010 |
US $20.68 |
||
|
58019B
|
58019B
58019-20010 Reinforcement Sub-Assy, Belt Anchor, No.4 LhBELT ANCHOR, NO.4 LH [10.1989 - 11.1993] ST185 |
58019-20010 |
US $20.68 |
||
|
58027A
|
58027A
58027-20060 Reinforce Sub-Assy, Seat Belt Anchor[10.1989 - 11.1993] ST185 |
58027-20060 |
US $41.64 |
||
|
58028
|
58028
58028-20030 Reinforcement Sub-Assy, Seat Belt Anchor, No.2[10.1989 - 11.1993] ST185 |
58028-20030 |
US $34.94 |
||
|
58061B
|
58061B
58061-20040
Bracket Sub-Assy, Fuel Tank Mounting, Rh
[10.1989 - 11.1993] ST185 |
58061-20040 |
— | ||
|
58062B
|
58062B
58062-20040
Bracket Sub-Assy, Fuel Tank Mounting, Lh
[10.1989 - 11.1993] ST185 |
58062-20040 |
— | ||
|
58111
|
58111
58111-20140
Pan, Front Floor
[10.1989 - 11.1993] ST185 |
58111-20140 |
— | ||
|
58164A
|
58164A
58164-20040 Retainer, Console Box Mounting[10.1989 - 11.1993] ST185 |
58164-20040 |
US $6.26 |
||
|
58171
|
58171
58171-20090 Reinforcement, Parking Brake Base[10.1989 - 11.1993] ST185 |
58171-20090 |
US $9.17 |
||
|
58191
|
58191
58191-20060
Footrest, Front Floor
[10.1989 - 11.1993] AT180,ST184,185..RHD |
58191-20060 |
— | ||
|
58193
|
58193
58109-20080
Bracket, Instrument Panel Brace Mounting
[10.1989 - 11.1993] ST185 |
58109-20080 |
— | ||
|
58198
|
58198
58198-20100 Clip, Footrest[10.1989 - 11.1993] AT180,ST184,185..RHD |
58198-20100 |
US $5.24 |
||
|
58199A
|
58199A
58199-20020 Clip, Footrest, No.2[10.1989 - 11.1993] AT180,ST184,185..RHD |
58199-20020 |
US $4.22 |
||
|
58207
|
58207
58207-20090 Bracket Sub-Assy, Parking Brake Cable, No.1[10.1989 - 11.1993] ST185 |
58207-20090 |
US $22.13 |
||
|
58208
|
58208
58211-20290 Pan, Center Floor[10.1989 - 11.1993] ST185 |
58211-20290 |
US $381.47 |
||
|
58212C
|
58212C
58212-20060
Pan, Center Floor, Front
[10.1989 - 11.1993] ST185 |
58212-20060 |
— | ||
|
58213D
|
58213D
58213-20070 Reinforcement, Center Floor Panel[10.1989 - 11.1993] ST185 |
58213-20070 |
US $5.39 |
||
|
58234A
|
58234A
58234-20030 Bracket, Exhaust Pipe Mounting, Inner[10.1989 - 11.1993] ST185 |
58234-20030 |
US $23.30 |
||
|
58266B
|
58266B
58266-22040 Bracket, Fuel Tube Clamp[10.1989 - 11.1993] ST185 |
58266-22040 |
US $4.08 |
||
|
58272B
|
58272B
58272-20070
Reinforcement, Belt Anchor To Floor Pan, No.4
[10.1989 - 11.1993] ST185 |
58272-20070 |
— | ||
|
58277B
|
58277B
58277-20040 Reinforcement, Drive Shaft Center Support[10.1989 - 11.1993] ST185 |
58277-20040 |
US $45.86 |
||
|
58285E
|
58285E
58285-20030 Cover, Rear Floor Hole[10.1989 - 11.1993] ST185 |
58285-20030 |
US $3.35 |
||
|
58305
|
58305
58305-10011 Bracket Sub-Assy, Spare Wheel Clamp[10.1989 - 11.1993] AT180,ST18# |
58305-10011 |
US $4.54 |
||
|
58307
|
58307
58307-20830
Panel Sub-Assy, Body Lower Back
[10.1989 - 11.1993] ST185 |
58307-20830 |
— | ||
|
58311
|
58311
58311-20280
Pan, Rear Floor
[10.1989 - 11.1993] ST185 |
58311-20280 |
— | ||
|
58313F
|
58313F
58313-20250 Extension, Rear Floor Pan To Quarter Panel, Rh[10.1989 - 11.1993] ST185 |
58313-20250 |
US $18.93 |
||
|
58314F
|
58314F
58314-20230 Extension, Rear Floor Pan To Quarter Panel, Lh[10.1989 - 11.1993] ST185 |
58314-20230 |
US $15.87 |
||
|
58325E
|
58325E
58325-20040
Cover, Rear Floor Service Hole
[10.1989 - 11.1993] ST185 |
58325-20040 |
— | ||
|
58345A
|
58345A
58345-14020
Bracket, Rear Floor Heat Insulator, No.1
[10.1989 - 11.1993] ST185 |
58345-14020 |
— | ||
|
58367
|
58367
58367-20040 Bracket, Fuel Tube Clamp[10.1989 - 11.1993] ST185 |
58367-20040 |
US $5.97 |
||
|
58369B
|
58369B
58369-20010 Bracket, Fuel Tube, No.3[10.1989 - 11.1993] ST185 |
58369-20010 |
US $4.22 |
||
|
58791B
|
58791B
58791-20060 Carrier, Jack[10.1989 - 11.1993] AT180,ST18#..LB |
58791-20060 |
US $15 |
||
|
64778A
|
64778A
64778-20070 Protector, Spare Wheel[08.1991 - 11.1993] ST18#; AT180 W(185/65 R14 TIRE) |
64778-20070 |
US $14.27 |
||
|
9011506166
|
9011506166
90115-06166 Bolt, Weld(For Front Floor Pan) |
90115-06166 |
from US $0.98 |
||
|
9018904002
|
9018904002
90189-04002 GROMMET |
90189-04002 |
from US $1.92 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9095001005
|
9095001005
90950-01005
PLUGHOLE
|
90950-01005 |
— | ||
| replacement | |||||
|
9095001005
|
9095001005
90950-01867 PLUG HOLE |
90950-01867 |
from US $2.71 |
||
|
9095001056
|
9095001056
90950-01056
Plug, Hole(For Floor Panel)
|
90950-01056 |
— | ||
| replacement | |||||
|
9095001056
|
9095001056
90950-01826 Plug, Hole(For Floor Panel) |
90950-01826 |
from US $2.24 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
|
9095001066
|
9095001066
90950-01066 New Genuine Part |
90950-01066 |
US $4.16 |
||
|
9095001322
|
9095001322
90950-01322 New Genuine Part |
90950-01322 |
US $20.24 |
||
|
9095001356
|
9095001356
90950-01356
New Genuine Part
|
90950-01356 |
— | ||
| replacement | |||||
|
9095001356
|
9095001356
90950-01976 New Genuine Part |
90950-01976 |
US $1.60 |
||
|
9095001575
|
9095001575
90950-01575
New Genuine Part
|
90950-01575 |
— | ||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9354014010
|
9354014010
93540-14010 Clip, Headlining Retainer |
93540-14010 |
from US $0.92 |
||
