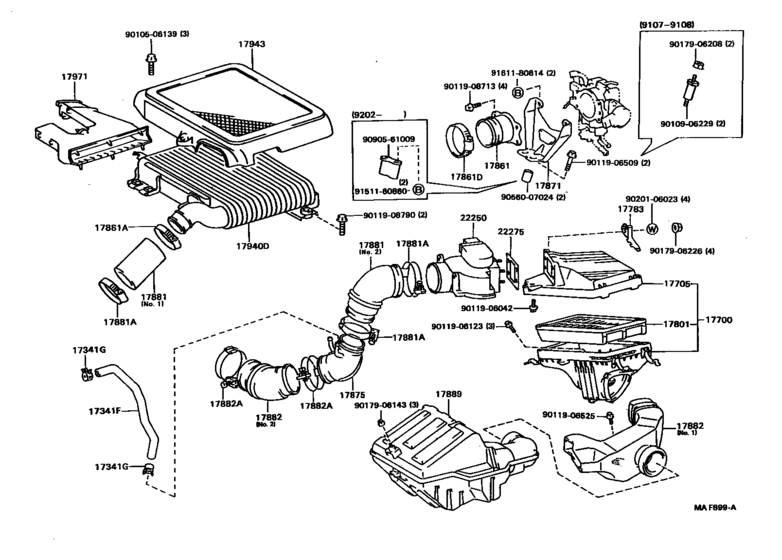

Air Cleaner ([02.1992 - ] (8910-9108)3SGTE ; (9202- )3SGTE) Diagram Toyota CELICA
- Year
- 1989 - 1993
- Sales region
- General
- Frame
- ST185
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- DESTINATION
- ARL
- From
- 10.1989
- To
- 11.1993
- Body Shape
- WIB
- Driver's Position
- RHD
- Fuel Induction
- TBO4W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17341F
|
17341F
17341-74160
Hose, Air, No.1
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17341-74160 |
— | ||
|
17341G
|
17341G
90467-20005
Clip(For Ventilation Hose No.2)
[10.1989 - 11.1993] 3SGTE..ST185 |
90467-20005 |
— | ||
| replacement | |||||
|
17341G
|
17341G
96134-41900 Clip Or Clamp(For Ventilation Hose)[10.1989 - 11.1993] 3SGTE..ST185 |
96134-41900 |
from US $1.44 |
||
|
17700
|
17700
17700-74260
Cleaner Assy, Air
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17700-74260 |
— | ||
|
17705
|
17705
17705-74170
Cap Sub-Assy, Air Cleaner
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17705-74170 |
— | ||
|
17783
|
17783
17783-74040
Plate, Air Cleaner Baffle
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17783-74040 |
— | ||
|
17801
|
17801
17801-74020 Element Sub-Assy, Air Cleaner Filter[10.1989 - 08.1991] 3SG#..ST182,185 |
17801-74020 |
from US $37.21 |
||
|
17861
|
17861
17861-88382
Connector, Intake Air
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17861-88382 |
— | ||
|
17861D
|
17861D
90460-65004
Clamp Or Clip(For Air Hose, No.1)
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
90460-65004 |
— | ||
| replacement | |||||
|
17861D
|
17861D
90460-65002 Clamp Or Clip(For Air Hose, No.1)[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
90460-65002 |
from US $4.29 |
||
|
17871
|
17871
17871-88381 Stay, Air Connector[10.1989 - 11.1993] 3SGTE..ST185 |
17871-88381 |
US $62.32 |
||
|
17875
|
17875
17875-74090
Pipe, Intake Air Connector
[10.1989 - 11.1993] 3SGTE..ST185 |
17875-74090 |
— | ||
|
17881
|
17881
17659-88381 Connector, Intake Air[10.1989 - 11.1993] 3SGTE..ST185 NO.1 |
17659-88381 |
US $38.91 |
||
|
17881
|
17881
17881-74300
Hose, Air Cleaner, No.1
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W NO.2 |
17881-74300 |
— | ||
|
17881A
|
17881A
90460-67004 Clamp Or Clip(For Air Hose, No.1)[10.1989 - 11.1993] 3SGTE..ST185 TURBOCHARGER SIDE |
90460-67004 |
from US $3.84 |
||
|
17881A
|
17881A
90929-01260
Clamp(For Air Cleaner Hose, No.1)
[10.1989 - 11.1993] 3SGTE..ST185 INTERCOOLER SIDE |
90929-01260 |
— | ||
|
17881A
|
17881A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[10.1989 - 11.1993] 3SGTE..ST185 PIPE SIDE |
96111-10800 |
from US $2.56 |
||
|
17881A
|
17881A
96111-10900 Clamp, Hose[10.1989 - 11.1993] 3SGTE..ST185 AIR FLOW METER SIDE |
96111-10900 |
from US $2.57 |
||
|
17882
|
17882
17882-74160
Hose, Air Cleaner, No.2
[10.1989 - 11.1993] 3SGTE..ST185 NO.2 |
17882-74160 |
— | ||
|
17882
|
17882
17882-74170
Hose, Air Cleaner, No.2
[10.1989 - 06.1991] 3SG#,5SFE..ST18# NO.1 |
17882-74170 |
— | ||
| replacement | |||||
|
17882
|
17882
17882-74171
Hose, Air Cleaner, No.2
[10.1989 - 06.1991] 3SG#,5SFE..ST18# NO.1 |
17882-74171 |
— | ||
|
17882
|
17882
17882-74171
Hose, Air Cleaner, No.2
[06.1991 - 11.1993] 3SG#,5SFE..ST18# NO.1 |
17882-74171 |
— | ||
|
17882A
|
17882A
96111-10800 Clamp, Hose(For Air Cleaner Duct)[10.1989 - 11.1993] 3SGTE..ST185 |
96111-10800 |
from US $2.56 |
||
|
17889
|
17889
17889-74040
Box, Air Cleaner Hose, No.2
[10.1989 - 11.1993] 4AFE..AT180; 3SG#,5SFE..ST18# |
17889-74040 |
— | ||
|
17940D
|
17940D
17940-74030 Intercooler Assy[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17940-74030 |
US $883.79 |
||
|
17943
|
17943
17943-88380
Protector, Intercooler
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17943-88380 |
— | ||
|
17971
|
17971
17971-88380
Inlet, Cool Air, No.1
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
17971-88380 |
— | ||
|
22250
|
22250
22250-74200
Meter Assy, Intake Air Flow
[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
22250-74200 |
— | ||
|
22275
|
22275
22275-43010 Gasket, Air Flow Meter[10.1989 - 11.1993] 3SGTE..ST185..TBO4W |
22275-43010 |
from US $14.24 |
||
|
91611B0814
|
91611B0814
91611-B0814
New Genuine Part
|
91611-B0814 |
— | ||
|
9010506139
|
9010506139
90105-06139 New Genuine Part |
90105-06139 |
US $1.60 |
||
|
9010906229
|
9010906229
90109-06229
New Genuine Part
|
90109-06229 |
— | ||
|
9011906042
|
9011906042
90119-06042
New Genuine Part
|
90119-06042 |
— | ||
| replacement | |||||
|
9011906042
|
9011906042
90119-06341 BOLT |
90119-06341 |
US $1.92 |
||
|
9011906123
|
9011906123
90119-06123
New Genuine Part
|
90119-06123 |
— | ||
| replacement | |||||
|
9011906123
|
9011906123
90119-06465 BOLT |
90119-06465 |
from US $1.05 |
||
|
9011906509
|
9011906509
90119-06509
New Genuine Part
|
90119-06509 |
— | ||
|
9011906525
|
9011906525
90119-06525
New Genuine Part
|
90119-06525 |
— | ||
| replacement | |||||
|
9011906525
|
9011906525
90119-06311 BOLT |
90119-06311 |
US $1.60 |
||
|
9011908713
|
9011908713
90119-08713
Bolt(For Intake Manifold To Exhaust Manifold)
|
90119-08713 |
— | ||
| replacement | |||||
|
9011908713
|
9011908713
91611-60822 Bolt |
91611-60822 |
from US $1.50 |
||
|
9011908790
|
9011908790
90119-08790 New Genuine Part |
90119-08790 |
US $10.13 |
||
|
9017906143
|
9017906143
90179-06143 NUT |
90179-06143 |
from US $0.90 |
||
|
9017906208
|
9017906208
90179-06208 NUT |
90179-06208 |
US $1.12 |
||
|
9017906226
|
9017906226
90179-06226
Nut (For Rear Wiper Arm Setting)
|
90179-06226 |
— | ||
|
9020106023
|
9020106023
90201-06023
New Genuine Part
|
90201-06023 |
— | ||
|
9056007024
|
9056007024
90560-07024
New Genuine Part
|
90560-07024 |
— | ||
|
9090561009
|
9090561009
90905-61009
New Genuine Part
|
90905-61009 |
— | ||
|
9151160860
|
9151160860
91511-60860 New Genuine Part |
91511-60860 |
US $2.33 |
||
| replacement | |||||
|
9151160860
|
9151160860
91511-B0860 BOLTFLANGE |
91511-B0860 |
US $2.56 |
||
