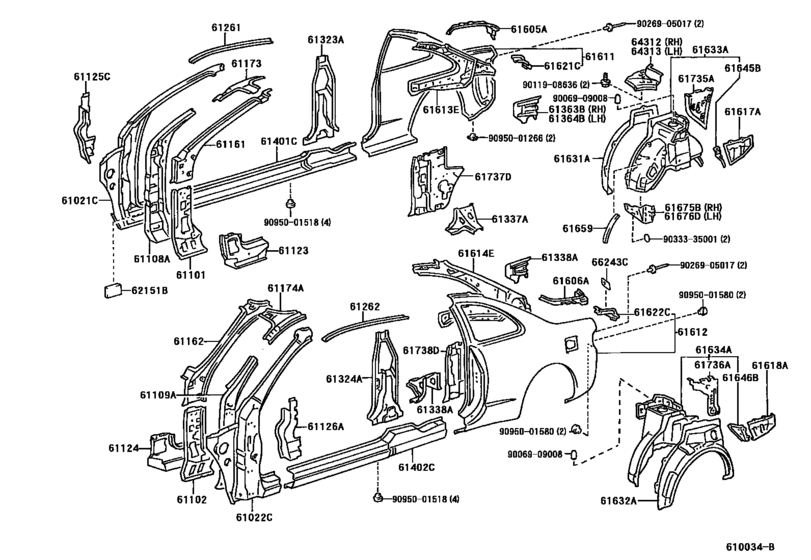

Side Member ([08.1994 - ] (9408- )CVT) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Europe
- Frame
- ST202
- grade
- GT
- body
- CVT
- ENGINE
- 3SGE
- TRANSMISSION
- MTM
- From
- 08.1994
- To
- 05.1999
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61021C
|
61021C
61027-20100 Pillar Sub-Assy, Front Body, Rh[11.1993 - 08.1995] AT200,ST20# |
61027-20100 |
US $618.80 |
||
|
61022C
|
61022C
61028-20090 Pillar Sub-Assy, Front Body, Lh[11.1993 - 08.1995] AT200,ST20# |
61028-20090 |
US $618.80 |
||
|
61101
|
61101
61101-20300 Panel Sub-Assy, Cowl Side, RhCOWL SIDE, RH [08.1994 -] ST202..LHD..CVT |
61101-20300 |
US $78.62 |
||
|
61102
|
61102
61102-20260 Panel Sub-Assy, Cowl Side, LhCOWL SIDE, LH [08.1994 -] ST202..LHD..CVT |
61102-20260 |
US $77.17 |
||
|
61108A
|
61108A
61108-20120 Reinforce Sub-Assy, Front Body Pillar, Lower Rh[08.1994 -] ST202..CVT |
61108-20120 |
US $218.40 |
||
|
61109A
|
61109A
61109-20120 Reinforce Sub-Assy, Front Body Pillar, Lower Lh[08.1994 -] ST202..CVT |
61109-20120 |
US $218.40 |
||
|
61123
|
61123
61123-20080 Panel, Cowl Side Lower, Rh[08.1994 -] ST202..CVT |
61123-20080 |
US $64.21 |
||
|
61124
|
61124
61124-20070 Panel, Cowl Side Lower, Lh[08.1994 -] ST202..CVT |
61124-20070 |
US $64.21 |
||
|
61125C
|
61125C
61125-20060 Reinforcement, Cowl Side Panel, Rh[08.1994 -] ST202..CVT |
61125-20060 |
US $74.26 |
||
|
61126A
|
61126A
61126-20050 Reinforcement, Cowl Side Panel, Lh[08.1994 -] ST202..CVT |
61126-20050 |
US $74.26 |
||
|
61161
|
61161
61161-20210 Pillar, Front Body, Upper Inner Rh[11.1993 - 10.1995] AT200,ST20# |
61161-20210 |
US $131.04 |
||
|
61162
|
61162
61162-20210 Pillar, Front Body, Upper Inner Lh[11.1993 - 10.1995] AT200,ST20# |
61162-20210 |
US $131.04 |
||
|
61173
|
61173
61173-20090 Reinforcement, Front Body Pillar, Upper Inner[11.1993 -] AT200,ST20# |
61173-20090 |
US $44.99 |
||
|
61174A
|
61174A
61174-20090 Reinforcement, Front Body Pillar, Upper Inner Lh[11.1993 -] AT200,ST20# |
61174-20090 |
US $44.99 |
||
|
61261
|
61261
61261-20120
Channel, Roof Drip, Rh
[11.1993 -] AT200,ST20# |
61261-20120 |
— | ||
|
61262
|
61262
61262-20120
Channel, Roof Drip, Lh
[11.1993 -] AT200,ST20# |
61262-20120 |
— | ||
|
61323A
|
61323A
61323-20160 Reinforcement, Center Body Pillar, Lower Rh[08.1994 -] ST202..CVT |
61323-20160 |
US $145.60 |
||
|
61324A
|
61324A
61324-20140 Reinforcement, Center Body Pillar, Lower Lh[08.1994 -] ST202..CVT |
61324-20140 |
US $145.60 |
||
|
61337A
|
61337A
58037-20020 Reinforcement, Center Body Pillar, Inner Rh[12.1995 -] ST202..CVT |
58037-20020 |
US $64.21 |
||
|
61337A
|
61337A
61337-20070 Reinforcement, Center Body Pillar, Inner Rh[08.1994 - 12.1995] ST202..CVT |
61337-20070 |
US $64.06 |
||
| replacement | |||||
|
61337A
|
61337A
58037-20020 Reinforcement, Center Body Pillar, Inner Rh[08.1994 - 12.1995] ST202..CVT |
58037-20020 |
US $64.21 |
||
|
61338A
|
61338A
58038-20020 Reinforcement, Center Body Pillar, Inner Lh[12.1995 -] ST202..CVT |
58038-20020 |
US $64.21 |
||
|
61338A
|
61338A
61338-20030 Reinforcement, Center Body Pillar, Inner Lh[08.1994 - 12.1995] ST202..CVT |
61338-20030 |
US $64.06 |
||
| replacement | |||||
|
61338A
|
61338A
58038-20020 Reinforcement, Center Body Pillar, Inner Lh[08.1994 - 12.1995] ST202..CVT |
58038-20020 |
US $64.21 |
||
|
61363B
|
61363B
61363-20010 Reinforcement, Seat Belt Anchor Side, Rh[08.1994 -] ST202..CVT |
61363-20010 |
US $45.72 |
||
|
61364B
|
61364B
61306-20180 Reinforcement, Seat Belt Anchor Side, Lh[12.1997 - 05.1998] ST202..CVT |
61306-20180 |
US $48.78 |
||
| replacement | |||||
|
61364B
|
61364B
61364-20011 Reinforcement, Seat Belt Anchor Side, Lh[12.1997 - 05.1998] ST202..CVT |
61364-20011 |
US $45.72 |
||
|
61364B
|
61364B
61364-20011 Reinforcement, Seat Belt Anchor Side, Lh[05.1998 -] ST202..CVT |
61364-20011 |
US $45.72 |
||
|
61401C
|
61401C
61401-20390 Panel Sub-Assy, Rocker, Outer Rh[08.1994 -] ST202..CVT |
61401-20390 |
US $1,514.24 |
||
|
61402C
|
61402C
61402-20390 Panel Sub-Assy, Rocker, Outer Lh[08.1994 -] ST202..CVT |
61402-20390 |
US $1,514.24 |
||
|
61605A
|
61605A
61605-20330 Reinforcement Sub-Assy, Quarter Panel, Rh[08.1994 -] ST202..CVT |
61605-20330 |
US $30.43 |
||
|
61606A
|
61606A
61606-20300 Reinforcement Sub-Assy, Quarter Panel, Lh[08.1994 -] ST202..CVT |
61606-20300 |
US $30.43 |
||
|
61611
|
61611
61601-2B820 Panel, Quarter, Rh[08.1994 -] ST202..CVT |
61601-2B820 |
US $671.22 |
||
| replacements | |||||
|
61611
|
61611
61601-2B918 Rail Sub-assy, Center Door, Under[08.1994 -] ST202..CVT |
61601-2B918 |
US $669.76 |
||
|
61611
|
61611
61621-20210 Trough, Luggage Compartment Opening, Rh[08.1994 -] ST202..CVT |
61621-20210 |
US $30.43 |
||
|
61612
|
61612
61602-2D300 Panel, Quarter, Lh[08.1994 -] ST202..CVT |
61602-2D300 |
US $671.22 |
||
| replacements | |||||
|
61612
|
61612
61602-2D919 New Genuine Part[08.1994 -] ST202..CVT |
61602-2D919 |
US $668.30 |
||
|
61612
|
61612
61622-20210 Trough, Luggage Compartment Opening, Lh[08.1994 -] ST202..CVT |
61622-20210 |
US $30.43 |
||
|
61613E
|
61613E
61703-20310 Panel, Quarter, Inner Rh[08.1994 - 12.1995] ST202..CVT |
61703-20310 |
US $165.98 |
||
| replacement | |||||
|
61613E
|
61613E
61703-20330 Panel, Quarter, Inner Rh[08.1994 - 12.1995] ST202..CVT |
61703-20330 |
US $165.98 |
||
|
61613E
|
61613E
61703-20330 Panel, Quarter, Inner Rh[12.1995 -] ST202..CVT |
61703-20330 |
US $165.98 |
||
|
61614E
|
61614E
61704-20340 Panel, Quarter, Inner Lh[08.1994 - 12.1995] ST202..CVT |
61704-20340 |
US $165.98 |
||
| replacement | |||||
|
61614E
|
61614E
61704-20360 Panel, Quarter, Inner Lh[08.1994 - 12.1995] ST202..CVT |
61704-20360 |
US $165.98 |
||
|
61614E
|
61614E
61704-20360 Panel, Quarter, Inner Lh[12.1995 -] ST202..CVT |
61704-20360 |
US $165.98 |
||
|
61617A
|
61617A
61617-20140 Panel, Quarter Inner, Rear Rh[08.1994 -] ST202..CVT |
61617-20140 |
US $31.01 |
||
|
61618A
|
61618A
61618-20160 Panel, Quarter, Inner Rear Lh[08.1994 - 10.1995] ST202..CVT |
61618-20160 |
US $30.87 |
||
|
61621C
|
61621C
61621-20210 Trough, Luggage Compartment Opening, Rh[08.1994 -] ST202..CVT |
61621-20210 |
US $30.43 |
||
|
61622C
|
61622C
61622-20210 Trough, Luggage Compartment Opening, Lh[08.1994 -] ST202..CVT |
61622-20210 |
US $30.43 |
||
|
61631A
|
61631A
61605-20903 Panel, Quarter Wheel House, Outer Rh[11.1993 - 10.1995] AT200,ST20# |
61605-20903 |
US $174.72 |
||
|
61632A
|
61632A
61632-20260 Panel, Quarter Wheel House, Outer Lh[11.1993 -] AT200,ST202 |
61632-20260 |
US $177.63 |
||
|
61633A
|
61633A
61607-20926 Panel, Quarter Wheel House, Inner Rh[08.1994 -] ST202..CVT |
61607-20926 |
US $279.55 |
||
|
61634A
|
61634A
61608-20921 Panel, Quarter Wheel House, Inner Lh[08.1994 -] ST202..CVT |
61608-20921 |
US $279.55 |
||
|
61645B
|
61645B
61645-20110 Gusset, Quarter Wheel House, Rear Rh[11.1993 -] AT200,ST202 |
61645-20110 |
US $19.66 |
||
|
61646B
|
61646B
61646-20110 Gusset, Quarter Wheel House, Rear Lh[11.1993 -] AT200,ST202 |
61646-20110 |
US $19.66 |
||
|
61659
|
61659
61659-0W010 Housing, Spare Wheel[08.1994 -] ST202..CVT |
61659-0W010 |
US $21.55 |
||
|
61675B
|
61675B
61675-20040 Reinforcement, Rear Suspension Spring Support[08.1994 -] ST202..CVT |
61675-20040 |
US $31.01 |
||
|
61676D
|
61676D
61676-20040 Reinforcement, Quarter Wheel House, Inner Rear Lh[08.1994 -] ST202..CVT |
61676-20040 |
US $31.01 |
||
|
61735A
|
61735A
61735-20220 Panel, Roof Side, Inner Rear Rh[08.1994 -] ST202..CVT |
61735-20220 |
US $31.74 |
||
|
61736A
|
61736A
61736-20200 Panel, Roof Side, Inner Rear Lh[08.1994 -] ST202..CVT |
61736-20200 |
US $31.74 |
||
|
61737D
|
61737D
61737-20110 Reinforcement, Roof Side, Inner Rh[08.1994 -] ST202..CVT |
61737-20110 |
US $266.45 |
||
|
61738D
|
61738D
61738-20090 Reinforcement, Roof Side, Inner Lh[08.1994 -] ST202..CVT |
61738-20090 |
US $266.45 |
||
|
62151B
|
62151B
62151-20160 Plate, Noise Control, No.1[05.1995 -] AT200,ST20# |
62151-20160 |
US $8.32 |
||
|
64312
|
64312
64312-20280 Bracket, Package Tray, Rh[08.1994 -] ST202..CVT |
64312-20280 |
US $57.95 |
||
|
64313
|
64313
64313-20290 Bracket, Package Tray, Lh[08.1994 -] ST202..CVT |
64313-20290 |
US $57.95 |
||
|
66243C
|
66243C
66243-20010 Protector, Rear Body, No.1[08.1994 - 12.1998] ST202..CVT |
66243-20010 |
US $2.20 |
||
|
66243C
|
66243C
90950-06123 Protector, Rear Body, No.1[12.1998 -] ST202..CVT |
90950-06123 |
US $1.76 |
||
|
9006909008
|
9006909008
90069-09008
New Genuine Part
|
90069-09008 |
— | ||
|
9011908636
|
9011908636
90119-08636 BOLT |
90119-08636 |
US $1.44 |
||
|
9026905017
|
9026905017
90269-05017 Rivet |
90269-05017 |
US $4.80 |
||
|
9033335001
|
9033335001
90333-35001 New Genuine Part |
90333-35001 |
US $1.76 |
||
|
9095001266
|
9095001266
90950-01266 New Genuine Part |
90950-01266 |
US $3.20 |
||
|
9095001518
|
9095001518
90950-01518 PLUG |
90950-01518 |
from US $1.23 |
||
|
9095001580
|
9095001580
90950-01580 Plug, Hole(For Clutch Under Cover) |
90950-01580 |
US $3.68 |
||
