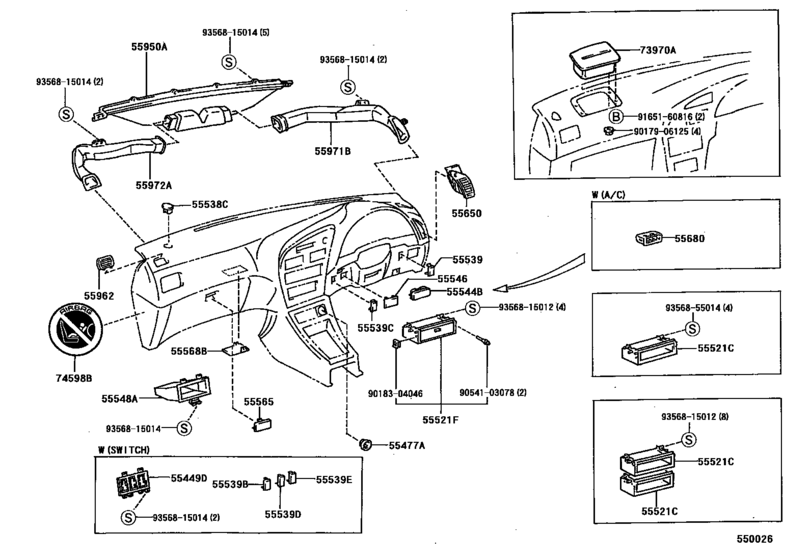

Instrument Panel & Glove Compartment ([11.1993 - ] (9311- )RHD) Diagram Toyota CELICA
- Year
- 1993 - 1999
- Sales region
- General
- Frame
- ST202
- body
- LB
- ENGINE
- 3SFE
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- From
- 11.1993
- To
- 08.1999
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55477A
|
55477A
55477-20110 Base, Cigarette Lighter[11.1993 -] ST20# |
55477-20110 |
US $2.62 |
||
|
55521C
|
55521C
55521-16030 Cover, Radio Tuner Opening[11.1993 -] ST202..GEN W(RADIO) |
55521-16030 |
from US $24.02 |
||
|
55521F
|
55521F
55520-14050
Cover, Stereo Opening, No.2
[11.1993 -] ST202 |
55520-14050 |
— | ||
|
55538C
|
55538C
55538-20110-C0 Cover, Cooler Switch Hole[11.1993 -] ST20#..RHD BLACK,TRIM2# |
55538-20110-C0 |
US $3.06 |
||
|
55539
|
55539
55539-12130-C0
Cover, Spare Switch Hole
[09.1994 -] ST20# BLACK,TRIM2# |
55539-12130-C0 |
— | ||
|
55539
|
55539
55539-20080-C0
Cover, Spare Switch Hole
[11.1993 - 09.1994] ST20# BLACK,TRIM2# |
55539-20080-C0 |
— | ||
| replacement | |||||
|
55539
|
55539
55539-12130-C0
Cover, Spare Switch Hole
[11.1993 - 09.1994] ST20# BLACK,TRIM2# |
55539-12130-C0 |
— | ||
|
55539C
|
55539C
55539-12130-C0
Cover, Spare Switch Hole
[09.1994 -] ST202,204 BLACK,TRIM2# |
55539-12130-C0 |
— | ||
|
55539C
|
55539C
55539-20080-C0
Cover, Spare Switch Hole
[11.1993 - 09.1994] ST202,204 BLACK,TRIM2# |
55539-20080-C0 |
— | ||
| replacement | |||||
|
55539C
|
55539C
55539-12130-C0
Cover, Spare Switch Hole
[11.1993 - 09.1994] ST202,204 BLACK,TRIM2# |
55539-12130-C0 |
— | ||
|
55546
|
55546
55546-20020-C0
Cover, Luggage Compartment Opener Switch Hole
[11.1993 -] ST20#..RHD BLACK,TRIM2# |
55546-20020-C0 |
— | ||
|
55548A
|
55548A
55548-20090
Cover, Instrument Panel Hole
[11.1993 -] ST202 |
55548-20090 |
— | ||
|
55565
|
55565
55565-20070-22
Handle, Glove Compartment Door Lock
[11.1993 -] ST20# BLACK,TRIM2# |
55565-20070-22 |
— | ||
|
55568B
|
55568B
55568-24020 Plate, Glove Compartment Door Pad[06.1996 - 12.1997] ST20# |
55568-24020 |
US $12 |
||
|
55650
|
55650
55650-20250
Register Assy, Instrument Panel, No.1
[11.1993 -] ST20#..RHD |
55650-20250 |
— | ||
|
55680
|
55680
55680-14030-C0 Register Assy, Instrument Panel, Lower No.1[11.1993 - 08.1999] ST202 BLACK,TRIM2# |
55680-14030-C0 |
US $24.46 |
||
|
55950A
|
55950A
55950-20140 Nozzle Assy, Defroster[11.1993 -] ST20# |
55950-20140 |
US $37.42 |
||
|
55962
|
55962
55962-20230-C0 Nozzle, Side Defroster, No.2[11.1993 -] ST20#..RHD BLACK,TRIM2# |
55962-20230-C0 |
US $12.67 |
||
|
55971B
|
55971B
55971-20110 Duct, Side Defroster Nozzle, No.1[11.1993 -] ST20#..RHD |
55971-20110 |
US $30.43 |
||
|
55972A
|
55972A
55972-20060 Duct, Side Defroster Nozzle, No.2[11.1993 -] ST20#..RHD |
55972-20060 |
US $30.43 |
||
|
9017906125
|
9017906125
90179-06125 Nut (For Rear Wiper Arm Setting) |
90179-06125 |
from US $0.82 |
||
|
9018304046
|
9018304046
90183-04046 New Genuine Part |
90183-04046 |
US $1.92 |
||
|
9054103078
|
9054103078
90541-03078 Cushion(For Cup Holder) |
90541-03078 |
from US $1.74 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9356815012
|
9356815012
93568-15012
SCREW
|
93568-15012 |
— | ||
| replacement | |||||
|
9356815012
|
9356815012
93568-55012 SCREW |
93568-55012 |
from US $0.96 |
||
|
9356815014
|
9356815014
93568-15014
Direct
|
93568-15014 |
— | ||
| replacement | |||||
|
9356815014
|
9356815014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
