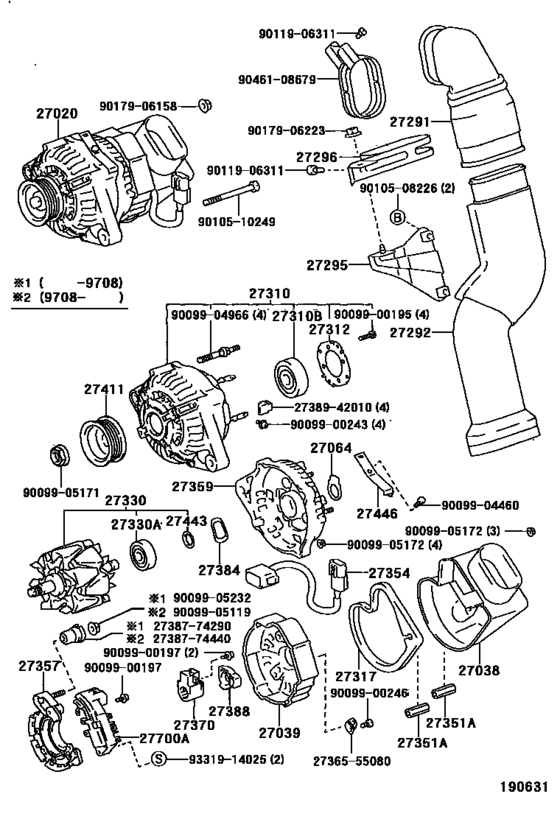

Alternator ([02.1994 - ] 12V 80A (9402- )3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
27020
|
27020
27060-74490 Alternator Assy[02.1994 -] 3SGTE..ST205 １２Ｖ ８０Ａ |
27060-74490 |
US $1,645.28 |
||
|
27038
|
27038
27038-74450
Duct Sub-Assy, Alternator Air
[02.1994 -] 3SGTE..ST205 |
27038-74450 |
— | ||
|
27039
|
27039
27039-74390
Cover, Alternator Rear End
[09.1993 - 08.1995] 3SFE..ST202,203; 3SG#..ST202,205 ＮＯ．１ |
27039-74390 |
— | ||
|
27039
|
27039
27039-74440
Cover, Alternator Rear End
[09.1993 - 08.1995] 3SG#..ST202,205 ＮＯ．２ |
27039-74440 |
— | ||
|
27064
|
27064
27064-42010 Seal, Alternator Plate[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27064-42010 |
from US $2.10 |
||
|
27291
|
27291
27291-74030
Duct, Alternator, No.1
[02.1994 -] 3SGTE..ST205 |
27291-74030 |
— | ||
|
27292
|
27292
27292-74030
Duct, Alternator, No.2
[02.1994 -] 3SGTE..ST205 |
27292-74030 |
— | ||
|
27295
|
27295
27295-74030
Bracket, Alternator Duct
[02.1994 -] 3SGTE..ST205 |
27295-74030 |
— | ||
|
27296
|
27296
27296-74020
Clamp, Alternator Duct
[02.1994 -] 3SGTE..ST205 |
27296-74020 |
— | ||
|
27310
|
27310
27310-74440
Frame Assy, Drive End, Alternator
[09.1993 - 12.1997] 3SG#..ST202,205 |
27310-74440 |
— | ||
|
27310B
|
27310B
90099-10192 Bearing(For Alternator Drive End Frame)[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
90099-10192 |
from US $15.03 |
||
|
27312
|
27312
27312-42010
Plate, Bearing Retainer, Alternator
[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27312-42010 |
— | ||
|
27317
|
27317
27317-74270 Packing, Cover, Rear End[02.1994 -] 3SGTE..ST205 |
27317-74270 |
US $27.87 |
||
|
27330
|
27330
27330-76030
Rotor Assy, Alternator
[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27330-76030 |
— | ||
| replacement | |||||
|
27330
|
27330
27330-16390 Rotor Assy, Alternator[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27330-16390 |
US $132.79 |
||
|
27330A
|
27330A
90099-10140 Bearing(For Alternator Rotor)[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
90099-10140 |
from US $9.43 |
||
|
27351A
|
27351A
27351-74120
Collar, Adjusting Alternator
[08.1995 -] 3SGTE..ST205 |
27351-74120 |
— | ||
|
27354
|
27354
27037-74450
Wire Sub-Assy, Alternator Lead
[02.1994 -] 3SGTE..ST205 |
27037-74450 |
— | ||
|
27357
|
27357
27357-74260
Holder, Alternator, W/rectifier
[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27357-74260 |
— | ||
|
27359
|
27359
27359-74120
Frame, Alternator Rectifier End
[02.1994 -] 3SGTE..ST205 |
27359-74120 |
— | ||
|
27370
|
27370
27370-75060 Holder Assy, Alternator Brush[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27370-75060 |
from US $16.50 |
||
|
27384
|
27384
27384-50030 Holder, Alternator Brush, A[09.1993 -] 3SFE,3SG#..ST20# |
27384-50030 |
from US $2.80 |
||
|
27388
|
27388
27388-42010 Cover, Alternator Brush[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27388-42010 |
US $10.66 |
||
|
27411
|
27411
27411-74050
Pulley, Alternator
[02.1994 -] 3SGTE..ST205 |
27411-74050 |
— | ||
|
27443
|
27443
27443-63020 Cover, Alternator Bearing[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
27443-63020 |
from US $1.12 |
||
|
27446
|
27446
27446-74120
Clip, Alternator Cord
[02.1994 -] 3SGTE..ST205 |
27446-74120 |
— | ||
|
27700A
|
27700A
27700-74030 Regulator Assy, Generator[02.1994 -] 3SGTE..ST205 |
27700-74030 |
US $258.59 |
||
|
2736555080
|
2736555080
27365-55080
Plate, Terminal
|
27365-55080 |
— | ||
|
2738774290
|
2738774290
27387-74290
Insulator, Terminal
|
27387-74290 |
— | ||
|
2738774440
|
2738774440
27387-74440
Insulator, Terminal
|
27387-74440 |
— | ||
|
2738942010
|
2738942010
27389-42010
Insulator, Terminal
|
27389-42010 |
— | ||
|
9009900195
|
9009900195
90099-00195
New Genuine Part
|
90099-00195 |
— | ||
|
9009900197
|
9009900197
90099-00197 Screw |
90099-00197 |
US $0.28 |
||
|
9009900243
|
9009900243
90099-00243
SCREW WWASHER
|
90099-00243 |
— | ||
|
9009900246
|
9009900246
90099-00246
New Genuine Part
|
90099-00246 |
— | ||
|
9009904460
|
9009904460
90099-04460 New Genuine Part |
90099-04460 |
US $0.80 |
||
|
9009904966
|
9009904966
90099-04966
Bearing(for Alternator Rotor)
|
90099-04966 |
— | ||
|
9009905119
|
9009905119
90099-05119
New Genuine Part
|
90099-05119 |
— | ||
|
9009905171
|
9009905171
90099-05171 Nut(For Alternator Pulley) |
90099-05171 |
US $1.12 |
||
|
9009905172
|
9009905172
90099-05172
New Genuine Part
|
90099-05172 |
— | ||
|
9009905232
|
9009905232
90099-05232
New Genuine Part
|
90099-05232 |
— | ||
|
9010508226
|
9010508226
90105-08226
New Genuine Part
|
90105-08226 |
— | ||
|
9010510249
|
9010510249
90105-10249 Bolt(For Alternator) |
90105-10249 |
US $4.96 |
||
|
9011906311
|
9011906311
90119-06311 BOLT |
90119-06311 |
US $1.60 |
||
|
9017906158
|
9017906158
90179-06158 Nut, Rear Wiper Link Pivot, No.2 |
90179-06158 |
from US $1.03 |
||
|
9017906223
|
9017906223
90179-06223
Clip(For Front Bumper), No.1
|
90179-06223 |
— | ||
| replacement | |||||
|
9017906223
|
9017906223
90179-06206 Nut |
90179-06206 |
from US $0.78 |
||
|
9046108679
|
9046108679
90461-08679
New Genuine Part
|
90461-08679 |
— | ||
|
9331914025
|
9331914025
93319-14025 Screw W Washer |
93319-14025 |
US $1.12 |
||
