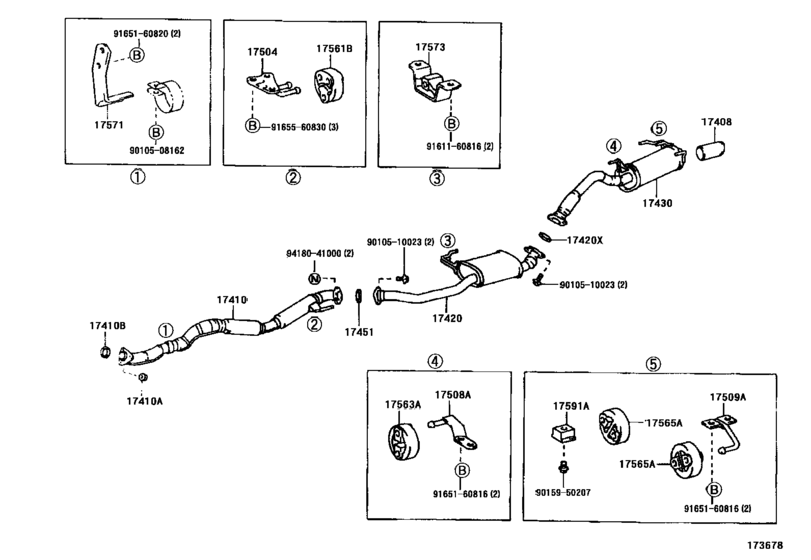

Exhaust Pipe ([02.1994 - ] (9402- )3SGTE) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17408
|
17408
17408-74030
Baffle Sub Assy, Exhaust Tail Pipe
[02.1994 -] 3SGTE..ST205 |
17408-74030 |
— | ||
|
17410
|
17410
17410-7A270
Pipe Assy, Exhaust, Front
[02.1994 - 12.1997] 3SGTE..ST205 |
17410-7A270 |
— | ||
|
17410
|
17410
17410-7A271
Pipe Assy, Exhaust, Front
[12.1997 -] 3SGTE..ST205 |
17410-7A271 |
— | ||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
90179-10070 |
from US $1.54 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[09.1993 - 12.1997] 3SFE,3SG#..ST20# |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06068 Gasket, Exhaust Pipe[02.1994 -] 3SGTE..ST205 |
90917-06068 |
from US $5.75 |
||
|
17420
|
17420
17420-74770 Pipe Assy, Exhaust, Center[02.1994 -] 3SGTE..ST205 |
17420-74770 |
US $416.42 |
||
|
17420X
|
17420X
90917-06054 Gasket, Exhaust Pipe[02.1994 -] 3SGTE..ST205 |
90917-06054 |
from US $4.23 |
||
|
17430
|
17430
17430-7A400 Pipe Assy, Exhaust, Tail[02.1994 -] 3SGTE..ST205 |
17430-7A400 |
US $499.41 |
||
|
17451
|
17451
90917-06054 Gasket, Exhaust Pipe[02.1994 -] 3SGTE..ST205 |
90917-06054 |
from US $4.23 |
||
|
17504
|
17504
17504-74070 Bracket Sub-Assy, Catalytic Converter[02.1994 -] 3SGTE..ST205 |
17504-74070 |
US $26.35 |
||
|
17508A
|
17508A
17508-74040
Support Sub-Assy, Exhaust Pipe, No.3
[02.1994 -] 3SGTE..ST205 |
17508-74040 |
— | ||
|
17509A
|
17509A
17509-74090
Bracket Sub-Assy, Exhaust Pipe No.4 Support
[02.1994 -] 3SGTE..ST205 |
17509-74090 |
— | ||
|
17561B
|
17561B
17561-74110 SUPPORT, EXHAUST PIPE[02.1994 -] 3SGTE..ST205 |
17561-74110 |
from US $11.08 |
||
|
17563A
|
17563A
17565-63020 Ring, Catalytic Converter[02.1994 -] 3SGTE..ST205 |
17565-63020 |
from US $11.51 |
||
|
17565A
|
17565A
17565-74290 Support, Exhaust Pipe, No.2[02.1994 -] 3SGTE..ST205 |
17565-74290 |
from US $7.49 |
||
|
17571
|
17571
17571-74221
Bracket, Exhaust Pipe Support, No.1
[02.1994 -] 3SGTE..ST205 |
17571-74221 |
— | ||
|
17573
|
17573
17573-74010
Bracket, Exhaust Pipe Center, Rear
[02.1994 -] 3SGTE..ST205 |
17573-74010 |
— | ||
|
17591A
|
17591A
17591-74010 Stopper, Exhaust Pipe Support[02.1994 -] 3SGTE..ST205 |
17591-74010 |
US $18.05 |
||
|
9010508162
|
9010508162
90105-08162
New Genuine Part
|
90105-08162 |
— | ||
| replacement | |||||
|
9010508162
|
9010508162
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $1.01 |
||
|
9010510023
|
9010510023
90105-10023 Bolt |
90105-10023 |
US $2.72 |
||
| replacement | |||||
|
9010510023
|
9010510023
91512-81035 BOLT |
91512-81035 |
from US $1.01 |
||
|
9015950207
|
9015950207
90159-50207 New Genuine Part |
90159-50207 |
US $0.92 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.09 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.07 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $1.11 |
||
|
9165560830
|
9165560830
91655-60830
New Genuine Part
|
91655-60830 |
— | ||
| replacement | |||||
|
9165560830
|
9165560830
91651-60828 Bolt |
91651-60828 |
from US $1.89 |
||
|
9418041000
|
9418041000
94180-41000 Nut |
94180-41000 |
from US $1.42 |
||
