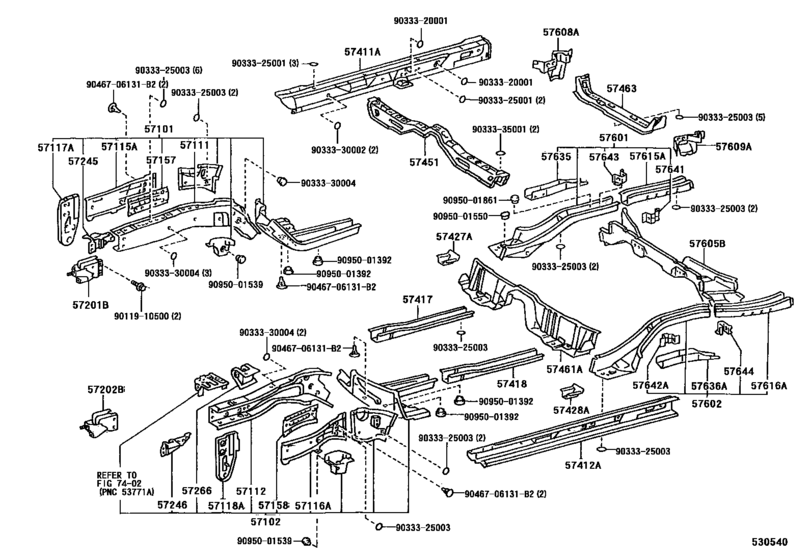

Floor Side Member ([02.1994 - ] (9402- )ST205) Diagram Toyota CELICA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- ST205
- grade
- GT4
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 08.1999
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57101
|
57101
57101-20770 Member Sub-Assy, Front Side, Rh[09.1993 - 08.1995] ST202,205..GT4,SS2 ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
57101-20770 |
US $864.86 |
||
|
57102
|
57102
57102-20790 Member Sub-Assy, Front Side, Lh[09.1993 - 08.1995] ST202,205..GT4,SS2 ｱﾘ(ｽ-ﾊﾟ- ｽﾄﾗﾂﾄ ｻｽﾍﾟﾝｼﾖﾝ) |
57102-20790 |
US $901.26 |
||
|
57111
|
57111
57111-20240 Member, Front Side, Rh[09.1993 -] ST20# |
57111-20240 |
US $174.72 |
||
|
57112
|
57112
57112-20250 Member, Front Side, Lh[09.1993 -] ST20# |
57112-20250 |
US $174.72 |
||
|
57115A
|
57115A
57115-20170 Plate, Front Side Member, Outer Rh[09.1993 -] ST20# |
57115-20170 |
US $81.54 |
||
|
57116A
|
57116A
57116-20190 Plate, Front Side Member, Outer Lh[09.1993 -] ST20# |
57116-20190 |
US $81.54 |
||
|
57117A
|
57117A
57117-20100 Reinforcement, Front Bumper Mounting[09.1993 -] ST20# |
57117-20100 |
US $64.06 |
||
|
57118A
|
57118A
57118-20060 Reinforcement, Front Bumper Mounting, Lh[09.1993 -] ST20# |
57118-20060 |
US $64.06 |
||
|
57157
|
57157
57157-20090 Reinforcement, Front Side Member, No.4 Rh[09.1993 -] ST20# |
57157-20090 |
US $42.37 |
||
|
57158
|
57158
57158-20090 Reinforcement, Front Side Member, No.4 Lh[09.1993 -] ST20# |
57158-20090 |
US $38.15 |
||
|
57201B
|
57201B
57201-20060
Extension Sub-Assy, Front Side Member, Rh
[02.1994 -] ST205 |
57201-20060 |
— | ||
|
57202B
|
57202B
57202-20070
Extension Sub-Assy, Front Side Member, Lh
[02.1994 -] ST205 |
57202-20070 |
— | ||
|
57245
|
57245
57245-20020 Reinforcement, Front Side Member, No.9 Rh[09.1993 -] ST20# |
57245-20020 |
US $18.05 |
||
|
57246
|
57246
57246-20020 Reinforcement, Front Side Member, No.9 Lh[09.1993 -] ST20# |
57246-20020 |
US $14.56 |
||
|
57266
|
57266
57266-20150 Reinforcement, Tousion Bar Anchor Arm, Lh[09.1993 -] ST20# |
57266-20150 |
US $42.95 |
||
|
57411A
|
57411A
57401-20310
Member, Floor Side, Inner Rh
[09.1993 - 08.1995] ST20#..LB |
57401-20310 |
— | ||
| replacement | |||||
|
57411A
|
57411A
57401-20340
Member, Floor Side, Inner Rh
[09.1993 - 08.1995] ST20#..LB |
57401-20340 |
— | ||
|
57411A
|
57411A
57401-20340
Member, Floor Side, Inner Rh
[08.1995 -] ST20#..LB |
57401-20340 |
— | ||
|
57412A
|
57412A
57402-20340
Member, Floor Side, Inner Lh
[09.1993 - 08.1995] ST20#..LB |
57402-20340 |
— | ||
| replacement | |||||
|
57412A
|
57412A
57402-20370
Member, Floor Side, Inner Lh
[09.1993 - 08.1995] ST20#..LB |
57402-20370 |
— | ||
|
57412A
|
57412A
57402-20370
Member, Floor Side, Inner Lh
[08.1995 -] ST20#..LB |
57402-20370 |
— | ||
|
57417
|
57417
57417-20090 Reinforcement, Front Floor Under, Rh[09.1993 -] ST20# |
57417-20090 |
US $75.71 |
||
|
57418
|
57418
57418-20090 Reinforcement, Front Floor Under, Lh[09.1993 -] ST20# |
57418-20090 |
US $75.71 |
||
|
57427A
|
57427A
57427-20020 Reinforcement, Front Floor, No.3 Rh[02.1994 -] ST205 |
57427-20020 |
US $14.56 |
||
|
57428A
|
57428A
57428-20020 Reinforcement, Front Floor, No.3 Lh[02.1994 -] ST205 |
57428-20020 |
US $14.56 |
||
|
57451
|
57451
57408-20901 Member, Front Floor Cross[09.1993 -] ST20# |
57408-20901 |
US $215.49 |
||
|
57461A
|
57461A
57461-20040 Member, Center Floor Cross[02.1994 -] ST205 |
57461-20040 |
US $161.62 |
||
|
57463
|
57463
57463-20050
Member, Center Floor Cross, No.3
[02.1994 -] ST205 |
57463-20050 |
— | ||
|
57601
|
57601
57601-20450
Member Sub-Assy, Rear Floor Side, Rh
[02.1994 -] ST205 |
57601-20450 |
— | ||
|
57602
|
57602
57602-20440
Member Sub-Assy, Rear Floor Side, Lh
[02.1994 -] ST205 |
57602-20440 |
— | ||
|
57605B
|
57605B
57605-20120
Member Sub-Assy, Rear Floor Cross, No.1
[02.1994 -] ST205 |
57605-20120 |
— | ||
|
57608A
|
57608A
57608-20050
Member Sub-Assy, Rear Floor Cross, No.4
[02.1994 -] ST205 |
57608-20050 |
— | ||
|
57609A
|
57609A
57609-20050
Member Sub-Assy, Rear Floor Cross, No.5
[02.1994 -] ST205 |
57609-20050 |
— | ||
|
57615A
|
57615A
57615-20913 Member, Rear Floor Side, Rear Rh[02.1994 -] ST205 |
57615-20913 |
US $186.37 |
||
|
57616A
|
57616A
57616-20903 Member, Rear Floor Side, Rear Lh[08.1995 -] ST205 |
57616-20903 |
US $161.62 |
||
|
57616A
|
57616A
57616-20912 Member, Rear Floor Side, Rear Lh[02.1994 - 08.1995] ST205 |
57616-20912 |
US $244.61 |
||
|
57635
|
57635
57635-20020 Reinforcement, Rear Floor Side Member[02.1994 -] ST205 |
57635-20020 |
US $91.73 |
||
|
57636A
|
57636A
57636-20020 Reinforcement, Rear Floor Side Member, Rear Lh[02.1994 -] ST205 |
57636-20020 |
US $91.73 |
||
|
57641
|
57641
57641-20030 Reinforcement, Rear Floor Side Member, Inner Rh[02.1994 -] ST205 |
57641-20030 |
US $19.66 |
||
|
57642A
|
57642A
57642-20030 Reinforcement, Rear Floor Side Member, Inner Lh[02.1994 -] ST205 |
57642-20030 |
US $15.87 |
||
|
57643
|
57643
57643-20020 Stiffener, Rear Floor Side Member, Center Rh[02.1994 -] ST205 |
57643-20020 |
US $17.33 |
||
|
57644
|
57644
57644-20020
Stiffener, Rear Floor Side Member, Center Lh
[02.1994 -] ST205 |
57644-20020 |
— | ||
|
9011910500
|
9011910500
90119-10500 New Genuine Part |
90119-10500 |
US $4.08 |
||
|
9033320001
|
9033320001
90333-20001 PLUG |
90333-20001 |
from US $1.12 |
||
|
9033325001
|
9033325001
90333-25001 Plug, Hole(For Hood) |
90333-25001 |
from US $1.41 |
||
|
9033325003
|
9033325003
90333-25003 Plug, Hole(For Hood) |
90333-25003 |
from US $1.12 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
US $1.12 |
||
|
9033330004
|
9033330004
90333-30004 PLUG |
90333-30004 |
US $0.96 |
||
|
9033335001
|
9033335001
90333-35001 New Genuine Part |
90333-35001 |
US $1.76 |
||
|
9046706131B2
|
9046706131B2
90467-06131-B2 Clip |
90467-06131-B2 |
US $1.22 |
||
|
9095001392
|
9095001392
90950-01392 Plug, Hole(For Luggage Compartment Door Panel) |
90950-01392 |
from US $1.21 |
||
|
9095001539
|
9095001539
90950-01539 PLUG HOLE |
90950-01539 |
from US $1.42 |
||
|
9095001550
|
9095001550
90950-01550 PLUG HOLE |
90950-01550 |
US $2.08 |
||
|
9095001861
|
9095001861
90950-01861 New Genuine Part |
90950-01861 |
US $17.76 |
||
