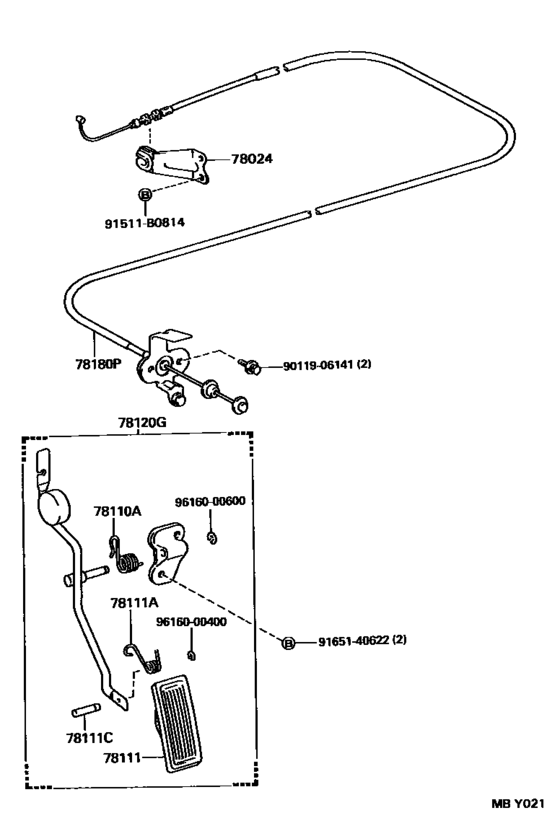

Accelerator Link ([02.1994 - 08.1995] (9402-9508)ST205..LHD) Diagram Toyota CELICA
- Year
- 1994 - 1996
- Sales region
- Europe
- Frame
- ST205
- grade
- TBO4W
- body
- LB
- ENGINE
- 3SGTE
- TRANSMISSION
- MTM
- From
- 02.1994
- To
- 06.1996
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-88480
Bracket Sub-Assy, Accelerator Control Cable
[02.1994 - 06.1996] ST205 |
78024-88480 |
— | ||
|
78110A
|
78110A
90959-03039
Spring (For Accelerator Pedal Rod)
[11.1993 -] AT200,ST20#..LHD |
90959-03039 |
— | ||
|
78111
|
78111
78111-20030
Pedal, Accelerator
[11.1993 - 08.1995] AT200,ST20# |
78111-20030 |
— | ||
|
78111A
|
78111A
90508-18050
Spring (For Accelerator Pedal Rod)
[11.1993 - 08.1995] AT200,ST20# |
90508-18050 |
— | ||
|
78111C
|
78111C
90249-05001 Pin (For Accelerator Pedal)[11.1993 - 08.1995] AT200,ST20# |
90249-05001 |
US $3.32 |
||
|
78120G
|
78120G
78120-20610 Rod Assy, Accelerator PedalACCELERATOR PEDAL [11.1993 - 08.1995] AT200,ST20#..LHD |
78120-20610 |
US $40.77 |
||
|
78120G
|
78120G
78120-20650 Rod Assy, Accelerator PedalACCELERATOR PEDAL [08.1995 - 12.1995] AT200,ST20#..LHD..LB |
78120-20650 |
US $40.91 |
||
|
78180P
|
78180P
78180-2D310
Cable Assy, Accelerator Control
[02.1994 - 08.1995] ST205..LHD |
78180-2D310 |
— | ||
|
78180P
|
78180P
78180-2D440
Cable Assy, Accelerator Control
[08.1995 - 06.1996] ST205..LHD |
78180-2D440 |
— | ||
|
91511B0814
|
91511B0814
91511-B0814 BOLT |
91511-B0814 |
US $1.60 |
||
|
9011906141
|
9011906141
90119-06141
New Genuine Part
|
90119-06141 |
— | ||
| replacement | |||||
|
9011906141
|
9011906141
91651-40628 New Genuine Part |
91651-40628 |
US $0.61 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
|
9616000600
|
9616000600
96160-00600 Ring, E(For Clutch Pedal Pawl) |
96160-00600 |
from US $0.86 |
||
