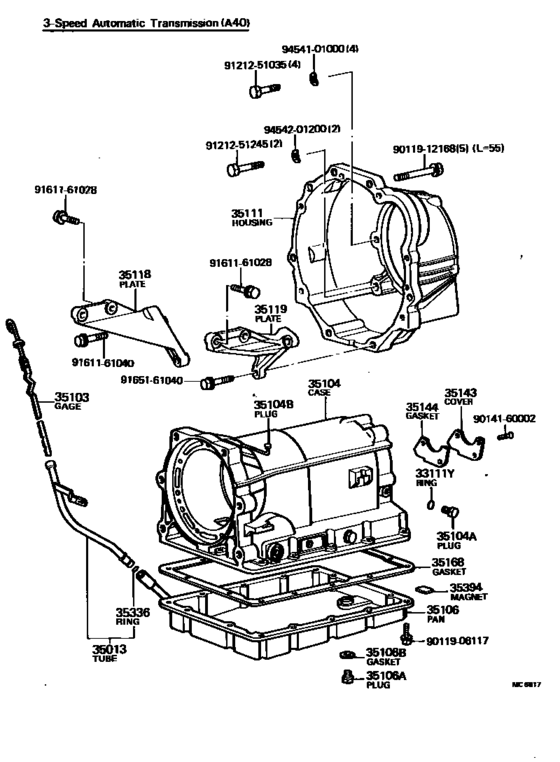

Transmission Case & Oil Pan (Atm) ([08.1977 - ] (7708- )TA40..3FC) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- ATM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 3FC
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
35013
|
35013
35013-14071 Tube Sub-Assy, Transmission Oil FillerTRANSMISSION OIL FILLER [08.1977 - 08.1980] TA40..3FC |
35013-14071 |
US $55.04 |
||
| replacement | |||||
|
35013
|
35013
35013-14110
Tube Sub-Assy, Transmission Oil Filler
[08.1977 - 08.1980] TA40..3FC |
35013-14110 |
— | ||
|
35013
|
35013
35013-20110 Tube Sub-Assy, Transmission Oil Filler[08.1980 - 07.1981] TA40..3FC |
35013-20110 |
US $49.94 |
||
| replacement | |||||
|
35013
|
35013
35013-14110
Tube Sub-Assy, Transmission Oil Filler
[08.1980 - 07.1981] TA40..3FC |
35013-14110 |
— | ||
|
35103
|
35103
35103-20040 Gage Sub-Assy, Transmission Oil LevelTRANSMISSION OIL LEVEL [08.1977 - 07.1981] TA40..3FC |
35103-20040 |
US $16.02 |
||
|
35104
|
35104
35104-22022 Case Sub-Assy, Automatic TransmissionAUTOMATIC TRANSMISSION [08.1977 - 08.1978] RA40,TA40..3FC |
35104-22022 |
US $1,023.57 |
||
| replacement | |||||
|
35104
|
35104
35104-22050
Case Sub-Assy, Automatic Transmission
[08.1977 - 08.1978] RA40,TA40..3FC |
35104-22050 |
— | ||
|
35104
|
35104
35104-22023 Case Sub-Assy, Automatic TransmissionAUTOMATIC TRANSMISSION [08.1978 - 08.1980] RA40,TA40..3FC |
35104-22023 |
US $976.98 |
||
| replacement | |||||
|
35104
|
35104
35104-22050
Case Sub-Assy, Automatic Transmission
[08.1978 - 08.1980] RA40,TA40..3FC |
35104-22050 |
— | ||
|
35104
|
35104
35104-22024 Case Sub-Assy, Automatic TransmissionAUTOMATIC TRANSMISSION [08.1980 - 06.1981] RA40,TA40..3FC |
35104-22024 |
US $979.89 |
||
| replacement | |||||
|
35104
|
35104
35104-22050
Case Sub-Assy, Automatic Transmission
[08.1980 - 06.1981] RA40,TA40..3FC |
35104-22050 |
— | ||
|
35104
|
35104
35104-22025 Case Sub-Assy, Automatic Transmission[06.1981 - 07.1981] RA40,TA40..3FC |
35104-22025 |
US $1,132.77 |
||
| replacement | |||||
|
35104
|
35104
35104-22050
Case Sub-Assy, Automatic Transmission
[06.1981 - 07.1981] RA40,TA40..3FC |
35104-22050 |
— | ||
|
35104A
|
35104A
90341-08001 Plug, Transaxle Case, No.1[06.1981 - 07.1981] RA40,TA40..3FC |
90341-08001 |
from US $1.52 |
||
|
35104A
|
35104A
90341-08079
Plug, Automatic Transmission Case
[08.1977 - 06.1981] RA40,TA40..3FC |
90341-08079 |
— | ||
|
35104B
|
35104B
90930-03061 Plug, Breather, No.1 (Atm)BREATHER, NO.1 (ATM) [08.1977 - 07.1981] RA40,TA40..3FC |
90930-03061 |
US $7.13 |
||
| replacement | |||||
|
35104B
|
35104B
90930-03069 Plug, Breather, No.1 (Atm)[08.1977 - 07.1981] RA40,TA40..3FC |
90930-03069 |
US $7.28 |
||
|
35106
|
35106
35106-22020 Pan Sub-Assy, Automatic Transmission Oil[08.1977 - 07.1981] RA40,TA40..3FC |
35106-22020 |
US $67.41 |
||
| replacement | |||||
|
35106
|
35106
35106-22022 Pan Sub-Assy, Automatic Transmission Oil[08.1977 - 07.1981] RA40,TA40..3FC |
35106-22022 |
US $70.32 |
||
|
35106A
|
35106A
90341-10003 Plug Sub-Assy, Drain (Atm)[11.1979 - 07.1981] RA40,TA40..3FC |
90341-10003 |
US $3.49 |
||
| replacement | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[11.1979 - 07.1981] RA40,TA40..3FC |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
90341-10078 Plug Sub-Assy, Drain (Atm)DRAIN (ATM) [08.1977 - 11.1979] RA40,TA40..3FC |
90341-10078 |
US $3.20 |
||
| replacements | |||||
|
35106A
|
35106A
90341-10011 Drain Plug (No Type)[08.1977 - 11.1979] RA40,TA40..3FC |
90341-10011 |
from US $1.79 |
||
|
35106A
|
35106A
35178-30010 Drain Plug Gasket[08.1977 - 11.1979] RA40,TA40..3FC |
35178-30010 |
from US $1.77 |
||
|
35106B
|
35106B
35178-30010 Drain Plug Gasket[11.1979 - 07.1981] RA40,TA40..3FC |
35178-30010 |
from US $1.77 |
||
|
35106B
|
35106B
90202-10110 Gasket, Drain Plug (Atm)DRAIN PLUG (ATM) [08.1977 - 11.1979] RA40,TA40..3FC |
90202-10110 |
US $2.77 |
||
|
35111
|
35111
35111-12020 Housing, Automatic TransmissionAUTOMATIC TRANSMISSION [08.1977 - 08.1980] TA40..3FC |
35111-12020 |
US $493.58 |
||
| replacement | |||||
|
35111
|
35111
35111-14050
Housing, Automatic Transmission
[08.1977 - 08.1980] TA40..3FC |
35111-14050 |
— | ||
|
35111
|
35111
35111-14050
Housing, Automatic Transmission
[08.1980 - 07.1981] TA40..3FC |
35111-14050 |
— | ||
|
35118
|
35118
33118-14010
Plate, Stiffener, Rh(Mtm)
[08.1977 - 07.1981] TA40..3FC |
33118-14010 |
— | ||
|
35119
|
35119
33119-14040
Plate, Stiffener, Lh(Mtm)
[08.1977 - 07.1981] TA40..3FC |
33119-14040 |
— | ||
|
35143
|
35143
35143-22010 Cover, Transmission Case, Rear[08.1977 - 07.1981] RA40,TA40..3FC |
35143-22010 |
US $6.26 |
||
|
35144
|
35144
35144-22010
Gasket, Transmission Case Rear Cover
[08.1977 - 07.1981] RA40,TA40..3FC |
35144-22010 |
— | ||
| replacement | |||||
|
35144
|
35144
35144-28010 Gasket, Transmission Case Rear Cover[08.1977 - 07.1981] RA40,TA40..3FC |
35144-28010 |
US $2.62 |
||
|
35168
|
35168
35168-22010
Gasket, Automatic Transmission Oil Pan
[08.1977 - 05.1980] RA40,TA40..3FC |
35168-22010 |
— | ||
| replacement | |||||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[08.1977 - 05.1980] RA40,TA40..3FC |
35168-22011 |
from US $9.79 |
||
|
35168
|
35168
35168-22011 Gasket, Automatic Transmission Oil Pan[05.1980 - 07.1981] RA40,TA40..3FC |
35168-22011 |
from US $9.79 |
||
|
35336
|
35336
90301-09173 Ring, O(For Transmission Oil Filler Tube)[08.1977 - 07.1981] RA40,TA40..3FC |
90301-09173 |
from US $2.01 |
||
|
35394
|
35394
35394-30011 Magnet, Oil Cleaner (For Transmission)[08.1977 - 07.1981] RA40,TA40..3FC |
35394-30011 |
from US $5.62 |
||
|
9011906117
|
9011906117
90119-06117
Bolt (For Automatic Transmission Oil Pan)
|
90119-06117 |
— | ||
| replacement | |||||
|
9011906117
|
9011906117
90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting) |
90119-06173 |
from US $0.76 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9014160002
|
9014160002
90141-60002 New Genuine Part |
90141-60002 |
US $2.04 |
||
| replacement | |||||
|
9014160002
|
9014160002
93220-16012 SCREW |
93220-16012 |
US $1.40 |
||
|
9121251035
|
9121251035
91212-51035 New Genuine Part |
91212-51035 |
US $2.18 |
||
|
9121251245
|
9121251245
91212-51245 New Genuine Part |
91212-51245 |
US $3.20 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $2.15 |
||
|
9454101000
|
9454101000
94541-01000 New Genuine Part |
94541-01000 |
US $3.05 |
||
|
9454201200
|
9454201200
94542-01200 New Genuine Part |
94542-01200 |
US $0.87 |
||
