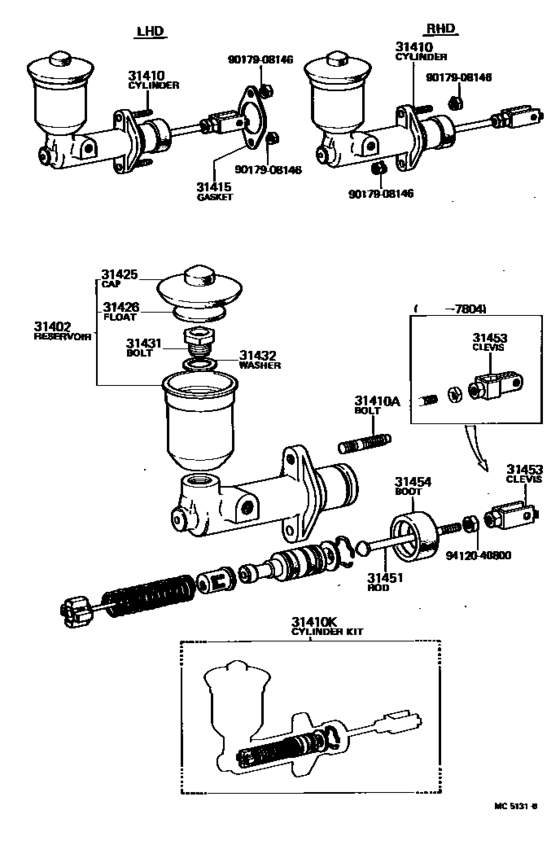

Clutch Master Cylinder ([08.1977 - ] (7708- )MTM) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31402
|
31402
31402-20020 Reservoir Sub-Assy, Clutch Master CylinderCLUTCH MASTER CYLINDER [02.1979 - 07.1981] RA40,TA40..MTM |
31402-20020 |
US $26.35 |
||
| replacement | |||||
|
31402
|
31402
31402-30030 Reservoir Sub-Assy, Clutch Master Cylinder[02.1979 - 07.1981] RA40,TA40..MTM |
31402-30030 |
US $27.61 |
||
|
31402
|
31402
47202-12050 Reservoir Sub-Assy, Clutch Master Cylinder[08.1977 - 02.1979] RA40,TA40..MTM |
47202-12050 |
US $17.64 |
||
|
31410
|
31410
31410-14080 Cylinder Assy, Clutch MasterCLUTCH MASTER [04.1978 - 02.1979] RA40,TA40..LHD..MTM |
31410-14080 |
US $205.30 |
||
| replacement | |||||
|
31410
|
31410
31410-14083 Cylinder Assy, Clutch Master[04.1978 - 02.1979] RA40,TA40..LHD..MTM |
31410-14083 |
US $170.35 |
||
|
31410
|
31410
31410-14081 Cylinder Assy, Clutch MasterCLUTCH MASTER [02.1979 - 07.1981] RA40,TA40..LHD..MTM |
31410-14081 |
US $205.30 |
||
| replacement | |||||
|
31410
|
31410
31410-14083 Cylinder Assy, Clutch Master[02.1979 - 07.1981] RA40,TA40..LHD..MTM |
31410-14083 |
US $170.35 |
||
|
31410
|
31410
31410-20100 Cylinder Assy, Clutch MasterCLUTCH MASTER [08.1977 - 04.1978] RA40,TA40..LHD..MTM |
31410-20100 |
US $205.30 |
||
| replacement | |||||
|
31410
|
31410
31410-20102 Cylinder Assy, Clutch Master[08.1977 - 04.1978] RA40,TA40..LHD..MTM |
31410-20102 |
US $176.18 |
||
|
31410A
|
31410A
90116-08302
Bolt(For Clutch Master Cylinder Setting)
[08.1977 - 07.1981] RA40,TA40..LHD..MTM S=9 & S=24.5 |
90116-08302 |
— | ||
|
31410K
|
31410K
04311-12020
Cylinder Kit, Clutch Master
[02.1979 - 07.1981] RA40,TA40..MTM |
04311-12020 |
— | ||
| replacement | |||||
|
31410K
|
31410K
04311-12023 Cylinder Kit, Clutch Master[02.1979 - 07.1981] RA40,TA40..MTM |
04311-12023 |
US $39.31 |
||
|
31410K
|
31410K
04311-14010
Cylinder Kit, Clutch Master
[08.1977 - 02.1979] RA40,TA40..MTM |
04311-14010 |
— | ||
| replacement | |||||
|
31410K
|
31410K
04311-14013 Cylinder Kit, Clutch Master[08.1977 - 02.1979] RA40,TA40..MTM |
04311-14013 |
from US $47 |
||
|
31415
|
31415
31415-14010 Gasket, Clutch Master CylinderCLUTCH MASTER CYLINDER [08.1977 - 07.1981] RA40,TA40..LHD..MTM |
31415-14010 |
US $2.33 |
||
|
31425
|
31425
47230-12030
Cap Assy, Brake Master Cylinder Reservoir Filler
[08.1977 - 07.1981] RA40,TA40..MTM |
47230-12030 |
— | ||
| replacement | |||||
|
31425
|
31425
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[08.1977 - 07.1981] RA40,TA40..MTM |
47230-20040 |
from US $8.91 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[08.1977 - 07.1981] RA40,TA40..MTM |
31426-30011 |
— | ||
|
31431
|
31431
47231-30010 Bolt, Clutch Master Cylinder Reservoir Set[08.1977 - 07.1981] RA40,TA40..MTM |
47231-30010 |
US $5.02 |
||
|
31432
|
31432
47232-30010 Washer, Reservoir Set Bolt[08.1977 - 07.1981] RA40,TA40..MTM |
47232-30010 |
US $3.94 |
||
|
31451
|
31451
31451-14010 Rod, Clutch Master Cylinder Push[08.1977 - 07.1981] RA40,TA40..MTM |
31451-14010 |
US $11.07 |
||
|
31453
|
31453
31453-22010 Clevis, Clutch Master Cylinder Push Rod[04.1978 - 07.1981] RA40,TA40..MTM |
31453-22010 |
US $6.55 |
||
| replacement | |||||
|
31453
|
31453
31453-35010 Clevis, Clutch Master Cylinder Push Rod[04.1978 - 07.1981] RA40,TA40..MTM |
31453-35010 |
US $6.47 |
||
|
31453
|
31453
47264-10011
Clevis, Clutch Master Cylinder Push Rod
[08.1977 - 04.1978] RA40,TA40..MTM |
47264-10011 |
— | ||
|
31454
|
31454
31454-14010 Boot, Clutch Master Cylinder[08.1977 - 07.1981] RA40,TA40..MTM |
31454-14010 |
US $3.72 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.61 |
||
