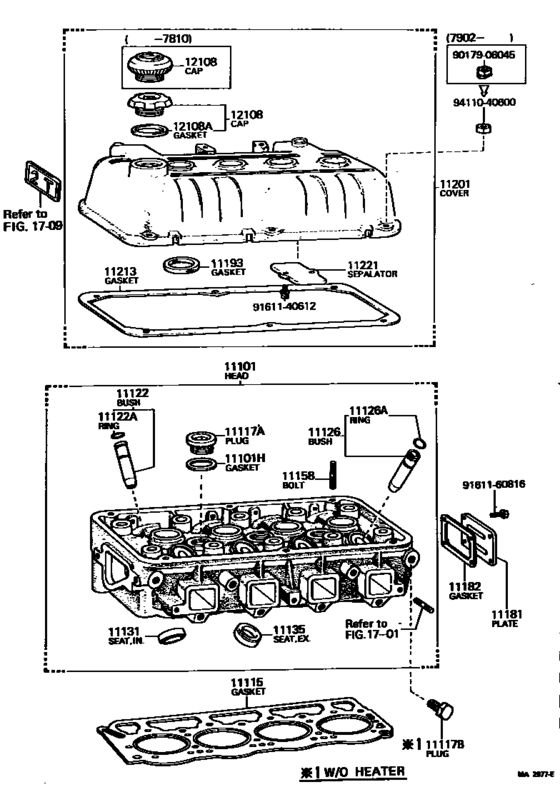

Cylinder Head ([08.1977 - 08.1980] (7708-8008)2T,2TB) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-29228
Head Sub-Assy, Cylinder
[08.1977 - 08.1980] 2T..TA40 |
11101-29228 |
— | ||
| replacements | |||||
|
11101
|
11101
90116-10033
New Genuine Part
[08.1977 - 08.1980] 2T..TA40 |
90116-10033 |
— | ||
|
11101
|
11101
11101-25034
Head Sub-assy, Cylinder
[08.1977 - 08.1980] 2T..TA40 |
11101-25034 |
— | ||
|
11101
|
11101
90253-16020 Pin, Straight, No.2[08.1977 - 08.1980] 2T..TA40 |
90253-16020 |
US $2.62 |
||
|
11101
|
11101
92122-40625 Bolt, Stud(For Head To Cylinder Head Cover)[08.1977 - 08.1980] 2T..TA40 |
92122-40625 |
US $2.33 |
||
|
11101
|
11101
11101-29229
Head Sub-Assy, Cylinder
[08.1980 - 07.1981] 2T..TA40 |
11101-29229 |
— | ||
| replacements | |||||
|
11101
|
11101
90116-10033
New Genuine Part
[08.1980 - 07.1981] 2T..TA40 |
90116-10033 |
— | ||
|
11101
|
11101
11101-25034
Head Sub-assy, Cylinder
[08.1980 - 07.1981] 2T..TA40 |
11101-25034 |
— | ||
|
11101
|
11101
90253-16020 Pin, Straight, No.2[08.1980 - 07.1981] 2T..TA40 |
90253-16020 |
US $2.62 |
||
|
11101
|
11101
92122-40625 Bolt, Stud(For Head To Cylinder Head Cover)[08.1980 - 07.1981] 2T..TA40 |
92122-40625 |
US $2.33 |
||
|
11101H
|
11101H
90430-24246 Gasket(For Cylinder Head Screw Plug)[08.1977 - 07.1981] 2T,2TB..TA40 |
90430-24246 |
from US $1.15 |
||
|
11115
|
11115
11115-26023
Gasket, Cylinder Head
[08.1977 - 02.1979] 2T,2TB..TA40 |
11115-26023 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-25040 Gasket, Cylinder Head[08.1977 - 02.1979] 2T,2TB..TA40 |
11115-25040 |
US $56.93 |
||
|
11115
|
11115
11115-26024
Gasket, Cylinder Head
[02.1979 - 07.1981] 2T,2TB..TA40 |
11115-26024 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-25040 Gasket, Cylinder Head[02.1979 - 07.1981] 2T,2TB..TA40 |
11115-25040 |
US $56.93 |
||
|
11117A
|
11117A
90341-24090 Plug, W/head Taper Screw, No.1[08.1977 - 07.1981] 2T,2TB..TA40 |
90341-24090 |
US $4.89 |
||
|
11117B
|
11117B
90345-53007 Plug, W/head Taper Screw, No.1[08.1977 - 07.1981] 2T,2TB..TA40 W/O HEATER |
90345-53007 |
from US $3.53 |
||
|
11122
|
11122
11122-25021 Bush, Intake Valve Guide[08.1977 - 07.1981] 2T,2TB..TA40 STD |
11122-25021 |
US $13.25 |
||
|
11122
|
11122
11123-25021 Bush, Intake Valve Guide[08.1977 - 07.1981] 2T,2TB..TA40 O/S 0.05 |
11123-25021 |
US $11.79 |
||
|
11122A
|
11122A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[08.1977 - 07.1981] 2T,2TB..TA40 |
90520-12049 |
from US $3.05 |
||
|
11126
|
11126
11126-25021
Bush, Exhaust Valve Guide
[08.1977 - 07.1981] 2T,2TB..TA40 STD |
11126-25021 |
— | ||
|
11126
|
11126
11127-25021 Bush, Exhaust Valve Guide[08.1977 - 07.1981] 2T,2TB..TA40 O/S 0.05 |
11127-25021 |
US $11.94 |
||
|
11126A
|
11126A
90520-12049 Ring, Shaft Snap (For Valve Guide Bush)[08.1977 - 07.1981] 2T,2TB..TA40 |
90520-12049 |
from US $3.05 |
||
|
11131
|
11131
11131-25010
Seat, Intake Valve
[08.1977 - 07.1981] 2T,2TB..TA40 STD |
11131-25010 |
— | ||
|
11131
|
11131
11132-25010 Seat, Intake Valve[08.1977 - 07.1981] 2T,2TB..TA40 O/S 0.03 |
11132-25010 |
US $16.89 |
||
|
11135
|
11135
11135-25011
Seat, Exhaust Valve
[08.1977 - 07.1981] 2T,2TB..TA40 STD |
11135-25011 |
— | ||
|
11135
|
11135
11136-25011 Seat, Exhaust Valve[08.1977 - 07.1981] 2T,2TB..TA40 O/S 0.03 |
11136-25011 |
US $15.14 |
||
|
11158
|
11158
92122-40618 Bolt, Stud(For Head To Cylinder Head Cover)STUD(FOR HEAD TO CYLINDER HEAD COVER) [08.1977 - 02.1979] 2T,2TB..TA40 L=27,S=9&9 |
92122-40618 |
US $1.75 |
||
|
11158
|
11158
92122-40620
Bolt, Stud(For Head To Cylinder Head Cover)
[02.1979 - 08.1980] 2T,2TB..TA40 L=29,S=9&9 |
92122-40620 |
— | ||
|
11158
|
11158
92122-40625 Bolt, Stud(For Head To Cylinder Head Cover)[08.1980 - 07.1981] 2T,2TB..TA40 |
92122-40625 |
US $2.33 |
||
|
11181
|
11181
11181-25010
Plate, Cylinder Head, Rear
[08.1977 - 07.1981] 2T,2TB..TA40 |
11181-25010 |
— | ||
|
11182
|
11182
11182-25010
Gasket, Cylinder Head Rear Plate
[08.1977 - 07.1981] 2T,2TB..TA40 |
11182-25010 |
— | ||
| replacement | |||||
|
11182
|
11182
11182-25012 Gasket, Cylinder Head Rear Plate[08.1977 - 07.1981] 2T,2TB..TA40 |
11182-25012 |
US $6.55 |
||
|
11193
|
11193
11193-25011
Gasket, Spark Plug Tube
[08.1977 - 09.1979] 2T,2TB..TA40 |
11193-25011 |
— | ||
| replacement | |||||
|
11193
|
11193
11193-25012 Gasket, Spark Plug Tube[08.1977 - 09.1979] 2T,2TB..TA40 |
11193-25012 |
from US $7.78 |
||
|
11193
|
11193
11193-25012 Gasket, Spark Plug Tube[09.1979 - 07.1981] 2T,2TB..TA40 |
11193-25012 |
from US $7.78 |
||
|
11201
|
11201
11201-29125 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [08.1977 - 10.1978] 2T,2TB..TA40 |
11201-29125 |
US $222.77 |
||
| replacement | |||||
|
11201
|
11201
11201-29127
Cover Sub-Assy, Cylinder Head
[08.1977 - 10.1978] 2T,2TB..TA40 |
11201-29127 |
— | ||
|
11201
|
11201
11201-29127
Cover Sub-Assy, Cylinder Head
[10.1978 - 08.1980] 2T,2TB..TA40 |
11201-29127 |
— | ||
|
11201
|
11201
11201-29128 Cover Sub-Assy, Cylinder Head[08.1980 - 07.1981] 2T,2TB..TA40 |
11201-29128 |
US $241.70 |
||
|
11213
|
11213
11213-25010
Gasket, Cylinder Head Cover
[08.1977 - 10.1978] 2T,2TB..TA40 |
11213-25010 |
— | ||
| replacement | |||||
|
11213
|
11213
11213-25011 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [08.1977 - 10.1978] 2T,2TB..TA40 |
11213-25011 |
US $13.90 |
||
|
11213
|
11213
11213-25011 Gasket, Cylinder Head CoverCYLINDER HEAD COVER [10.1978 - 08.1980] 2T,2TB..TA40 |
11213-25011 |
US $13.90 |
||
|
11213
|
11213
11213-25012 Gasket, Cylinder Head Cover[08.1980 - 07.1981] 2T,2TB..TA40 |
11213-25012 |
US $14.85 |
||
|
11221
|
11221
11221-25010
Separator, Cylinder Head Cover, No.1
[08.1977 - 08.1980] 2T,2TB..TA40 |
11221-25010 |
— | ||
|
12108
|
12108
12108-13010
Cap Sub-Assy, Oil Filler
[08.1979 - 07.1981] 2T,2TB..TA40 |
12108-13010 |
— | ||
|
12108
|
12108
12181-12904
Cap Sub-Assy, Oil Filler
[10.1978 - 08.1979] 2T,2TB..TA40 |
12181-12904 |
— | ||
| replacement | |||||
|
12108
|
12108
12180-13010 Cap Sub-Assy, Oil Filler[10.1978 - 08.1979] 2T,2TB..TA40 |
12180-13010 |
from US $16.54 |
||
|
12108
|
12108
12181-31020 Cap Sub-Assy, Oil Filler[08.1977 - 10.1978] 2T,2TB..TA40 |
12181-31020 |
from US $16.36 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[10.1978 - 07.1981] 2T,2TB..TA40 |
90430-37140 |
from US $1.17 |
||
|
9017906045
|
9017906045
90179-06045 New Genuine Part |
90179-06045 |
from US $2.15 |
||
|
9161140612
|
9161140612
91611-40612
Bolt(for Dust Cover To Steering Knuckle Arm Setting)
|
91611-40612 |
— | ||
| replacement | |||||
|
9161140612
|
9161140612
91611-G0612 Bolt(For Dust Cover To Steering Knuckle Arm Setting) |
91611-G0612 |
from US $0.78 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
