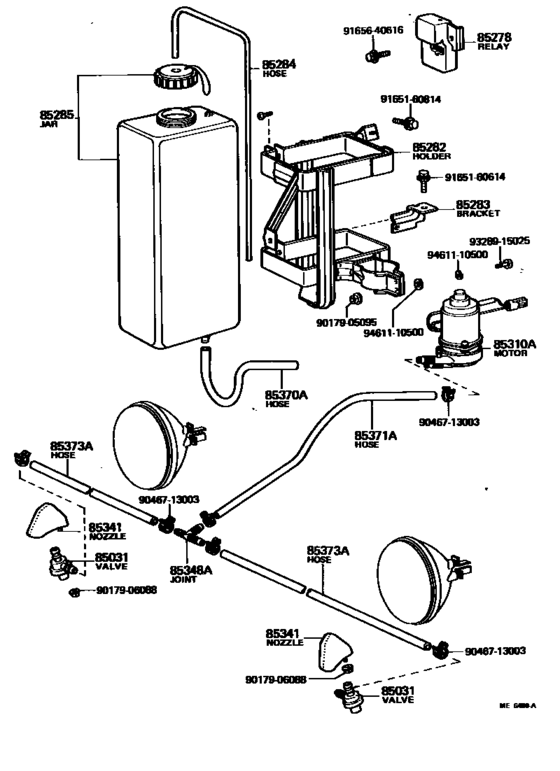

Headlamp Cleaner ([08.1977 - 08.1979] (7708-7908)LHD..LT,ST,XT..EUR) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031
|
85031
85031-14030
Valve, Headlamp Cleaner Washer Hose
[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85031-14030 |
— | ||
|
85031
|
85031
85031-14060 Valve, Headlamp Cleaner Washer HoseHEADLAMP CLEANER WASHER HOSE [08.1979 - 07.1981] RA40,TA40..LHD..EUR |
85031-14060 |
US $32.03 |
||
|
85278
|
85278
85276-14010 Relay Assy, Headlamp Cleaner Control[08.1979 - 07.1981] RA40,TA40..LHD..EUR |
85276-14010 |
US $177.63 |
||
|
85278
|
85278
85276-22010
Relay Assy, Headlamp Cleaner Control
[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85276-22010 |
— | ||
|
85282
|
85282
85361-14080
Holder Assy, Headlamp Cleaner Washer Jar
[08.1977 - 08.1979] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85361-14080 |
— | ||
|
85282
|
85282
85361-14130
Holder Assy, Headlamp Cleaner Washer Jar
[08.1979 - 07.1981] RA40,TA40..LHD..EUR UPR |
85361-14130 |
— | ||
|
85282
|
85282
85361-14140
Holder Assy, Headlamp Cleaner Washer Jar
[08.1979 - 07.1981] RA40,TA40..LHD..EUR LWR |
85361-14140 |
— | ||
| replacement | |||||
|
85282
|
85282
85361-20140
Holder, Windshield Washer
[08.1979 - 07.1981] RA40,TA40..LHD..EUR LWR |
85361-20140 |
— | ||
|
85283
|
85283
85036-14090
Bracket Assy, Windshield Washer
[08.1979 - 07.1981] RA40,TA40..LHD..GT..EUG; RA40,TA40..LHD..(LT,ST,XT)..EUR |
85036-14090 |
— | ||
|
85283
|
85283
85361-14050
Bracket, Headlamp Cleaner Washer
[08.1977 - 08.1979] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85361-14050 |
— | ||
|
85284
|
85284
90446-07002 Hose, Windshield Washer (From Joint To Joint), No.1HEADLAMP CLEANER WASHER [08.1977 - 08.1979] RA40,TA40..LHD..(LT,ST,XT)..EUR L=500 |
90446-07002 |
US $3.35 |
||
| replacement | |||||
|
85284
|
85284
90446-07004
Hose, Headlamp Cleaner, No.2
[08.1977 - 08.1979] RA40,TA40..LHD..(LT,ST,XT)..EUR L=500 |
90446-07004 |
— | ||
|
85284
|
85284
90446-07004
Hose, Headlamp Cleaner, No.2
[08.1979 - 07.1981] RA40,TA40..LHD..EUR L=1300 |
90446-07004 |
— | ||
|
85285
|
85285
85330-12060
Jar, Headlamp Cleaner Washer
[08.1977 - 08.1979] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85330-12060 |
— | ||
|
85285
|
85285
85330-14260
Jar, Headlamp Cleaner Washer
[08.1979 - 07.1981] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85330-14260 |
— | ||
|
85310A
|
85310A
85310-10090 Motor And Pump Assy, Windshield WasherHEADLAMP CLEANER WASHER [08.1979 - 07.1981] RA40,TA40..LHD..EUR |
85310-10090 |
US $307.22 |
||
|
85310A
|
85310A
85310-12050
Motor And Pump Assy, Headlamp Cleaner Washer
[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85310-12050 |
— | ||
|
85341
|
85341
85035-14070
Nozzle, Headlamp Cleaner Washer
[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85035-14070 |
— | ||
|
85341
|
85341
85035-14160
Nozzle, Headlamp Cleaner Washer
[08.1979 - 07.1981] RA40,TA40..LHD..EUR |
85035-14160 |
— | ||
|
85348A
|
85348A
85352-12010 Joint, Headlamp Cleaner Hose, No.1[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85352-12010 |
from US $5.87 |
||
|
85370A
|
85370A
85271-14050
Hose Assy, Headlamp Cleaner Washer, No.1
[08.1979 - 07.1981] RA40,TA40..LHD..EUR |
85271-14050 |
— | ||
|
85370A
|
85370A
85343-14010
Hose Assy, Headlamp Cleaner Washer, No.1
[08.1977 - 08.1979] RA40,TA40..LHD..(LT,ST,XT)..EUR |
85343-14010 |
— | ||
|
85371A
|
85371A
85271-14100
Hose, Headlamp Cleaner, No.1
[08.1979 - 07.1981] RA40,TA40..LHD..EUR |
85271-14100 |
— | ||
|
85371A
|
85371A
85343-12030
Hose, Headlamp Cleaner(From Motor To Joint)
[01.1978 - 08.1979] RA40,TA40..LHD..EUR L=460 |
85343-12030 |
— | ||
|
85371A
|
85371A
90445-14036 Hose, Headlamp Cleaner, No.1HEADLAMP CLEANER(FROM MOTOR TO JOINT) [08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR *H,L=460 |
90445-14036 |
US $25.19 |
||
| replacement | |||||
|
85371A
|
85371A
85375-22061 Hose, Headlamp Cleaner, No.1[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR *H,L=460 |
85375-22061 |
US $27.37 |
||
|
85373A
|
85373A
90445-14035 Hose, Headlamp Cleaner, No.4[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR L=280 |
90445-14035 |
US $5.82 |
||
| replacement | |||||
|
85373A
|
85373A
90445-14056 Hose, Headlamp Cleaner, No.4[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR L=280 |
90445-14056 |
US $7.28 |
||
|
85373A
|
85373A
90445-14037 Hose, Headlamp Cleaner Washer (From Joint To Valve)HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) [08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR *H,L=940 |
90445-14037 |
US $24.32 |
||
| replacement | |||||
|
85373A
|
85373A
90445-14072 Hose, Headlamp Cleaner, No.1[08.1977 - 01.1978] RA40,TA40..LHD..(LT,ST,XT)..EUR *H,L=940 |
90445-14072 |
from US $18.82 |
||
|
85373A
|
85373A
90445-14048 Hose, Headlamp Cleaner, No.2HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) [08.1979 - 07.1981] RA40,TA40..LHD..EUR L=150 |
90445-14048 |
US $30.87 |
||
| replacement | |||||
|
85373A
|
85373A
90445-14059 Hose, Headlamp Cleaner Washer (From Joint To Valve)HEADLAMP CLEANER, NO.2 [08.1979 - 07.1981] RA40,TA40..LHD..EUR L=150 |
90445-14059 |
US $8.59 |
||
|
85373A
|
85373A
90445-14055
Hose, Headlamp Cleaner, No.4
[08.1979 - 07.1981] RA40,TA40..LHD..EUR *H,L=60 |
90445-14055 |
— | ||
| replacement | |||||
|
85373A
|
85373A
85375-50020 Hose, Windshield Washer (From Joint To Joint), No.5[08.1979 - 07.1981] RA40,TA40..LHD..EUR *H,L=60 |
85375-50020 |
from US $2.44 |
||
|
85373A
|
85373A
90445-14061 Hose, Headlamp Cleaner Washer (From Joint To Valve)HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE) [08.1979 - 07.1981] RA40,TA40..LHD..EUR *H,L=990 |
90445-14061 |
US $25.63 |
||
| replacement | |||||
|
85373A
|
85373A
90445-14072 Hose, Headlamp Cleaner, No.1[08.1979 - 07.1981] RA40,TA40..LHD..EUR *H,L=990 |
90445-14072 |
from US $18.82 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.33 |
||
|
9017906088
|
9017906088
90179-06088 New Genuine Part |
90179-06088 |
US $1.60 |
||
|
9046713003
|
9046713003
90467-13003 New Genuine Part |
90467-13003 |
US $2.33 |
||
|
9165160614
|
9165160614
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165160814
|
9165160814
91651-60814
Clamp Or Clip, Hose(for Radiator Outlet No.1)
|
91651-60814 |
— | ||
| replacement | |||||
|
9165160814
|
9165160814
91651-B0814 Bolt with washer |
91651-B0814 |
from US $0.86 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9328915025
|
9328915025
93289-15025
New Genuine Part
|
93289-15025 |
— | ||
|
9461110500
|
9461110500
94611-10500 New Genuine Part |
94611-10500 |
US $2.06 |
||
