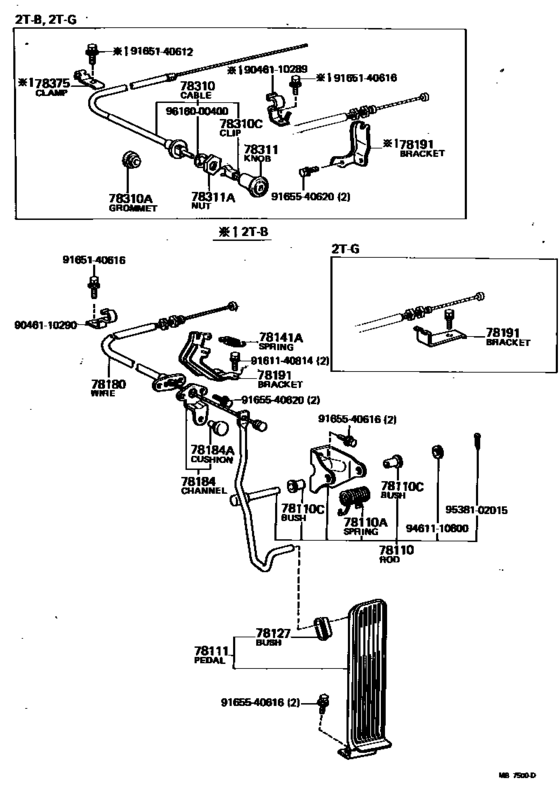

Accelerator Link ([08.1977 - ] (7708- )TA40..LHD) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78110
|
78110
78120-14170
Rod Assy, Accelerator Pedal
[08.1977 - 06.1978] TA40..LHD..(GT,ST) |
78120-14170 |
— | ||
|
78110
|
78110
78120-14171 Rod Assy, Accelerator PedalACCELERATOR PEDAL [06.1978 - 04.1979] TA40..LHD..(GT,ST) |
78120-14171 |
US $21.99 |
||
| replacement | |||||
|
78110
|
78110
78120-14172
Rod Assy, Accelerator Pedal
[06.1978 - 04.1979] TA40..LHD..(GT,ST) |
78120-14172 |
— | ||
|
78110
|
78110
78120-14172
Rod Assy, Accelerator Pedal
[04.1979 - 07.1981] TA40..B;TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..LHD..(GT,ST)..EUG;TA40 ..CP..LHD..5F..(GT,ST)..GEN |
78120-14172 |
— | ||
|
78110A
|
78110A
90508-23007 Spring (For Accelerator Pedal Rod)[08.1977 - 07.1981] TA40..LHD |
90508-23007 |
US $4.37 |
||
|
78110C
|
78110C
90386-08155 Bush (For Accelerator Pedal Rod)[08.1977 - 07.1981] RA40,TA40..LHD |
90386-08155 |
US $1.14 |
||
|
78111
|
78111
78010-14011
Pedal, Accelerator
[06.1978 - 04.1979] RA40,TA40..LHD |
78010-14011 |
— | ||
|
78111
|
78111
78010-14012
Pedal, Accelerator
[04.1979 - 07.1981] RA40,TA40..LHD |
78010-14012 |
— | ||
|
78111
|
78111
78010-14020
Pedal, Accelerator
[08.1977 - 06.1978] RA40,TA40..LHD |
78010-14020 |
— | ||
|
78127
|
78127
78127-20010
Bush, Accelerator Pedal, No.2
[08.1977 - 07.1981] RA40,TA40..LHD |
78127-20010 |
— | ||
|
78180
|
78180
78180-14060
Wire Assy, Accelerator
[08.1977 - 07.1981] TA40..B;TA40..LHD..ST..EUG;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F..ST..GEN |
78180-14060 |
— | ||
|
78184
|
78184
78181-14040
Channel, Accelerator Idle Adjusting Stopper
[08.1977 - 08.1979] TA40 |
78181-14040 |
— | ||
|
78184
|
78184
78181-14041
Channel, Accelerator Idle Adjusting Stopper
[08.1979 - 07.1981] TA40 |
78181-14041 |
— | ||
|
78184A
|
78184A
90541-06008 Cushion, No.1(For Clutch Pedal)[08.1977 - 07.1981] TA40 |
90541-06008 |
from US $1.54 |
||
|
78191
|
78191
78184-12110
Bracket, Accelerator Wire Support
[08.1977 - 07.1981] TA40..B;TA40..LHD..ST..EUG;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F..ST..GEN |
78184-12110 |
— | ||
|
78310
|
78310
78310-14171
Cable Assy, Choke
[08.1977 - 08.1979] TA40..LHD..ST |
78310-14171 |
— | ||
|
78310
|
78310
78310-14172
Cable Assy, Choke
[08.1979 - 04.1981] TA40..B;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F..ST..GEN |
78310-14172 |
— | ||
|
78310
|
78310
78310-14173
Cable Assy, Choke
[04.1981 - 07.1981] TA40..B;TA40..LHD..4F..GEN;TA40..CP..LHD..5F..ST..GEN |
78310-14173 |
— | ||
|
78310A
|
78310A
90480-13055 Grommet, Dash Panel, No.3[08.1977 - 07.1981] TA40..B;RA40..GT,ST;TA40..RHD..(GT,ST);TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..G EN;TA40..LHD..(GT,ST)..EUG;TA40..CP..LHD..5F..(GT,ST)..GEN |
90480-13055 |
US $1.40 |
||
|
78310C
|
78310C
78312-12010
Clip (For Choke Cable)
[04.1981 - 07.1981] TA40..B;TA40..RHD;RA40..GT,ST;TA40..LHD..4F..GEN;TA40..LHD..GT..GEN;TA40..LHD..(GT ,ST)..EUG;TA40..CP..LHD..5F..ST..GEN |
78312-12010 |
— | ||
|
78311
|
78311
78311-12030
Knob, Choke Control Cable
[08.1979 - 04.1981] RA40..GT..EUG; TA40..(GT,ST)..EUG; TA40..B;TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..RHD..(GT,ST)..GEN;TA40 ..CP..LHD..5F..(GT,ST)..GEN |
78311-12030 |
— | ||
| replacement | |||||
|
78311
|
78311
78311-12031 Knob, Choke Control CableCHOKE CONTROL CABLE [08.1979 - 04.1981] RA40..GT..EUG; TA40..(GT,ST)..EUG; TA40..B;TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..RHD..(GT,ST)..GEN;TA40 ..CP..LHD..5F..(GT,ST)..GEN |
78311-12031 |
US $10.05 |
||
|
78311
|
78311
78311-12031 Knob, Choke Control CableCHOKE CONTROL CABLE [04.1981 - 07.1981] RA40..GT..EUG; TA40..(GT,ST)..EUG; TA40..B;TA40..RHD..GEN;TA40..LHD..4F..GEN;TA40..LHD..GT..GEN;TA40..CP..LHD..5F..ST ..GEN |
78311-12031 |
US $10.05 |
||
|
78311
|
78311
89482-20010
Knob Sub-Assy, Choke Rod
[08.1977 - 08.1979] RA40..GT; TA40..GT,ST |
89482-20010 |
— | ||
|
78311A
|
78311A
90170-11003
Nut, Choke
[08.1977 - 07.1981] RA40..GT..EUG; TA40..(GT,ST)..EUG; TA40..B;TA40..LHD..4F..ST..GEN;TA40..LB..LHD..GT..GEN;TA40..RHD..(GT,ST)..GEN;TA40 ..CP..LHD..5F..(GT,ST)..GEN |
90170-11003 |
— | ||
|
78375
|
78375
78375-14010
Clamp, Choke Rod Flexible Tube
[08.1977 - 07.1981] TA40..B;TA40..RHD..ST;TA40..LHD..ST..EUG;TA40..LHD..4F..ST..GEN;TA40..CP..LHD..5F. .ST..GEN |
78375-14010 |
— | ||
|
9046110289
|
9046110289
90461-10289 New Genuine Part |
90461-10289 |
US $4.66 |
||
|
9046110290
|
9046110290
90461-10290 New Genuine Part |
90461-10290 |
US $4.66 |
||
|
9161140814
|
9161140814
91611-40814
Bolt(For Manual Transmission Oil Pan Setting)
|
91611-40814 |
— | ||
| replacement | |||||
|
9161140814
|
9161140814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.98 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9165540620
|
9165540620
91655-40620
Bolt(For Oil Receiver Pipe)
|
91655-40620 |
— | ||
| replacement | |||||
|
9165540620
|
9165540620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
|
9461110800
|
9461110800
94611-10800 Washer, Plate (For Transmission Control Cable) |
94611-10800 |
from US $0.86 |
||
|
9538102015
|
9538102015
95381-02015 New Genuine Part |
95381-02015 |
US $1.79 |
||
|
9616000400
|
9616000400
96160-00400 Ring, E(For Release Arm) |
96160-00400 |
US $1.05 |
||
