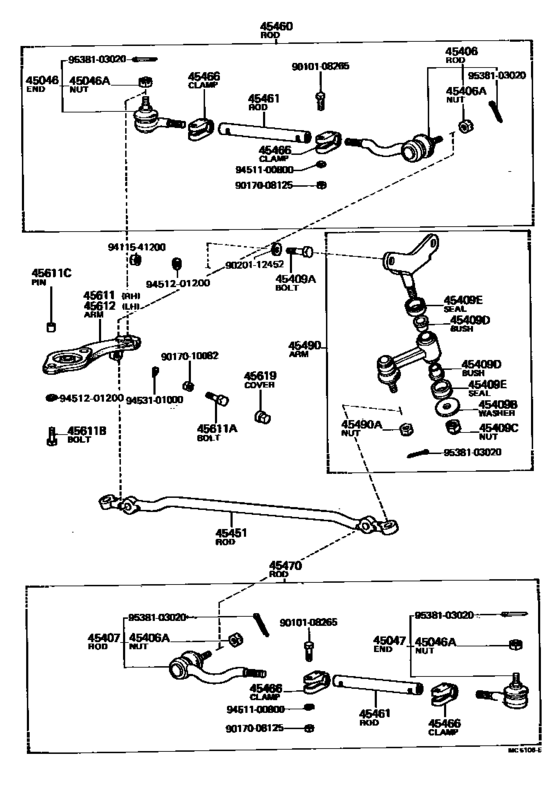

Front Steering Gear & Link ([08.1977 - ] (7708- )) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
45046
|
45046
45046-29075 End Sub-Assy, Tie Rod, Rh[08.1977 - 07.1981] RA40,TA40 |
45046-29075 |
US $40.21 |
||
| replacement | |||||
|
45046
|
45046
45046-29076 End Sub-Assy, Tie Rod, Rh[08.1977 - 07.1981] RA40,TA40 |
45046-29076 |
US $53.76 |
||
|
45046A
|
45046A
90171-12028 Nut, Castle(For Pitman Arm)[08.1977 - 07.1981] RA40,TA40 |
90171-12028 |
from US $1.35 |
||
|
45047
|
45047
45046-29075 End Sub-Assy, Tie Rod, Rh[08.1977 - 07.1981] RA40,TA40 |
45046-29075 |
US $40.21 |
||
| replacement | |||||
|
45047
|
45047
45046-29076 End Sub-Assy, Tie Rod, Rh[08.1977 - 07.1981] RA40,TA40 |
45046-29076 |
US $53.76 |
||
|
45406
|
45406
45406-19016
Rod Sub-Assy, Tie, Rh
[08.1977 - 07.1981] RA40,TA40 |
45406-19016 |
— | ||
| replacement | |||||
|
45406
|
45406
45406-19075 Rod Sub-Assy, Tie, Lh[08.1977 - 07.1981] RA40,TA40 |
45406-19075 |
US $49.80 |
||
|
45406A
|
45406A
90171-12028 Nut, Castle(For Pitman Arm)[08.1977 - 07.1981] RA40,TA40 |
90171-12028 |
from US $1.35 |
||
|
45407
|
45407
45406-19016
Rod Sub-Assy, Tie, Rh
[08.1977 - 07.1981] RA40,TA40 |
45406-19016 |
— | ||
| replacement | |||||
|
45407
|
45407
45406-19075 Rod Sub-Assy, Tie, Lh[08.1977 - 07.1981] RA40,TA40 |
45406-19075 |
US $49.80 |
||
|
45409A
|
45409A
90101-12033 Bolt, Hexagon(For Idler Arm Support Setting)[08.1977 - 07.1981] RA40,TA40 *12-1.25PX87.5-32.5 |
90101-12033 |
US $3.79 |
||
|
45409B
|
45409B
90201-14519
Washer, Plate(For Idler Arm Rubber Bush)
[08.1977 - 07.1981] RA40,TA40 |
90201-14519 |
— | ||
|
45409C
|
45409C
94182-11400 Nut(For Idler Arm Support)[08.1977 - 07.1981] RA40,TA40 |
94182-11400 |
US $5.56 |
||
|
45409D
|
45409D
90385-18068 Bush(For Idler Arm)[08.1977 - 07.1981] RA40,TA40 |
90385-18068 |
from US $1.85 |
||
|
45409E
|
45409E
90304-31012 Seal, Dust(For Idler Arm Support)[08.1977 - 07.1981] RA40,TA40 |
90304-31012 |
from US $7.13 |
||
|
45451
|
45451
45451-14021
Rod, Steering Relay
[08.1977 - 07.1981] RA40,TA40 |
45451-14021 |
— | ||
|
45460
|
45460
45460-19056
Rod Assy, Tie, Rh
[08.1977 - 07.1981] RA40,TA40 |
45460-19056 |
— | ||
| replacement | |||||
|
45460
|
45460
45470-19025
Rod Assy, Tie, Lh
[08.1977 - 07.1981] RA40,TA40 |
45470-19025 |
— | ||
|
45461
|
45461
45465-14010
Rod, Steering Tie
[08.1977 - 07.1981] RA40,TA40 |
45465-14010 |
— | ||
|
45466
|
45466
45466-22010 Clamp, Tie Rod End[08.1977 - 07.1981] RA40,TA40 |
45466-22010 |
US $5.38 |
||
|
45470
|
45470
45460-19056
Rod Assy, Tie, Rh
[08.1977 - 07.1981] RA40,TA40 |
45460-19056 |
— | ||
| replacement | |||||
|
45470
|
45470
45470-19025
Rod Assy, Tie, Lh
[08.1977 - 07.1981] RA40,TA40 |
45470-19025 |
— | ||
|
45490
|
45490
45490-19175
Arm Assy, Steering Idler
[08.1977 - 02.1979] RA40,TA40..LHD |
45490-19175 |
— | ||
| replacement | |||||
|
45490
|
45490
45490-29295
Arm Assy, Steering Idler
[08.1977 - 02.1979] RA40,TA40..LHD |
45490-29295 |
— | ||
|
45490
|
45490
45490-29295
Arm Assy, Steering Idler
[02.1979 - 07.1981] RA40,TA40..LHD |
45490-29295 |
— | ||
|
45490A
|
45490A
90171-12028 Nut, Castle(For Pitman Arm)[08.1977 - 07.1981] RA40,TA40 |
90171-12028 |
from US $1.35 |
||
|
45611
|
45611
45611-14011 Arm, Steering Knuckle, RhSTEERING KNUCKLE, RH [08.1977 - 07.1981] RA40,TA40 |
45611-14011 |
US $65.67 |
||
|
45611A
|
45611A
90106-10002
Bolt (For Front Knuckle Stopper)
[08.1977 - 07.1981] RA40,TA40 |
90106-10002 |
— | ||
|
45611B
|
45611B
90101-12295 Bolt, Hexagon(For Steering Knuckle To Shock Absorber)[08.1977 - 07.1981] RA40,TA40 |
90101-12295 |
US $5.73 |
||
|
45611C
|
45611C
90253-15016 Pin, Straight(For End Plate)[08.1977 - 07.1981] RA40,TA40 |
90253-15016 |
from US $1.37 |
||
|
45612
|
45612
45612-14011
Arm, Steering Knuckle, Lh
[08.1977 - 07.1981] RA40,TA40 |
45612-14011 |
— | ||
|
45619
|
45619
45619-14010 Cover, Knuckle Stopper[08.1977 - 12.1977] RA40,TA40 |
45619-14010 |
US $9.68 |
||
|
45619
|
45619
45619-14020 Cover, Front Knuckle Stopper[12.1977 - 07.1981] RA40,TA40 |
45619-14020 |
from US $4.78 |
||
|
9010108265
|
9010108265
90101-08265 New Genuine Part |
90101-08265 |
US $7.88 |
||
|
9017008125
|
9017008125
90170-08125 New Genuine Part |
90170-08125 |
US $5.73 |
||
|
9017010082
|
9017010082
90170-10082 Nut, Hexagon (For Control Rod Setting) |
90170-10082 |
from US $2.87 |
||
|
9020112452
|
9020112452
90201-12452 Nut(For Backing Plate To Steering Knuckle Setting) |
90201-12452 |
from US $1.11 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9451201200
|
9451201200
94512-01200 Washer |
94512-01200 |
from US $0.72 |
||
|
9453101000
|
9453101000
94531-01000 WASHER |
94531-01000 |
from US $1.61 |
||
|
9538103020
|
9538103020
95381-03020 Pin, Cotter(For Reverse Shaft Restrict Pin) |
95381-03020 |
from US $0.76 |
||
