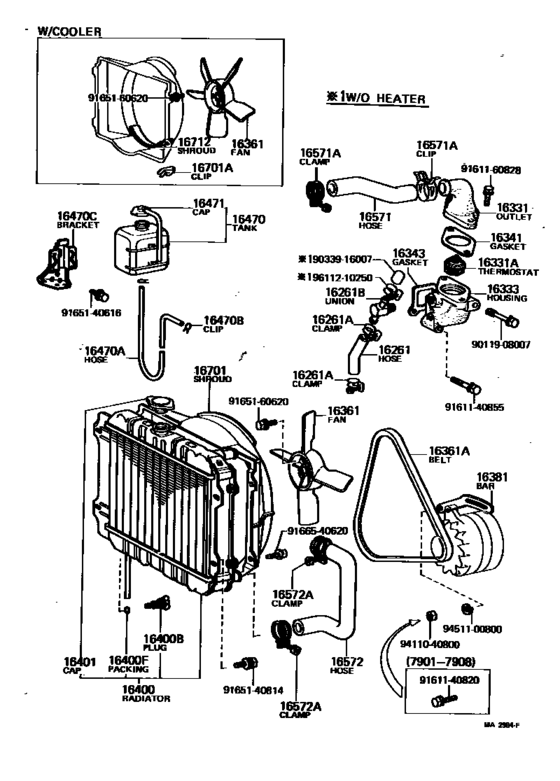

Radiator & Water Outlet ([08.1977 - 08.1979] (7708-7908)2TG) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16261
|
16261
16261-88220
Hose, Water By-Pass
[08.1977 - 07.1981] 2TG..TA40 |
16261-88220 |
— | ||
|
16261A
|
16261A
90467-23001
Clip Or Clamp(For Ventilation Hose)
[08.1977 - 07.1981] 2TG..TA40 |
90467-23001 |
— | ||
| replacement | |||||
|
16261A
|
16261A
96134-52100 Clip(For Ventilation Hose)[08.1977 - 07.1981] 2TG..TA40 |
96134-52100 |
from US $3.39 |
||
|
16261B
|
16261B
90072-40627
Union(For Water By-Pass Hose)
[08.1977 - 07.1981] 2TG..TA40 |
90072-40627 |
— | ||
|
16331
|
16331
16331-26040
Outlet, Water
[08.1977 - 07.1981] 2TG..TA40 |
16331-26040 |
— | ||
|
16331A
|
16331A
90916-03036
Thermostat
[08.1977 - 08.1979] 18R#..RA40 *WAX 88-100,FUJI-THOMSON; 2T#..TA40 *WAX 88-100,FUJI-THOMSON |
90916-03036 |
— | ||
| replacement | |||||
|
16331A
|
16331A
90916-03078 Thermostat[08.1977 - 08.1979] 18R#..RA40 *WAX 88-100,FUJI-THOMSON; 2T#..TA40 *WAX 88-100,FUJI-THOMSON |
90916-03078 |
from US $17.14 |
||
|
16333
|
16333
16333-88220
Housing, Water Outlet
[08.1977 - 07.1981] 2TG..TA40 |
16333-88220 |
— | ||
|
16341
|
16341
16341-49010
Gasket, Water Outlet
[08.1977 - 08.1978] 18R,18RC..RA40; 2T#..TA40 |
16341-49010 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-34010 Gasket, Water Outlet[08.1977 - 08.1978] 18R,18RC..RA40; 2T#..TA40 |
16341-34010 |
US $5.73 |
||
|
16341
|
16341
16341-88260
Gasket, Water Outlet
[08.1978 - 07.1981] 2TG..TA40 |
16341-88260 |
— | ||
| replacement | |||||
|
16341
|
16341
16341-88281
Gasket, Water Outlet
[08.1978 - 07.1981] 2TG..TA40 |
16341-88281 |
— | ||
|
16343
|
16343
16343-88220
Gasket, Water Outlet Housing
[08.1977 - 07.1981] 2TG..TA40 |
16343-88220 |
— | ||
| replacement | |||||
|
16343
|
16343
16343-88281
Gasket, Water Outlet Housing
[08.1977 - 07.1981] 2TG..TA40 |
16343-88281 |
— | ||
|
16361
|
16361
16361-26040
Fan
[08.1979 - 07.1981] 2T#..TA40 |
16361-26040 |
— | ||
|
16361
|
16361
16361-31021
Fan
[08.1977 - 08.1979] 2TG..TA40 4 BLADES |
16361-31021 |
— | ||
|
16361
|
16361
16361-31030
Fan
[08.1977 - 08.1979] 2TG..TA40 W/COOLER,5 BLADES |
16361-31030 |
— | ||
| replacement | |||||
|
16361
|
16361
16361-31031
Fan
[08.1977 - 08.1979] 2TG..TA40 W/COOLER,5 BLADES |
16361-31031 |
— | ||
|
16361A
|
16361A
99321-00850 Belt, V(For Fan & Alternator)[08.1979 - 07.1981] 2TG..TA40 L=850 |
99321-00850 |
US $6.46 |
||
|
16361A
|
16361A
99321-00860
Belt, V(For Fan & Alternator)
[08.1978 - 08.1979] 2TG..TA40 L=860 |
99321-00860 |
— | ||
|
16361A
|
16361A
99521-10860 Belt, V(For Fan & Alternator)V(FOR FAN & ALTERNATOR) [08.1977 - 08.1978] 2TG..TA40 L=860 |
99521-10860 |
US $10.48 |
||
| replacement | |||||
|
16361A
|
16361A
99321-00860
Belt, V(For Fan & Alternator)
[08.1977 - 08.1978] 2TG..TA40 L=860 |
99321-00860 |
— | ||
|
16381
|
16381
16381-25010 Bar, Fan Belt Adjusting[08.1977 - 07.1981] 2T#..TA40 |
16381-25010 |
US $6.55 |
||
|
16400
|
16400
16400-26160
Radiator Assy
[08.1977 - 07.1981] 2T#..TA40..MTM |
16400-26160 |
— | ||
| replacement | |||||
|
16400
|
16400
16400-26310
Radiator Assy
[08.1977 - 07.1981] 2T#..TA40..MTM |
16400-26310 |
— | ||
|
16400B
|
16400B
90910-09054
Plug, Radiator Drain Cock
[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90910-09054 |
— | ||
| replacement | |||||
|
16400B
|
16400B
90910090541
Drain Plug
[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90910090541 |
— | ||
|
16400F
|
16400F
96710-01007
Packing(For Radiator Drain Cock)
[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
96710-01007 |
— | ||
| replacement | |||||
|
16400F
|
16400F
96711-19007 Packing(For Radiator Drain Cock)[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
96711-19007 |
from US $2.22 |
||
|
16401
|
16401
16401-36010
Cap Sub-Assy, Radiator
[08.1977 - 01.1979] 18R#..RA40; 2T#..TA40 |
16401-36010 |
— | ||
| replacement | |||||
|
16401
|
16401
16401-36011 Cap Sub-Assy, Radiator[08.1977 - 01.1979] 18R#..RA40; 2T#..TA40 |
16401-36011 |
from US $19.66 |
||
|
16401
|
16401
16401-36011 Cap Sub-Assy, Radiator[01.1979 - 07.1981] 18R#..RA40; 2T#..TA40 |
16401-36011 |
from US $19.66 |
||
|
16470
|
16470
16470-28010
Tank Assy, Radiator Reserve
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
16470-28010 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-26090
Tank Assy, Radiator Reserve
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
16470-26090 |
— | ||
|
16470
|
16470
16470-34100
Tank Assy, Radiator Reserve
[08.1977 - 11.1978] 18RG..RA40; 2TG..TA40 |
16470-34100 |
— | ||
| replacement | |||||
|
16470
|
16470
16470-34101
Tank Assy, Radiator Reserve
[08.1977 - 11.1978] 18RG..RA40; 2TG..TA40 |
16470-34101 |
— | ||
|
16470
|
16470
16470-34101
Tank Assy, Radiator Reserve
[11.1978 - 08.1979] 18RG..RA40; 2TG..TA40 |
16470-34101 |
— | ||
|
16470A
|
16470A
90445-12005
Hose Or Pipe(For Radiator Reserve Tank)
[08.1979 - 07.1981] 18RG..RA40 *H,L=550; 2TG..TA40 *H,L=550 |
90445-12005 |
— | ||
| replacement | |||||
|
16470A
|
16470A
90445-12897
Hose Or Pipe(For Radiator Reserve Tank)
[08.1979 - 07.1981] 18RG..RA40 *H,L=550; 2TG..TA40 *H,L=550 |
90445-12897 |
— | ||
|
16470A
|
16470A
90445-12038
Hose Or Pipe(For Radiator Reserve Tank)
[08.1977 - 08.1979] 18RG..RA40 L=900; 2TG..TA40 L=900 |
90445-12038 |
— | ||
|
16470B
|
16470B
90467-11085 Clamp Or Clip(For Radiator Breather Hose)[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90467-11085 |
from US $0.72 |
||
|
16470C
|
16470C
16402-34021 Bracket(For Radiator Reserve Tank)[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
16402-34021 |
US $25.48 |
||
|
16471
|
16471
16471-28010
Cap Sub-Assy, Reserve Tank
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
16471-28010 |
— | ||
|
16471
|
16471
16471-34030
Cap Sub-Assy, Reserve Tank
[08.1977 - 11.1978] 18RG..RA40; 2TG..TA40 |
16471-34030 |
— | ||
|
16471
|
16471
16471-34101
Cap Sub-Assy, Reserve Tank
[11.1978 - 08.1979] 18RG..RA40; 2TG..TA40 |
16471-34101 |
— | ||
|
16571
|
16571
16571-26020
Hose, Radiator, Inlet
[08.1977 - 07.1981] 2TG..TA40 |
16571-26020 |
— | ||
|
16571A
|
16571A
90467-37001
Clip(For Water Inlet Hose)
[08.1977 - 07.1981] 18R#..RA40 WATER OUTLET SIDE; 2T#..TA40 WATER OUTLET SIDE |
90467-37001 |
— | ||
| replacement | |||||
|
16571A
|
16571A
90467-37003 Clamp Or Clip, Hose(For Radiator Inlet)[08.1977 - 07.1981] 18R#..RA40 WATER OUTLET SIDE; 2T#..TA40 WATER OUTLET SIDE |
90467-37003 |
from US $4.56 |
||
|
16571A
|
16571A
96111-10430 Clamp Or Clip, Hose(For Radiator Inlet)[08.1977 - 07.1981] 18R#..RA40 RADIATOR SIDE; 2T#..TA40 RADIATOR SIDE |
96111-10430 |
from US $2.15 |
||
|
16572
|
16572
16571-26030
Hose, Radiator, Outlet
[08.1977 - 07.1981] 2T#..TA40 |
16571-26030 |
— | ||
|
16572A
|
16572A
90460-47036 Clamp Or Clip, Hose(For Radiator Inlet)[08.1977 - 12.1980] 2T#..TA40 RADIATOR OUTLET SIDE |
90460-47036 |
US $3.94 |
||
|
16572A
|
16572A
90460-49062
Clamp Or Clip, Hose(For Radiator Inlet)
[08.1977 - 07.1981] 2T#..TA40 WATER PUMP INLET SIDE |
90460-49062 |
— | ||
| replacement | |||||
|
16572A
|
16572A
96111-10490 Clamp Or Clip, Sub Radiator Hose[08.1977 - 07.1981] 2T#..TA40 WATER PUMP INLET SIDE |
96111-10490 |
from US $1.97 |
||
|
16572A
|
16572A
96111-10460 Clamp Or Clip, Hose(For Radiator Inlet)[12.1980 - 07.1981] 2T#..TA40 RADIATOR OUTLET SIDE |
96111-10460 |
from US $2.83 |
||
|
16701
|
16701
16711-26060
Shroud Sub-Assy, Fan
[08.1977 - 08.1979] 2TG..TA40 |
16711-26060 |
— | ||
|
16701
|
16701
16711-28020 Shroud Sub-Assy, FanFAN [08.1979 - 07.1981] 2T#..TA40 |
16711-28020 |
US $100.46 |
||
|
16701A
|
16701A
90468-06006
Clip(For Fan Shroud)
[08.1977 - 07.1981] 2T#..TA40 W/COOLER |
90468-06006 |
— | ||
|
16712
|
16712
16712-26040
Shroud, Fan, No.2
[08.1977 - 06.1978] 2TG..TA40 W/COOLER |
16712-26040 |
— | ||
| replacements | |||||
|
16712
|
16712
16712-26041
Shroud, Fan, No.2
[08.1977 - 06.1978] 2TG..TA40 W/COOLER |
16712-26041 |
— | ||
|
16712
|
16712
90468-06006
Clip(For Fan Shroud)
[08.1977 - 06.1978] 2TG..TA40 W/COOLER |
90468-06006 |
— | ||
|
16712
|
16712
16712-26041
Shroud, Fan, No.2
[06.1978 - 08.1979] 2TG..TA40 W/COOLER |
16712-26041 |
— | ||
|
16712
|
16712
16712-28011
Shroud, Fan, No.2
[08.1979 - 07.1981] 2T#..TA40 W/COOLER |
16712-28011 |
— | ||
|
9011908007
|
9011908007
90119-08007
New Genuine Part
|
90119-08007 |
— | ||
|
9033916007
|
9033916007
90339-16007
Plug
|
90339-16007 |
— | ||
| replacement | |||||
|
9033916007
|
9033916007
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.98 |
||
|
9161140820
|
9161140820
91611-40820
Bolt(For Intake Manifold To Exhaust Manifold)
|
91611-40820 |
— | ||
|
9161140855
|
9161140855
91611-40855
Bolt(For Rocker Support Set)
|
91611-40855 |
— | ||
| replacement | |||||
|
9161140855
|
9161140855
91611-60855 Bolt(For Rocker Support Set) |
91611-60855 |
US $1.79 |
||
|
9161160828
|
9161160828
91611-60828 Bolt(For Clutch Release Cylinder Setting) |
91611-60828 |
US $1.97 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.74 |
||
| replacement | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.46 |
||
|
9165140814
|
9165140814
91651-40814 BOLT |
91651-40814 |
from US $1.23 |
||
| replacement | |||||
|
9165140814
|
9165140814
90080-11228 New Genuine Part |
90080-11228 |
US $3.20 |
||
|
9165160620
|
9165160620
91651-60620 BOLTWWASHER |
91651-60620 |
US $1.43 |
||
|
9166540620
|
9166540620
91665-40620
New Genuine Part
|
91665-40620 |
— | ||
| replacement | |||||
|
9166540620
|
9166540620
91661-60616 BOLT |
91661-60616 |
from US $0.70 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.84 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
US $1.79 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
