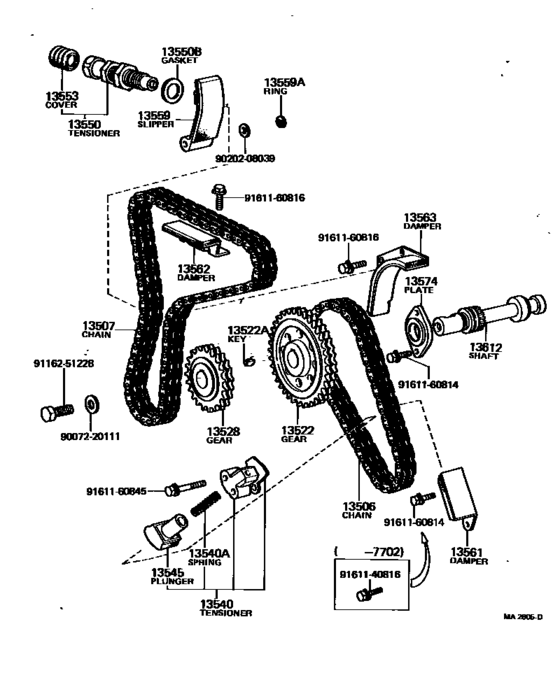

Timing Chain ([08.1977 - ] (7708- )2TG) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
13506
|
13506
13506-25010
Chain Sub-Assy
[08.1977 - 07.1981] 2T#..TA40 |
13506-25010 |
— | ||
| replacement | |||||
|
13506
|
13506
13506-73010 Chain Sub-Assy[08.1977 - 07.1981] 2T#..TA40 |
13506-73010 |
from US $51.25 |
||
|
13507
|
13507
13507-88210
Chain Sub-Assy, No.2
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
13507-88210 |
— | ||
|
13522
|
13522
13522-33010 Gear, Pump Drive Shaft[08.1977 - 07.1981] 18R#..RA40 N=36; 2TG..TA40 N=36 |
13522-33010 |
US $66.57 |
||
|
13522A
|
13522A
90280-05001 Key, Crankshaft(For Crankshaft Pulley Set)[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90280-05001 |
US $3.32 |
||
|
13528
|
13528
13528-33010
Gear, Camshaft Drive
[08.1977 - 07.1981] 18R#..RA40 N=24; 2TG..TA40 N=24 |
13528-33010 |
— | ||
|
13540
|
13540
13540-88221 Tensioner Assy, Chain, No.1[08.1977 - 07.1981] 2TG..TA40 |
13540-88221 |
US $77.17 |
||
|
13540A
|
13540A
90072-50129 Spring, Compression(For Chain Tensioner)[08.1977 - 07.1981] 2TG..TA40 |
90072-50129 |
US $3.06 |
||
|
13545
|
13545
13545-25010 Plunger, Chain Tensioner[08.1977 - 07.1981] 2T#..TA40 |
13545-25010 |
US $36.55 |
||
|
13550
|
13550
13550-88210
Tensioner Assy, Chain, No.2
[08.1977 - 08.1980] 18RG..RA40; 2TG..TA40 |
13550-88210 |
— | ||
|
13550
|
13550
13550-88270
Tensioner Assy, Chain, No.2
[08.1980 - 07.1981] 18RG..RA40; 2TG..TA40 |
13550-88270 |
— | ||
|
13550B
|
13550B
90430-22135
Gasket(For Chain Tensioner)
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90430-22135 |
— | ||
| replacement | |||||
|
13550B
|
13550B
90430-22009 Gasket (For Power Take-Off Case Plug)[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90430-22009 |
US $2.48 |
||
|
13553
|
13553
13553-88210
Cover, Chain Tensioner Dust
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
13553-88210 |
— | ||
|
13559
|
13559
13559-88220
Slipper, Chain Tensioner
[08.1977 - 08.1980] 2TG..TA40 |
13559-88220 |
— | ||
|
13559
|
13559
13559-88260
Slipper, Chain Tensioner
[08.1980 - 07.1981] 2TG..TA40 |
13559-88260 |
— | ||
|
13559A
|
13559A
96160-00700 Ring, E(For Chain Tensioner Slipper)[08.1977 - 07.1981] 18R#..RA40; 2TG..TA40 |
96160-00700 |
US $3.58 |
||
|
13561
|
13561
13561-25010 Damper, Chain Vibration, No.1[08.1977 - 07.1981] 2T#..TA40 |
13561-25010 |
from US $16.97 |
||
|
13562
|
13562
13562-88210
Damper, Chain Vibration, No.2
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
13562-88210 |
— | ||
| replacement | |||||
|
13562
|
13562
13562-88280
Damper, Chain Vibration, No.2
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
13562-88280 |
— | ||
|
13563
|
13563
13563-88220
Damper, Chain Vibration, No.3
[08.1977 - 07.1981] 2TG..TA40 |
13563-88220 |
— | ||
|
13574
|
13574
13571-51010
Plate, Camshaft Thrust
[08.1977 - 07.1981] 2TG..TA40 |
13571-51010 |
— | ||
|
13612
|
13612
13612-88220
Shaft, Pump Drive
[08.1977 - 07.1981] 2TG..TA40 |
13612-88220 |
— | ||
|
9007220111
|
9007220111
90072-20111
New Genuine Part
|
90072-20111 |
— | ||
|
9020208039
|
9020208039
90202-08039 WASHER |
90202-08039 |
US $3.76 |
||
|
9116251228
|
9116251228
91162-51228
New Genuine Part
|
91162-51228 |
— | ||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161160845
|
9161160845
91611-60845
Bolt(for Clutch Release Cylinder Setting)
|
91611-60845 |
— | ||
| replacement | |||||
|
9161160845
|
9161160845
91611-B0845 Bolt(for Clutch Release Cylinder Setting) |
91611-B0845 |
US $3.05 |
||
