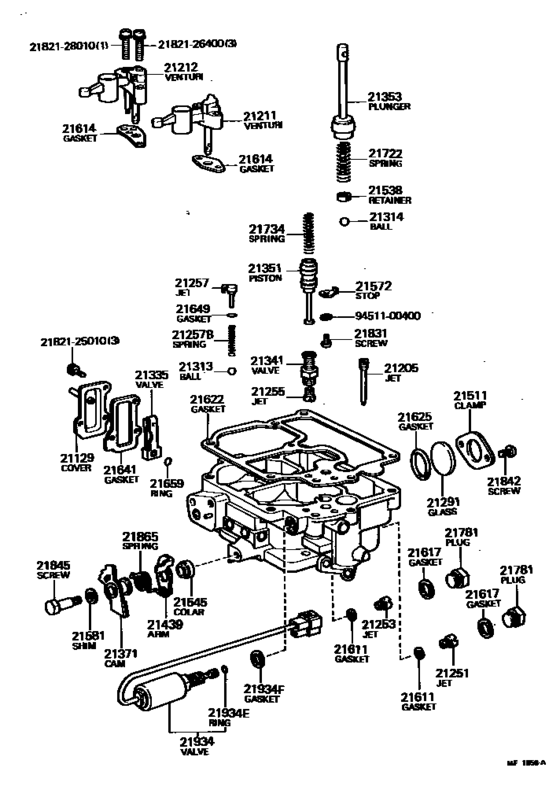

Carburetor ([08.1977 - 08.1979] (7708-7908)2T) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- ATM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 3FC
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21129
|
21129
21129-25181
Cover(For Thermostatic Valve)
[08.1977 - 08.1979] 2T..TA40 |
21129-25181 |
— | ||
|
21205
|
21205
21205-14010 Jet Sub-Assy, Slow[08.1979 - 07.1981] 2T..TA40 ID=0.47 |
21205-14010 |
US $13.40 |
||
|
21205
|
21205
90999-44047
Jet Sub-Assy, Slow
[08.1977 - 08.1979] 2T..TA40 ID=0.47 |
90999-44047 |
— | ||
|
21211
|
21211
21211-25180
Venturi, 1St Small
[08.1977 - 08.1979] 2T..TA40 |
21211-25180 |
— | ||
|
21212
|
21212
21212-25180
Venturi, 2Nd Small
[08.1977 - 08.1979] 2T..TA40 |
21212-25180 |
— | ||
|
21251
|
21251
90999-41105
Jet, 1St Main
[08.1977 - 08.1979] 2T..TA40 ID=1.05 |
90999-41105 |
— | ||
|
21251
|
21251
90999-41107 Jet, 1St Main[08.1979 - 07.1981] 2T..TA40 ID=1.07 |
90999-41107 |
US $5.39 |
||
|
21253
|
21253
90999-42150
Jet, 2Nd Main
[08.1977 - 08.1979] 2T..TA40 ID=1.50 |
90999-42150 |
— | ||
| replacement | |||||
|
21253
|
21253
90999-41150
Jet, 2Nd Main
[08.1977 - 08.1979] 2T..TA40 ID=1.50 |
90999-41150 |
— | ||
|
21253
|
21253
90999-42177 Jet, 2Nd Main[08.1979 - 07.1981] 2T..TA40 ID=1.77 |
90999-42177 |
US $5.82 |
||
|
21255
|
21255
90999-43055 Jet, Power[08.1979 - 07.1981] 2T..TA40 ID=0.55 |
90999-43055 |
US $5.53 |
||
|
21255
|
21255
90999-43060
Jet, Power
[08.1977 - 08.1979] 2T..TA40 ID=0.60 |
90999-43060 |
— | ||
|
21257
|
21257
21257-25180
Jet, Pump
[08.1977 - 08.1979] 2T..TA40 |
21257-25180 |
— | ||
|
21257B
|
21257B
21864-38010
Spring(For Auxiliary Acceleration Pump)
[08.1977 - 08.1979] 2T..TA40 |
21864-38010 |
— | ||
|
21291
|
21291
21291-60200
Glass, Level Gage
[08.1977 - 07.1981] 2T,2TB..TA40 |
21291-60200 |
— | ||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[08.1977 - 07.1981] 2T,2TB..TA40 |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[08.1977 - 07.1981] 2T..TA40 |
21314-11020 |
US $3.44 |
||
|
21335
|
21335
21335-25010
Valve, Thermostatic
[08.1977 - 07.1981] 2T..TA40 |
21335-25010 |
— | ||
|
21341
|
21341
21304-30010
Valve, Power
[08.1977 - 07.1981] 2T,2TB..TA40 |
21304-30010 |
— | ||
|
21351
|
21351
21351-33080
Piston, Power
[08.1977 - 07.1981] 2T,2TB..TA40 |
21351-33080 |
— | ||
|
21353
|
21353
21353-33010
Plunger, Pump
[08.1977 - 07.1981] 2T,2TB..TA40 |
21353-33010 |
— | ||
| replacement | |||||
|
21353
|
21353
21353-16510
Plunger, Pump
[08.1977 - 07.1981] 2T,2TB..TA40 |
21353-16510 |
— | ||
|
21371
|
21371
21371-25180 Cam, 1St Idle1ST IDLE [08.1977 - 08.1979] 2T..TA40 |
21371-25180 |
US $16.16 |
||
|
21439
|
21439
21439-27010
Arm, 1St Idle
[08.1977 - 08.1979] 2T..TA40 |
21439-27010 |
— | ||
|
21511
|
21511
21511-33010 Clamp, Level GageLEVEL GAGE [08.1977 - 08.1979] 2T,2TB..TA40 |
21511-33010 |
US $8.74 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[08.1977 - 07.1981] 2T,2TB..TA40 |
21538-31010 |
US $3.85 |
||
|
21545
|
21545
21545-25180
Collar, 1St Idle Cam
[08.1977 - 08.1979] 2T..TA40 |
21545-25180 |
— | ||
|
21572
|
21572
21572-33080 Stop, Power PistonPOWER PISTON [08.1977 - 07.1981] 2T,2TB..TA40 |
21572-33080 |
US $3.49 |
||
|
21581
|
21581
21581-25010
Shim, 1St Throttle Shaft
[08.1977 - 08.1979] 2T,2TB..TA40 T=0.1 |
21581-25010 |
— | ||
|
21581
|
21581
21582-25010
Shim, 1St Throttle Shaft
[08.1977 - 08.1979] 2T,2TB..TA40 T=0.2 |
21582-25010 |
— | ||
|
21581
|
21581
21583-25010
Shim, 1St Throttle Shaft
[08.1977 - 08.1979] 2T,2TB..TA40 T=0.3 |
21583-25010 |
— | ||
|
21581
|
21581
21585-25010
Shim, 1St Throttle Shaft
[08.1977 - 08.1979] 2T,2TB..TA40 T=0.6 |
21585-25010 |
— | ||
|
21611
|
21611
21611-22010 Gasket, Main Jet[08.1977 - 07.1981] 2T,2TB..TA40 |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-33010 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 1ST |
21614-33010 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21614-16280 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 1ST |
21614-16280 |
US $2.52 |
||
|
21614
|
21614
21614-33080 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 2ND |
21614-33080 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21615-16280 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 2ND |
21615-16280 |
US $3.19 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[08.1977 - 07.1981] 2T,2TB..TA40 |
21617-30010 |
US $3.55 |
||
|
21622
|
21622
21622-26510
Gasket, Air Horn
[08.1977 - 07.1981] 2T..TA40 |
21622-26510 |
— | ||
| replacement | |||||
|
21622
|
21622
21622-15310
Gasket, Air Horn
[08.1977 - 07.1981] 2T..TA40 |
21622-15310 |
— | ||
|
21625
|
21625
21655-60200 Gasket, Level Gage[08.1977 - 07.1981] 2T,2TB..TA40 |
21655-60200 |
US $9.90 |
||
|
21641
|
21641
21641-23012
Gasket(For Thermostatic Valve Cover)
[08.1977 - 07.1981] 2T,2TB..TA40 |
21641-23012 |
— | ||
|
21649
|
21649
21641-33011
Gasket(For Pump Discharge Weight Stopper)
[08.1979 - 07.1981] 2T,2TB..TA40 |
21641-33011 |
— | ||
|
21649
|
21649
21655-11040 Ring, O(For Pump Jet)[08.1977 - 08.1979] 2T..TA40 |
21655-11040 |
from US $3.96 |
||
|
21659
|
21659
21641-24030
Gasket(For Thermostatic Valve Cover No.2)
[08.1977 - 07.1981] 2T,2TB..TA40 |
21641-24030 |
— | ||
|
21722
|
21722
21722-22010 Spring, Pump Damping[08.1977 - 07.1981] 2T,2TB..TA40 |
21722-22010 |
US $3.89 |
||
|
21734
|
21734
21734-26510
Spring, Power Piston
[08.1979 - 07.1981] 2T..TA40 |
21734-26510 |
— | ||
|
21734
|
21734
21734-33080 Spring, Power Piston[08.1977 - 08.1979] 2T..TA40 |
21734-33080 |
US $9.17 |
||
|
21781
|
21781
21781-30020 Plug, Main Passage(For Carburetor Jet)[08.1977 - 07.1981] 2T,2TB..TA40 |
21781-30020 |
US $9.90 |
||
| replacement | |||||
|
21781
|
21781
21781-16510
Plug, Main Passage(For Carburetor Jet)
[08.1977 - 07.1981] 2T,2TB..TA40 |
21781-16510 |
— | ||
|
21831
|
21831
21821-15060 Screw, 2Nd Throttle Valve Set[04.1981 - 07.1981] 2T,2TB..TA40 |
21821-15060 |
US $3.06 |
||
|
21831
|
21831
21842-33010
Screw, Power Piston Stop
[08.1977 - 04.1981] 2T,2TB..TA40 |
21842-33010 |
— | ||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[08.1977 - 07.1981] 2T,2TB..TA40 |
21842-33010 |
— | ||
|
21845
|
21845
21845-26350
Screw, 1St Idle Set
[08.1977 - 08.1979] 2T..TA40 |
21845-26350 |
— | ||
|
21865
|
21865
21864-25180
Spring
[08.1977 - 08.1979] 2T..TA40 |
21864-25180 |
— | ||
|
21934
|
21934
21062-25180
Solenoid, Throttle Valve
[08.1977 - 07.1981] 2T..TA40 |
21062-25180 |
— | ||
| replacement | |||||
|
21934
|
21934
21062-32070
Solenoid, Throttle Valve
[08.1977 - 07.1981] 2T..TA40 |
21062-32070 |
— | ||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[08.1977 - 07.1981] 2T,2TB..TA40 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21617-10010
Gasket
[08.1977 - 07.1981] 2T,2TB..TA40 |
21617-10010 |
— | ||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182126400
|
2182126400
21821-26400 Screw, 2nd Throttle Valve Set |
21821-26400 |
US $3.20 |
||
|
2182128010
|
2182128010
21821-28010
Screw, 2nd Throttle Valve Set
|
21821-28010 |
— | ||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
