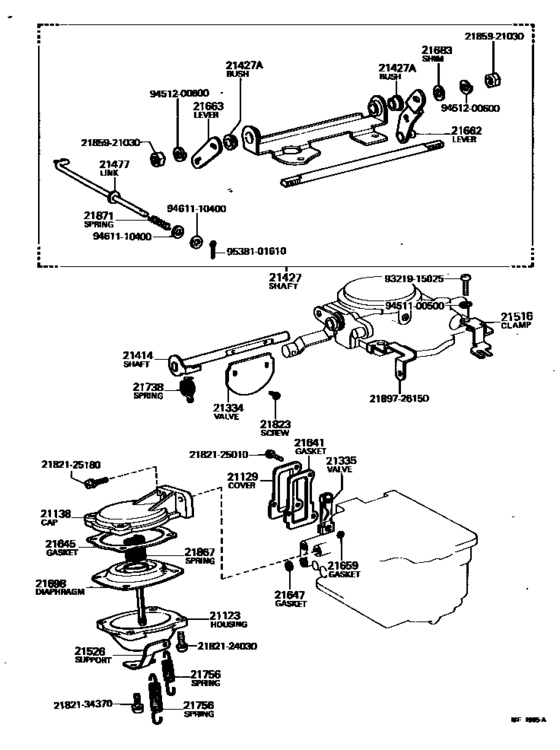

Carburetor ([08.1977 - 08.1979] (7708-7908)2TB) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- General
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 4F
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21123
|
21123
21123-44100
Housing, Diaphragm
[08.1977 - 08.1979] 2T,2TB..TA40 |
21123-44100 |
— | ||
|
21129
|
21129
21129-38010
Cover(For Thermostatic Valve)
[08.1977 - 08.1979] 2TB..TA40 |
21129-38010 |
— | ||
|
21138
|
21138
21138-44100
Cap, Diaphragm
[08.1977 - 08.1979] 2TB..TA40 |
21138-44100 |
— | ||
|
21334
|
21334
21334-33080
Valve, Choke
[08.1977 - 08.1979] 2TB..TA40 |
21334-33080 |
— | ||
|
21335
|
21335
21335-26040 Valve, ThermostaticTHERMOSTATIC [08.1977 - 07.1981] 2TB..TA40 |
21335-26040 |
US $50.67 |
||
|
21414
|
21414
21054-31280 Shaft, ChokeCHOKE [08.1979 - 07.1981] 2TB..TA40 |
21054-31280 |
US $28.54 |
||
|
21414
|
21414
21414-31022
Shaft, Choke
[08.1977 - 08.1979] 2TB..TA40 |
21414-31022 |
— | ||
|
21427A
|
21427A
21895-22060
Bush, Shaft Choke Connector
[08.1977 - 08.1979] 2TB..TA40; 18RG..RA40..RHD..EUG;18R..RA40..LB..LHD..3FC..EUG;18R..RA40..CP..RHD..3FC..EUG;18R ..RA40..LB..LHD..5F..XT..GEN; 2T..TA40..RHD..5F;2T..TA40..5F..EUG;2TB..TA40..LB..RHD..4F;2TB..TA40..LB..RHD..EUG ;2TB..TA40..CP..LHD..5F..GEN |
21895-22060 |
— | ||
|
21477
|
21477
21478-26051
Link, Choke Lever
[08.1977 - 08.1979] 2TB..TA40 |
21478-26051 |
— | ||
|
21516
|
21516
21574-26200
Clamp, Connector
[08.1977 - 08.1979] 2TB..TA40 FR CARBURETOR |
21574-26200 |
— | ||
|
21516
|
21516
21574-26220
Clamp, Connector
[08.1977 - 08.1979] 2TB..TA40 RR CARBURETOR |
21574-26220 |
— | ||
|
21526
|
21526
21526-44100 Support, Back SpringBACK SPRING [08.1977 - 08.1979] 2T,2TB..TA40 |
21526-44100 |
US $12.67 |
||
|
21641
|
21641
21641-23012
Gasket(For Thermostatic Valve Cover)
[08.1977 - 07.1981] 2T,2TB..TA40 |
21641-23012 |
— | ||
|
21645
|
21645
21645-33080
Gasket, Diaphragm, Cap
[08.1977 - 07.1981] 2T,2TB..TA40 |
21645-33080 |
— | ||
| replacement | |||||
|
21645
|
21645
21645-41010
Gasket, Diaphragm, Cap
[08.1977 - 07.1981] 2T,2TB..TA40 |
21645-41010 |
— | ||
|
21647
|
21647
21649-33080
Gasket, Diaphragm Housing Cap
[08.1977 - 07.1981] 2T,2TB..TA40 |
21649-33080 |
— | ||
|
21659
|
21659
21641-24030
Gasket(For Thermostatic Valve Cover No.2)
[08.1977 - 07.1981] 2T,2TB..TA40 |
21641-24030 |
— | ||
|
21662
|
21662
21454-26051
Lever, Choke Connector Shaft, No.1
[08.1977 - 08.1979] 2TB..TA40 |
21454-26051 |
— | ||
|
21663
|
21663
21664-26041
Lever, Choke Connector Shaft, No.2
[08.1977 - 08.1979] 2TB..TA40 |
21664-26041 |
— | ||
|
21683
|
21683
21681-21060 Shim(For High Speed Shaft)CHOKE CONNECTOR SHAFT [08.1977 - 08.1979] 2TB..TA40 T=0.1 |
21681-21060 |
US $3.06 |
||
|
21683
|
21683
21682-21060
Shim(For High Speed Shaft)
[08.1977 - 08.1979] 2TB..TA40 T=0.2 |
21682-21060 |
— | ||
|
21698
|
21698
21669-26040
Diaphragm
[08.1977 - 07.1981] 2TB..TA40 |
21669-26040 |
— | ||
| replacement | |||||
|
21698
|
21698
21669-44100
Diaphragm
[08.1977 - 07.1981] 2TB..TA40 |
21669-44100 |
— | ||
|
21738
|
21738
21738-26040
Spring, Choke Valve Relief
[08.1977 - 08.1979] 2TB..TA40 |
21738-26040 |
— | ||
|
21756
|
21756
21756-26040
Spring, Back(For Throttle Shaft)
[08.1977 - 08.1979] 2TB..TA40 CW=11 |
21756-26040 |
— | ||
|
21756
|
21756
21756-26850
Spring, Back(For Throttle Shaft)
[08.1979 - 02.1980] 2TB..TA40 CW=5 |
21756-26850 |
— | ||
|
21756
|
21756
21756-26851 Spring, Back(For Throttle Shaft)BACK(FOR THROTTLE SHAFT) [02.1980 - 07.1981] 2TB..TA40 |
21756-26851 |
US $10.05 |
||
|
21756
|
21756
21756-33080
Spring, Back(For Throttle Shaft)
[08.1977 - 07.1981] 2T,2TB..TA40 CW=20 |
21756-33080 |
— | ||
|
21823
|
21823
21822-10011 Screw, 1St Throttle Valve SetCHOKE, VALVE SET [08.1977 - 08.1979] 2TB..TA40 |
21822-10011 |
US $3.49 |
||
|
21867
|
21867
21867-41010
Spring, Diaphragm
[08.1977 - 08.1979] 2TB..TA40 |
21867-41010 |
— | ||
|
21871
|
21871
21864-22060
Spring, Choke Connecting Link
[08.1977 - 08.1979] 2TB..TA40 |
21864-22060 |
— | ||
|
2182124030
|
2182124030
21821-24030 Screw(For Vacuum Lock Diaphragm Ring Set) |
21821-24030 |
US $3.79 |
||
|
2182125010
|
2182125010
21821-25010 Screw, Coil Housing Set |
21821-25010 |
US $3.84 |
||
|
2182125180
|
2182125180
21821-25180 Screw, Set, No.2(For Carburetor Body Set) |
21821-25180 |
from US $1.44 |
||
|
2182134370
|
2182134370
21821-34370 Screw, 2nd Throttle Valve Set |
21821-34370 |
US $2.62 |
||
|
2185921030
|
2185921030
21859-21030
Nut, Choke Shaft Set
|
21859-21030 |
— | ||
|
2189726150
|
2189726150
21897-26150 Support, Front(for Choke Shaft) |
21897-26150 |
US $9.46 |
||
|
9321915025
|
9321915025
93219-15025
New Genuine Part
|
93219-15025 |
— | ||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
|
9451200600
|
9451200600
94512-00600 Washer, Seal(For Head Cover Set) |
94512-00600 |
US $2.33 |
||
|
9461110400
|
9461110400
94611-10400 New Genuine Part |
94611-10400 |
US $1.38 |
||
|
9538101610
|
9538101610
95381-01610 New Genuine Part |
95381-01610 |
US $1.75 |
||
