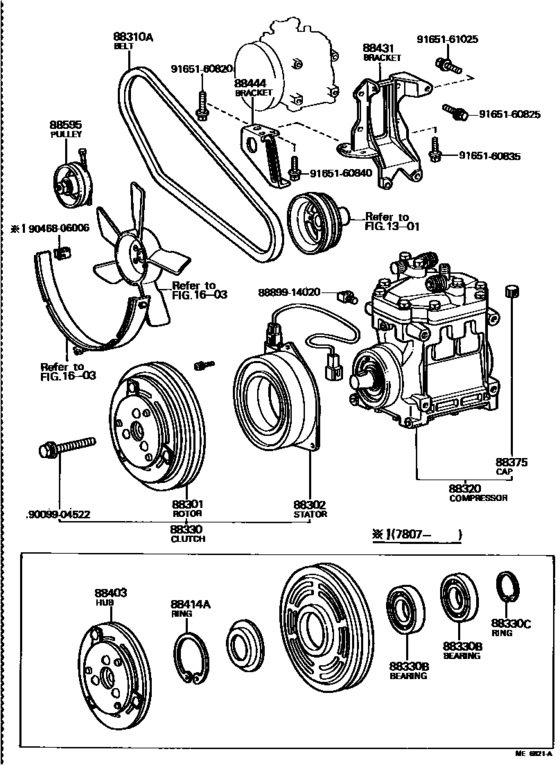

Heating & Air Conditioning - Compressor ([08.1977 - 08.1978] (7708-7808)TA40) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- General
- Frame
- TA40
- grade
- LT
- body
- CP
- ENGINE
- 2T
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-12040
Rotor Sub-Assy, Magnet Clutch
[06.1981 - 07.1981] TA40 |
88412-12040 |
— | ||
|
88302
|
88302
88411-22040
Stator Sub-Assy, Magnet Clutch
[06.1981 - 07.1981] TA40 |
88411-22040 |
— | ||
| replacement | |||||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[06.1981 - 07.1981] TA40 |
88411-14050 |
— | ||
|
88310A
|
88310A
99322-00950
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1978 - 07.1981] TA40 L=950 |
99322-00950 |
— | ||
| replacement | |||||
|
88310A
|
88310A
99322-50950
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1978 - 07.1981] TA40 L=950 |
99322-50950 |
— | ||
|
88310A
|
88310A
99522-10958 Belt, V (Cooler Compressor To Crankshaft Pulley), No.1V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 [08.1977 - 08.1978] TA40 L=958 |
99522-10958 |
US $11.36 |
||
| replacement | |||||
|
88310A
|
88310A
99322-00955
Belt, V (Cooler Compressor To Crankshaft Pulley), No.1
[08.1977 - 08.1978] TA40 L=958 |
99322-00955 |
— | ||
|
88320
|
88320
88320-14110
Compressor Assy, Cooler
[08.1977 - 08.1978] TA40..LT,ST 2M110B |
88320-14110 |
— | ||
|
88320
|
88320
88320-14180
Compressor Assy, Cooler
[08.1978 - 08.1979] TA40 6P148A |
88320-14180 |
— | ||
|
88320
|
88320
88320-14230
Compressor Assy, Cooler
[08.1979 - 07.1981] TA40 6P148A |
88320-14230 |
— | ||
|
88330
|
88330
88410-22060 Clutch Assy, Magnet[08.1978 - 06.1981] RA40..GT; TA40; RA40..ARL |
88410-22060 |
US $582.40 |
||
| replacement | |||||
|
88330
|
88330
88410-14090 Clutch Assy, Magnet[08.1978 - 06.1981] RA40..GT; TA40; RA40..ARL |
88410-14090 |
US $551.82 |
||
|
88330B
|
88330B
90099-10083
Bearing, Magnet Clutch
[08.1977 - 08.1979] RA40..(ST,XT)..GEN; RA40..(ST,XT)..EUG; TA40..RHD..5F..LT;TA40..5F..LT..EUG;TA40..LB..RHD..4F;RA40..RHD..GT..EUG;TA40..LB. .RHD..ST..EUG;RA40..LB..LHD..3FC..EUG;RA40..CP..RHD..3FC..EUG;RA40..LB..LHD..5F..X T..GEN;TA40..CP..LHD..5F..ST. |
90099-10083 |
— | ||
|
88330B
|
88330B
90099-10117
Bearing, Magnet Clutch
[06.1981 - 07.1981] TA40 |
90099-10117 |
— | ||
| replacement | |||||
|
88330B
|
88330B
90099-10133
Bearing, Ball(For Clutch Pully)
[06.1981 - 07.1981] TA40 |
90099-10133 |
— | ||
|
88330C
|
88330C
90099-07094
Ring, Snap (For Magnet Clutch)
[08.1979 - 06.1981] RA40..GT; TA40; RA40..ARL |
90099-07094 |
— | ||
|
88375
|
88375
88375-30260
Cap, Cooler Compressor Service Valve
[08.1977 - 05.1980] RA40,TA40..EUG; RA40,TA40..ARL,GEN |
88375-30260 |
— | ||
| replacement | |||||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[08.1977 - 05.1980] RA40,TA40..EUG; RA40,TA40..ARL,GEN |
88375-30270 |
— | ||
|
88375
|
88375
88375-30270
Cap, Cooler Compressor Service Valve
[05.1980 - 07.1981] RA40,TA40..EUG; RA40,TA40..ARL,GEN |
88375-30270 |
— | ||
|
88403
|
88403
88403-26030
Hub Sub-Assy, Magnet Clutch
[08.1979 - 06.1981] RA40..GT; TA40; RA40..ARL |
88403-26030 |
— | ||
| replacement | |||||
|
88403
|
88403
88403-30270
Hub Sub-Assy, Magnet Clutch
[08.1979 - 06.1981] RA40..GT; TA40; RA40..ARL |
88403-30270 |
— | ||
|
88431
|
88431
88431-14070
Bracket, Compressor Mounting, No.1
[08.1977 - 08.1978] TA40 |
88431-14070 |
— | ||
|
88431
|
88431
88431-22130
Bracket, Compressor Mounting, No.1
[08.1978 - 07.1981] TA40 |
88431-22130 |
— | ||
| replacement | |||||
|
88431
|
88431
88431-22131
Bracket, Compressor Mounting, No.1
[08.1978 - 07.1981] TA40 |
88431-22131 |
— | ||
|
88444
|
88444
88444-14020
Bracket, Idle Pulley
[08.1977 - 07.1978] TA40..LT,ST |
88444-14020 |
— | ||
| replacements | |||||
|
88444
|
88444
88444-14030
Bracket, Idle Pulley
[08.1977 - 07.1978] TA40..LT,ST |
88444-14030 |
— | ||
|
88444
|
88444
90099-04527
New Genuine Part
[08.1977 - 07.1978] TA40..LT,ST |
90099-04527 |
— | ||
|
88444
|
88444
94511-00800 WASHERSPRING[08.1977 - 07.1978] TA40..LT,ST |
94511-00800 |
US $1.79 |
||
|
88444
|
88444
88444-14030
Bracket, Idle Pulley
[07.1978 - 08.1979] TA40 |
88444-14030 |
— | ||
|
88595
|
88595
88440-14020
Pulley, Cooler Compressor Idle
[08.1977 - 07.1978] TA40..LT,ST |
88440-14020 |
— | ||
|
88595
|
88595
88440-25010
Pulley, Cooler Compressor Idle
[11.1980 - 07.1981] TA40 |
88440-25010 |
— | ||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[11.1980 - 07.1981] TA40 |
88440-28050 |
— | ||
|
88595
|
88595
88440-30250 Pulley Assy, Idle[07.1978 - 08.1978] TA40..LT,ST |
88440-30250 |
US $78.62 |
||
| replacement | |||||
|
88595
|
88595
88440-28050
Pulley, Cooler Compressor Idle
[07.1978 - 08.1978] TA40..LT,ST |
88440-28050 |
— | ||
|
8889914020
|
8889914020
88899-14020
Cover, Evaporator
|
88899-14020 |
— | ||
|
9009904522
|
9009904522
90099-04522
New Genuine Part
|
90099-04522 |
— | ||
|
9046806006
|
9046806006
90468-06006
Clip(For Fan Shroud)
|
90468-06006 |
— | ||
|
9165160820
|
9165160820
91651-60820
Bolt, Radiator Side Support Plate
|
91651-60820 |
— | ||
| replacement | |||||
|
9165160820
|
9165160820
91651-B0820 Bolt, Radiator Side Support Plate |
91651-B0820 |
from US $0.99 |
||
|
9165160825
|
9165160825
91651-60825
Bolt, Hexagon(For Steering Column Bracket)
|
91651-60825 |
— | ||
| replacement | |||||
|
9165160825
|
9165160825
91651-B0825 Bolt, Hexagon(For Steering Column Bracket) |
91651-B0825 |
from US $0.84 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.52 |
||
|
9165160840
|
9165160840
91651-60840 BOLT |
91651-60840 |
US $1.61 |
||
|
9165161025
|
9165161025
91651-61025 Bolt with washer |
91651-61025 |
from US $1.52 |
||
