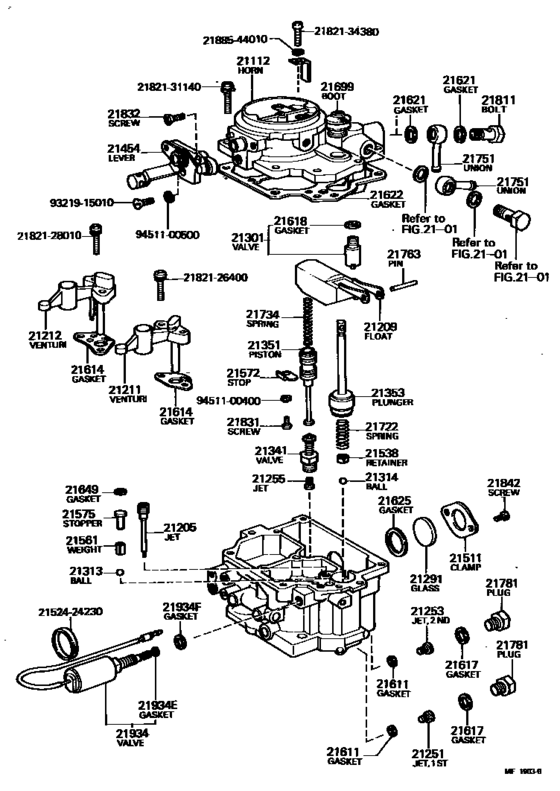

Carburetor ([08.1977 - 08.1979] (7708-7908)2TB) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21112
|
21112
21112-26042
Horn, Air
[08.1977 - 08.1979] 2TB..TA40 FR CARBURETOR |
21112-26042 |
— | ||
|
21112
|
21112
21112-26052
Horn, Air
[08.1977 - 08.1979] 2TB..TA40 RR CARBURETOR |
21112-26052 |
— | ||
|
21112
|
21112
21112-26850
Horn, Air
[08.1979 - 04.1980] 2TB..TA40 FR CARBURETOR |
21112-26850 |
— | ||
|
21112
|
21112
21112-26851
Horn, Air
[04.1980 - 07.1981] 2TB..TA40 FR CARBURETOR |
21112-26851 |
— | ||
|
21112
|
21112
21112-26860
Horn, Air
[08.1979 - 04.1980] 2TB..TA40 RR CARBURETOR |
21112-26860 |
— | ||
|
21112
|
21112
21112-26861
Horn, Air
[04.1980 - 07.1981] 2TB..TA40 RR CARBURETOR |
21112-26861 |
— | ||
|
21205
|
21205
21205-26040
Jet Sub-Assy, Slow
[08.1977 - 08.1979] 2TB..TA40 |
21205-26040 |
— | ||
|
21205
|
21205
90999-44044 Jet Sub-Assy, SlowSLOW [08.1979 - 07.1981] 2TB..TA40 ID=0.44 |
90999-44044 |
US $8.01 |
||
|
21209
|
21209
21209-27040
Float Sub-Assy
[08.1979 - 07.1981] 2T,2TB..TA40 |
21209-27040 |
— | ||
|
21209
|
21209
21209-33080 Float Sub-Assy[08.1977 - 08.1979] 2T,2TB..TA40 |
21209-33080 |
US $14.56 |
||
|
21211
|
21211
21211-26042
Venturi, 1St Small
[08.1977 - 08.1979] 2TB..TA40 |
21211-26042 |
— | ||
|
21212
|
21212
21212-26040
Venturi, 2Nd Small
[08.1977 - 08.1979] 2TB..TA40 |
21212-26040 |
— | ||
|
21251
|
21251
90999-41080 Jet, 1St Main1ST MAIN [08.1977 - 08.1979] 2TB..TA40 ID=0.80 |
90999-41080 |
US $5.53 |
||
|
21251
|
21251
90999-41082 Jet, 1St Main1ST MAIN [08.1979 - 07.1981] 2TB..TA40 ID=0.82 |
90999-41082 |
US $5.53 |
||
|
21253
|
21253
90999-42132 Jet, 2Nd Main2ND MAIN [08.1977 - 07.1981] 2TB..TA40 ID=1.32 |
90999-42132 |
US $4.95 |
||
| replacement | |||||
|
21253
|
21253
90999-41132
Jet, 1St Main
[08.1977 - 07.1981] 2TB..TA40 ID=1.32 |
90999-41132 |
— | ||
|
21255
|
21255
21255-26040 Jet, PowerPOWER [08.1977 - 08.1979] 2TB..TA40 |
21255-26040 |
US $10.63 |
||
| replacement | |||||
|
21255
|
21255
90999-43047 Jet, Power[08.1977 - 08.1979] 2TB..TA40 |
90999-43047 |
US $5.53 |
||
|
21255
|
21255
90999-43044 Jet, Power[08.1979 - 07.1981] 2TB..TA40 ID=0.44 |
90999-43044 |
US $5.97 |
||
|
21291
|
21291
21291-60200
Glass, Level Gage
[08.1977 - 07.1981] 2T,2TB..TA40 |
21291-60200 |
— | ||
|
21301
|
21301
21301-14010 Valve Sub-Assy, Needle[08.1979 - 09.1979] 2T,2TB..TA40 |
21301-14010 |
US $29.27 |
||
|
21301
|
21301
21301-15020 Valve Sub-Assy, Needle[04.1980 - 07.1981] 2T,2TB..TA40 |
21301-15020 |
US $36.11 |
||
|
21301
|
21301
21301-15080 Valve Sub-Assy, NeedleNEEDLE [09.1979 - 04.1980] 2T,2TB..TA40 |
21301-15080 |
US $33.92 |
||
| replacement | |||||
|
21301
|
21301
21301-15020 Valve Sub-Assy, Needle[09.1979 - 04.1980] 2T,2TB..TA40 |
21301-15020 |
US $36.11 |
||
|
21301
|
21301
21301-33081 Valve Sub-Assy, NeedleNEEDLE [08.1977 - 08.1979] 2TB..TA40 |
21301-33081 |
US $25.33 |
||
|
21313
|
21313
21313-11020 Ball, Steel, No.1(For Discharge Weight)[08.1977 - 07.1981] 2T,2TB..TA40 |
21313-11020 |
US $3.67 |
||
|
21314
|
21314
21314-60010 Ball, Steel, No.2(For Pump Plunger)[08.1977 - 07.1981] 2TB..TA40 |
21314-60010 |
US $3.64 |
||
| replacement | |||||
|
21314
|
21314
21314-11020 Ball, Steel(For Auxiliary Acceleration Pump)[08.1977 - 07.1981] 2TB..TA40 |
21314-11020 |
US $3.44 |
||
|
21341
|
21341
21304-30010
Valve, Power
[08.1977 - 07.1981] 2T,2TB..TA40 |
21304-30010 |
— | ||
|
21351
|
21351
21351-33080
Piston, Power
[08.1977 - 07.1981] 2T,2TB..TA40 |
21351-33080 |
— | ||
|
21353
|
21353
21353-33010
Plunger, Pump
[08.1977 - 07.1981] 2T,2TB..TA40 |
21353-33010 |
— | ||
| replacement | |||||
|
21353
|
21353
21353-16510
Plunger, Pump
[08.1977 - 07.1981] 2T,2TB..TA40 |
21353-16510 |
— | ||
|
21454
|
21454
21454-26042
Lever, Choke
[08.1977 - 08.1979] 2TB..TA40 |
21454-26042 |
— | ||
|
21511
|
21511
21511-33010 Clamp, Level GageLEVEL GAGE [08.1977 - 08.1979] 2T,2TB..TA40 |
21511-33010 |
US $8.74 |
||
|
21538
|
21538
21538-31010 Retainer, Ball Check[08.1977 - 07.1981] 2T,2TB..TA40 |
21538-31010 |
US $3.85 |
||
|
21561
|
21561
21561-22010
Weight, Pump Discharge
[08.1977 - 07.1981] 2TB..TA40 |
21561-22010 |
— | ||
|
21572
|
21572
21572-33080 Stop, Power PistonPOWER PISTON [08.1977 - 07.1981] 2T,2TB..TA40 |
21572-33080 |
US $3.49 |
||
|
21575
|
21575
21575-33011
Stopper, B(For Discharge Weight)
[08.1977 - 07.1981] 2TB..TA40 |
21575-33011 |
— | ||
|
21611
|
21611
21611-22010 Gasket, Main Jet[08.1977 - 07.1981] 2T,2TB..TA40 |
21611-22010 |
US $3.32 |
||
|
21614
|
21614
21614-33010 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 1ST |
21614-33010 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21614-16280 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 1ST |
21614-16280 |
US $2.52 |
||
|
21614
|
21614
21614-33080 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 2ND |
21614-33080 |
US $4.08 |
||
| replacement | |||||
|
21614
|
21614
21615-16280 Gasket, Venturi[08.1977 - 07.1981] 2T,2TB..TA40 2ND |
21615-16280 |
US $3.19 |
||
|
21617
|
21617
21617-30010 Gasket, Main Passage Plug[08.1977 - 07.1981] 2T,2TB..TA40 |
21617-30010 |
US $3.55 |
||
|
21618
|
21618
21618-14010
Gasket, Needle Valve Seat
[08.1979 - 07.1981] 2T,2TB..TA40 |
21618-14010 |
— | ||
|
21618
|
21618
21618-24030
Gasket, Needle Valve Seat
[08.1977 - 08.1979] 2T,2TB..TA40 |
21618-24030 |
— | ||
|
21621
|
21621
21633-24030 Gasket, Carburetor To Carburetor Hose Union Bolt[08.1977 - 07.1981] 2T,2TB..TA40 FUEL INLET |
21633-24030 |
US $4.89 |
||
|
21622
|
21622
21622-33083
Gasket, Air Horn
[08.1977 - 07.1981] 2TB..TA40 |
21622-33083 |
— | ||
|
21625
|
21625
21655-60200 Gasket, Level Gage[08.1977 - 07.1981] 2T,2TB..TA40 |
21655-60200 |
US $9.90 |
||
|
21649
|
21649
21641-33011
Gasket(For Pump Discharge Weight Stopper)
[08.1977 - 08.1979] 2TB..TA40 |
21641-33011 |
— | ||
|
21699
|
21699
21699-21061
Boot(For Pump Plunger)
[08.1977 - 08.1980] 2T,2TB..TA40 |
21699-21061 |
— | ||
| replacement | |||||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[08.1977 - 08.1980] 2T,2TB..TA40 |
21699-28150 |
US $14.50 |
||
|
21699
|
21699
21699-28150 Boot(For Pump Plunger)[08.1980 - 07.1981] 2T,2TB..TA40 |
21699-28150 |
US $14.50 |
||
|
21722
|
21722
21722-22010 Spring, Pump Damping[08.1977 - 07.1981] 2T,2TB..TA40 |
21722-22010 |
US $3.89 |
||
|
21734
|
21734
21734-33081 Spring, Power Piston[08.1977 - 07.1981] 2TB..TA40 |
21734-33081 |
US $9.32 |
||
|
21751
|
21751
90405-06166 Union(For Carburetor)NIPPLE [08.1977 - 07.1981] 2TB..TA40 FR CARBURETOR TO RR CARBURETOR |
90405-06166 |
US $18.35 |
||
|
21751
|
21751
90405-06167
Union, Nipple
[08.1977 - 08.1979] 2T,2TB..TA40 FUEL PUMP TO CARBURETOR |
90405-06167 |
— | ||
|
21763
|
21763
21763-26350 Pin, Float Lever[08.1979 - 07.1981] 2T,2TB..TA40 |
21763-26350 |
US $4.08 |
||
|
21763
|
21763
21763-29270 Pin, Float LeverFLOAT LEVER [08.1977 - 08.1979] 2TB..TA40 |
21763-29270 |
US $3.35 |
||
| replacement | |||||
|
21763
|
21763
21763-61330 Pin, Float Lever[08.1977 - 08.1979] 2TB..TA40 |
21763-61330 |
US $3.93 |
||
|
21781
|
21781
21781-30020 Plug, Main Passage(For Carburetor Jet)[08.1977 - 07.1981] 2T,2TB..TA40 |
21781-30020 |
US $9.90 |
||
| replacement | |||||
|
21781
|
21781
21781-16510
Plug, Main Passage(For Carburetor Jet)
[08.1977 - 07.1981] 2T,2TB..TA40 |
21781-16510 |
— | ||
|
21811
|
21811
21811-11060 Bolt, Union Nipple[08.1977 - 07.1981] 2T,2TB..TA40 |
21811-11060 |
US $9.46 |
||
|
21831
|
21831
21821-15060 Screw, 2Nd Throttle Valve Set[04.1981 - 07.1981] 2T,2TB..TA40 |
21821-15060 |
US $3.06 |
||
|
21831
|
21831
21842-33010
Screw, Power Piston Stop
[08.1977 - 04.1981] 2T,2TB..TA40 |
21842-33010 |
— | ||
|
21832
|
21832
21832-31020
Screw(For Choke Lever Adapter Set)
[08.1977 - 08.1979] 2TB..TA40 |
21832-31020 |
— | ||
|
21842
|
21842
21842-33010
Screw, Power Piston Stop
[08.1977 - 07.1981] 2T,2TB..TA40 |
21842-33010 |
— | ||
|
21934
|
21934
21062-26100
Solenoid, Throttle Valve
[08.1977 - 08.1979] 2TB..TA40 FR CARBURETOR |
21062-26100 |
— | ||
|
21934
|
21934
21062-26130
Solenoid, Throttle Valve
[08.1977 - 08.1979] 2TB..TA40 RR CARBURETOR |
21062-26130 |
— | ||
|
21934
|
21934
21062-26850
Solenoid, Throttle Valve
[08.1979 - 07.1981] 2TB..TA40 FR CARBURETOR |
21062-26850 |
— | ||
| replacement | |||||
|
21934
|
21934
21062-26860
Solenoid, Throttle Valve
[08.1979 - 07.1981] 2TB..TA40 FR CARBURETOR |
21062-26860 |
— | ||
|
21934
|
21934
21062-26860
Solenoid, Throttle Valve
[08.1979 - 07.1981] 2TB..TA40 RR CARBURETOR |
21062-26860 |
— | ||
|
21934E
|
21934E
21655-44101 Ring, O(For Lifter Rod)[08.1977 - 07.1981] 2T,2TB..TA40 |
21655-44101 |
US $7.86 |
||
|
21934F
|
21934F
21617-10010
Gasket
[08.1977 - 07.1981] 2T,2TB..TA40 |
21617-10010 |
— | ||
|
2152424230
|
2152424230
21524-24230 Bracket(For Dash Pot) |
21524-24230 |
US $12.52 |
||
|
2182126400
|
2182126400
21821-26400 Screw, 2nd Throttle Valve Set |
21821-26400 |
US $3.20 |
||
|
2182128010
|
2182128010
21821-28010
Screw, 2nd Throttle Valve Set
|
21821-28010 |
— | ||
|
2182131140
|
2182131140
21821-31140 Screw(For 2Nd Regulator Cover Set) |
21821-31140 |
US $2.20 |
||
|
2182134380
|
2182134380
21821-34380
Screw, 2nd Throttle Valve Set
|
21821-34380 |
— | ||
|
2188544010
|
2188544010
21885-44010 Washer(For Diaphragm Cap Set) |
21885-44010 |
US $3.67 |
||
|
9321915010
|
9321915010
93219-15010 SCREW |
93219-15010 |
US $2.04 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
|
9451100500
|
9451100500
94511-00500 Washer, Cover Set, No.2 |
94511-00500 |
from US $0.24 |
||
