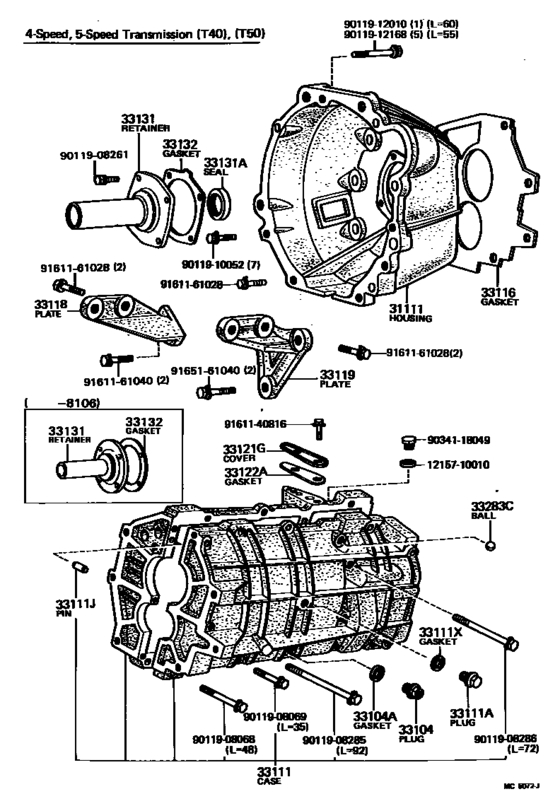

Clutch Housing & Transmission Case (Mtm) ([08.1977 - ] (7708- )TA40..MTM) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
31111
|
31111
31111-14040
Housing, Clutch
[08.1977 - 08.1980] TA40..MTM |
31111-14040 |
— | ||
|
31111
|
31111
31111-14070
Housing, Clutch
[06.1981 - 07.1981] TA40..MTM |
31111-14070 |
— | ||
|
31111
|
31111
31111-20180
Housing, Clutch
[08.1980 - 06.1981] TA40..MTM |
31111-20180 |
— | ||
|
33104
|
33104
90341-18081 Plug Sub-Assy, Drain(Mtm)[08.1977 - 07.1981] TA40..MTM |
90341-18081 |
US $15.59 |
||
|
33104A
|
33104A
12157-10010 Gasket (For Drain Plug)[08.1977 - 07.1981] RA40,TA40..MTM |
12157-10010 |
from US $0.74 |
||
|
33111
|
33111
33101-14030 Case, Manual TransmissionMANUAL TRANSMISSION [08.1977 - 06.1981] TA40..MTM |
33101-14030 |
US $599.87 |
||
| replacements | |||||
|
33111
|
33111
33101-14020
Case, Manual Transmission
[08.1977 - 06.1981] TA40..MTM |
33101-14020 |
— | ||
|
33111
|
33111
90341-18006 Plug (No magnet)[08.1977 - 06.1981] TA40..MTM |
90341-18006 |
from US $3.23 |
||
|
33111
|
33111
90430-18008 Gasket[08.1977 - 06.1981] TA40..MTM |
90430-18008 |
from US $0.90 |
||
|
33111
|
33111
33101-14040 Case, Manual Transmission[06.1981 - 07.1981] TA40..MTM |
33101-14040 |
US $604.24 |
||
|
33111A
|
33111A
90341-18002 Plug, No.1[08.1977 - 07.1981] RA40,TA40..MTM |
90341-18002 |
from US $3.59 |
||
|
33111J
|
33111J
90250-08030
Pin, Straight(For Crankshaft)
[08.1977 - 07.1981] TA40..MTM L=16,OD=8 |
90250-08030 |
— | ||
| replacement | |||||
|
33111J
|
33111J
90250-08046 Pin, Straight(For Intake Manifold Setting)[08.1977 - 07.1981] TA40..MTM L=16,OD=8 |
90250-08046 |
US $1.79 |
||
|
33111X
|
33111X
12157-10010 Gasket (For Drain Plug)[08.1977 - 07.1981] RA40,TA40..MTM |
12157-10010 |
from US $0.74 |
||
|
33116
|
33116
33116-14010
Gasket, Manual Transmission Case
[08.1977 - 06.1981] TA40..MTM |
33116-14010 |
— | ||
|
33116
|
33116
33116-14020 Gasket, Manual Transmission Case[06.1981 - 07.1981] TA40..MTM |
33116-14020 |
US $7.88 |
||
|
33118
|
33118
33118-12020
Plate, Stiffener, Rh(Mtm)
[08.1977 - 08.1979] TA40..MTM |
33118-12020 |
— | ||
|
33118
|
33118
33118-14010
Plate, Stiffener, Rh(Mtm)
[08.1979 - 07.1981] TA40..MTM |
33118-14010 |
— | ||
|
33119
|
33119
33119-14040
Plate, Stiffener, Lh(Mtm)
[08.1977 - 07.1981] TA40..MTM |
33119-14040 |
— | ||
|
33121G
|
33121G
33121-14010 Cover, Manual Transmission Case[08.1977 - 07.1981] TA40..MTM |
33121-14010 |
US $11.07 |
||
|
33122A
|
33122A
33122-14010 Gasket, Manual Transmission Case Cover[08.1977 - 07.1981] TA40..MTM |
33122-14010 |
US $4.48 |
||
|
33131
|
33131
33131-14010 Retainer, Bearing, Front(Mtm)BEARING, FRONT(MTM) [08.1977 - 06.1981] TA40..MTM |
33131-14010 |
US $57.08 |
||
|
33131
|
33131
33131-14020
Retainer, Bearing, Front(Mtm)
[06.1981 - 07.1981] TA40..MTM |
33131-14020 |
— | ||
|
33131A
|
33131A
90311-25003 Seal, Oil(For Transmission Front Bearing Retainer)[03.1978 - 07.1981] TA40..MTM |
90311-25003 |
US $3.76 |
||
|
33131A
|
33131A
90311-25141
Seal, Oil(For Transmission Front Bearing Retainer)
[08.1977 - 03.1978] TA40..MTM |
90311-25141 |
— | ||
| replacement | |||||
|
33131A
|
33131A
90311-25003 Seal, Oil(For Transmission Front Bearing Retainer)[08.1977 - 03.1978] TA40..MTM |
90311-25003 |
US $3.76 |
||
|
33132
|
33132
33132-14010
Gasket, Front Bearing Retainer(Mtm)
[08.1977 - 06.1981] TA40..MTM |
33132-14010 |
— | ||
|
33132
|
33132
33132-14020 Gasket, Front Bearing Retainer(Mtm)[06.1981 - 07.1981] TA40..MTM |
33132-14020 |
US $4.48 |
||
|
33283C
|
33283C
90360-10003 Ball(For Transmission Oil Pump Cover)[08.1977 - 07.1981] TA40..MTM |
90360-10003 |
from US $1.19 |
||
|
1215710010
|
1215710010
12157-10010 Gasket (For Drain Plug) |
12157-10010 |
from US $0.74 |
||
|
9011908068
|
9011908068
90119-08068
New Genuine Part
|
90119-08068 |
— | ||
|
9011908069
|
9011908069
90119-08069 Bolt(For Head To Camshaft Bearing Cap) |
90119-08069 |
US $3.49 |
||
| replacement | |||||
|
9011908069
|
9011908069
90119-08789 Bolt(For Head To Camshaft Bearing Cap) |
90119-08789 |
US $1.61 |
||
|
9011908261
|
9011908261
90119-08261
New Genuine Part
|
90119-08261 |
— | ||
|
9011908285
|
9011908285
90119-08285
New Genuine Part
|
90119-08285 |
— | ||
|
9011908286
|
9011908286
90119-08286
New Genuine Part
|
90119-08286 |
— | ||
|
9011910052
|
9011910052
90119-10052 Bolt(For Clutch Housing & Transmission Case Setting) |
90119-10052 |
US $5.56 |
||
|
9011912010
|
9011912010
90119-12010 New Genuine Part |
90119-12010 |
US $3.93 |
||
|
9011912168
|
9011912168
90119-12168 Bolt(For Transaxle & Engine Setting) |
90119-12168 |
from US $2.01 |
||
|
9034118049
|
9034118049
90341-18049 Plug(For Oil Heater Houl) |
90341-18049 |
US $4.66 |
||
|
9161140816
|
9161140816
91611-40816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-40816 |
— | ||
| replacement | |||||
|
9161140816
|
9161140816
91611-B0816 Bolt |
91611-B0816 |
from US $1.01 |
||
|
9161161028
|
9161161028
91611-61028
Bolt(For Transaxle Case & Engine Setting)
|
91611-61028 |
— | ||
| replacement | |||||
|
9161161028
|
9161161028
91612-61028 Bolt(For Transaxle Case & Engine Setting) |
91612-61028 |
US $3.05 |
||
|
9161161040
|
9161161040
91611-61040
Bolt(For Transaxle Case & Engine Setting)
|
91611-61040 |
— | ||
| replacement | |||||
|
9161161040
|
9161161040
91612-61040 Bolt(For Transmission Case & Engine Setting) |
91612-61040 |
US $2.33 |
||
|
9165161040
|
9165161040
91651-61040 Bolt (For Transfer Case) |
91651-61040 |
US $2.15 |
||
