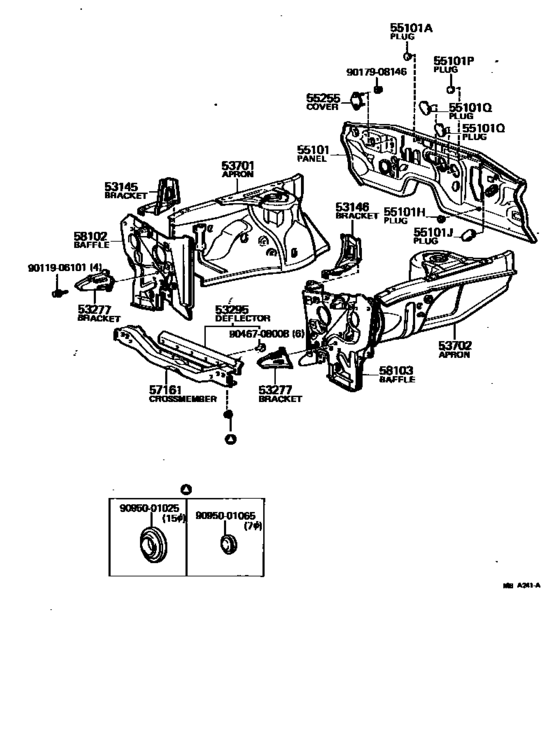

Front Fender Apron & Dash Panel ([08.1979 - ] (7908- )RHD) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
53145
|
53145
53223-14090
Bracket,radiator Grille Mounting, Rh
[08.1979 - 07.1981] RA40,TA40 |
53223-14090 |
— | ||
|
53145
|
53145
53251-14050
Bracket,radiator Grille Mounting, Rh
[08.1977 - 08.1979] RA40,TA40 |
53251-14050 |
— | ||
|
53146
|
53146
53224-14050
Bracket, Radiator Grille Mounting, Lh
[08.1979 - 07.1981] RA40,TA40 |
53224-14050 |
— | ||
|
53146
|
53146
53252-14050
Bracket, Radiator Grille Mounting, Lh
[08.1977 - 08.1979] RA40,TA40 |
53252-14050 |
— | ||
|
53277
|
53277
53277-14020
Bracket, Headlamp Door Mounting, Out
[08.1979 - 07.1981] RA40,TA40 RH |
53277-14020 |
— | ||
|
53277
|
53277
53278-14010 Bracket, Headlamp Door Mounting, OutHEADLAMP DOOR MOUNTING, OUT [08.1979 - 07.1981] RA40,TA40 LH |
53278-14010 |
US $10.63 |
||
|
53295
|
53295
53295-14021
Deflector, Radiator Lower Air
[08.1977 - 07.1981] TA40..EUG;RA40..(ST,XT)..EUG;RA40..LHD..GT..EUG; TA40..GEN;RA40..LHD..GT..GEN;RA40..(LT,ST,XT)..(ARL,GEN) |
53295-14021 |
— | ||
|
53701
|
53701
53701-14200
Apron Sub-Assy, Front Fender, Rh
[08.1977 - 07.1981] RA40,TA40..LT,ST,XT |
53701-14200 |
— | ||
|
53702
|
53702
53702-14180
Apron Sub-Assy, Front Fender, Lh
[08.1977 - 07.1981] RA40,TA40..LT,ST,XT |
53702-14180 |
— | ||
|
55101
|
55101
55101-14140 Panel Sub-Assy, DashDASH [08.1977 - 07.1981] TA40..RHD |
55101-14140 |
US $334.88 |
||
| replacement | |||||
|
55101
|
55101
55101-14260
Panel Sub-Assy, Dash
[08.1977 - 07.1981] TA40..RHD |
55101-14260 |
— | ||
|
55101A
|
55101A
90950-01133 Plug, Hole(For Front Fender Apron)[08.1977 - 07.1981] RA40,TA40 OD=13,W/O CHOKE |
90950-01133 |
from US $2.42 |
||
|
55101H
|
55101H
90950-01060
Plug, Hole, No.1(For Dash Panel)
[08.1977 - 07.1981] RA40,TA40 OD=25,W/COOLER DRAIN |
90950-01060 |
— | ||
| replacement | |||||
|
55101H
|
55101H
90950-01866 Plug, Hole(For Front Door Panel)[08.1977 - 07.1981] RA40,TA40 OD=25,W/COOLER DRAIN |
90950-01866 |
from US $2.15 |
||
|
55101J
|
55101J
90950-01189 Plug, Hole, No.3(For Dash Panel)[08.1977 - 07.1981] RA40,TA40 OD=34X74,W/O COOLER |
90950-01189 |
US $3.03 |
||
|
57161
|
57161
57161-14903
Crossmember, Front
[08.1977 - 08.1979] RA40,TA40 |
57161-14903 |
— | ||
| replacements | |||||
|
57161
|
57161
57113-14060 Extension, Front Side Member, RhFRONT SIDE MEMBER, RH [08.1977 - 08.1979] RA40,TA40 |
57113-14060 |
US $10.05 |
||
|
57161
|
57161
57161-14904
Crossmember, Front
[08.1977 - 08.1979] RA40,TA40 |
57161-14904 |
— | ||
|
57161
|
57161
57161-14904
Crossmember, Front
[08.1979 - 07.1981] RA40,TA40 |
57161-14904 |
— | ||
|
58102
|
58102
53202-14070
Baffle Sub-Assy, Radiator Side, Rh
[08.1977 - 08.1979] RA40,TA40 |
53202-14070 |
— | ||
|
58102
|
58102
53202-14071
Baffle Sub-Assy, Radiator Side, Rh
[08.1979 - 07.1981] RA40,TA40..EUR,GEN |
53202-14071 |
— | ||
|
58103
|
58103
53203-14130
Baffle Sub-Assy,radiator Side, Lh
[08.1977 - 08.1979] RA40,TA40 |
53203-14130 |
— | ||
|
58103
|
58103
53203-14131
Baffle Sub-Assy,radiator Side, Lh
[08.1979 - 07.1981] RA40,TA40..EUR,GEN |
53203-14131 |
— | ||
|
9011906101
|
9011906101
90119-06101
New Genuine Part
|
90119-06101 |
— | ||
| replacement | |||||
|
9011906101
|
9011906101
90119-06010 BOLT WWASHER |
90119-06010 |
US $1.97 |
||
|
9017908146
|
9017908146
90179-08146
Nut
|
90179-08146 |
— | ||
| replacement | |||||
|
9017908146
|
9017908146
90179-08204 Nut |
90179-08204 |
from US $1.07 |
||
|
9046708008
|
9046708008
90467-08008 Clip, Step Plate Cover |
90467-08008 |
from US $2.51 |
||
|
9095001025
|
9095001025
90950-01025 Plug, Hole(For Front Fender Apron) |
90950-01025 |
US $4.30 |
||
|
9095001065
|
9095001065
90950-01065 Plug, Hole(For Front Fender Apron) |
90950-01065 |
US $5.02 |
||
