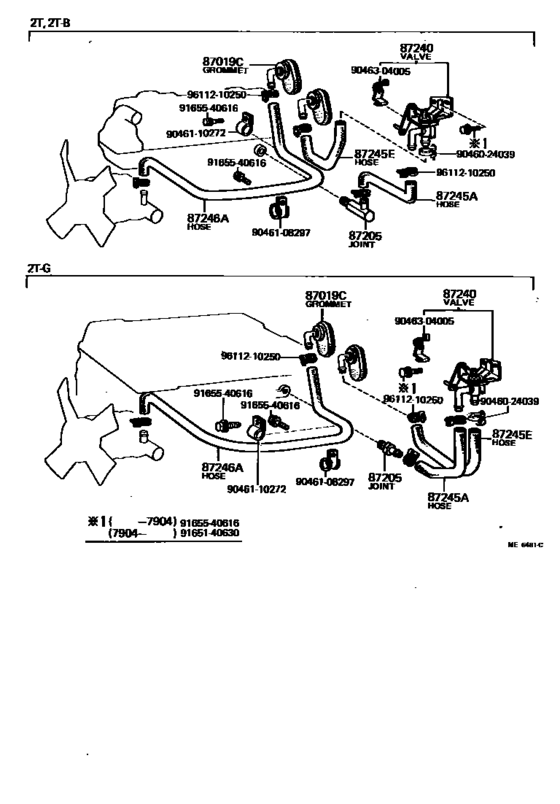

Heating & Air Conditioning - Water Piping ([08.1977 - ] (7708- )TA40..RHD) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87019C
|
87019C
90480-01015
Grommet, Heater Hose
[08.1977 - 07.1981] RA40,TA40 |
90480-01015 |
— | ||
|
87205
|
87205
87251-20100
Joint Or Union, Front Heater Hose Through Or Inlet Valve
[08.1977 - 07.1981] TA40..LT,ST |
87251-20100 |
— | ||
|
87240
|
87240
87240-14070
Valve Assy, Heater Water
[08.1977 - 04.1979] RA40,TA40 |
87240-14070 |
— | ||
|
87240
|
87240
87240-20240
Valve Assy, Heater Water
[04.1979 - 07.1981] RA40,TA40 |
87240-20240 |
— | ||
|
87245A
|
87245A
87209-20320
Hose, Heater Water, Inlet A
[08.1978 - 08.1979] TA40..LT,ST |
87209-20320 |
— | ||
|
87245A
|
87245A
87245-14390
Hose, Heater Water, Inlet A
[08.1977 - 08.1978] TA40..LT,ST |
87245-14390 |
— | ||
|
87245E
|
87245E
87245-14120 Hose, Heater Water, Inlet EHEATER WATER, INLET E [08.1977 - 09.1978] RA40,TA40..RHD |
87245-14120 |
US $16.02 |
||
| replacement | |||||
|
87245E
|
87245E
87245-20400 Hose, Heater Water, Inlet EHEATER WATER, INLET E [08.1977 - 09.1978] RA40,TA40..RHD |
87245-20400 |
US $16.16 |
||
|
87245E
|
87245E
87245-20400 Hose, Heater Water, Inlet EHEATER WATER, INLET E [09.1978 - 07.1981] RA40,TA40..RHD |
87245-20400 |
US $16.16 |
||
|
87246A
|
87246A
87245-14430 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [08.1977 - 09.1978] TA40..RHD..(LT,ST) |
87245-14430 |
US $23.73 |
||
| replacement | |||||
|
87246A
|
87246A
99556-32000
Hose, Heater Water
[08.1977 - 09.1978] TA40..RHD..(LT,ST) |
99556-32000 |
— | ||
|
87246A
|
87246A
87245-20420 Hose, Heater Water, Outlet AHEATER WATER, OUTLET A [09.1978 - 07.1981] TA40..RHD..(LT,ST) |
87245-20420 |
US $19.95 |
||
| replacement | |||||
|
87246A
|
87246A
99556-32000
Hose, Heater Water
[09.1978 - 07.1981] TA40..RHD..(LT,ST) |
99556-32000 |
— | ||
|
9046024039
|
9046024039
90460-24039 Clamp Or Clip, Hose(For Oil Cooler Hose) |
90460-24039 |
US $1.54 |
||
| replacement | |||||
|
9046024039
|
9046024039
90467-21010 Clip(For Ventilation Hose No.2) |
90467-21010 |
from US $2.54 |
||
|
9046108297
|
9046108297
90461-08297
New Genuine Part
|
90461-08297 |
— | ||
|
9046110272
|
9046110272
90461-10272
New Genuine Part
|
90461-10272 |
— | ||
|
9046304005
|
9046304005
90463-04005
Clamp, Heater
|
90463-04005 |
— | ||
| replacement | |||||
|
9046304005
|
9046304005
87124-28020
Clamp, Heater
|
87124-28020 |
— | ||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.43 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
from US $1.19 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
