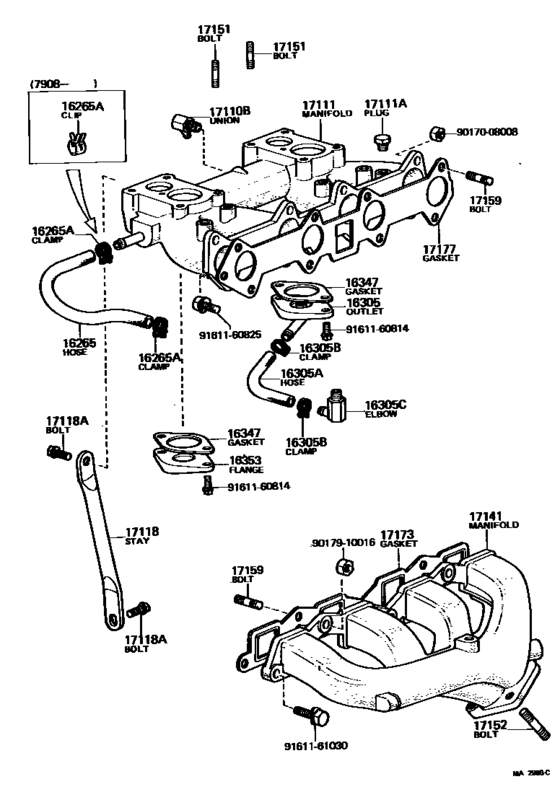

Manifold ([08.1977 - ] (7708- )2TB) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
16265
|
16265
90445-21748
Hose, Intake Manifold Water
[08.1977 - 07.1981] 2TB..TA40 |
90445-21748 |
— | ||
|
16265A
|
16265A
90467-20004
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1979 - 10.1980] 2T,2TB..TA40 |
90467-20004 |
— | ||
| replacement | |||||
|
16265A
|
16265A
96134-41900 Clip Or Clamp(For Ventilation Hose)[08.1979 - 10.1980] 2T,2TB..TA40 |
96134-41900 |
from US $1.61 |
||
|
16265A
|
16265A
90467-20005
Clip(For Ventilation Hose No.2)
[10.1980 - 07.1981] 2T,2TB..TA40 |
90467-20005 |
— | ||
| replacement | |||||
|
16265A
|
16265A
96134-41900 Clip Or Clamp(For Ventilation Hose)[10.1980 - 07.1981] 2T,2TB..TA40 |
96134-41900 |
from US $1.61 |
||
|
16265A
|
16265A
96111-10220
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1977 - 08.1979] 2T,2TB..TA40 |
96111-10220 |
— | ||
| replacement | |||||
|
16265A
|
16265A
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1977 - 08.1979] 2T,2TB..TA40 |
96112-10220 |
US $0.61 |
||
|
16305
|
16305
16305-25020 Outlet Sub-Assy, Water By-PassWATER BY-PASS [08.1977 - 07.1981] 2TB..TA40 |
16305-25020 |
US $12.96 |
||
|
16305A
|
16305A
16261-25020
Hose, Water By-Pass
[08.1977 - 07.1981] 2TB..TA40 |
16261-25020 |
— | ||
|
16305B
|
16305B
96111-10220
Clamp Or Clip, Hose(For Water By-Pass Hose)
[08.1977 - 07.1981] 2TB..TA40 |
96111-10220 |
— | ||
| replacement | |||||
|
16305B
|
16305B
96112-10220 Clamp Or Clip, Hose(For Water By-Pass Hose)[08.1977 - 07.1981] 2TB..TA40 |
96112-10220 |
US $0.61 |
||
|
16305C
|
16305C
90407-14051
Elbow(For Sub Radiator)
[08.1977 - 08.1979] 2TB..TA40 |
90407-14051 |
— | ||
| replacement | |||||
|
16305C
|
16305C
90407-53007 Union(For Water By-Pass Hose)[08.1977 - 08.1979] 2TB..TA40 |
90407-53007 |
US $9.32 |
||
|
16347
|
16347
16347-41010
Gasket, Water By-Pass
[08.1977 - 07.1981] 2TB..TA40 |
16347-41010 |
— | ||
| replacement | |||||
|
16347
|
16347
16347-41012
Gasket, Water By-Pass
[08.1977 - 07.1981] 2TB..TA40 |
16347-41012 |
— | ||
|
16353
|
16353
16353-25020 Flange, Water By-PassWATER BY-PASS [08.1977 - 07.1981] 2TB..TA40 |
16353-25020 |
US $11.36 |
||
|
17110B
|
17110B
90404-53033 Union(For Ventilation Hose To Manifold)[08.1979 - 07.1981] 2TB..TA40 |
90404-53033 |
US $3.93 |
||
|
17110B
|
17110B
90407-09001 Union(For Ventilation Hose To Manifold)[08.1977 - 08.1979] 2T,2TB..TA40 |
90407-09001 |
US $7.28 |
||
|
17111
|
17111
17111-25020
Manifold, Intake
[08.1977 - 01.1978] 2TB..TA40 |
17111-25020 |
— | ||
| replacement | |||||
|
17111
|
17111
17111-25901
Manifold, Intake
[08.1977 - 01.1978] 2TB..TA40 |
17111-25901 |
— | ||
|
17111
|
17111
17111-25901
Manifold, Intake
[01.1978 - 07.1981] 2TB..TA40 |
17111-25901 |
— | ||
|
17111A
|
17111A
90345-51005
Plug, W/head Taper Screw, No.1
[08.1977 - 10.1977] 2T,2TB..TA40 L=9,P=1/8 |
90345-51005 |
— | ||
| replacement | |||||
|
17111A
|
17111A
90345-51025 Plug, W/head Taper Screw, No.2[08.1977 - 10.1977] 2T,2TB..TA40 L=9,P=1/8 |
90345-51025 |
US $3.76 |
||
|
17118
|
17118
17118-26010
Stay, Manifold
[08.1977 - 07.1981] 2TB..TA40 |
17118-26010 |
— | ||
|
17118A
|
17118A
91619-61220 Bolt, Stud[08.1977 - 07.1981] 2TB..TA40 MANIFOLD TO STAY |
91619-61220 |
US $4.48 |
||
|
17118A
|
17118A
91659-61228 Bolt, Stud(For Manifold Stay)STUD(FOR MANIFOLD STAY) [08.1977 - 07.1981] 2TB..TA40 MOUNTING TO STAY |
91659-61228 |
US $2.33 |
||
|
17141
|
17141
17141-26011 Manifold, ExhaustEXHAUST [08.1977 - 12.1977] 2T#..TA40 |
17141-26011 |
US $272.27 |
||
| replacement | |||||
|
17141
|
17141
17141-26012 Manifold, ExhaustEXHAUST [08.1977 - 12.1977] 2T#..TA40 |
17141-26012 |
US $281.01 |
||
|
17141
|
17141
17141-26012 Manifold, ExhaustEXHAUST [12.1977 - 07.1981] 2T#..TA40 |
17141-26012 |
US $281.01 |
||
|
17151
|
17151
90116-08008 Bolt, Stud(For Egr Valve)[08.1977 - 07.1981] 2TB..TA40 FR |
90116-08008 |
US $2.34 |
||
|
17151
|
17151
90116-08009 Bolt(For Intake Manifold To Exhaust Manifold)STUD(FOR MANIFOLD TO CARBURETOR) [08.1977 - 07.1981] 2TB..TA40 RR |
90116-08009 |
US $3.44 |
||
|
17152
|
17152
90116-10017 Bolt, Stud(For Manifold To Exhaust Pipe)[08.1977 - 08.1980] 18R,18RC..RA40 L=41,S=14&21; 2T,2TB..TA40 L=41,S=14&21 |
90116-10017 |
from US $2.26 |
||
|
17152
|
17152
90116-10056
Bolt, Stud(For Turbocharger)
[08.1980 - 07.1981] 2T,2TB..TA40 L=44,S=14&21 |
90116-10056 |
— | ||
| replacement | |||||
|
17152
|
17152
90116-10087 Bolt, Stud(For Turbocharger)[08.1980 - 07.1981] 2T,2TB..TA40 L=44,S=14&21 |
90116-10087 |
from US $2.30 |
||
|
17159
|
17159
90116-08035 Bolt, Stud(For Manifold To Cylinder Head)[08.1977 - 07.1981] 2T,2TB..TA40 |
90116-08035 |
US $2.48 |
||
|
17159
|
17159
92122-61025 Bolt, Stud(For Manifold To Cylinder Head)[08.1977 - 07.1981] 18RG..RA40 L=40,S=15&15; 2T#..TA40 L=40,S=15&15 |
92122-61025 |
US $4.12 |
||
|
17173
|
17173
17173-25012
Gasket, Exhaust Manifold To Head
[08.1977 - 07.1981] 2T#..TA40 |
17173-25012 |
— | ||
| replacement | |||||
|
17173
|
17173
17173-25013 Gasket, Exhaust Manifold To Head[08.1977 - 07.1981] 2T#..TA40 |
17173-25013 |
US $8.56 |
||
|
17177
|
17177
17177-25020
Gasket, Intake Manifold To Head, No.1
[08.1977 - 08.1978] 2T,2TB..TA40 |
17177-25020 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-25031 Gasket, Intake Manifold To Head, No.1[08.1977 - 08.1978] 2T,2TB..TA40 |
17177-25031 |
US $7.13 |
||
|
17177
|
17177
17177-25030
Gasket, Intake Manifold To Head, No.1
[08.1978 - 07.1981] 2T,2TB..TA40 |
17177-25030 |
— | ||
| replacement | |||||
|
17177
|
17177
17177-25031 Gasket, Intake Manifold To Head, No.1[08.1978 - 07.1981] 2T,2TB..TA40 |
17177-25031 |
US $7.13 |
||
|
9017008008
|
9017008008
90170-08008 New Genuine Part |
90170-08008 |
US $1.60 |
||
|
9017910016
|
9017910016
90179-10016
Nut(For Counter Gear Shaft)
|
90179-10016 |
— | ||
| replacement | |||||
|
9017910016
|
9017910016
90179-10132 Nut |
90179-10132 |
from US $0.94 |
||
|
9161160814
|
9161160814
91611-60814 Bolt |
91611-60814 |
from US $0.76 |
||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.11 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.07 |
||
