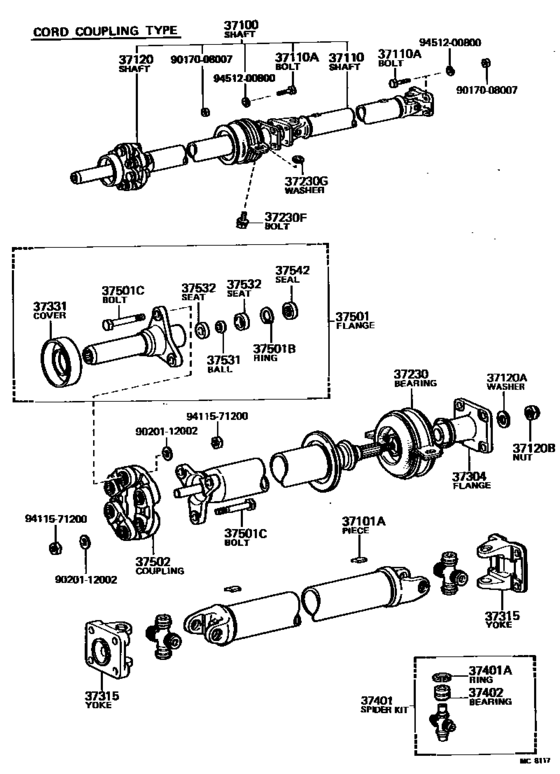

Propeller Shaft & Universal Joint ([08.1979 - ] (7908- )GT,ST,XT..EUR ; (7908- )RA40..GT.. GEN) Diagram Toyota CELICA
- Year
- 1977 - 1981
- Sales region
- Europe
- Frame
- TA40
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 07.1981
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
37100
|
37100
37100-14101
Shaft Assy, Propeller W/center Bearing
[08.1977 - 08.1979] TA40..GT,ST |
37100-14101 |
— | ||
|
37100
|
37100
37100-14190
Shaft Assy, Propeller W/center Bearing
[08.1979 - 06.1981] TA40..(GT,ST)..EUG |
37100-14190 |
— | ||
|
37100
|
37100
37100-14191
Shaft Assy, Propeller W/center Bearing
[06.1981 - 07.1981] TA40..(GT,ST)..EUG |
37100-14191 |
— | ||
|
37101A
|
37101A
90937-01132 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 10G,L=20.7,10G |
90937-01132 |
US $3.94 |
||
|
37101A
|
37101A
90937-01136 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 20G,L=41.4,20G |
90937-01136 |
US $3.20 |
||
|
37101A
|
37101A
90937-01140 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 30G,L=62.2,30G |
90937-01140 |
US $3.49 |
||
|
37101A
|
37101A
90937-01147 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 2G,T=2.0,2G |
90937-01147 |
US $2.04 |
||
|
37101A
|
37101A
90937-01148 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 4G,T=2.0,4G |
90937-01148 |
US $2.51 |
||
|
37101A
|
37101A
90937-01149 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 6G,L=12.4,6G |
90937-01149 |
US $2.51 |
||
|
37101A
|
37101A
90937-01150 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 8G,L=16.6,8G |
90937-01150 |
US $2.51 |
||
|
37101A
|
37101A
90937-01151 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 12G,L=24.9,12G |
90937-01151 |
US $2.69 |
||
|
37101A
|
37101A
90937-01152 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 14G,L=29.0,14G |
90937-01152 |
US $2.51 |
||
|
37101A
|
37101A
90937-01153 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 16G,L=33.2,16G |
90937-01153 |
US $1.31 |
||
|
37101A
|
37101A
90937-01154 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 18G,L=37.3,18G |
90937-01154 |
US $1.75 |
||
|
37101A
|
37101A
90937-01155 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 22G,L=45.6,22G |
90937-01155 |
US $1.75 |
||
|
37101A
|
37101A
90937-01156 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 24G,L=49.7,24G |
90937-01156 |
US $1.75 |
||
|
37101A
|
37101A
90937-01157 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 26G,L=53.9,26G |
90937-01157 |
US $1.75 |
||
|
37101A
|
37101A
90937-01158 Piece, Balance, No.1 (For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 28G,L=58.1,28G |
90937-01158 |
US $1.75 |
||
|
37110
|
37110
37110-22035 Shaft Assy, Propeller[08.1977 - 07.1981] RA40..(ST,XT)..EUG L=760,OD=65; TA40..GT,ST L=760,OD=65 |
37110-22035 |
US $623.17 |
||
|
37110A
|
37110A
90101-08062 Bolt (For Propeller Shaft)[02.1981 - 07.1981] RA40,TA40 |
90101-08062 |
US $2.62 |
||
|
37110A
|
37110A
90101-08262 Bolt (For Propeller Shaft)[08.1977 - 02.1981] RA40,TA40 |
90101-08262 |
from US $1.48 |
||
|
37120
|
37120
37120-14040
Shaft Assy, Propeller Intermediate
[08.1977 - 08.1979] TA40..GT,ST L=606.5,OD=65 |
37120-14040 |
— | ||
|
37120
|
37120
37120-14090
Shaft Assy, Propeller Intermediate
[08.1979 - 06.1981] TA40..(GT,ST)..EUG |
37120-14090 |
— | ||
|
37120
|
37120
37120-14091
Shaft Assy, Propeller Intermediate
[06.1981 - 07.1981] TA40..(GT,ST)..EUG |
37120-14091 |
— | ||
|
37120A
|
37120A
90201-18182 Washer, Plate (For Propeller Intermediate Shaft Set)[08.1977 - 07.1981] RA40..ARL OD=33.5,T=4.0; RA40,TA40..GT,ST,XT OD=33.5,T=4.0 |
90201-18182 |
from US $3.23 |
||
|
37120B
|
37120B
90179-18060
Nut (For Propeller Intermediate Shaft Setting)
[08.1977 - 07.1981] RA40..ARL; RA40,TA40..GT,ST,XT |
90179-18060 |
— | ||
| replacement | |||||
|
37120B
|
37120B
90179-18001 Nut (For Transfer Gear)[08.1977 - 07.1981] RA40..ARL; RA40,TA40..GT,ST,XT |
90179-18001 |
from US $4.48 |
||
|
37230
|
37230
37230-14030
Bearing Assy, Center Support, No.1
[08.1977 - 10.1977] RA40..ARL; RA40,TA40..GT,ST,XT |
37230-14030 |
— | ||
| replacement | |||||
|
37230
|
37230
37230-14031
Bearing Assy, Center Support, No.1
[08.1977 - 10.1977] RA40..ARL; RA40,TA40..GT,ST,XT |
37230-14031 |
— | ||
|
37230
|
37230
37230-14031
Bearing Assy, Center Support, No.1
[10.1977 - 08.1979] RA40..ARL; RA40,TA40..GT,ST,XT |
37230-14031 |
— | ||
|
37230
|
37230
37230-20060
Bearing Assy, Center Support, No.1
[08.1979 - 07.1981] RA40..GT; TA40..(GT,ST)..EUG |
37230-20060 |
— | ||
|
37230F
|
37230F
90119-10049 Bolt, Center Support Bearing Bracket[08.1977 - 08.1979] RA40..ARL *10-1.25PX27-18.7; RA40,TA40..GT,ST,XT *10-1.25PX27-18.7 |
90119-10049 |
from US $1.50 |
||
|
37230F
|
37230F
90119-10064 Bolt(For Body Mount No.4 Cushion)[08.1977 - 08.1979] RA40..ARL *10-1.25PX31-23; RA40,TA40..GT,ST,XT *10-1.25PX31-23 |
90119-10064 |
US $3.06 |
||
| replacement | |||||
|
37230F
|
37230F
90119-10657 Bolt(For Body Mount No.4 Cushion)[08.1977 - 08.1979] RA40..ARL *10-1.25PX31-23; RA40,TA40..GT,ST,XT *10-1.25PX31-23 |
90119-10657 |
US $3.94 |
||
|
37230F
|
37230F
90119-10075 Bolt, No.1 (For Center Support Bearing)NO.1 (FOR CENTER SUPPORT BEARING) [08.1977 - 07.1981] RA40..ARL *10-1.25PX22-14; RA40,TA40..GT,ST,XT *10-1.25PX22-14 |
90119-10075 |
US $3.20 |
||
|
37230F
|
37230F
90119-10133 Bolt, No.1 (For Center Support Bearing)[08.1979 - 07.1981] RA40..GT *10-1.25PX35-26; TA40..(GT,ST)..EUG *10-1.25PX35-26 |
90119-10133 |
US $3.32 |
||
|
37230G
|
37230G
90201-10008 Washer, No.2 (For Center Support Bearing)[08.1977 - 08.1979] RA40..ARL T=4.5,T=4.5; RA40,TA40..GT,ST,XT T=4.5,T=4.5 |
90201-10008 |
US $1.97 |
||
|
37230G
|
37230G
90201-10010 Washer, No.2 (For Center Support Bearing)[08.1979 - 07.1981] RA40..GT T=12.0,T=12; TA40..(GT,ST)..EUG T=12.0,T=12 |
90201-10010 |
US $1.75 |
||
|
37230G
|
37230G
90201-10017 Washer, No.2 (For Center Support Bearing)[08.1977 - 08.1979] RA40..ARL T=9.0,T=9.0; RA40,TA40..GT,ST,XT T=9.0,T=9.0 |
90201-10017 |
US $2.48 |
||
|
37304
|
37304
37304-22012 Flange Sub-Assy, Universal Joint[08.1977 - 07.1981] RA40; TA40..GT,ST |
37304-22012 |
US $58.53 |
||
| replacement | |||||
|
37304
|
37304
37304-22H00 Flange Sub-Assy, Universal Joint[08.1977 - 07.1981] RA40; TA40..GT,ST |
37304-22H00 |
US $57.95 |
||
|
37315
|
37315
37315-20020 Yoke, Universal Joint Flange[08.1977 - 07.1981] RA40,TA40 |
37315-20020 |
US $49.97 |
||
|
37331
|
37331
37331-12010
Cover, Sliding Shaft Dust
[08.1977 - 07.1981] TA40..GT,ST; TA40..MTM..LT |
37331-12010 |
— | ||
|
37401
|
37401
04371-22010 Spider Kit, Universal Joint(For Propeller Shaft)[08.1977 - 07.1981] RA40,TA40 |
04371-22010 |
from US $38.94 |
||
|
37401A
|
37401A
90521-29070 Ring, Hole Snap (For Spider Bearing)[08.1977 - 07.1981] RA40,TA40 T=2.375-2.425,T=2.375-2.425 |
90521-29070 |
US $3.06 |
||
|
37401A
|
37401A
90521-29071 Ring, Hole Snap (For Spider Bearing)[08.1977 - 07.1981] RA40,TA40 T=2.425-2.475,T=2.425-2.475 |
90521-29071 |
US $3.06 |
||
|
37401A
|
37401A
90521-29072 Ring, Hole Snap (For Spider Bearing)[08.1977 - 07.1981] RA40,TA40 T=2.475-2.525,T=2.475-2.525 |
90521-29072 |
US $3.06 |
||
|
37401A
|
37401A
90521-29073 Ring, Hole Snap (For Spider Bearing)[08.1977 - 07.1981] RA40,TA40 T=2.525-2.575,T=2.525-2.575 |
90521-29073 |
US $3.06 |
||
|
37402
|
37402
37402-22020
Bearing Sub-Assy, Universal Joint Spider
[08.1977 - 07.1981] RA40,TA40 |
37402-22020 |
— | ||
|
37501
|
37501
37501-14010
Flange Sub-Assy, Flexible Coupling Sleeve
[08.1979 - 06.1981] TA40..(GT,ST)..EUG |
37501-14010 |
— | ||
|
37501
|
37501
37501-14020 Flange Sub-Assy, Flexible Coupling SleeveFLEXIBLE COUPLING SLEEVE [06.1981 - 07.1981] TA40..(GT,ST)..EUG |
37501-14020 |
US $193.65 |
||
|
37501B
|
37501B
90521-37001 Ring, Hole Snap (For Flexible Coupling Sleeve Flange)[08.1979 - 07.1981] RA40..GT T=1.42,T=1.42; TA40..(GT,ST)..EUG T=1.42,T=1.42 |
90521-37001 |
US $3.93 |
||
|
37501B
|
37501B
90521-37002 Ring, Hole Snap (For Flexible Coupling Sleeve Flange)[08.1979 - 07.1981] RA40..GT T=1.45,T=1.45; TA40..(GT,ST)..EUG T=1.45,T=1.45 |
90521-37002 |
US $3.93 |
||
|
37501B
|
37501B
90521-37003 Ring, Hole Snap (For Flexible Coupling Sleeve Flange)[08.1979 - 07.1981] RA40..GT T=1.48,T=1.48; TA40..(GT,ST)..EUG T=1.48,T=1.48 |
90521-37003 |
US $3.93 |
||
|
37501B
|
37501B
90521-37004 Ring, Hole Snap (For Flexible Coupling Sleeve Flange)[08.1979 - 07.1981] RA40..GT T=1.51,T=1.51; TA40..(GT,ST)..EUG T=1.51,T=1.51 |
90521-37004 |
US $3.93 |
||
|
37501B
|
37501B
90521-37005 Ring, Hole Snap (For Flexible Coupling Sleeve Flange)[08.1979 - 07.1981] RA40..GT T=1.54,T=1.54; TA40..(GT,ST)..EUG T=1.54,T=1.54 |
90521-37005 |
US $3.93 |
||
|
37501C
|
37501C
90101-12008 Bolt (For Flexible Coupling Sleeve Flange)[08.1979 - 07.1981] RA40..GT; TA40..(GT,ST)..EUG |
90101-12008 |
US $3.93 |
||
|
37502
|
37502
37502-20010
Coupling Sub-Assy, Flexible
[08.1979 - 07.1981] RA40..GT; TA40..(GT,ST)..EUG |
37502-20010 |
— | ||
|
37531
|
37531
37531-20010 Ball, Flexible Coupling Centering[08.1979 - 07.1981] RA40..GT; TA40..(GT,ST)..EUG |
37531-20010 |
US $24.90 |
||
|
37532
|
37532
37532-20010 Seat, Flexible Coupling[08.1979 - 07.1981] RA40..GT; TA40..(GT,ST)..EUG |
37532-20010 |
US $18.35 |
||
|
37542
|
37542
37542-20011 Seal, Centering (For Flexible Coupling Sleeve Flange)[08.1979 - 07.1981] RA40..GT; TA40..(GT,ST)..EUG |
37542-20011 |
US $9.03 |
||
|
9017008007
|
9017008007
90170-08007 Nut (For Propeller Shaft) |
90170-08007 |
US $2.15 |
||
|
9020112002
|
9020112002
90201-12002 WASHER |
90201-12002 |
US $2.51 |
||
|
9411571200
|
9411571200
94115-71200 Nut(For Backing Plate To Steering Knuckle Setting) |
94115-71200 |
from US $0.98 |
||
|
9451200800
|
9451200800
94512-00800 Washer, No.1 (For Propeller Shaft & Differential Setting) |
94512-00800 |
from US $0.70 |
||
