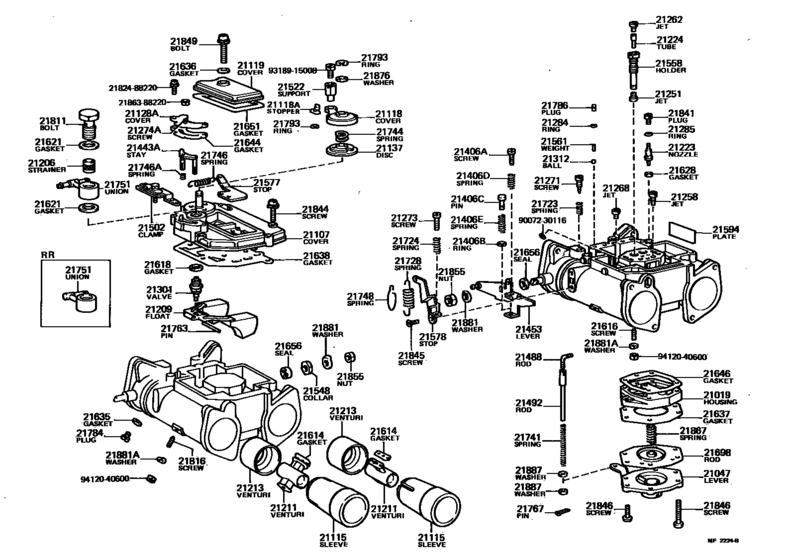

Carburetor ([08.1977 - 08.1979] (7708-7908)2TG) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21019
|
21019
21019-88101
Housing Sub-Assy, Diaphragm
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21019-88101 |
— | ||
| replacement | |||||
|
21019
|
21019
21019-88250
Housing Sub-Assy, Diaphragm
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21019-88250 |
— | ||
|
21047
|
21047
21047-88110
Lever Sub-Assy, Pump
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21047-88110 |
— | ||
|
21107
|
21107
21107-88220
Cover Sub-Assy, Bowl
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21107-88220 |
— | ||
|
21115
|
21115
21114-88220
Sleeve, Carburetor
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21114-88220 |
— | ||
|
21118
|
21118
21118-88201
Cover, Carburetor Starter
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21118-88201 |
— | ||
|
21118A
|
21118A
21574-88220
Stopper, Fast Idle
[08.1977 - 09.1977] 18RG..RA40; 2TG..TA40 |
21574-88220 |
— | ||
|
21119
|
21119
21119-88220
Cover, Jet Chamber
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21119-88220 |
— | ||
|
21128A
|
21128A
21128-88220
Cover, Float Adjust Chamber
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21128-88220 |
— | ||
|
21137
|
21137
21138-88102
Disc, Carburetor Starter
[08.1977 - 08.1979] 2TG..TA40 |
21138-88102 |
— | ||
|
21137
|
21137
21138-88254
Disc, Carburetor Starter
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21138-88254 |
— | ||
|
21206
|
21206
21294-88110
Strainer Sub-Assy
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21294-88110 |
— | ||
|
21209
|
21209
21209-88220
Float Sub-Assy
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21209-88220 |
— | ||
|
21211
|
21211
21211-88111
Venturi, 1St Small
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21211-88111 |
— | ||
|
21211
|
21211
21211-88252
Venturi, 1St Small
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21211-88252 |
— | ||
|
21213
|
21213
21213-88111 Venturi, 1St Large1ST LARGE [08.1977 - 08.1979] 2TG..TA40 |
21213-88111 |
US $53.58 |
||
| replacement | |||||
|
21213
|
21213
21213-88112
Venturi, 1St Large
[08.1977 - 08.1979] 2TG..TA40 |
21213-88112 |
— | ||
|
21213
|
21213
21213-88112
Venturi, 1St Large
[08.1979 - 07.1981] 2TG..TA40 |
21213-88112 |
— | ||
|
21223
|
21223
21223-88101
Nozzle, Pump
[08.1977 - 08.1979] 2TG..TA40 |
21223-88101 |
— | ||
|
21223
|
21223
21223-88255 Nozzle, PumpPUMP [08.1979 - 07.1981] 2TG..TA40 |
21223-88255 |
US $11.36 |
||
|
21224
|
21224
21224-88110
Tube, Main Air Bleed
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21224-88110 |
— | ||
|
21251
|
21251
21251-88201 Jet, 1St Main1ST MAIN [08.1977 - 08.1979] 2TG..TA40 |
21251-88201 |
US $10.34 |
||
|
21251
|
21251
21251-88230 Jet, 1St Main1ST MAIN [08.1979 - 07.1981] 2TG..TA40 |
21251-88230 |
US $8.88 |
||
|
21258
|
21258
21258-88101 Jet, SlowSLOW [08.1977 - 08.1979] 2TG..TA40 |
21258-88101 |
US $12.08 |
||
|
21258
|
21258
21258-88110 Jet, SlowSLOW [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21258-88110 |
US $16.74 |
||
|
21258
|
21258
21258-88251 Jet, SlowSLOW [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21258-88251 |
US $10.63 |
||
|
21262
|
21262
21262-88201 Jet, Main Air BleedMAIN AIR BLEED [08.1979 - 07.1981] 2TG..TA40 |
21262-88201 |
US $9.17 |
||
|
21262
|
21262
21262-88220 Jet, Main Air BleedMAIN AIR BLEED [08.1977 - 08.1979] 2TG..TA40 |
21262-88220 |
US $10.34 |
||
|
21268
|
21268
21267-88220 Jet, StarterSTARTER [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21267-88220 |
US $12.38 |
||
|
21268
|
21268
21267-88252
Jet, Starter
[08.1979 - 07.1981] 2TG..TA40 |
21267-88252 |
— | ||
|
21271
|
21271
21207-88250
Screw, Idle Adjusting
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21207-88250 |
— | ||
|
21271
|
21271
21271-88251 Screw, Idle AdjustingIDLE ADJUSTING [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21271-88251 |
US $11.21 |
||
|
21273
|
21273
21273-88110 Screw, Throttle AdjustingTHROTTLE ADJUSTING [08.1977 - 11.1977] 18RG..RA40; 2TG..TA40 |
21273-88110 |
US $12.23 |
||
| replacement | |||||
|
21273
|
21273
21273-88250 Screw, Throttle AdjustingTHROTTLE ADJUSTING [08.1977 - 11.1977] 18RG..RA40; 2TG..TA40 |
21273-88250 |
US $8.88 |
||
|
21273
|
21273
21273-88250 Screw, Throttle AdjustingTHROTTLE ADJUSTING [11.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21273-88250 |
US $8.88 |
||
|
21274A
|
21274A
21274-88220 Screw, Float AdjustFLOAT ADJUST [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21274-88220 |
US $6.26 |
||
|
21284
|
21284
21284-88101
Ring, O(For Passage Plug)
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21284-88101 |
— | ||
|
21285
|
21285
21285-88101
Ring, O(For Pump Nozzle Plug)
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21285-88101 |
— | ||
|
21301
|
21301
21301-88220 Valve Sub-Assy, NeedleNEEDLE [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21301-88220 |
US $33.92 |
||
|
21312
|
21312
21311-88110 Ball, SteelSTEEL [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21311-88110 |
US $9.17 |
||
|
21406A
|
21406A
21275-88250 Screw, 1St Throttle1ST THROTTLE [11.1977 - 07.1981] 18RG..RA40 FR; 2TG..TA40 FR |
21275-88250 |
US $8.74 |
||
|
21406A
|
21406A
90072-14908 Screw, 1St Throttle1ST THROTTLE [08.1977 - 11.1977] 18RG..RA40 FR; 2TG..TA40 FR |
90072-14908 |
US $3.20 |
||
| replacement | |||||
|
21406A
|
21406A
21275-88250 Screw, 1St Throttle1ST THROTTLE [08.1977 - 11.1977] 18RG..RA40 FR; 2TG..TA40 FR |
21275-88250 |
US $8.74 |
||
|
21406B
|
21406B
96160-00300 Ring, E (For Control Shaft Upper Bracket Shaft Stopper)[08.1977 - 07.1981] 18RG..RA40 FR; 2TG..TA40 FR |
96160-00300 |
US $1.22 |
||
|
21406C
|
21406C
90072-24108 Pin, 1St Throttle1ST THROTTLE [08.1977 - 07.1981] 18RG..RA40 FR; 2TG..TA40 FR |
90072-24108 |
US $5.39 |
||
|
21406D
|
21406D
21724-88251
Spring, Compression, No.1(For 1St Throttle)
[11.1977 - 07.1981] 18RG..RA40 FR; 2TG..TA40 FR |
21724-88251 |
— | ||
|
21406D
|
21406D
90072-50126 Spring, Compression, No.1(For 1St Throttle)COMPRESSION, NO.1(FOR 1ST THROTTLE) [08.1977 - 11.1977] 18RG..RA40 FR; 2TG..TA40 FR |
90072-50126 |
US $4.66 |
||
|
21406E
|
21406E
21865-88250
Spring, Compression, No.2 (For 1St Throttle)
[08.1979 - 07.1981] 18RG..RA40 FR; 2TG..TA40 FR |
21865-88250 |
— | ||
|
21406E
|
21406E
90072-50127 Spring, Compression, No.2 (For 1St Throttle)COMPRESSION, NO.2 (FOR 1ST THROTTLE) [08.1977 - 08.1979] 18RG..RA40 FR; 2TG..TA40 FR |
90072-50127 |
US $3.35 |
||
|
21443A
|
21443A
21443-88220
Stay, Float Adjust
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21443-88220 |
— | ||
|
21453
|
21453
21042-88221
Lever, 1St Throttle
[08.1977 - 08.1979] 2TG..TA40 FR |
21042-88221 |
— | ||
|
21453
|
21453
21455-88221
Lever, 1St Throttle
[08.1977 - 08.1979] 2TG..TA40 RR |
21455-88221 |
— | ||
|
21488
|
21488
21487-88220 Rod, Diaphragm ConnectingDIAPHRAGM CONNECTING [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21487-88220 |
US $11.50 |
||
| replacement | |||||
|
21488
|
21488
21487-88250
Rod, Diaphragm Connecting
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21487-88250 |
— | ||
|
21492
|
21492
21492-88111
Rod, Pump
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21492-88111 |
— | ||
|
21502
|
21502
21502-88220
Clamp Sub-Assy, Choke Wire
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21502-88220 |
— | ||
|
21522
|
21522
21522-88220
Support, Wire
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21522-88220 |
— | ||
|
21548
|
21548
21548-88111
Collar, Throttle Lever
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21548-88111 |
— | ||
|
21558
|
21558
21558-88110
Holder, Main Jet
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21558-88110 |
— | ||
|
21561
|
21561
21561-88220 Weight, Pump DischargePUMP DISCHARGE [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21561-88220 |
US $4.22 |
||
|
21577
|
21577
21579-88210 Stop, Starter Back SpringSTARTER BACK SPRING [08.1977 - 08.1979] 18RG..RA40 FR; 2TG..TA40 FR |
21579-88210 |
US $13.54 |
||
|
21578
|
21578
21578-88222
Stop, Throttle Return Spring
[08.1977 - 08.1979] 2TG..TA40 FR |
21578-88222 |
— | ||
|
21578
|
21578
21578-88223 Stop, Throttle Return SpringTHROTTLE RETURN SPRING [08.1977 - 08.1979] 2TG..TA40 RR |
21578-88223 |
US $15.72 |
||
|
21594
|
21594
21594-88220
Plate, Float Chamber
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21594-88220 |
— | ||
|
21614
|
21614
21614-88110
Gasket, Venturi
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21614-88110 |
— | ||
|
21614
|
21614
21614-88251 Gasket, VenturiVENTURI [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21614-88251 |
US $3.20 |
||
|
21616
|
21616
21824-88210 Screw, Small Venturi SetSMALL VENTURI SET [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21824-88210 |
US $9.46 |
||
| replacement | |||||
|
21616
|
21616
21832-88220 Screw, Small Venturi Set, No.1SMALL VENTURI SET, NO.1 [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21832-88220 |
US $10.34 |
||
|
21618
|
21618
21618-88220 Gasket, Needle Valve SeatNEEDLE VALVE SEAT [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21618-88220 |
US $3.35 |
||
|
21621
|
21621
21621-88110 Gasket, Union NippleUNION NIPPLE [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21621-88110 |
US $9.17 |
||
|
21628
|
21628
21628-88101
Gasket, Pump Jet Screw
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21628-88101 |
— | ||
|
21635
|
21635
21618-88120
Gasket, Slow Passage Plug
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21618-88120 |
— | ||
|
21636
|
21636
21636-88101
Gasket, Float Chamber Plug
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21636-88101 |
— | ||
|
21637
|
21637
21637-88101
Gasket, Pump Cylinder
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21637-88101 |
— | ||
|
21638
|
21638
21638-88220 Gasket, Bowl LeverBOWL LEVER [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21638-88220 |
US $10.34 |
||
|
21638
|
21638
21638-88251 Gasket, Bowl LeverBOWL LEVER [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21638-88251 |
US $9.32 |
||
|
21644
|
21644
21644-88220
Gasket, Float Adjust Chamber Cover
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21644-88220 |
— | ||
|
21644
|
21644
21644-88250 Gasket, Float Adjust Chamber CoverFLOAT ADJUST CHAMBER COVER [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21644-88250 |
US $5.24 |
||
|
21646
|
21646
21646-88111
Gasket, Diaphragm Housing, No.1
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21646-88111 |
— | ||
|
21651
|
21651
21649-88111
Gasket, Jet Chamber Cover
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21649-88111 |
— | ||
|
21651
|
21651
21649-88250 Gasket, Jet Chamber CoverJET CHAMBER COVER [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21649-88250 |
US $6.84 |
||
|
21656
|
21656
21657-88110 Seal, Throttle ShaftTHROTTLE SHAFT [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21657-88110 |
US $5.68 |
||
|
21698
|
21698
21707-88220
Diaphragm
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21707-88220 |
— | ||
|
21723
|
21723
21724-88110 Spring, Idle AdjustingIDLE ADJUSTING [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21724-88110 |
US $5.68 |
||
|
21724
|
21724
21724-88110 Spring, Idle AdjustingIDLE ADJUSTING [08.1977 - 11.1977] 18RG..RA40; 2TG..TA40 |
21724-88110 |
US $5.68 |
||
|
21724
|
21724
21724-88251
Spring, Compression, No.1(For 1St Throttle)
[11.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21724-88251 |
— | ||
|
21728
|
21728
21729-88220
Spring, Throttle Valve Return
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21729-88220 |
— | ||
|
21728
|
21728
21729-88250
Spring, Throttle Valve Return
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21729-88250 |
— | ||
|
21741
|
21741
21741-88110
Spring, Pump
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21741-88110 |
— | ||
|
21744
|
21744
21738-88110 Spring, Carburetor Starter DiscCARBURETOR STARTER DISC [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21738-88110 |
US $12.08 |
||
|
21744
|
21744
21738-88250
Spring, Carburetor Starter Disc
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21738-88250 |
— | ||
|
21746
|
21746
21737-88201
Spring, Starter Back
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21737-88201 |
— | ||
|
21746
|
21746
21737-88252 Spring, Starter BackSTARTER BACK [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21737-88252 |
US $9.32 |
||
| replacement | |||||
|
21746
|
21746
21737-88251
Spring, Starter Back
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21737-88251 |
— | ||
|
21746A
|
21746A
21746-88220 Spring, Float AdjustFLOAT ADJUST [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21746-88220 |
US $3.64 |
||
|
21748
|
21748
21748-88230
Damper, Throttle Return Spring
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21748-88230 |
— | ||
|
21748
|
21748
21748-88250
Damper, Throttle Return Spring
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21748-88250 |
— | ||
|
21751
|
21751
21751-88220
Union, Nipple
[08.1977 - 08.1979] 18RG..RA40 FR; 2TG..TA40 FR |
21751-88220 |
— | ||
| replacement | |||||
|
21751
|
21751
21751-88250
Union, Nipple
[08.1977 - 08.1979] 18RG..RA40 FR; 2TG..TA40 FR |
21751-88250 |
— | ||
|
21751
|
21751
21751-88250
Union, Nipple
[08.1979 - 07.1981] 18RG..RA40 FR; 2TG..TA40 FR |
21751-88250 |
— | ||
|
21751
|
21751
21755-88220 Union, NippleNIPPLE [08.1977 - 07.1981] 2TG..TA40 RR |
21755-88220 |
US $52.27 |
||
|
21751
|
21751
21755-88250 Union, NippleNIPPLE [08.1979 - 07.1981] 18RG..RA40 RR; 2TG..TA40 RR |
21755-88250 |
US $68.58 |
||
|
21763
|
21763
21763-88111
Pin, Float Lever
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21763-88111 |
— | ||
|
21767
|
21767
21767-88110 Pin, Diaphragm RodDIAPHRAGM ROD [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21767-88110 |
US $5.82 |
||
|
21784
|
21784
21784-88110 Plug, Slow PassageSLOW PASSAGE [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21784-88110 |
US $15.72 |
||
|
21786
|
21786
21787-88110
Plug, Pump Passage
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21787-88110 |
— | ||
|
21793
|
21793
21792-88110 Ring, Carburetor Starter SnapCARBURETOR STARTER SNAP [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21792-88110 |
US $7.13 |
||
|
21811
|
21811
21811-88110
Bolt, Union Nipple
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21811-88110 |
— | ||
|
21816
|
21816
21832-88110 Screw, Small Venturi SetSMALL VENTURI SET, NO.1 [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21832-88110 |
US $9.46 |
||
| replacement | |||||
|
21816
|
21816
21832-88220 Screw, Small Venturi Set, No.1SMALL VENTURI SET, NO.1 [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21832-88220 |
US $10.34 |
||
|
21816
|
21816
21832-88220 Screw, Small Venturi Set, No.1SMALL VENTURI SET, NO.1 [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21832-88220 |
US $10.34 |
||
|
21841
|
21841
21829-88101
Plug, Pump Nozzle
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21829-88101 |
— | ||
|
21844
|
21844
21844-88110 Screw, Choke LeverCHOKE LEVER [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21844-88110 |
US $5.24 |
||
|
21845
|
21845
21845-88111
Screw(For Lever Set)
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21845-88111 |
— | ||
|
21846
|
21846
21847-88220 Screw, Diaphragm Housing SetDIAPHRAGM HOUSING SET [08.1977 - 07.1981] 18RG..RA40 L=22; 2TG..TA40 L=22 |
21847-88220 |
US $3.35 |
||
|
21846
|
21846
21847-88252 Screw, Diaphragm Housing SetDIAPHRAGM HOUSING SET [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21847-88252 |
US $3.64 |
||
|
21846
|
21846
21849-88220
Screw, Diaphragm Housing Set
[08.1977 - 07.1981] 18RG..RA40 L=16; 2TG..TA40 L=16 |
21849-88220 |
— | ||
|
21849
|
21849
21842-88221 Bolt, Chamber Cover WingCHAMBER COVER WING [08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21842-88221 |
US $4.22 |
||
|
21849
|
21849
21847-88250 Bolt, Chamber Cover WingCHAMBER COVER WING [08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21847-88250 |
US $3.64 |
||
|
21855
|
21855
21854-88110 Nut, Throttle ShaftTHROTTLE SHAFT [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21854-88110 |
US $5.68 |
||
|
21867
|
21867
21867-88110 Spring, DiaphragmDIAPHRAGM [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21867-88110 |
US $11.36 |
||
|
21876
|
21876
21876-88110
Washer, Carburetor Starter
[08.1977 - 08.1979] 18RG..RA40; 2TG..TA40 |
21876-88110 |
— | ||
|
21876
|
21876
21876-88250
Washer, Carburetor Starter
[08.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
21876-88250 |
— | ||
|
21881
|
21881
21881-88110 Washer, Lock(For Throttle Shaft)LOCK(FOR THROTTLE SHAFT) [08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21881-88110 |
US $5.24 |
||
|
21881A
|
21881A
94511-00600 Washer, Lock, No.2[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
94511-00600 |
US $2.15 |
||
|
21887
|
21887
21887-88110 Washer(For Connecting Link Setting)[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
21887-88110 |
US $5.24 |
||
|
2182488220
|
2182488220
21824-88220
Screw, Set(for 1st Idle Cam Follower Set)
|
21824-88220 |
— | ||
|
2186388220
|
2186388220
21863-88220 Wire(for Float) |
21863-88220 |
US $4.08 |
||
|
9007230116
|
9007230116
90072-30116 New Genuine Part |
90072-30116 |
US $8.74 |
||
|
9318915008
|
9318915008
93189-15008
New Genuine Part
|
93189-15008 |
— | ||
|
9412040600
|
9412040600
94120-40600 Nut, Wire Adjusting, No.1 |
94120-40600 |
US $3.05 |
||
