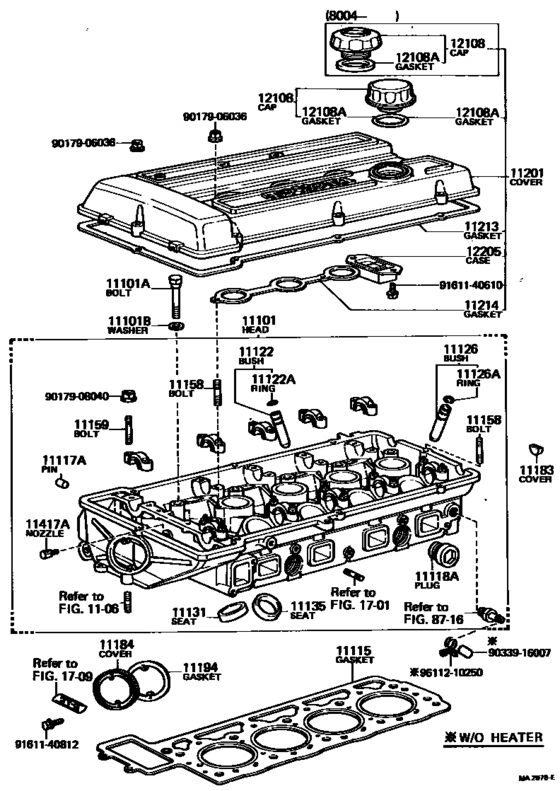

Cylinder Head ([08.1977 - ] (7708- )2TG) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-29295 Head Sub-Assy, CylinderCYLINDER [08.1977 - 07.1981] 2TG..TA40 |
11101-29295 |
US $4,207.84 |
||
| replacement | |||||
|
11101
|
11101
11101-29296 Head Sub-Assy, CylinderCYLINDER [08.1977 - 07.1981] 2TG..TA40 |
11101-29296 |
US $4,207.84 |
||
|
11101A
|
11101A
90072-70103 Bolt(For Cylinder Head Set)[08.1977 - 07.1981] 18RG..RA40 *12-1.25PX146-22; 2TG..TA40 *12-1.25PX146-22 |
90072-70103 |
US $13.26 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90201-12222 |
from US $1.07 |
||
|
11115
|
11115
11115-88220
Gasket, Cylinder Head
[08.1977 - 07.1981] 2TG..TA40 |
11115-88220 |
— | ||
|
11117A
|
11117A
90072-33614 Plug, W/head Taper Screw, No.1[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90072-33614 |
US $3.93 |
||
|
11118A
|
11118A
90341-32031 Plug, W/head Straight Screw, No.2[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90341-32031 |
US $7.16 |
||
|
11122
|
11122
11122-88250
Bush, Intake Valve Guide
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
11122-88250 |
— | ||
|
11122A
|
11122A
90520-13092 Ring, Shaft Snap (For Valve Guide Bush)[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90520-13092 |
US $2.06 |
||
|
11126
|
11126
11122-88250
Bush, Intake Valve Guide
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
11122-88250 |
— | ||
|
11126A
|
11126A
90520-13092 Ring, Shaft Snap (For Valve Guide Bush)[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90520-13092 |
US $2.06 |
||
|
11131
|
11131
11131-26010 Seat, Intake ValveINTAKE VALVE [08.1977 - 07.1981] 2TG..TA40 STD |
11131-26010 |
US $25.77 |
||
|
11131
|
11131
11132-26011 Seat, Intake ValveINTAKE VALVE [08.1977 - 07.1981] 2TG..TA40 O/S 0.03 |
11132-26011 |
US $26.21 |
||
|
11135
|
11135
11135-26012 Seat, Exhaust ValveEXHAUST VALVE [08.1977 - 07.1981] 2TG..TA40 STD |
11135-26012 |
US $20.97 |
||
|
11135
|
11135
11136-26011 Seat, Exhaust ValveEXHAUST VALVE [08.1977 - 07.1981] 2TG..TA40 O/S 0.03 |
11136-26011 |
US $21.55 |
||
|
11158
|
11158
90072-11617
Bolt, Stud(For Head To Cylinder Head Cover)
[08.1977 - 07.1981] 18RG..RA40 L=35,S=11&11; 2TG..TA40 L=35,S=11&11 |
90072-11617 |
— | ||
| replacement | |||||
|
11158
|
11158
90116-06027
Bolt, Stud(For Head To Cylinder Head Cover)
[08.1977 - 07.1981] 18RG..RA40 L=35,S=11&11; 2TG..TA40 L=35,S=11&11 |
90116-06027 |
— | ||
|
11159
|
11159
90072-11601
Bolt, Stud(For Head To Camshaft Bearing Cap)
[08.1977 - 02.1981] 18RG..RA40 L=58.5,S=18&17.5; 2TG..TA40 L=58.5,S=18&17.5 |
90072-11601 |
— | ||
|
11159
|
11159
90116-08080
Bolt, Stud(For Head To Camshaft Bearing Cap)
[12.1978 - 02.1981] 18RG..RA40 L=51,S=16&16; 2TG..TA40 L=51,S=16&16 |
90116-08080 |
— | ||
| replacement | |||||
|
11159
|
11159
92132-60835
Bolt, Stud(For Head To Camshaft Bearing Cap)
[12.1978 - 02.1981] 18RG..RA40 L=51,S=16&16; 2TG..TA40 L=51,S=16&16 |
92132-60835 |
— | ||
|
11159
|
11159
92132-60835
Bolt, Stud(For Head To Camshaft Bearing Cap)
[08.1977 - 12.1978] 18RG..RA40 L=51,S=16&16; 2TG..TA40 L=51,S=16&16 |
92132-60835 |
— | ||
|
11183
|
11183
11183-88210 Plug, SemicircularSEMICIRCULAR [08.1977 - 10.1979] 18RG..RA40; 2TG..TA40 |
11183-88210 |
US $14.52 |
||
|
11183
|
11183
11183-88260
Plug, Semicircular
[10.1979 - 07.1981] 18RG..RA40; 2TG..TA40 |
11183-88260 |
— | ||
|
11184
|
11184
11184-88260
Cover, Cylinder Head, Front
[08.1977 - 09.1978] 2TG..TA40 |
11184-88260 |
— | ||
|
11194
|
11194
11194-88260
Gasket, Cylinder Head Front Cover
[08.1977 - 09.1978] 2TG..TA40 |
11194-88260 |
— | ||
|
11201
|
11201
11201-29066 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [08.1977 - 05.1978] 2TG..TA40 |
11201-29066 |
US $658.11 |
||
| replacements | |||||
|
11201
|
11201
11201-29069 Cover Sub-Assy, Cylinder Head[08.1977 - 05.1978] 2TG..TA40 |
11201-29069 |
US $656.66 |
||
|
11201
|
11201
12261-88220
Hose, Ventilation, No.3
[08.1977 - 05.1978] 2TG..TA40 |
12261-88220 |
— | ||
|
11201
|
11201
11201-29067 Cover Sub-Assy, Cylinder HeadCYLINDER HEAD [05.1978 - 10.1979] 2TG..TA40 |
11201-29067 |
US $592.59 |
||
| replacement | |||||
|
11201
|
11201
11201-29069 Cover Sub-Assy, Cylinder Head[05.1978 - 10.1979] 2TG..TA40 |
11201-29069 |
US $656.66 |
||
|
11201
|
11201
11201-29069 Cover Sub-Assy, Cylinder Head[10.1979 - 07.1981] 2TG..TA40 |
11201-29069 |
US $656.66 |
||
|
11213
|
11213
11213-88221
Gasket, Cylinder Head Cover
[08.1977 - 10.1979] 2TG..TA40 |
11213-88221 |
— | ||
|
11213
|
11213
11213-88260
Gasket, Cylinder Head Cover
[10.1979 - 07.1981] 2TG..TA40 |
11213-88260 |
— | ||
|
11214
|
11214
11214-88221
Gasket, Cylinder Head Cover, No.2
[08.1977 - 10.1979] 2TG..TA40 |
11214-88221 |
— | ||
|
11214
|
11214
11214-88260
Gasket, Cylinder Head Cover, No.2
[10.1979 - 07.1981] 2TG..TA40 |
11214-88260 |
— | ||
|
11417A
|
11417A
90072-73103
Nozzle, Oil
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
90072-73103 |
— | ||
|
12108
|
12108
12108-13010
Cap Sub-Assy, Oil Filler
[04.1980 - 07.1981] 2TG..TA40 |
12108-13010 |
— | ||
|
12108
|
12108
12108-49015 Cap Sub-Assy, Oil Filler[08.1977 - 08.1978] 18R,18RC..RA40; 2TG..TA40 |
12108-49015 |
US $17.30 |
||
|
12108A
|
12108A
90301-44049
Gasket(For Oil Filler Cap)
[08.1977 - 04.1980] 2TG..TA40 |
90301-44049 |
— | ||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[04.1980 - 07.1981] 2TG..TA40 |
90430-37140 |
from US $1.17 |
||
|
12205
|
12205
12205-88210
Case Sub-Assy, Ventilation
[08.1977 - 07.1981] 18RG..RA40; 2TG..TA40 |
12205-88210 |
— | ||
|
9017906036
|
9017906036
90179-06036
Nut, Cap(For Cylinder Head Cover)
|
90179-06036 |
— | ||
| replacement | |||||
|
9017906036
|
9017906036
90179-06299 Nut, Wire Adjusting, No.1 |
90179-06299 |
from US $0.66 |
||
|
9017908040
|
9017908040
90179-08040 Nut, Cap(For Cylinder Head Cover) |
90179-08040 |
from US $1.03 |
||
|
9033916007
|
9033916007
90339-16007
Plug
|
90339-16007 |
— | ||
| replacement | |||||
|
9033916007
|
9033916007
90339-16001 Plug, Heater Water |
90339-16001 |
from US $2.98 |
||
|
9161140610
|
9161140610
91611-40610
Bolt(For Dust Cover To Steering Knuckle Arm Setting)
|
91611-40610 |
— | ||
| replacement | |||||
|
9161140610
|
9161140610
91611-B0610 Bolt (For Transfer Oil Receiver No.1) |
91611-B0610 |
from US $0.80 |
||
|
9161140812
|
9161140812
91611-40812
Bolt(for Drive Plate & Torque Converter Setting)
|
91611-40812 |
— | ||
| replacement | |||||
|
9161140812
|
9161140812
91611-B0812 Bolt |
91611-B0812 |
from US $0.76 |
||
|
9611210250
|
9611210250
96112-10250 Clamp Or Clip, Hose(For Oil Cooler Hose) |
96112-10250 |
from US $2.28 |
||
