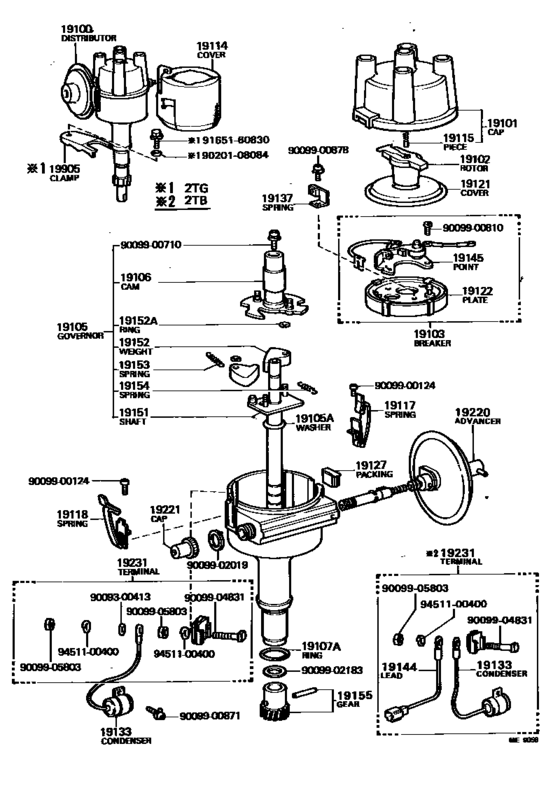

Distributor ([08.1977 - 08.1979] (7708-7908)2T#) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-88223
Distributor Assy
[08.1977 - 08.1979] 2TG..TA40 |
19100-88223 |
— | ||
|
19100
|
19100
19100-88224
Distributor Assy
[08.1979 - 07.1981] 2TG..TA40 |
19100-88224 |
— | ||
|
19101
|
19101
19101-25070 Cap Sub-Assy, Distributor[08.1979 - 07.1981] 18R,18RC..RA40; 2TG..TA40 |
19101-25070 |
US $35.25 |
||
|
19101
|
19101
19101-33012 Cap Sub-Assy, DistributorDISTRIBUTOR [08.1977 - 08.1979] 18R,18RC..RA40; 2T#..TA40 |
19101-33012 |
US $44.69 |
||
|
19102
|
19102
19102-26150
Rotor Sub-Assy, Distributor
[08.1977 - 07.1981] 2T#..TA40; 18R,18RC..RA40..EUR |
19102-26150 |
— | ||
| replacement | |||||
|
19102
|
19102
19102-26151 Rotor Sub-Assy, Distributor[08.1977 - 07.1981] 2T#..TA40; 18R,18RC..RA40..EUR |
19102-26151 |
US $19.15 |
||
|
19103
|
19103
19103-26210 Breaker Sub-Assy, DistributorDISTRIBUTOR [10.1978 - 08.1979] 2TG..TA40 |
19103-26210 |
US $58.68 |
||
|
19103
|
19103
19103-33013 Breaker Sub-Assy, Distributor[08.1977 - 10.1978] 18R,18RC..RA40; 2T#..TA40 |
19103-33013 |
US $58.24 |
||
|
19103
|
19103
19103-88224 Breaker Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 07.1981] 2TG..TA40 |
19103-88224 |
US $55.33 |
||
|
19105
|
19105
19105-88222
Governor Sub-Assy
[08.1977 - 08.1979] 2TG..TA40 |
19105-88222 |
— | ||
|
19105
|
19105
19105-88224
Governor Sub-Assy
[08.1979 - 07.1981] 2TG..TA40 |
19105-88224 |
— | ||
|
19105A
|
19105A
90099-01385
Washer(For Governor Shaft Thrust)
[08.1977 - 07.1981] 18R,18RC..RA40 T=2.5,T=2.5; 2T#..TA40 T=2.5,T=2.5 |
90099-01385 |
— | ||
|
19105A
|
19105A
90099-01386
Washer(For Governor Shaft Thrust)
[08.1977 - 07.1981] 18R,18RC..RA40 T=2.7,T=2.7; 2T#..TA40 T=2.7,T=2.7 |
90099-01386 |
— | ||
|
19105A
|
19105A
90099-01387
Washer(For Governor Shaft Thrust)
[08.1977 - 07.1981] 18R,18RC..RA40 T=2.9,T=2.9; 2T#..TA40 T=2.9,T=2.9 |
90099-01387 |
— | ||
|
19105A
|
19105A
90099-01412
Washer(For Governor Shaft Thrust)
[08.1977 - 07.1981] 18R,18RC..RA40 T=2.3,T=2.3; 2T#..TA40 T=2.3,T=2.3 |
90099-01412 |
— | ||
|
19106
|
19106
19106-26010 Cam Sub-Assy, DistributorDISTRIBUTOR [08.1977 - 08.1979] 2TG..TA40 |
19106-26010 |
US $25.48 |
||
|
19106
|
19106
19106-38011 Cam Sub-Assy, DistributorDISTRIBUTOR [08.1979 - 07.1981] 2T#..TA40 |
19106-38011 |
US $29.99 |
||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1977 - 07.1981] 18R#..RA40; 2T#..TA40 |
19115-50010 |
— | ||
|
19117
|
19117
19117-33011
Spring, Distributor Cap, A
[08.1977 - 08.1979] 18R,18RC..RA40; 2T#..TA40 |
19117-33011 |
— | ||
|
19118
|
19118
19118-33011
Spring, Distributor Cap, B
[08.1977 - 08.1979] 18R,18RC..RA40; 2T#..TA40 |
19118-33011 |
— | ||
|
19121
|
19121
19121-33011
Cover, Dust Proof
[08.1977 - 08.1979] 18R,18RC..RA40; 2T#..TA40 |
19121-33011 |
— | ||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[08.1979 - 07.1981] 18R,18RC..RA40; 2TG..TA40 |
19121-38030 |
— | ||
|
19122
|
19122
19122-26210
Plate, Stationary, Distributor
[10.1978 - 08.1979] 2TG..TA40 |
19122-26210 |
— | ||
|
19122
|
19122
19122-33013 Plate, Stationary, Distributor[08.1977 - 10.1978] 18R,18RC..RA40; 2T#..TA40 |
19122-33013 |
US $24.64 |
||
|
19122
|
19122
19122-88260
Plate, Stationary, Distributor
[08.1979 - 07.1981] 2TG..TA40 |
19122-88260 |
— | ||
|
19127
|
19127
19127-88222
Packing, Dust Proof
[08.1977 - 08.1979] 2T#..TA40 |
19127-88222 |
— | ||
| replacement | |||||
|
19127
|
19127
19127-88220
Packing, Dust Proof
[08.1977 - 08.1979] 2T#..TA40 |
19127-88220 |
— | ||
|
19127
|
19127
19127-88251
Packing, Dust Proof
[08.1979 - 07.1981] 18R,18RC..RA40; 2TG..TA40 |
19127-88251 |
— | ||
|
19133
|
19133
90099-52059 Condenser, Distributor[08.1977 - 08.1979] 18R,18RC..RA40; 2T#..TA40 |
90099-52059 |
from US $6.12 |
||
|
19133
|
19133
90099-52068 Condenser, DistributorDISTRIBUTOR [08.1979 - 07.1981] 18R,18RC..RA40; 2TG..TA40 |
90099-52068 |
from US $8.33 |
||
|
19137
|
19137
19137-33012
Spring Sub-Assy, Damper
[08.1977 - 07.1981] 18R,18RC..RA40; 2T#..TA40 |
19137-33012 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[08.1977 - 08.1979] 18R#..RA40; 2T#..TA40 |
19145-26060 |
from US $9.20 |
||
|
19151
|
19151
19151-25011 Shaft, GovernorGOVERNOR [08.1977 - 08.1979] 2T#..TA40 |
19151-25011 |
US $38 |
||
|
19151
|
19151
19151-88260
Shaft, Governor
[08.1979 - 07.1981] 2TG..TA40 |
19151-88260 |
— | ||
|
19152
|
19152
19152-45060
Weight, Governor
[08.1977 - 07.1981] 18R,18RC..RA40; 2TG..TA40 |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[08.1977 - 07.1981] 18R,18RC..RA40; 2TG..TA40 |
19152-44170 |
— | ||
|
19152A
|
19152A
90099-07104
Ring, Snap(For Governor Weight)
[08.1977 - 05.1979] 2T#..TA40 |
90099-07104 |
— | ||
|
19152A
|
19152A
90099-07109
Ring, Snap(For Governor Weight)
[05.1979 - 07.1981] 2T#..TA40 |
90099-07109 |
— | ||
|
19153
|
19153
19153-88222
Spring, Governor, A
[08.1977 - 08.1979] 2TG..TA40 |
19153-88222 |
— | ||
|
19153
|
19153
19153-88224
Spring, Governor, A
[08.1979 - 07.1981] 2TG..TA40 |
19153-88224 |
— | ||
|
19154
|
19154
19154-88222
Spring, Governor, B
[08.1977 - 08.1979] 2TG..TA40 |
19154-88222 |
— | ||
|
19154
|
19154
19154-88224
Spring, Governor, B
[08.1979 - 07.1981] 2TG..TA40 |
19154-88224 |
— | ||
|
19155
|
19155
19195-88220 Gear, Spiral, Distributor[08.1977 - 07.1981] 2TG..TA40 |
19195-88220 |
US $46.30 |
||
|
19220
|
19220
19220-88221
Advancer Assy, Vacuum, Distributor
[08.1977 - 08.1979] 2TG..TA40 |
19220-88221 |
— | ||
|
19220
|
19220
19220-88224
Advancer Assy, Vacuum, Distributor
[08.1979 - 07.1981] 2TG..TA40 |
19220-88224 |
— | ||
|
19221
|
19221
19221-30030
Cap, Adjuster, Distributor
[08.1977 - 08.1979] 18R#..RA40; 2T#..TA40 |
19221-30030 |
— | ||
| replacement | |||||
|
19221
|
19221
19221-60040
Cap, Adjuster, Distributor
[08.1977 - 08.1979] 18R#..RA40; 2T#..TA40 |
19221-60040 |
— | ||
|
19231
|
19231
19231-33011
Terminal, Distributor
[08.1977 - 08.1979] 2TG..TA40 |
19231-33011 |
— | ||
|
19231
|
19231
19231-88260
Terminal, Distributor
[08.1979 - 07.1981] 2TG..TA40 |
19231-88260 |
— | ||
|
19905
|
19905
19955-25010 Clamp Sub-Assy, DistributorDISTRIBUTOR [08.1977 - 08.1979] 2TG..TA40 |
19955-25010 |
US $14.27 |
||
|
9009300413
|
9009300413
90093-00413
New Genuine Part
|
90093-00413 |
— | ||
|
9009900124
|
9009900124
90099-00124
New Genuine Part
|
90099-00124 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900810
|
9009900810
90099-00810
SCREW
|
90099-00810 |
— | ||
|
9009900871
|
9009900871
90099-00871
New Genuine Part
|
90099-00871 |
— | ||
|
9009900878
|
9009900878
90099-00878
New Genuine Part
|
90099-00878 |
— | ||
|
9009902019
|
9009902019
90099-02019
New Genuine Part
|
90099-02019 |
— | ||
|
9009902183
|
9009902183
90099-02183
New Genuine Part
|
90099-02183 |
— | ||
|
9009904831
|
9009904831
90099-04831
Terminal, Distributor, No.2
|
90099-04831 |
— | ||
| replacement | |||||
|
9009904831
|
9009904831
19232-22010
Terminal, Distributor, No.2
|
19232-22010 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9020108084
|
9020108084
90201-08084 New Genuine Part |
90201-08084 |
US $3.23 |
||
|
9165160830
|
9165160830
91651-60830 Bolt (For Transfer Power Take-Off Cover) |
91651-60830 |
from US $1.61 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.58 |
||
