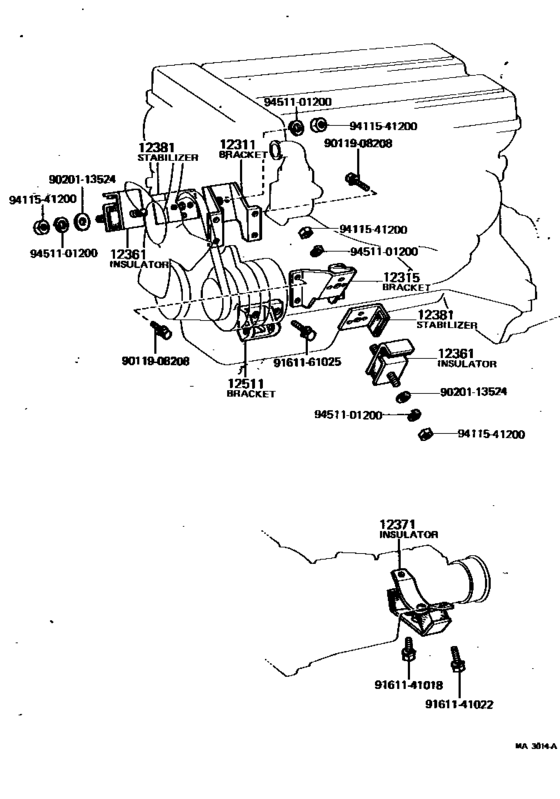

Mounting ([08.1977 - ] (7708- )2TG) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
12311
|
12311
12311-25040 Bracket, Engine Mounting, Front No.1 RhENGINE MOUNTING, FRONT NO.1 RH [08.1977 - 09.1978] 2T,2TG..TA40 |
12311-25040 |
US $51.25 |
||
| replacement | |||||
|
12311
|
12311
12311-25051
Bracket, Engine Mounting, Front No.1 Rh
[08.1977 - 09.1978] 2T,2TG..TA40 |
12311-25051 |
— | ||
|
12311
|
12311
12311-25050
Bracket, Engine Mounting, Front No.1 Rh
[09.1978 - 01.1980] 2T,2TG..TA40 |
12311-25050 |
— | ||
| replacement | |||||
|
12311
|
12311
12311-25051
Bracket, Engine Mounting, Front No.1 Rh
[09.1978 - 01.1980] 2T,2TG..TA40 |
12311-25051 |
— | ||
|
12311
|
12311
12311-25051
Bracket, Engine Mounting, Front No.1 Rh
[01.1980 - 07.1981] 2T,2TG..TA40 |
12311-25051 |
— | ||
|
12315
|
12315
12312-25020 Bracket, Engine Mounting, Front No.1 LhENGINE MOUNTING, FRONT NO.1 LH [08.1977 - 09.1978] 2T#..TA40 |
12312-25020 |
US $41.79 |
||
| replacement | |||||
|
12315
|
12315
12312-25040
Bracket, Engine Mounting, Front No.1 Lh
[08.1977 - 09.1978] 2T#..TA40 |
12312-25040 |
— | ||
|
12315
|
12315
12312-25040
Bracket, Engine Mounting, Front No.1 Lh
[09.1978 - 01.1980] 2T#..TA40 |
12312-25040 |
— | ||
|
12315
|
12315
12312-25041
Bracket, Engine Mounting, Front No.1 Lh
[01.1980 - 07.1981] 2T#..TA40 |
12312-25041 |
— | ||
|
12361
|
12361
12361-25013
Insulator, Engine Mounting, Front
[08.1977 - 03.1979] 2TG..TA40 |
12361-25013 |
— | ||
| replacement | |||||
|
12361
|
12361
12361-25014 Insulator, Engine Mounting, Front[08.1977 - 03.1979] 2TG..TA40 |
12361-25014 |
US $62.16 |
||
|
12361
|
12361
12361-25014 Insulator, Engine Mounting, Front[03.1979 - 07.1981] 2TG..TA40 |
12361-25014 |
US $62.16 |
||
|
12371
|
12371
12371-33010 Insulator, Engine Mounting, Rear No.1[08.1977 - 07.1981] 2T#..TA40..MTM |
12371-33010 |
US $60.65 |
||
|
12381
|
12381
12381-25010
Stabilizer, Engine Mounting
[08.1977 - 09.1978] 2T#..TA40 |
12381-25010 |
— | ||
|
12511
|
12511
12511-25010
Bracket, Alternator, No.1
[08.1977 - 07.1981] 2T#..TA40 |
12511-25010 |
— | ||
|
9011908208
|
9011908208
90119-08208 Bolt (For Roller Bearing Retainer) |
90119-08208 |
US $1.31 |
||
|
9020113524
|
9020113524
90201-13524 New Genuine Part |
90201-13524 |
US $3.06 |
||
|
9161141018
|
9161141018
91611-41018 Bolt(for Transaxle & Engine Setting) |
91611-41018 |
US $2.04 |
||
| replacement | |||||
|
9161141018
|
9161141018
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
from US $1.07 |
||
|
9161141022
|
9161141022
91611-41022 Bolt (for Transmission Control Cable Bracket) |
91611-41022 |
US $2.91 |
||
| replacement | |||||
|
9161141022
|
9161141022
91612-61022 Bolt (For Transmission Control Cable Bracket) |
91612-61022 |
US $2.33 |
||
|
9161161025
|
9161161025
91611-61025
Bolt(For Transaxle & Engine Setting)
|
91611-61025 |
— | ||
| replacement | |||||
|
9161161025
|
9161161025
91612-61025 Bolt (For Control Shaft Cover) |
91612-61025 |
from US $0.96 |
||
|
9411541200
|
9411541200
94115-41200
Nut
|
94115-41200 |
— | ||
| replacement | |||||
|
9411541200
|
9411541200
94130-61200 Nut |
94130-61200 |
from US $0.98 |
||
|
9451101200
|
9451101200
94511-01200 WASHER |
94511-01200 |
from US $0.60 |
||
