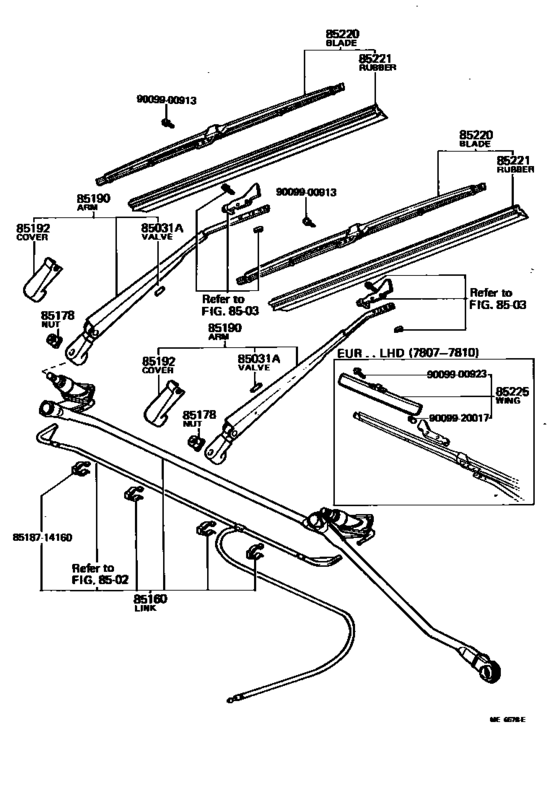

Windshield Wiper ([08.1977 - ] (7708- )) Diagram Toyota CELICA
- Year
- 1977 - 1980
- Sales region
- Europe
- Frame
- TA40
- grade
- GT
- body
- LB
- ENGINE
- 2TG
- TRANSMISSION
- MTM
- From
- 08.1977
- To
- 08.1980
- Gear Shift Type
- 5F
- Driver's Position
- RHD
- Destination
- EUR
- Destination 2
- EUG
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031A
|
85031A
85031-14010
Valve, Rear Washer Hose
[08.1978 - 07.1981] RA40,TA40 |
85031-14010 |
— | ||
| replacement | |||||
|
85031A
|
85031A
85031-30010 Valve Sub-Assy, Washer[08.1978 - 07.1981] RA40,TA40 |
85031-30010 |
from US $1.54 |
||
|
85160
|
85160
85160-14141 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 07.1978] RA40,TA40..RHD |
85160-14141 |
US $180.54 |
||
| replacements | |||||
|
85160
|
85160
85349-89122 Valve Sub-Assy, Washer[08.1977 - 07.1978] RA40,TA40..RHD |
85349-89122 |
from US $1.25 |
||
|
85160
|
85160
85160-14142 Link Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 07.1978] RA40,TA40..RHD |
85160-14142 |
US $182 |
||
|
85160
|
85160
85160-14142 Link Assy, Windshield WiperWINDSHIELD WIPER [07.1978 - 07.1981] RA40,TA40..RHD |
85160-14142 |
US $182 |
||
|
85178
|
85178
90179-08015 Nut (For Front Wiper Arm Setting)[08.1977 - 09.1978] RA40,TA40 |
90179-08015 |
from US $1.50 |
||
|
85178
|
85178
90179-08026 Nut (For Front Wiper Arm Setting)[09.1978 - 07.1981] RA40,TA40 |
90179-08026 |
US $1.43 |
||
|
85190
|
85190
85190-14191 Arm Assy, Windshield WiperWINDSHIELD WIPER [09.1977 - 02.1978] RA40,TA40..RHD DRIVER SIDE |
85190-14191 |
US $91.73 |
||
| replacement | |||||
|
85190
|
85190
85190-14193 Arm Assy, Windshield WiperWINDSHIELD WIPER [09.1977 - 02.1978] RA40,TA40..RHD DRIVER SIDE |
85190-14193 |
US $91.73 |
||
|
85190
|
85190
85190-14193 Arm Assy, Windshield WiperWINDSHIELD WIPER [02.1978 - 10.1978] RA40,TA40..RHD DRIVER SIDE |
85190-14193 |
US $91.73 |
||
|
85190
|
85190
85190-14251 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 09.1977] RA40,TA40..RHD..(GT,ST,XT) DRIVER SIDE |
85190-14251 |
US $91.73 |
||
| replacement | |||||
|
85190
|
85190
85190-14193 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 09.1977] RA40,TA40..RHD..(GT,ST,XT) DRIVER SIDE |
85190-14193 |
US $91.73 |
||
|
85190
|
85190
85190-14320 Arm Assy, Windshield WiperWINDSHIELD WIPER [10.1978 - 07.1981] RA40,TA40..RHD..EUG DRIVER SIDE |
85190-14320 |
US $91.73 |
||
|
85190
|
85190
85210-14011 Arm Assy, Windshield WiperWINDSHIELD WIPER [09.1977 - 02.1978] RA40,TA40..RHD ASSISTANT SIDE |
85210-14011 |
US $94.64 |
||
| replacement | |||||
|
85190
|
85190
85210-14013 Arm Assy, Windshield WiperWINDSHIELD WIPER [09.1977 - 02.1978] RA40,TA40..RHD ASSISTANT SIDE |
85210-14013 |
US $97.55 |
||
|
85190
|
85190
85210-14013 Arm Assy, Windshield WiperWINDSHIELD WIPER [02.1978 - 07.1981] RA40,TA40..RHD ASSISTANT SIDE |
85210-14013 |
US $97.55 |
||
|
85190
|
85190
85210-14031 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 09.1977] RA40,TA40..RHD..(GT,ST,XT) ASSISTANT SIDE |
85210-14031 |
US $94.64 |
||
| replacement | |||||
|
85190
|
85190
85210-14013 Arm Assy, Windshield WiperWINDSHIELD WIPER [08.1977 - 09.1977] RA40,TA40..RHD..(GT,ST,XT) ASSISTANT SIDE |
85210-14013 |
US $97.55 |
||
|
85192
|
85192
85192-14030
Cover, Windshield Wiper Arm
[08.1977 - 07.1981] RA40,TA40 |
85192-14030 |
— | ||
|
85220
|
85220
85220-14120
Blade Assy, Windshield Wiper
[08.1977 - 02.1978] RA40,TA40..RHD..(GT,ST,XT) |
85220-14120 |
— | ||
| replacements | |||||
|
85220
|
85220
85220-14122
Blade Assy, Windshield Wiper
[08.1977 - 02.1978] RA40,TA40..RHD..(GT,ST,XT) |
85220-14122 |
— | ||
|
85220
|
85220
85220-14231
Blade Assy, Windshield Wiper
[08.1977 - 02.1978] RA40,TA40..RHD..(GT,ST,XT) |
85220-14231 |
— | ||
|
85220
|
85220
85220-14230
Blade Assy, Windshield Wiper
[04.1978 - 10.1978] RA40,TA40..RHD..EUG DRIVER SIDE |
85220-14230 |
— | ||
| replacements | |||||
|
85220
|
85220
85220-30200
Blade Assy, Windshield Wiper
[04.1978 - 10.1978] RA40,TA40..RHD..EUG DRIVER SIDE |
85220-30200 |
— | ||
|
85220
|
85220
85220-14231
Blade Assy, Windshield Wiper
[04.1978 - 10.1978] RA40,TA40..RHD..EUG DRIVER SIDE |
85220-14231 |
— | ||
|
85220
|
85220
85220-14231
Blade Assy, Windshield Wiper
[10.1978 - 07.1981] RA40,TA40..RHD..EUG DRIVER SIDE |
85220-14231 |
— | ||
|
85220
|
85220
85220-14240 Blade Assy, Windshield WiperWINDSHIELD WIPER [02.1978 - 04.1978] RA40,TA40..RHD..(GT,ST,XT) DRIVER SIDE |
85220-14240 |
US $42.52 |
||
| replacement | |||||
|
85220
|
85220
85220-14122
Blade Assy, Windshield Wiper
[02.1978 - 04.1978] RA40,TA40..RHD..(GT,ST,XT) DRIVER SIDE |
85220-14122 |
— | ||
|
85220
|
85220
85220-14250
Blade Assy, Windshield Wiper
[02.1978 - 04.1978] RA40,TA40..RHD..(GT,ST,XT) ASSISTANT SIDE |
85220-14250 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-14252
Blade Assy, Windshield Wiper
[02.1978 - 04.1978] RA40,TA40..RHD..(GT,ST,XT) ASSISTANT SIDE |
85220-14252 |
— | ||
|
85220
|
85220
85220-14260 Blade Assy, Windshield WiperWINDSHIELD WIPER [04.1978 - 10.1978] RA40,TA40..RHD..EUG ASSISTANT SIDE |
85220-14260 |
US $42.52 |
||
| replacement | |||||
|
85220
|
85220
85220-14122
Blade Assy, Windshield Wiper
[04.1978 - 10.1978] RA40,TA40..RHD..EUG ASSISTANT SIDE |
85220-14122 |
— | ||
|
85220
|
85220
85220-14261
Blade Assy, Windshield Wiper
[10.1978 - 07.1981] RA40,TA40..RHD..EUG ASSISTANT SIDE |
85220-14261 |
— | ||
| replacement | |||||
|
85220
|
85220
85220-14122
Blade Assy, Windshield Wiper
[10.1978 - 07.1981] RA40,TA40..RHD..EUG ASSISTANT SIDE |
85220-14122 |
— | ||
|
85221
|
85221
85221-14140
Rubber, Windshield Wiper
[08.1977 - 10.1977] RA40,TA40 |
85221-14140 |
— | ||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[08.1977 - 10.1977] RA40,TA40 |
85221-14H90 |
US $13.62 |
||
|
85221
|
85221
85221-14150 Blade, Windshield WiperWINDSHIELD WIPER [02.1978 - 04.1978] RA40,TA40 |
85221-14150 |
US $10.05 |
||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[02.1978 - 04.1978] RA40,TA40 |
85221-14H90 |
US $13.62 |
||
|
85221
|
85221
85221-14160 Blade, Windshield WiperWINDSHIELD WIPER [10.1977 - 02.1978] RA40,TA40..LHD; RA40,TA40..RHD..(GT,ST,XT) |
85221-14160 |
US $11.36 |
||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[10.1977 - 02.1978] RA40,TA40..LHD; RA40,TA40..RHD..(GT,ST,XT) |
85221-14H90 |
US $13.62 |
||
|
85221
|
85221
85221-20080
Blade, Windshield Wiper
[04.1978 - 07.1981] RA40,TA40..RHD..EUG |
85221-20080 |
— | ||
| replacement | |||||
|
85221
|
85221
85221-14H90 Rubber, Windshield Wiper[04.1978 - 07.1981] RA40,TA40..RHD..EUG |
85221-14H90 |
US $13.62 |
||
|
8518714160
|
8518714160
85187-14160
Cover, Roller Guide
|
85187-14160 |
— | ||
|
9009900913
|
9009900913
90099-00913 SCREW |
90099-00913 |
US $3.05 |
||
|
9009900923
|
9009900923
90099-00923
New Genuine Part
|
90099-00923 |
— | ||
|
9009920017
|
9009920017
90099-20017
New Genuine Part
|
90099-20017 |
— | ||
