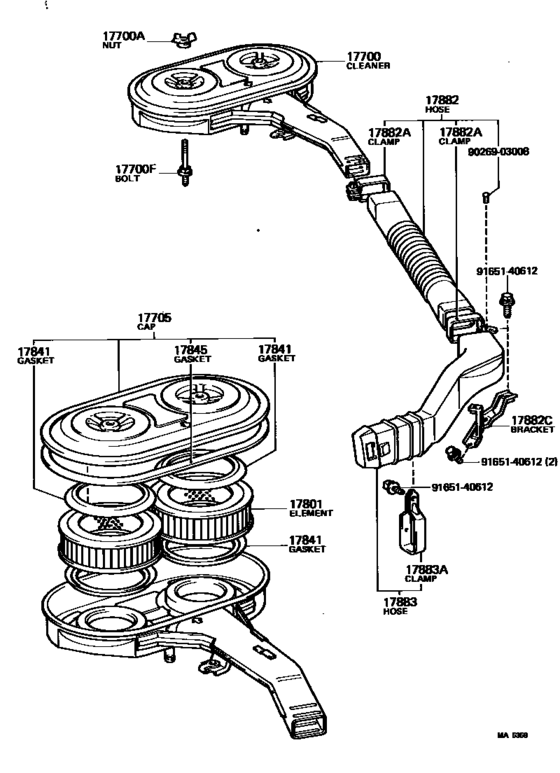

Air Cleaner ([08.1981 - 07.1985] (8108-8507)2TB..GEN) Diagram Toyota CELICA
- Year
- 1981 - 1985
- Sales region
- General
- Frame
- TA60
- grade
- ST
- body
- CP
- ENGINE
- 2TB
- TRANSMISSION
- MTM
- From
- 08.1981
- To
- 07.1985
- Gear Shift Type
- 5F
- Driver's Position
- LHD
- Fuel Induction
- TCB
- Destination
- GEN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17700
|
17700
17700-26270
Cleaner Assy, Air
[08.1981 - 07.1985] 2TB..TA60..GEN |
17700-26270 |
— | ||
|
17700
|
17700
17700-26280
Cleaner Assy, Air
[08.1981 - 07.1985] 2TB..TA60 W/HOT AIR INTAKE |
17700-26280 |
— | ||
|
17700A
|
17700A
90175-06003 Nut, Wing(For Air Cleaner)[08.1981 - 07.1985] 21R#..RA60,61; 2SC..SA63; 2T#..TA60 |
90175-06003 |
from US $1.27 |
||
|
17700F
|
17700F
90116-06024 Bolt, Stud(For Air Cleaner Setting)[08.1981 - 07.1985] 2TB..TA60 RR |
90116-06024 |
US $3.14 |
||
|
17700F
|
17700F
90116-06222 Bolt, Stud(For Air Cleaner Setting)[08.1981 - 07.1985] 2TB..TA60 FR |
90116-06222 |
US $3.32 |
||
|
17705
|
17705
17705-26090
Cap Sub-Assy, Air Cleaner
[08.1981 - 07.1985] 2TB..TA60..GEN |
17705-26090 |
— | ||
|
17705
|
17705
17705-26100
Cap Sub-Assy, Air Cleaner
[08.1981 - 07.1985] 2TB..TA60 W/HOT AIR INTAKE |
17705-26100 |
— | ||
|
17801
|
17801
17801-24020
Element Sub-Assy, Air Cleaner Filter
[08.1981 - 07.1985] 2TB..TA60 |
17801-24020 |
— | ||
|
17841
|
17841
17841-24011
Gasket, Filter Element
[08.1981 - 07.1985] 2TB..TA60 |
17841-24011 |
— | ||
|
17845
|
17845
17845-26010
Gasket, Air Cleaner Cap
[08.1981 - 07.1985] 2TB..TA60 |
17845-26010 |
— | ||
|
17882
|
17882
17881-14020
Hose, Air Cleaner, No.2
[08.1981 - 07.1985] 2T#..TA60 |
17881-14020 |
— | ||
|
17882A
|
17882A
90460-01003
Clamp(For Air Cleaner Hose, No.2)
[08.1981 - 07.1985] 2T#..TA60 AIR CLEANER SIDE |
90460-01003 |
— | ||
|
17882A
|
17882A
90460-01019 Clamp(For Air Cleaner Hose, No.2)[08.1981 - 07.1985] 2T#..TA60 HOSE SIDE |
90460-01019 |
US $8.01 |
||
|
17882C
|
17882C
53775-14010
Bracket(For Cool Air Intake)
[08.1981 - 07.1985] 2T#..TA60 |
53775-14010 |
— | ||
|
17883
|
17883
17882-14010 Hose, Air Cleaner, No.3[08.1981 - 07.1985] 2T#..TA60 |
17882-14010 |
US $38.73 |
||
|
17883A
|
17883A
90460-01018 Clamp(For Air Cleaner Hose, No.3)[08.1981 - 07.1985] 2SC..SA63; 2T#..TA60 |
90460-01018 |
US $7.28 |
||
|
9026903008
|
9026903008
90269-03008
New Genuine Part
|
90269-03008 |
— | ||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
US $1.12 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.31 |
||
