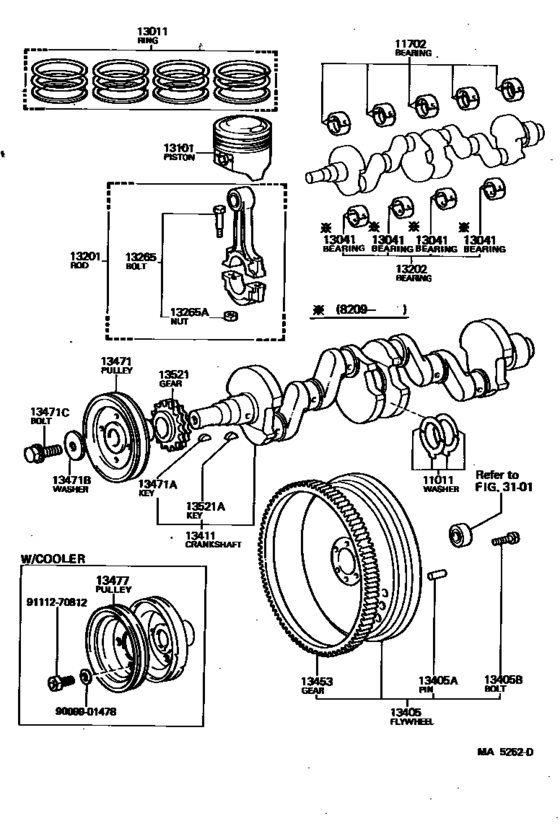

Crankshaft & Piston ([07.1981 - 08.1983] (8107-8308)2TGEU) Diagram Toyota CELICA
- Year
- 1981 - 1983
- Sales region
- Japan
- Frame
- TA61
- grade
- GT
- body
- LB
- ENGINE
- 2TGEU
- TRANSMISSION
- MTM
- From
- 07.1981
- To
- 08.1983
- Gear Shift Type
- 5F
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-25010 Washer Set, Crankshaft Thrust[07.1981 - 07.1985] 1SU..SA60 ＳＴＤ,STD; 2TGEU,3T#,4TGTEU..TA6# ＳＴＤ,STD |
11011-25010 |
from US $20.67 |
||
|
11011
|
11011
11012-25010 Washer Set, Crankshaft Thrust[07.1981 - 08.1983] 2TGEU,3TEU..TA61,63 O/S 0.125 |
11012-25010 |
US $40.62 |
||
|
11011
|
11011
11013-25010 Washer Set, Crankshaft Thrust[07.1981 - 08.1983] 2TGEU,3TEU..TA61,63 O/S 0.250 |
11013-25010 |
US $40.62 |
||
|
11702
|
11702
11702-88261
Bearing Set, Crankshaft
[07.1981 - 08.1983] 2TGEU..TA61 STD |
11702-88261 |
— | ||
|
11702
|
11702
11703-88261 Bearing Set, Crankshaft[07.1981 - 08.1983] 2TGEU..TA61 U/S 0.05 |
11703-88261 |
US $331.97 |
||
|
11702
|
11702
11704-88261 Bearing Set, Crankshaft[07.1981 - 08.1983] 2TGEU..TA61 U/S 0.25 |
11704-88261 |
US $331.97 |
||
|
11702
|
11702
11705-88261 Bearing Set, Crankshaft[07.1981 - 08.1983] 2TGEU..TA61 U/S 0.50 |
11705-88261 |
US $331.97 |
||
|
13011
|
13011
13011-88262 Ring Set, Piston[07.1981 - 08.1983] 2TGEU..TA61 STD |
13011-88262 |
US $208.21 |
||
|
13011
|
13011
13013-88262 Ring Set, Piston[07.1981 - 08.1983] 2TGEU..TA61 O/S 0.50 |
13013-88262 |
US $208.21 |
||
|
13011
|
13011
13014-88262
Ring Set, Piston
[07.1981 - 08.1983] 2TGEU..TA61 O/S 0.75 |
13014-88262 |
— | ||
|
13011
|
13011
13015-88262 Ring Set, Piston[07.1981 - 08.1983] 2TGEU..TA61 O/S 1.00 |
13015-88262 |
US $208.21 |
||
|
13041
|
13041
13041-88281-03 Bearing, Connecting Rod[09.1982 - 07.1985] 2TGEU,3TGTEU,4TGTEU..TA6# MARK"3",MARK 3 |
13041-88281-03 |
US $24.17 |
||
|
13041
|
13041
13041-88281-04 Bearing, Connecting Rod[09.1982 - 07.1985] 2TGEU,3TGTEU,4TGTEU..TA6# MARK"4",MARK 4 |
13041-88281-04 |
US $24.17 |
||
|
13041
|
13041
13041-88281-05 Bearing, Connecting Rod[09.1982 - 07.1985] 2TGEU,3TGTEU,4TGTEU..TA6# MARK"5",MARK 5 |
13041-88281-05 |
US $24.17 |
||
|
13041
|
13041
13041-88281-06 Bearing, Connecting Rod[09.1982 - 07.1985] 2TGEU,3TGTEU,4TGTEU..TA6# MARK"6",MARK 6 |
13041-88281-06 |
US $24.17 |
||
|
13041
|
13041
13041-88281-07 Bearing, Connecting Rod[09.1982 - 07.1985] 2TGEU,3TGTEU,4TGTEU..TA6# MARK"7",MARK 7 |
13041-88281-07 |
US $24.17 |
||
|
13101
|
13101
13101-88262 Piston Sub-Assy, W/pin[07.1981 - 08.1983] 2TGEU..TA61 STD |
13101-88262 |
US $158.70 |
||
|
13101
|
13101
13103-88262 Piston Sub-Assy, W/pin[07.1981 - 08.1983] 2TGEU..TA61 O/S 0.50 |
13103-88262 |
US $158.70 |
||
|
13101
|
13101
13104-88262
Piston Sub-Assy, W/pin
[07.1981 - 08.1983] 2TGEU..TA61 O/S 0.75 |
13104-88262 |
— | ||
|
13101
|
13101
13105-88262 Piston Sub-Assy, W/pin[07.1981 - 08.1983] 2TGEU..TA61 O/S 1.00 |
13105-88262 |
US $158.70 |
||
|
13201
|
13201
13201-25010 Rod Sub-Assy, Connecting[07.1981 - 08.1982] 2TGEU,3TEU..TA6# |
13201-25010 |
US $116.48 |
||
|
13201
|
13201
13201-71011
Rod Sub-Assy, Connecting
[09.1982 - 08.1983] 2TGEU..TA61 |
13201-71011 |
— | ||
|
13202
|
13202
13202-88261 Bearing Set, Connecting Rod[07.1981 - 09.1982] 2TGEU..TA61 STD |
13202-88261 |
US $122.30 |
||
|
13202
|
13202
13203-88261
Bearing Set, Connecting Rod
[07.1981 - 09.1982] 2TGEU..TA61 U/S 0.05 |
13203-88261 |
— | ||
|
13202
|
13202
13203-88280 Bearing Set, Connecting Rod[09.1982 - 08.1983] 2TGEU..TA61 U/S 0.05 |
13203-88280 |
US $164.53 |
||
|
13202
|
13202
13204-88261 Bearing Set, Connecting Rod[07.1981 - 09.1982] 2TGEU..TA61 U/S 0.25 |
13204-88261 |
US $148.51 |
||
|
13202
|
13202
13204-88280 Bearing Set, Connecting Rod[09.1982 - 08.1983] 2TGEU..TA61 U/S 0.25 |
13204-88280 |
US $164.53 |
||
|
13202
|
13202
13205-88261 Bearing Set, Connecting Rod[07.1981 - 09.1982] 2TGEU..TA61 U/S 0.50 |
13205-88261 |
US $148.51 |
||
|
13202
|
13202
13205-88280 Bearing Set, Connecting Rod[09.1982 - 08.1983] 2TGEU..TA61 U/S 0.50 |
13205-88280 |
US $164.53 |
||
|
13265
|
13265
13265-29025 Bolt, Connecting Rod[07.1981 - 07.1985] 2TGEU,3T#,4TGTEU..TA6# |
13265-29025 |
US $12.16 |
||
|
13265A
|
13265A
90170-09001 Nut, Hexagon(For Connecting Rod Bolt)[03.1983 - 12.1985] 4AGEU..AA63; 1G#..GA61; 2TGEU,3T#,4TGTEU..TA6# |
90170-09001 |
US $2.72 |
||
|
13265A
|
13265A
90170-09195 Nut, Hexagon(For Connecting Rod Bolt)[07.1981 - 03.1983] 5MGEU..MA61; 2TGEU,3T#,4TGTEU..TA6# |
90170-09195 |
US $3.20 |
||
|
13405
|
13405
13405-29067 Flywheel Sub-Assy[07.1981 - 08.1983] 2TGEU..TA61 |
13405-29067 |
US $327.60 |
||
|
13405A
|
13405A
90250-08054 Pin, Straight[07.1981 - 12.1985] 18RGEU..RA63 長さ＝２３，外径＝８,L=23,OD=8; 1SU..SA60..MTM 長さ＝２３，外径＝８,L=23,OD=8; 1G#..GA61..5F 長さ＝２３，外径＝８,L=23,OD=8; 5MGEU..MA61..5F 長さ＝２３，外径＝８,L=23,OD=8; 2TGEU,3T#,4TGTEU..TA6#..5F 長さ＝２３，外径＝８,L=23,OD=8 |
90250-08054 |
from US $1.92 |
||
|
13405B
|
13405B
90105-10042 Bolt, Flywheel Setting[07.1981 - 12.1985] 2TGEU,3TEU..TA61,63..5F *10-1.25PX26-18; 1G#..GA61..5F *10-1.25PX26-18; 5MGEU..MA61..5F *10-1.25PX26-18 |
90105-10042 |
US $1.76 |
||
|
13411
|
13411
13411-27904 Crankshaft[07.1981 - 08.1983] 2TGEU..TA61 |
13411-27904 |
US $1,307.49 |
||
| replacement | |||||
|
13411
|
13411
13411-27901 Crankshaft[07.1981 - 08.1983] 2TGEU..TA61 |
13411-27901 |
US $1,186.64 |
||
|
13453
|
13453
13453-20010 Gear, Flywheel Ring[07.1981 - 12.1985] 18RGEU..RA63; 1SU..SA60..MTM; 1G#..GA61..5F; 5MGEU..MA61..5F; 2TGEU,3T#,4TGTEU..TA6#..5F |
13453-20010 |
from US $67.79 |
||
|
13471
|
13471
13471-88260 Pulley, Crankshaft[07.1981 - 08.1983] 2TGEU..TA61 |
13471-88260 |
US $67.85 |
||
|
13471A
|
13471A
90280-05010 Key(For Oil Pump Drive Spline)[07.1981 - 07.1985] 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
90280-05010 |
from US $1.83 |
||
|
13471B
|
13471B
90209-13003 Washer, Plate(For Crankshaft Pulley Set)[07.1981 - 07.1985] 2TGEU,3T#,4TGTEU..TA6# |
90209-13003 |
from US $2.84 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[07.1981 - 07.1985] 2TGEU,3T#,4TGTEU..TA6# *12-1.25PX24-18 |
90105-12051 |
from US $2.81 |
||
|
13477
|
13477
88451-14020
Pulley, Crankshaft, No.2
[07.1981 - 08.1983] 2TGEU..TA61 W/COOLER |
88451-14020 |
— | ||
|
13521
|
13521
13521-33010 Gear Or Sprocket, Crankshaft Timing[07.1981 - 07.1985] 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
13521-33010 |
US $45.95 |
||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[07.1981 - 08.1984] 4AGEU..AA63; 5MGEU,MTEU..MA6#; 18RGEU..RA63; 2TGEU,3T#,4TGTEU..TA6# |
90280-05010 |
from US $1.83 |
||
|
9009901478
|
9009901478
90099-01478
New Genuine Part
|
90099-01478 |
— | ||
|
9111270812
|
9111270812
91112-70812
New Genuine Part
|
91112-70812 |
— | ||
